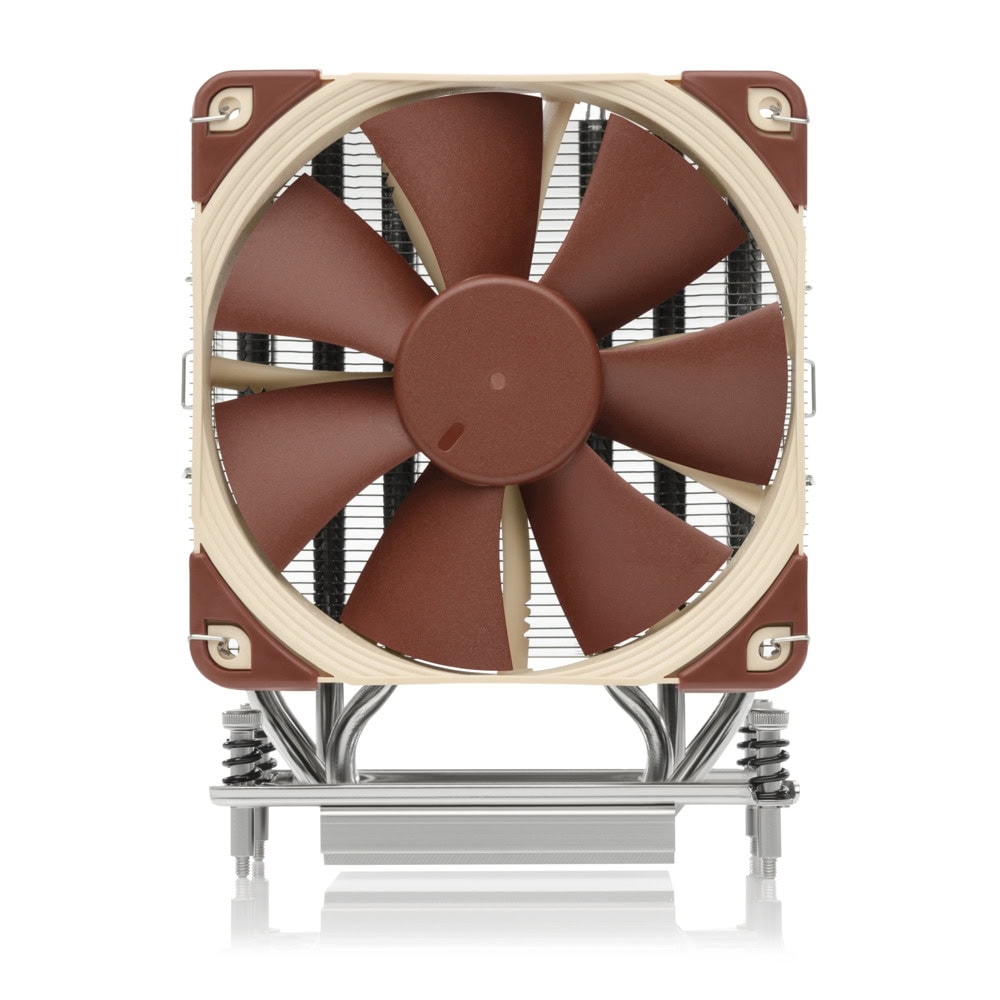

Охлаждане за процесор Noctua NH-U12S TR4-SP3, съвместимост с AMD TR4/SP3

General
Notes and warnings Please note that the NH-U12S TR4-SP3 is a dedicated version for the AMD TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.

Cooler Specification
Socket compatibility AMD TR4 & SP3

Height (without fan) 158 mm
Width (without fan) 125 mm
Depth (without fan) 45 mm

Height (with fan) 158 mm
Width (with fan) 125 mm
Depth (with fan) 71 mm

Weight (without fan) 695 g
Weight (with fan/s) 870 g

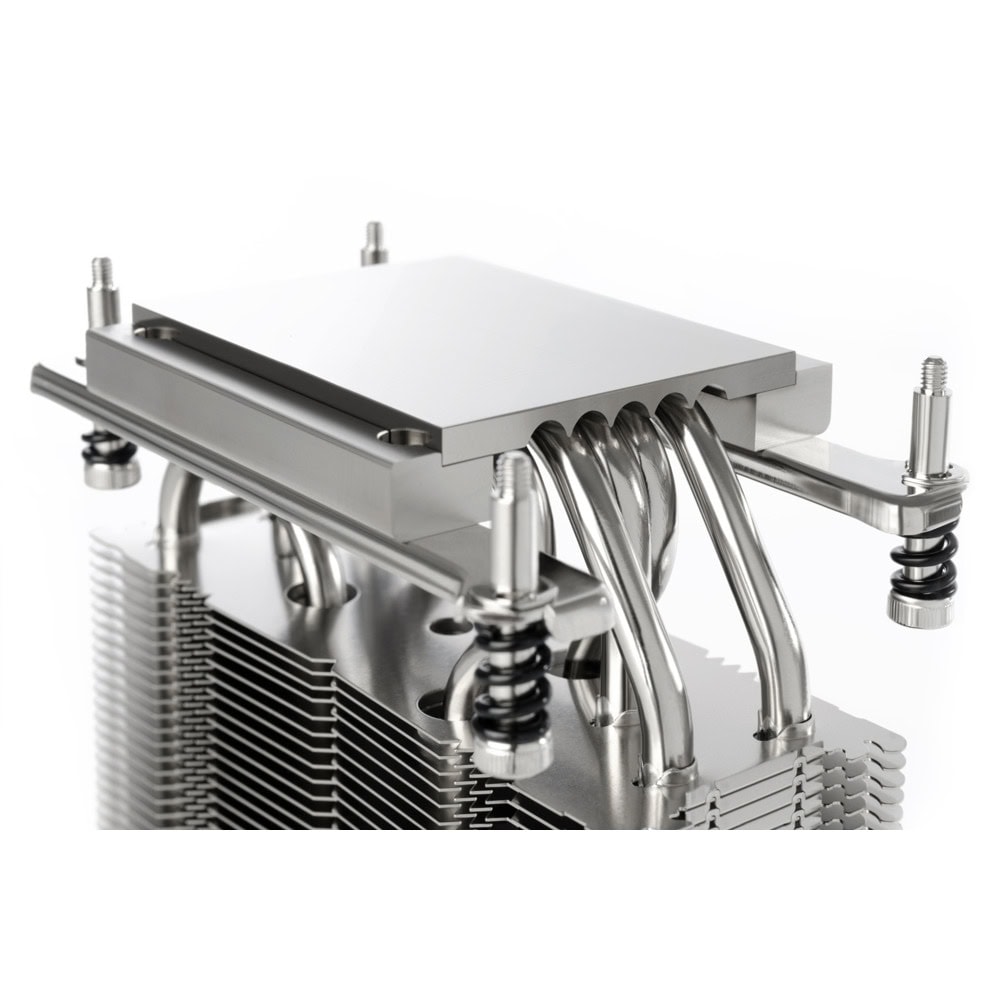

Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP see TDP guide

Fan compatibility 120x120x25

Scope of Delivery
NF-F12 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ TR4/SP3 mounting-kit
Anti-vibration pads and fan-clips for second NF-F12
Noctua metal case-badge

FAN Specification
Model Noctua NF-F12 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Max. Airflow 93,4 m³/h
Max. Airflow with L.N.A. 74,3 m³/h
Max. Acoustical Noise 22,4 dB(A)
Max. Acoustical Noise with L.N.A. 18,6 dB(A)
Input Power 0,6 W
Voltage Range 12 V
MTTF > 150.000 h

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
