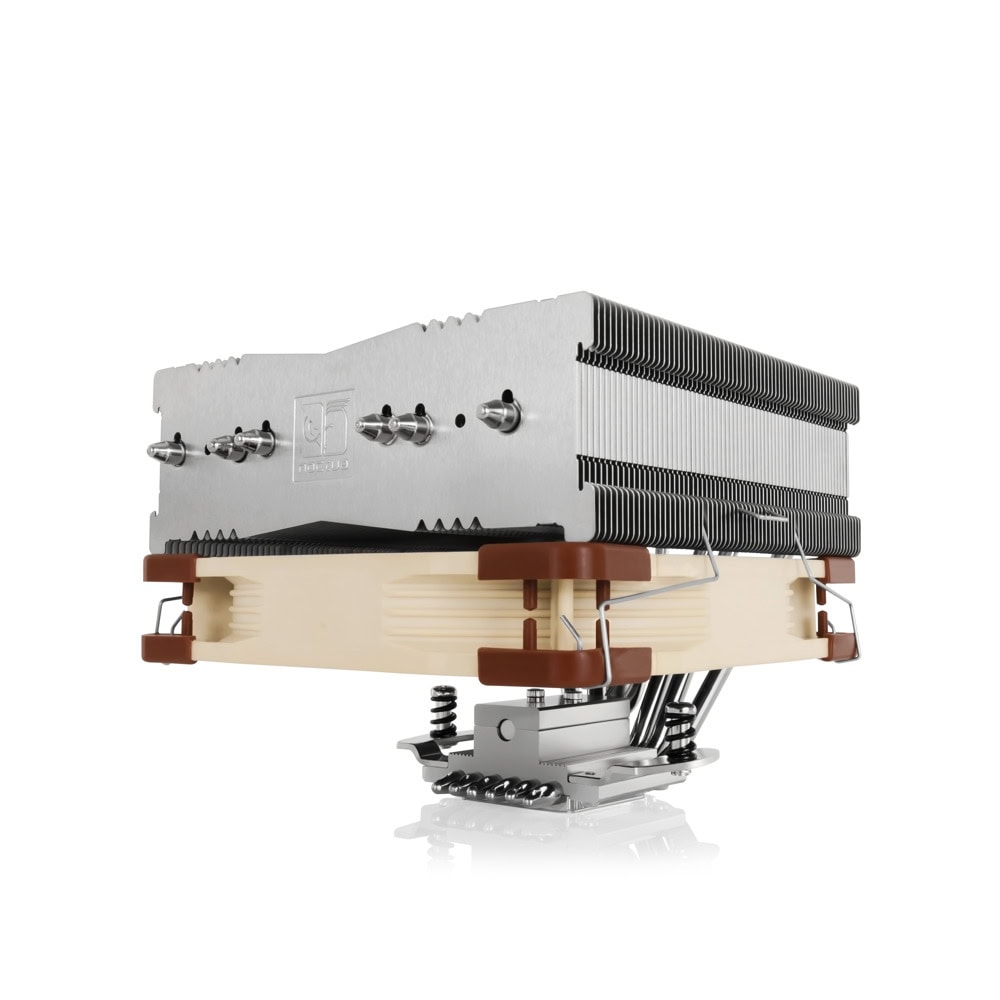

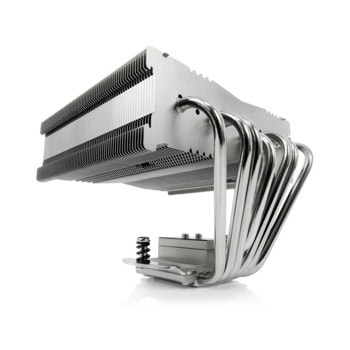

Охлаждане за процесор Noctua NH-C14S, съвместимост със сокети Intel LGA1700/1200/LGA115X/LGA2066/LGA2011-0/LGA2011-3 & AMD AM5/AM4

Socket compatibility:
Intel LGA1700 (included since Q3 2021, older coolers require NM-i17xx-MP83), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150, LGA2066, LGA2011-0 & LGA2011-3 (Square ILM) & AMD AM4, AM5 (included since 2019, older coolers require NM-AM4)


Height (without fan) 115 mm
Width (without fan) 140 mm
Depth (without fan) 163 mm
Height (with fan) 115 / 142 mm
Width (with fan) 140 mm
Depth (with fan) 163 mm
Weight (without fan) 820 g
Weight (with fan) 1015 g


Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP see TDP guide

Fan compatibility 140x140x25mm (with square frame)

Scope of Delivery
1x NF-A14 PWM premium fan
Low-Noise Adaptor (L.N.A.)
Fan clips for second fan
NT-H1 high-grade thermal compound
SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge


Fan specifications
Model 1x Noctua NF-A14 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Max. Airflow 140,2 m³/h
Max. Airflow with L.N.A. 115,5 m³/h
Max. Acoustical Noise 24,6 dB(A)
Max. Acoustical Noise with L.N.A. 19,2 dB(A)
Input Power 1,56 W
Voltage Range 12 V
MTBF > 150.000 h
