Name: Охлаждане за процесор Arctic Alpine 23 (ACALP00035A), съвместимост със сокети AMD AM4
Brand: Arctic
SKU: FANCPARCTICACALP00035A
Price: 8.55 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

Alpine 23

Specification	Details
Compatibility
AMD Socket:	AM5, AM4
Ram Clearance:	unlimited
Operating Ambient Temperature:	0—40 °C
Heatsink
Outer Diameter:	93.4 mm
Fin Material:	Aluminum
Number of Fins:	50 Y-shaped Fins
Thermal Paste:	MX-4 pre-applied
Fan
Fan Diameter:	90 mm
Fan Speed:	100—2000 rpm
Fan Bearing:	Fluid Dynamic Bearing
Noise Level:	0.3 Sone
Current:	0.06 A
Connector:	4-Pin

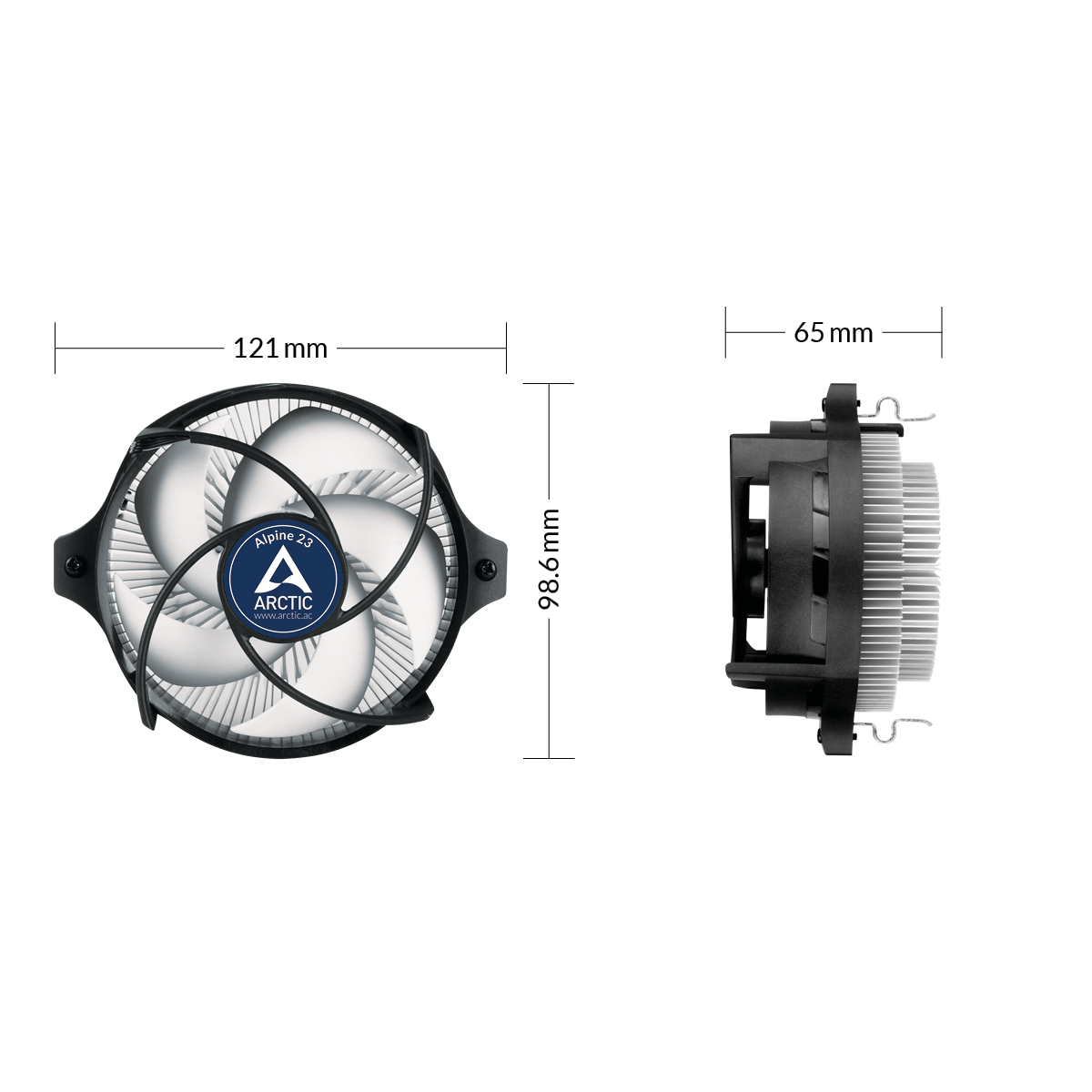

Size & Weight
Installation height:	65 mm
Length:	98.6 mm
Width:	121 mm
Height:	65 mm
Weight:	275.5

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.

Виж още Процесори Охладители Arctic
Виж всички Процесори Охладители в категорията

Документация

Spec sheet Alpine 23

Технически характеристики

Процесор сокет:	AMD
Водно охлаждане:	Не

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Какво пазаруват другите
Най-продавани продукти
Промоционални продукти

Свързани продукти и тагове:

Евтини Процесори Охладители цени до 30 лв (68)Процесорни охладители за сокет - AMD (16)

Виж повече

	Future-Proof Compatibility At the end of 2022, AMD released the AM5 socket, the successor to its popular AM4 platform. Because all mechanical dimensions remain identical, we can guarantee the compatibility of ARCTIC coolers with AMD's new processors.

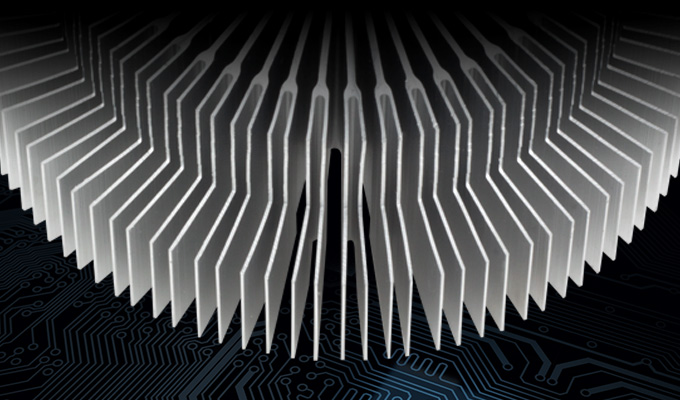

Improved Cooling Performance by New Production Process The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This new production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins of the new Alpine are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
	Wide rpm Range The Alpine 23 features a new motor technology with a very wide, PWM-controlled rpm range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.

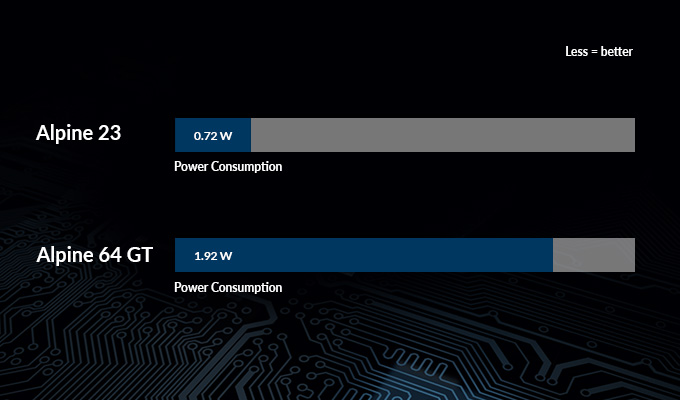

Lower Power Consumption & Minimum Vibration The new Alpine 23 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from the commutation of a regular DC motor. These factors contribute to saving energy, lowering the coil temperature, and reducing vibrations to a minimum without compromising performance.

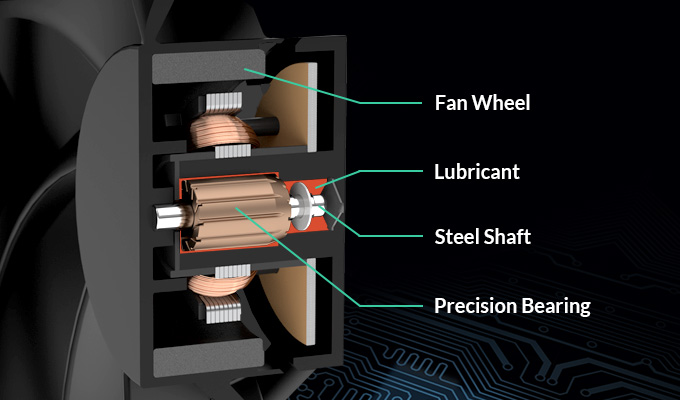

	High-Quality Bearing Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Extended Life Span A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
	Pre-Applied MX-4 Thermal Paste The pre-applied, high-performance MX-4 thermal compound ensures fast and clean installation.

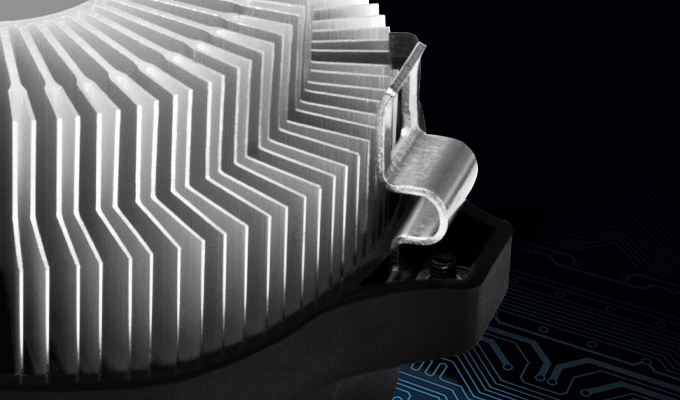

Easy and Fast Installation Thanks to the mounting clips, the installation is really easy. Alpine 23 is simply plugged into the existing AMD retention modules and screwed tight.
	Quality You Can Rely On To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how to improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also durability. It's a certainty that we are happy to pass on to our customers.
