Охлаждане за процесор Noctua NH-U9S, съвместимост с LGA2011/2011-3/1156/1155/1151/1150 & AMD AM2(+), AM3(+), AM4, FM1, FM2(+)

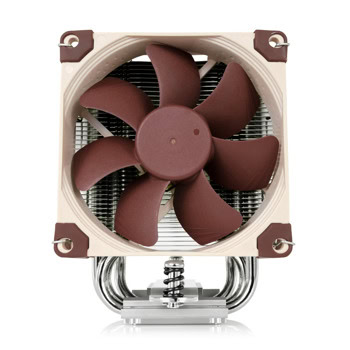

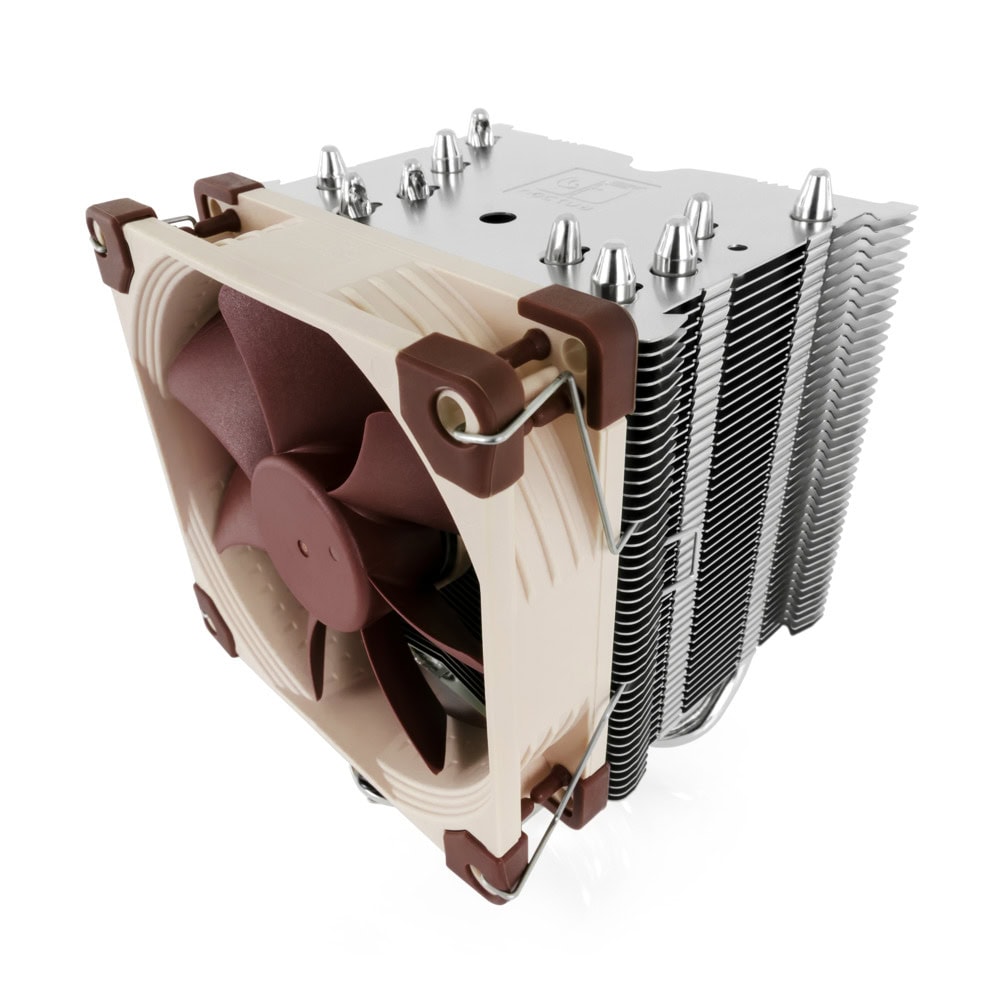

Noctua NH-U9S
(1881)

Cooler Specifications

Socket compatibility
Intel LGA2011-0 & LGA2011-3(Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+,АМ4, FM1, FM2, FM2+ (backplate required)


Height (without fan)
125 mm

Width (without fan)
95 mm

Depth (without fan)
68 mm

Height (with fan)
125 mm

Width (with fan)
95 mm

Depth (with fan)
95 mm

Weight (without fan)
524 g

Weight (with fan/s)
618 g


Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP
see TDP guide

Fan compatibility
92x92x25

FAN Specification

Model
Noctua NF-A9 PWM

Bearing
SSO2

Max. Rotational Speed (+/- 10%)
2000 RPM

Max. Rotational Speed with L.N.A. (+/- 10%)
1550 RPM

Max. Airflow
78,9 m³/h

Max. Airflow with L.N.A.
62,6 m³/h

Max. Acoustical Noise
22,8 dB(A)

Max. Acoustical Noise with L.N.A.
16,3 dB(A)

Input Power
1,2 W

Voltage Range
12 V

MTBF
> 150.000 h

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.

Виж още Процесори Охладители Noctua
Виж всички Процесори Охладители в категорията
