Model Description
-

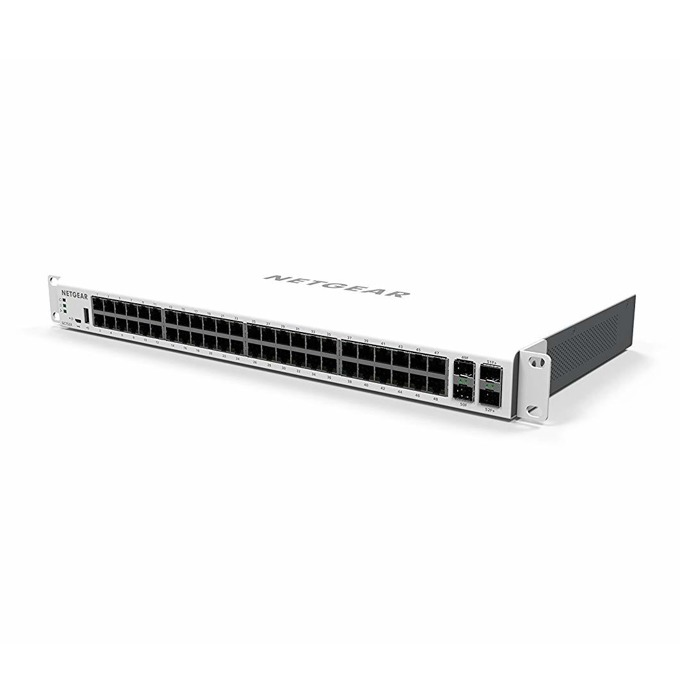

Insight Managed 52-Port Gigabit Ethernet Smart Cloud Switch with 2 SFP and 2 SFP+ 10G Fiber Ports
Gigabit copper ports
-
48
SFP / SFP+ 10G Ports
-
SFP Ports: 2 (dedicated)
-
10G SFP+ Ports: 2 (dedicated)
Number of PoE/PoE+ ports
-
N/A
Total PoE power budget (watts)
-
N/A
Bandwidth (full-duplex)
-
140 Gbps
Buffer size (dynamically shared across ports in use)
-
2 MB
MAC address database size (48-bit MAC addresses)
-
16K
VLAN (number supported)
-
256
VLAN routing
-
Yes
Dynamic VLAN assignment
-
Yes
MLD Snooping
-
Yes
Static routes
-
32 (IPv4) / 31 (IPv6)
Link Aggregation / Port Trunking
-
LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG
Number of LAGs & number of members
-
24 LAGs with max 8 members in each LAG
Number of priority queues
-
8
Supported multicast groups
-
512
DoS prevention
-
Yes
Loop detection/prevention
-
Yes
Jumbo frame support
-
Up to 9K packets
EEE (IEEE 802.3az)
-
Yes
Power supply
-
Internal: 100-240VAC, 50-60Hz, 1.5A max (power cord localized to country of sale)
Max power (worst case, all ports used, line-rate traffic)
-
43.9W
Fan(s)
-
1
Acoustic noise level @ 25°C (dBA)
-
25 dBA
Operating temperature
-
0° to 50°C (32° to 122°F)
MTBF (@ 25°C)
-
1,360,115 hrs (155 yrs)
Electromagnetic compliance (A or B)
-
Class A
Dimensions (W x D x H)
-
440 x 224 x 44 mm (17.3 x 8.8 x 1.7 in)
Weight
-
3.16 kg (6.97 lb)
Виж още Суич Netgear
Виж всички Суич в категорията
Data Sheet| Брой портове: | 52 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
