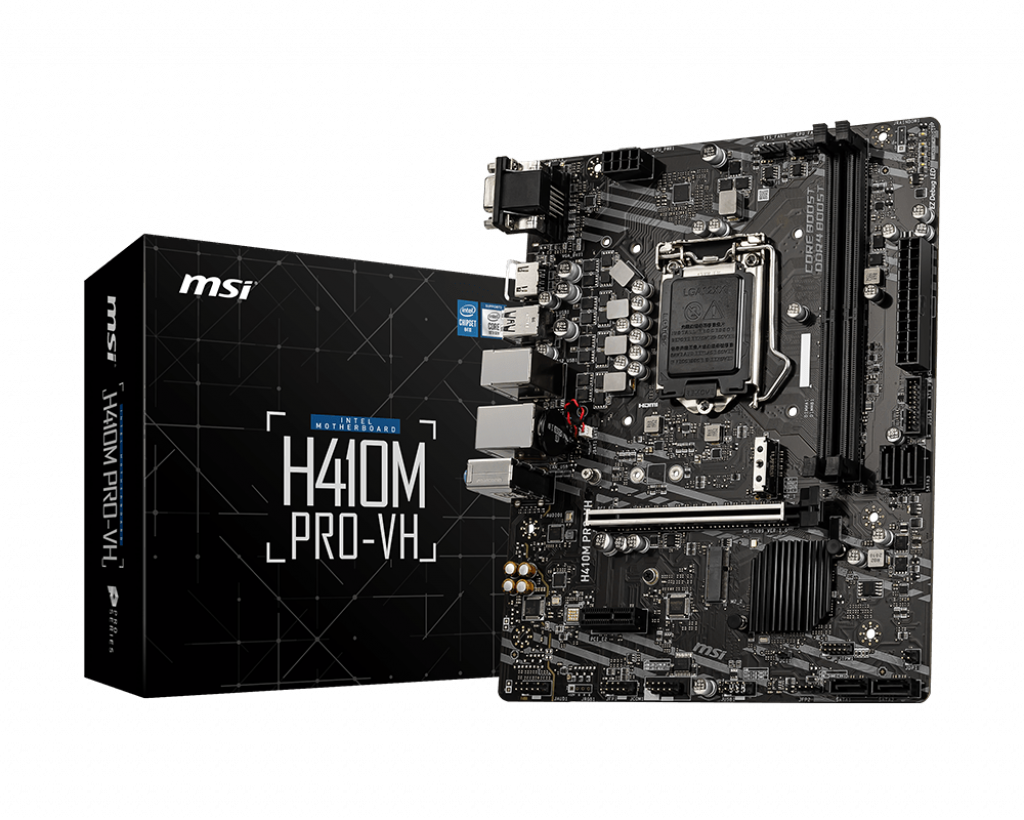

Дънна платка MSI H410M PRO-VH, H410, LGA1200, DDR4, PCI-E 3.0 (HDMI/VGA), 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen 1, Micro ATX

H410M PRO-VH

• Supports 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
• Supports DDR4 Memory, up to 2933(Max) MHz
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Specifications:

PROCESSOR

Supports 10^th Gen Intel^® Core™ and Pentium^® Gold / Celeron^® processors for LGA 1200 socket^1 2

1. Please go to www.intel.com for more compatibility information.
2. Onboard graphics output are disabled when using F SKU processors.

See supported processors

CHIPSET

Intel^® H410 Chipset

MEMORY

• 2x DDR4 memory slots, support up to 64GB¹
• Intel^® Core™ i7/ i9
  • Supports up to DDR4 2933 MHz
• Intel^® Core™ i5 and below
  • Supports up to DDR4 2666 MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel^® Extreme Memory Profile (XMP)

1. Please refer www.msi.com for more information on compatible memory.

See supported memory

EXPANSION SLOT

• 1x PCIe 3.0 x16 slot (From CPU)
• 1x PCIe 3.0 x1 slot (From PCH)
• 1x M.2 slot with E key for WiFi module only

ONBOARD GRAPHICS

• 1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz
• 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz

STORAGE

Intel^® H410 Chipset

• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M)
  • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices

USB

Intel^® H410 Chipset

• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
• 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)

AUDIO

Realtek^® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio

LAN

• 1x Intel^® I219V Gigabit LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x Front panel connectors
• 1x Serial port connector
• 1x TPM module connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 4x EZ Debug LED

BACK PANEL PORTS

1. VGA
2. Keyboard / Mouse
3. LAN
4. HDMI
5. USB 3.2 Gen 1 5Gbps Type-A
6. USB 2.0
7. USB 2.0
8. Audio Connectors

DIMENSIONS

• Mirco-ATX Form Factor
• 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)

MOUNTING

6 mounting holes

OPERATING SYSTEM

Support for Windows^® 10 64-bit
