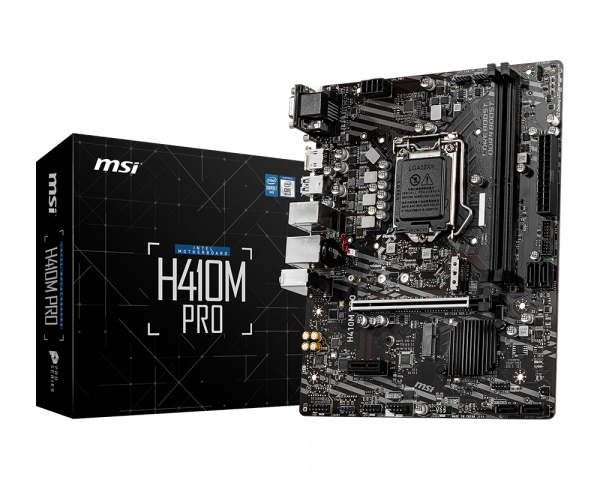

- Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 2933(Max) MHz
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
SPECIFICATIONS:
PROCESSOR
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2
Please go to www.intel.com for more compatibility information.Onboard graphics output are disabled when using F SKU processors.
CHIPSET
Intel® H410 Chipset
MEMORY
2x DDR4 memory slots, support up to 64GB1
Intel® Core™ i7/ i9
Supports up to DDR4 2933 MHz
Intel® Core™ i5 and below
Supports up to DDR4 2666 MHz
EXPANSION SLOT
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH)
1x M.2 slot with E key for WiFi module only
ONBOARD GRAPHICS
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
1X VGA port
Maximum shared memory is 1GB
STORAGE
Intel® H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
USB
Intel® H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
AUDIO
8-Channel(7.1) HD Audio with Audio Boost
LAN
1x Intel® I219V Gigabit LAN controller
DIMENSIONS
Mirco-ATX Form Factor
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
MOUNTING
6 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
Виж още Дънни платки за Intel процесори MSI
Виж всички Дънни платки за Intel процесори в категорията
| Процесор сокет: | LGA 1200 |
|---|---|
| Чипсет: | H410 |
| Поддържана памет: | DDR4 |
| Брой слотове за RAM памет: | 2 |
| Storage интерфейси: | SATA 6Gbit/s, M.2 |
| RAID: | Не |
| Безжични мрежи: | Не |
| Bluetooth: | Не |
| Видео слот: | PCI-E |
| Multi-Graphics технология: | Няма |
| Видео изход: | HDMI DVI VGA (D-Sub) |
| Форм фактор: | Micro ATX |
