MSI B650 GAMING PLUS WIFI
Икона в кампания
НазадMSI B650 GAMING PLUS WIFIMSI B650 GAMING PLUS WIFIMSI B650 GAMING PLUS WIFIMSI B650 GAMING PLUS WIFIНапред

Дънна платка MSI B650 GAMING PLUS WIFI, B650, AM5, DDR5, PCI-E 4.0 (HDMI&DP), 2x M.2, 4x SATA 6Gb/s, 4x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2x2 Type-C, Wi-Fi 6E, Bluetooth, ATX

id 264496 Код: MBAMSIB650GAMINGPLUSWIFI
  • Модел: B650 GAMING PLUS WIFI
  • Марка: MSI
  • Код на продукта: 911-7E26-008
  • Поддържана памет: DDR5
  • RAID: Да
  • Безжични мрежи: Wi-Fi 6 (802.11ax)
  • Bluetooth: Да
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Видеокарта: Вградена
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

    MSI B650 GAMING PLUS WIFI



    B650 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.



    • Supports AMD Ryzen 7000 Series Desktop Processors
    • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
    • Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
    • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
    • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
    • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
    • High Quality PCB: 6-layer PCB made by 2oz thickened copper
    • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience





    Tech specs:

    ChipsetAMD B650

    CPUSupports AMD Ryzen 7000 Series Desktop Processors
    Socket AM5
    Memory4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7200+ MHz
    • 1DPC 2R Max speed up to 6000+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5400+ MHz

    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO
    Onboard Graphics

    1x HDMI
    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Supports DP1.4, maximum resolution of 4K 60Hz*


    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

    Slot2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    Multi-GPUAMD MULTI-GPU Support
    Storage2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
    RAIDSupports RAID 0, RAID 1 and RAID 1 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
    USB4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    3x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
    LANRealtek 8125BG 2.5G LAN
    WIRELESS LAN & BLUETOOTHAMD Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax

    Supports Bluetooth 5.3**

    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
    AudioRealtek ALC897 Codec
    7.1-Channel High Definition Audio
    Internal IO1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    4x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    2x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
    LED FEATURE4x EZ Debug LED

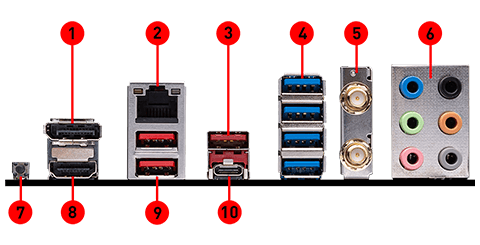

    BACK PANEL PORTS
    1. DisplayPort
    2. 2.5G LAN
    3. USB 3.2 Gen 2 10Gbps (Type-A)
    4. USB 3.2 Gen 1 5Gbps (Type-A)
    5. Wi-Fi / Bluetooth
    6. Audio connectors
    7. Flash BIOS Button
    8. HDMI
    9. USB 3.2 Gen 2 10Gbps (Type-A)
    10. USB 3.2 Gen 2x2 20Gbps (Type-C)
    OPERATING SYSTEMSupport for Windows 11 64-bit, Windows 10 64-bit
    PCB InfoATX
    243.84mmx304.8mm




    Виж още Дънни платки за AMD процесори MSI
    Виж всички Дънни платки за AMD процесори в категорията
    Технически характеристики
    Процесор сокет:  AM5
    Чипсет:  B650
    Поддържана памет:  DDR5
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Wi-Fi 6 (802.11ax)
    Bluetooth:  Да
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  DP HDMI
    Форм фактор:  ATX
    Видеокарта:  Вградена
