Дънна платка MSI 870A-G54, AMD 870, AM3, 2xPCI-E (CF), DDR3, SB7.1, Lan1000, SATA 6Gb/s RAID 0,1,5,10, USB3.0, ATX

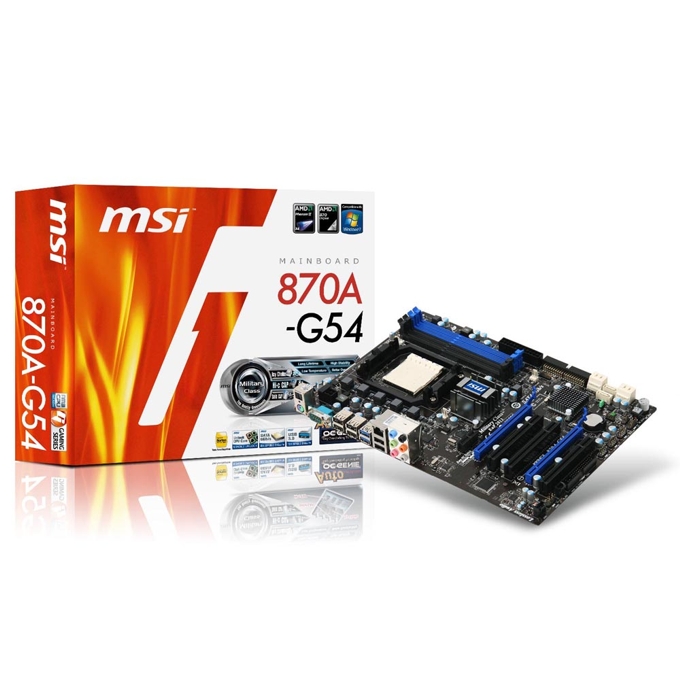

MSI 870A-G54
AMD® 870 Chipset Based

• Superb Stability: Military Class Components
• OC Genie: Easy Overclocking Technology
• Unlock CPU Core: Unlock hidden CPU core and potential
• Support USB 3.0 AND SATA 6Gb/s
• Lossless 24bit/192kHz HD Audio

CPU
• 64bit AMD® Phenom II CPU.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus
• HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset
• AMD® 870 and SB850 Chipset

Main Memory
• Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600* (OC) DRAM, 16GB Max

Slots
• 1 PCI Express x16 slot (PCI_E2) with x16 operation (PCI Express Bus SPEC V2.0 compliant)
• 1 PCI Express x16 slot (PCI_E3) with x4 operation (PCI Express Bus SPEC V2.0 compliant)
• 1 PCI Express x1 slot
• 3 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE
• One IDE port by JMicron® JMB368
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA
• 6 SATA III (1~6) ports by AMD® SB850
- Supports storage and data transfers at up to 6Gb/s

RAID Function
- SATA III 1~6 support RAID 0, 1, 5, 10 mode by AMD® SB850

MSI Reminds You...
• The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio
• Chipset integrated by Realtek® ALC892
- True Blu-ray Audio Support
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN
• Realtek PCI-E GbLAN controller 8111DL
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors
- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU x 1 / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 3 x USB 2.0 connectors
- 6 x Serial ATA III connectors
- 1 x ATA133 HD connector
- 1 x OC Dial button
- 1 x OC Dial knob
- Clear CMOS jumper
- 1 x SPDIF-out connector
- 1 x TPM module connector

Back Panel I/O Ports
- 1 x PS/2 Keyboard/Mouse port
- 1 x Optical SPDIF-out
- 1 x Serial port
- 6 x USB 2.0 ports
- 2 x USB 3.0 ports (blue)
- 1 x RJ45 LAN Jack
- 1 x 6 in 1 audio jack

Dimension
• 21.5cm(L) x 30.5cm(W) ATX Form Factor
