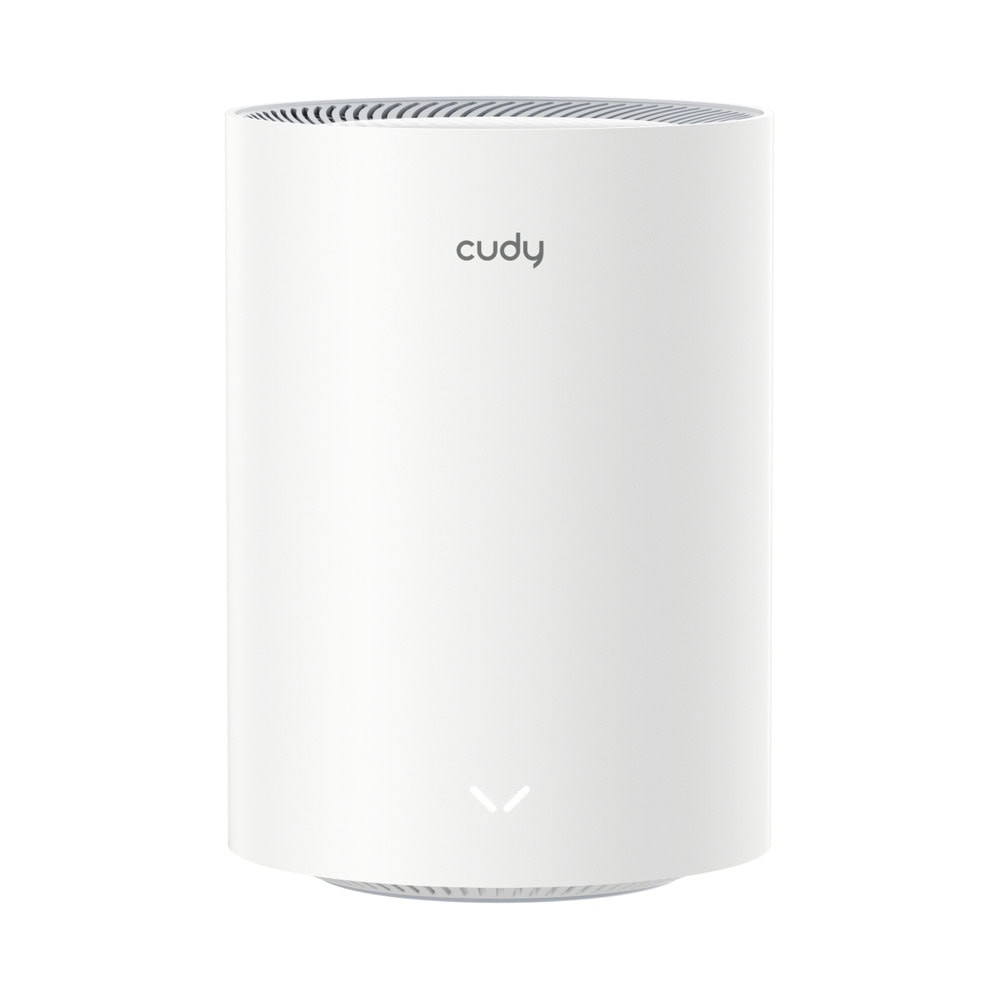

Name: Мрежеста система Cudy M3000 2.0, 3000Mbps, 2.4GHz (574Mbps)/5GHz (2402Mbps), Wireless AX, 1x 10/100/1000Mbps LAN, 1x 10/100/1000/2500Mbps WAN, 5 вътрешни антени
Brand: Cudy
SKU: NTWRCUDYM300020
Price: 56.89 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

Control Online Time & Content

Regulate your kids' online activities by setting an online time duration for their devices and banning inappropriate web domains.

Secure Personal Network

WPA3 protects your wireless from brute-force attacks. Guest Network separates your own devices and guests' devices to improve security.

VPN Server and Client

Six built-in protocols provide compatibility with 50+ commercial VPN providers and enable you to host your own VPN server.

Know Your Network

The system panel provides intuitive information for you to know network status. Built-in diag-tool helps locate problems and troubleshooting easier.

Hardware Specs

Model Version

M3000 2.0

CPU

CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53

Memory/Storage

Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 256 MB (2 Gbit) DDR3

Wireless

5 GHz Wi-Fi Speed: 2402 Mbps
2.4 GHz Wi-Fi Speed: 574 Mbps
5 GHz Wi-Fi Streams: 2 Spatial Streams
2.4 GHz Wi-Fi Streams: 2 Spatial Streams
Wi-Fi Antennas: 5× Internal
FEM or PA/LNA: 5 GHz: 3× Internal ; 2.4 GHz: 2× Internal
Beamforming: Yes
Range Performance: Max 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance: Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

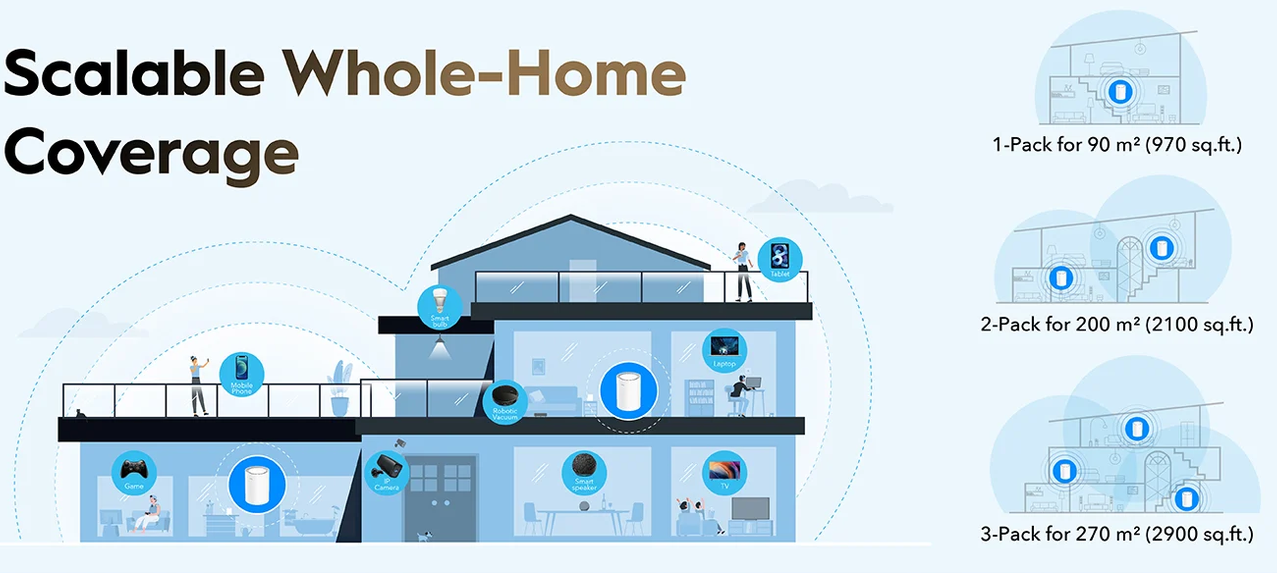

Indoor Coverage Reference 2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. You may see different figures on the older retail box which is based on test taken in wooden structure, while the figures on the website is taken from a concrete structure.

Interfaces

2.5G RJ45 Ports     1
Gigabit RJ45 Ports     1
Ethernet Notes     The 2.5G port is the WAN port, the Gigabit port is LAN port
LED
System
Speed/Link/ACT of Ethernet Port

Physical Buttons
WPS Button
Reset Button

Power

Power Input Type     DC Jack
Power Methods     DC
Power Input     12V⎓1A
Power Adapter In the Box     Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Max Power Consumption (W)     11.5W
Idle Power Consumption (W)     4.2W

Reliability

Environment

Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing

Certifications

FCC, CE

Mechanical

Installation     Desktop
Dimension     Φ110×154.5 mm
Φ4.33×6.08 inches
Product Weight     360 g (12.7 oz.)

Software Specs

Wireless	Wi-Fi Standards	Wi-Fi 6
	Max Wi-Fi Modulation	1024-QAM
	Wi-Fi Efficiency	OFDMA MU-MIMO BSS Color
	Max Capacity	512
	Recommended Client Upper Limit	200
	Wi-Fi Channel Width	Auto/20/40/80/160 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network	QoS	Per-User Rate Limiting Guest Network Rate LImiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	Multicast
	IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN
	Online Detection
Management	Parental Controls	Profiles Settings Offline Time Online Time Pause the Internet Web Filter
	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System	LED Control
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed

Виж още Рутери Безжични Cudy
Виж всички Рутери Безжични в категорията

Документация

Технически характеристики

Безжична скорост:	3000 Mbps
Wi-Fi Стандарт:	Wi-Fi 6 (802.11ax)
LAN портове:	1 x 1000 Mbps
WAN портове:	1 x 2500 Mbps
Честота:	2.4 + 5 GHz
Антени:	5 Вътрешни
USB портове:	Няма
3G/4G:	Не
Преносим:	Не
Други:	Няма
Жична скорост:	10/100/1000/2500 Mbps
