Точка за достъп Mikrotik wAPGR-5HaxD2HaxD&R11e-LTE7, LTE, 3000Mbps, 2.4GHz (574Mpbs)/ 5GHz (2400Mbps), 2x 10/100/1000 RJ-45 (1x PoE), 2x вътрешни антени

wAP ax LTE7 kit

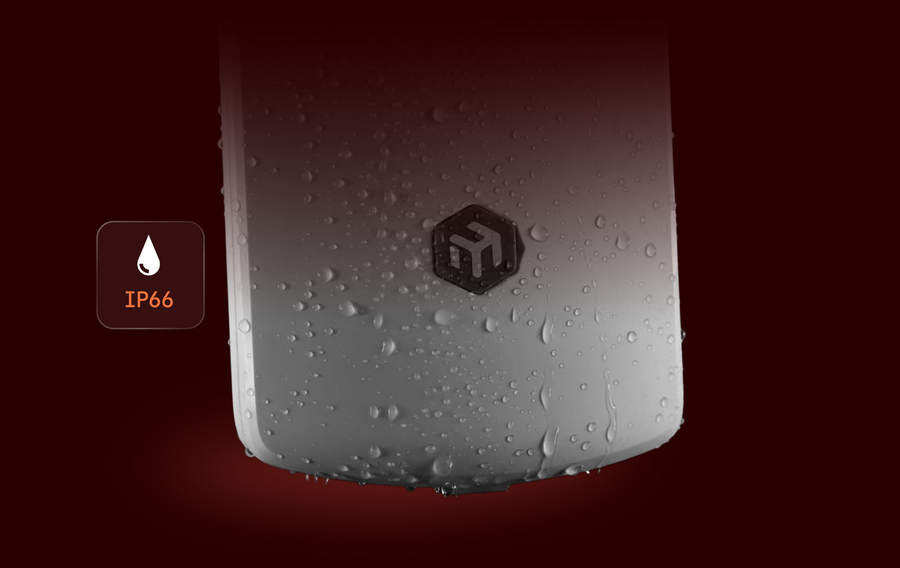

The new wAP LTE7 kit is an evolution of the popular wAP ac LTE6. Now – with Wi-Fi 6, CAT7 LTE, a stronger ARM platform, and improved antenna gain. The unit comes in our improved next-gen IP66 weatherproof enclosure.

Enhanced Hardware

for Uninterrupted Connectivity and Simple Management

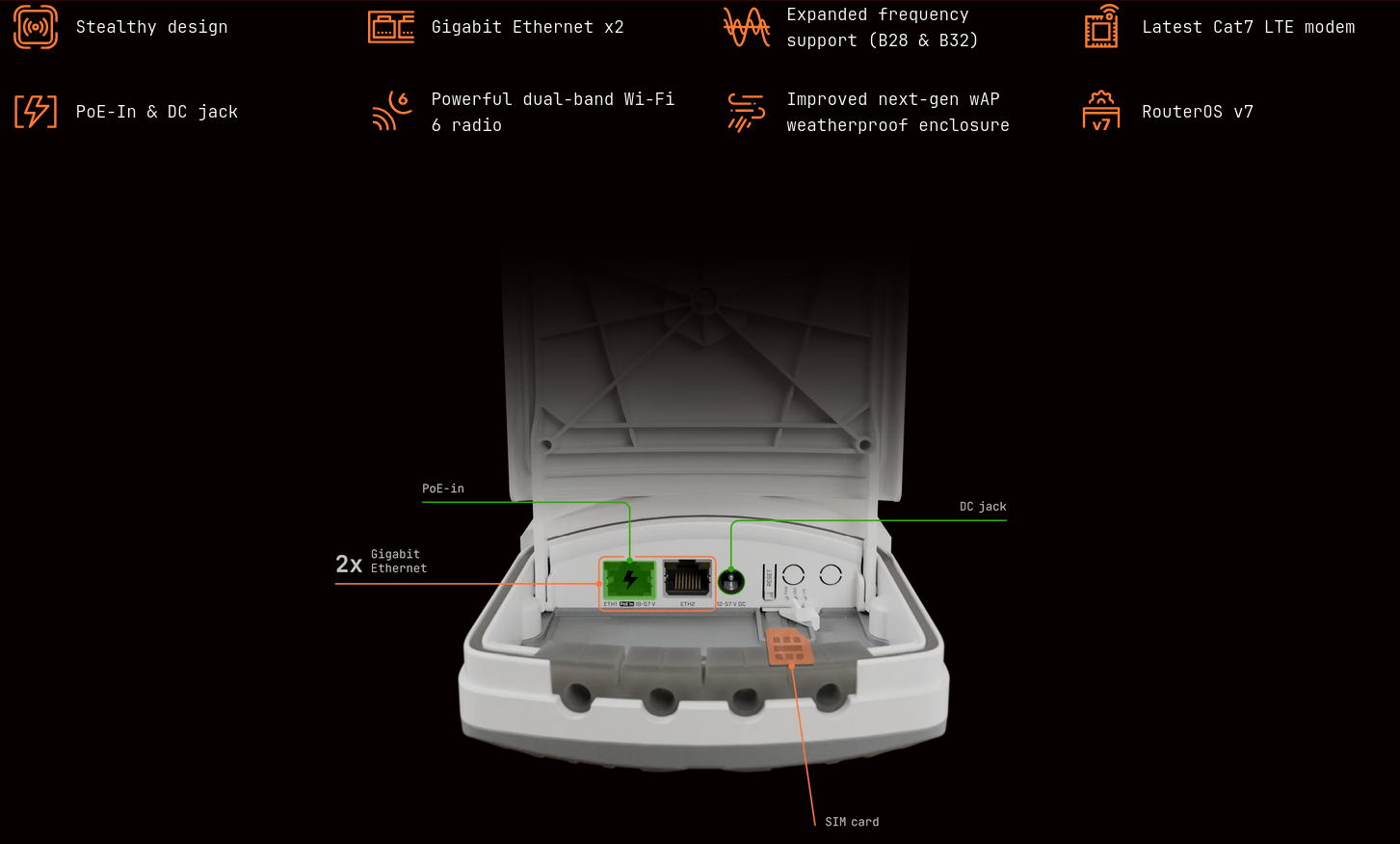

This compact access point is equipped with a modern dual-core ARM CPU and runs on RouterOS v7, ensuring stable internet and excellent VPN performance across your property. The wAP ax LTE7 kit also supports our new CAPsMAN for easy centralized management of multiple devices with just a few clicks. The device features two Gigabit Ethernet ports, with PoE-in on one for flexible powering options. You can also use the standard DC jack – because we believe in giving you options.

Specifications

• Architecture ARM 64bit
• CPU IPQ-5010
• CPU core count 2
• CPU nominal frequency 800 MHz
• CPU Threads count 2
• RouterOS license 4
• Operating System RouterOS v7
• Size of RAM 256 MB
• Storage size 128 MB
• Storage type NAND
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -30°C to 70°C

Powering

• Number of DC inputs 2 (DC jack, PoE-IN)
• DC jack input Voltage 12-57 V
• Max power consumption 13 W
• PoE in 802.3af/at
• Cooling type Passive
• PoE in input Voltage 18-57 V

Mobile

• 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
• 3G bands 1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  8 (900 MHz)

• LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
• MIMO DL 2x2
• MIMO UL 1x1
• LTE FDD bands 1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)
  32 (1500 MHz)

• LTE TDD bands 38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)

• TAC 35312597

Wireless specifications

• Wireless 2.4 GHz Max data rate 574 Mbit/s
• Wireless 2.4 GHz Number of chains 2
• Wireless 2.4 GHz standards 802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz 6.9
• Wireless 2.4 GHz chip model IPQ-5010
• Wireless 2.4 GHz generation Wi-Fi 6
• Wireless 5 GHz Max data rate 1200 Mbit/s
• Wireless 5 GHz Number of chains 2
• Wireless 5 GHz standards 802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz 7
• Wireless 5 GHz chip model QCN-6102
• Wireless 5 GHz generation Wi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports 2

Peripherals

• Number of SIM slots 1 Modem (Micro SIM)
• MiniPCI-e slots 1

Other

• CPU temperature monitor Yes
• PCB temperature monitor Yes
• Voltage Monitor Yes
