Рутер MikroTik RB450Gx4, 5x LAN 100/1000, 1GB RAM, 512MB NAND Flash памет

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V - 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.

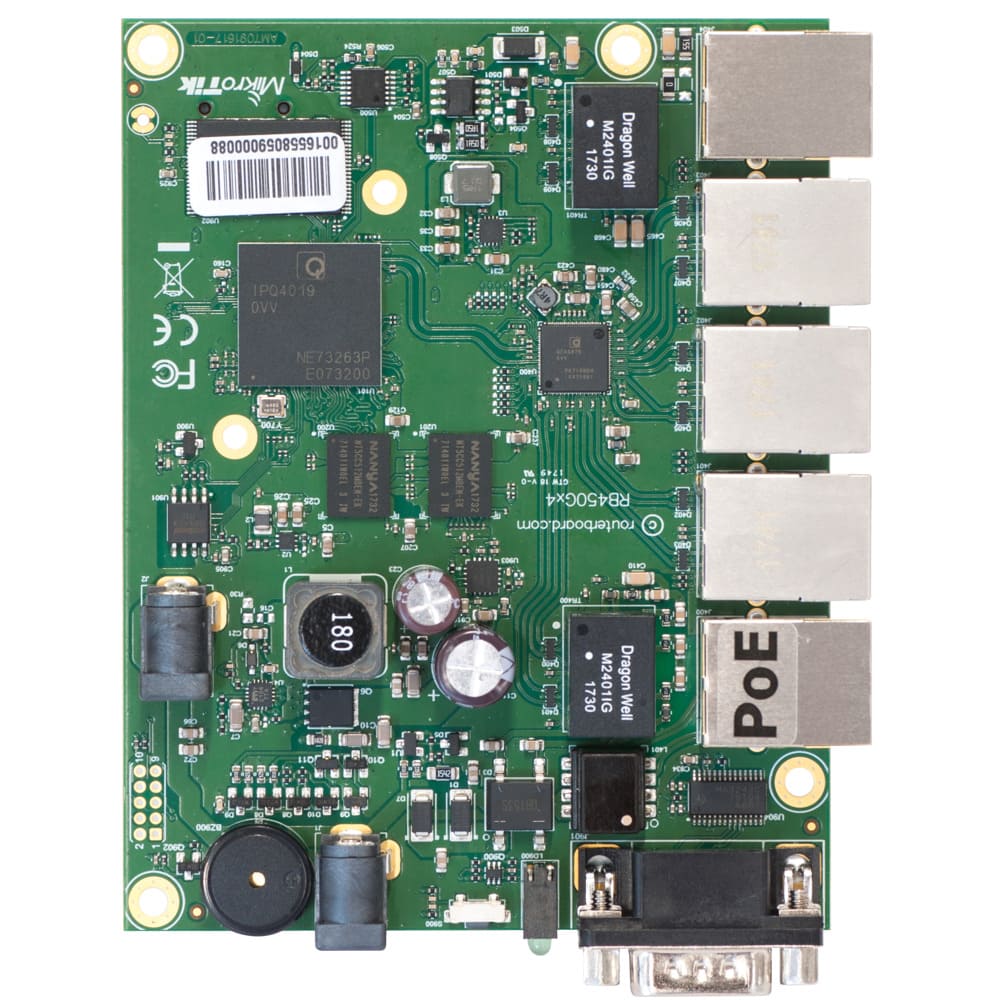

It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.

The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS - the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.



Specifications:

Details
Architecture	ARM 32bit
CPU	IPQ-4019
CPU core count	4
CPU nominal frequency	716 MHz
Switch chip model	IPQ-4019
Dimensions	90 x 116 mm
RouterOS license	5
Operating System	RouterOS
Size of RAM	1 GB
Storage size	512 MB
Storage type	NAND
MTBF	Approximately 100'000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Powering

Details
Number of DC inputs	3 (DC jack, PoE-IN)
DC jack input Voltage	10-57 V
Max power consumption	16 W
Max power consumption without attachments	4 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	12-57 V

PoE-out

Details
PoE-out ports	Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	500 mA
Max out per port output (input 30-57 V)	500 mA
Max total out (A)	500 mA

Ethernet

Details
10/100/1000 Ethernet ports	5

Peripherals

Details
Memory card type	microSD
Serial console port	RS232

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes
