Мрежеста система Mercusys Halo H70X (2-pack), 1800Mbps, 2.4GHz (1201Mbps)/ 5GHz (574Mbps), Wireless AX, 3x LAN/WAN 10/100/1000Mbps

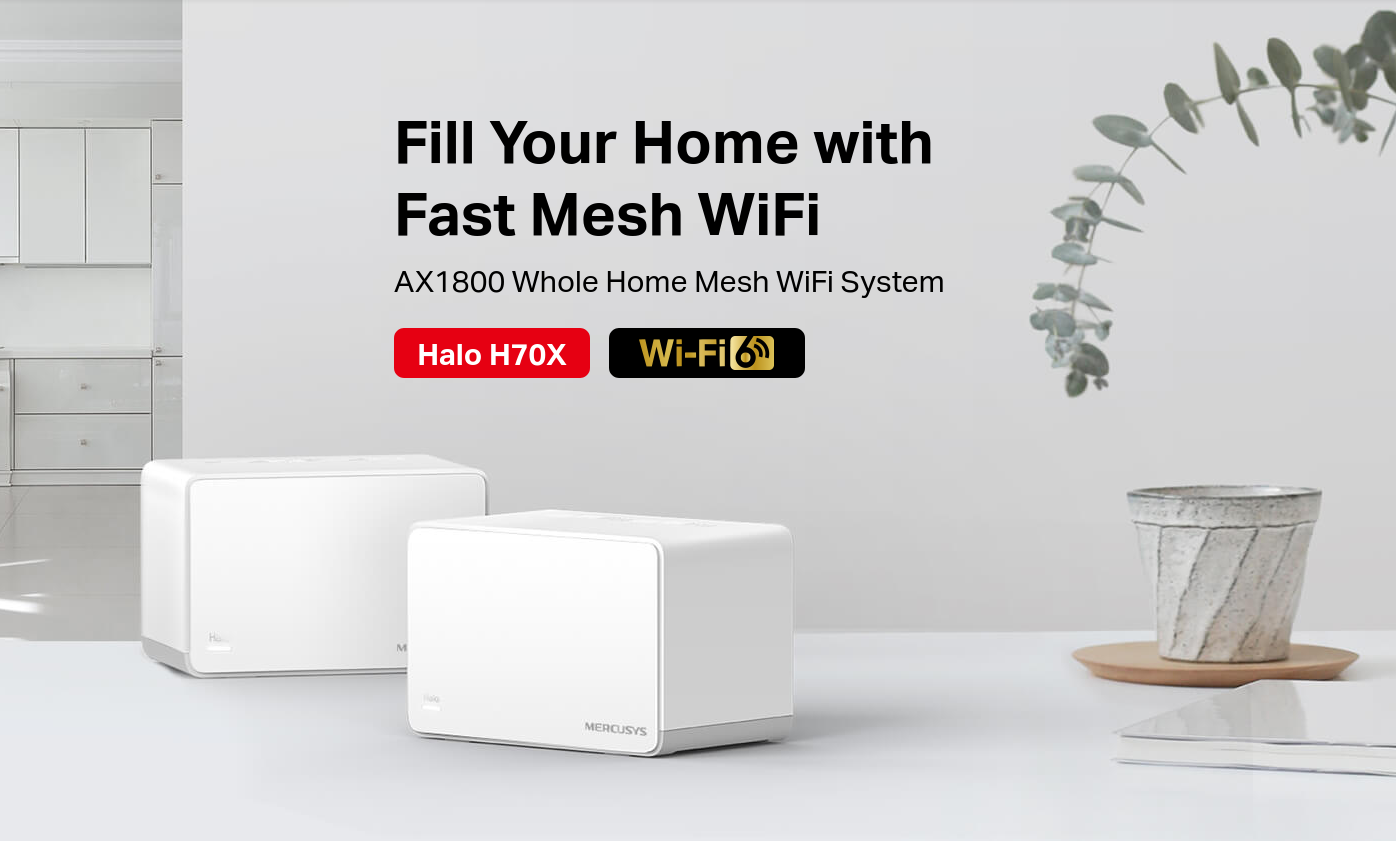

Mercusys Halo H70X

AX1800 Whole Home Mesh WiFi 6 System

• Dual Band WiFi 6 Speeds up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Seamless Roaming with One Unified Network – Halo units work together to automatically switch between Halos as you move around your home with a single unified WiFi name and password.

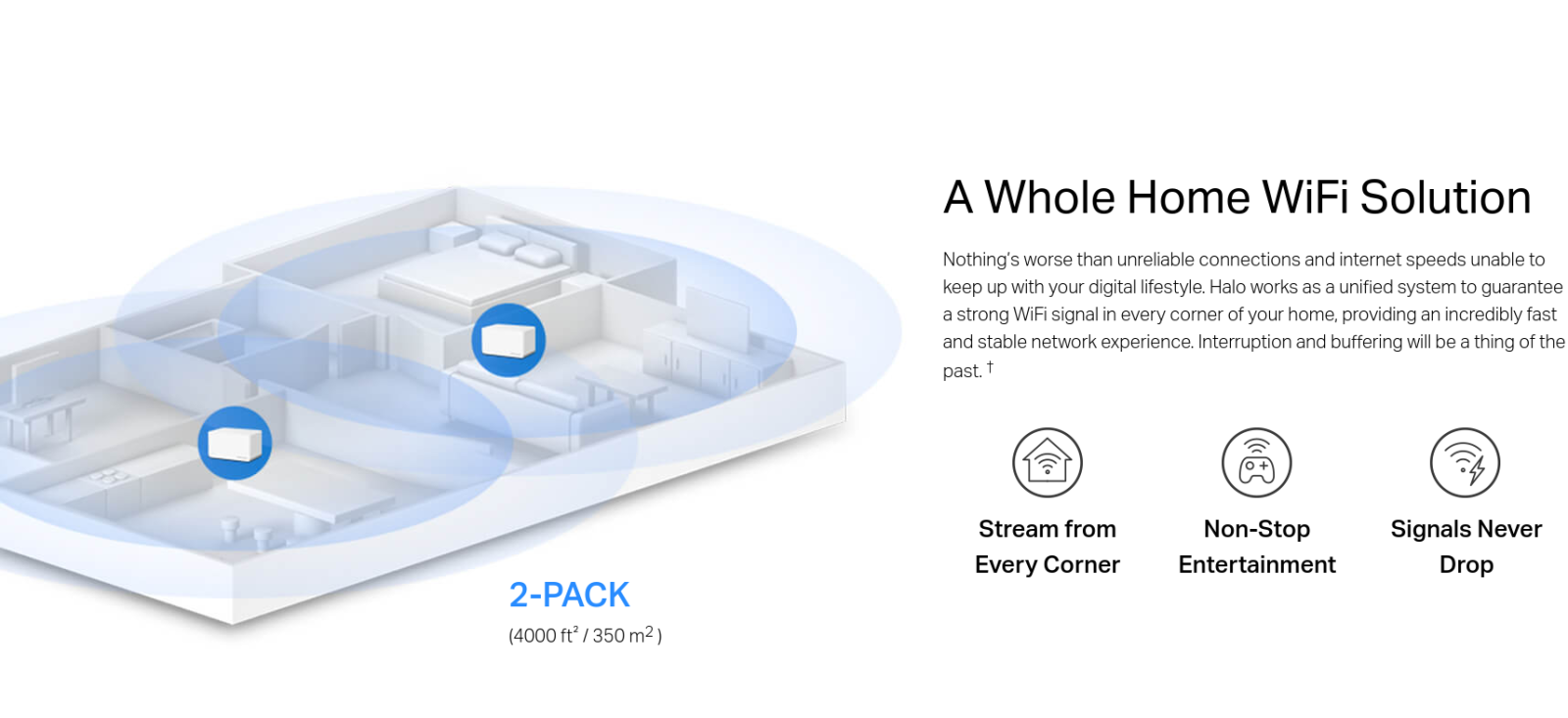

• Whole Home Coverage – Blanket up to 4,000 ft² (350 m²) with high-speed WiFi, eliminating WiFi dead zones at your home.
• Connect over 150 Devices – Provide fast and stable connections over 150 devices.
• Easily Manage Your Home Network – Use the MERCUSYS App to quickly set up and manage your WiFi. You can also manage your kids’ online time and contents.
• Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections.

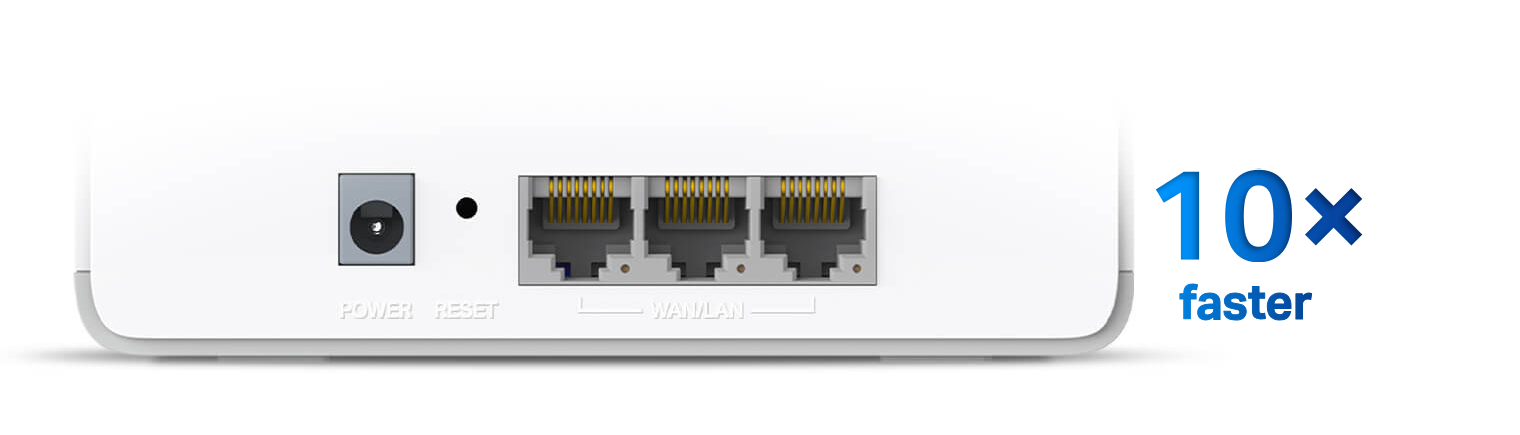

Full Gigabit Ports + WAN/LAN Auto-Sensing

Thanks to WAN/LAN Auto-Sensing, there’s no need to distinguish between WAN/LAN ports. This reduces time and effort, so you can get straight to enjoying Halo H70X’s lightning-fast data transfer to wired devices. With full gigabit ports, your devices will clock 10× faster than standard Ethernet connections.

Wireless

Wireless Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds

1201 Mbps on 5 GHz, 574 Mbps on 2.4 GHz

Reception Sensitivity

2.4GHz:

11g 6Mbps:-96.5dBm

11g 54Mbps:-78dBm

11AX HE20 MCS0:-96.5dBm

11AX HE20 MCS11:-65dBm

11AX HE40 MCS0:-93.5dBm

11AX HE40 MCS11:-63dBm

5GHz:

11a 6Mbps:-96dBm

11a 54Mbps:-78dBm

11ac VHT20 MCS8:-74.5dBm

11ac VHT40 MCS9:-70.5dBm

11ac VHT80 MCS9:-66.5dBm

11AX HE20 MCS11:-66dBm

11AX HE40 MCS11:-63dBm

11AX HE80 MCS11:-61dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK/WPA2-PSK/WPA3

Mesh protocol

802.11k/v/r

Hardware

Dimensions

5 × 3.2 × 3.3 in (128 × 81 × 83.7 mm)

Interfaces

3× Gigabit Ports per Halo Unit
(WAN/LAN auto-sensing)

Button

Reset button

Software

Operation Modes

Router, Access Point

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Local Management, Remote Management, Multi-Managers

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Guest Network

2.4 GHz Guest Network,
5 GHz Guest Network

Others

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
