Кутия Phanteks XT View, EATX/ATX/Micro-ATX/Mini-ITX, 1x USB 3.0, 3x 120mm вентилатора DRGB, с прозорец, черна, без захранване

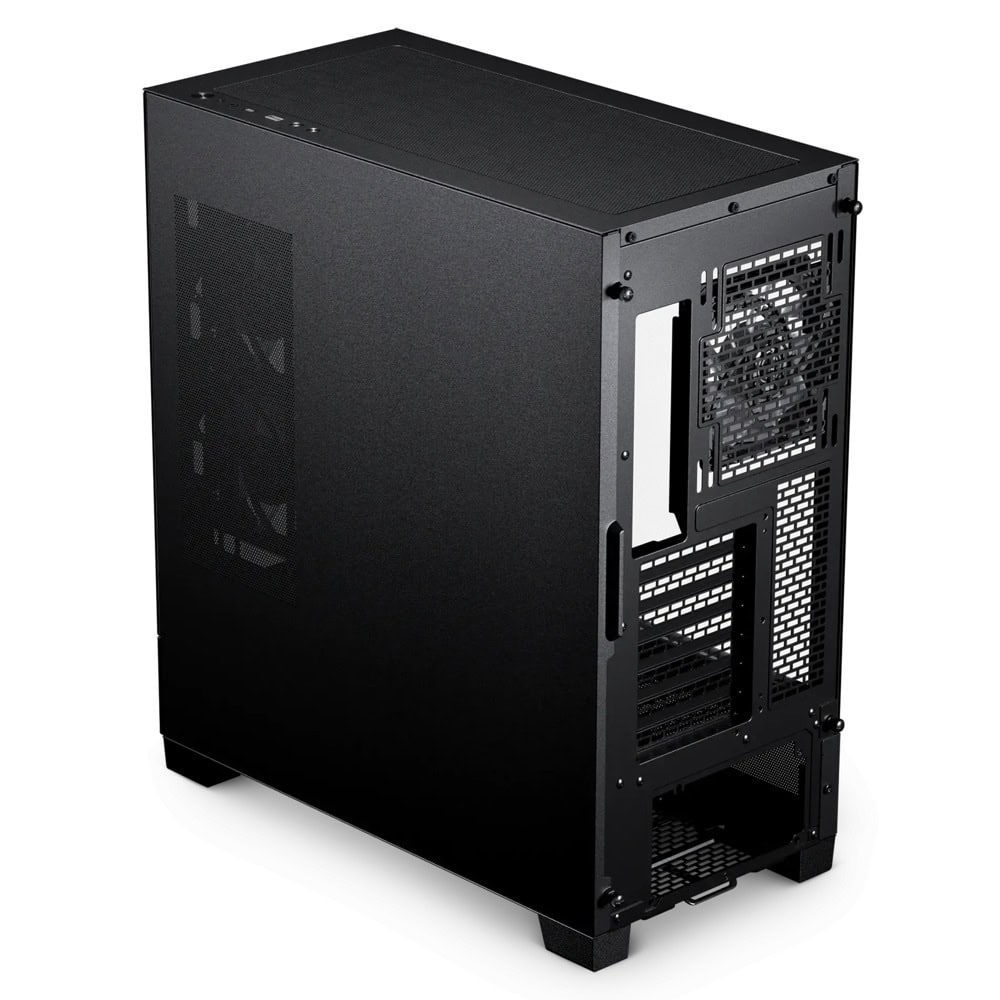

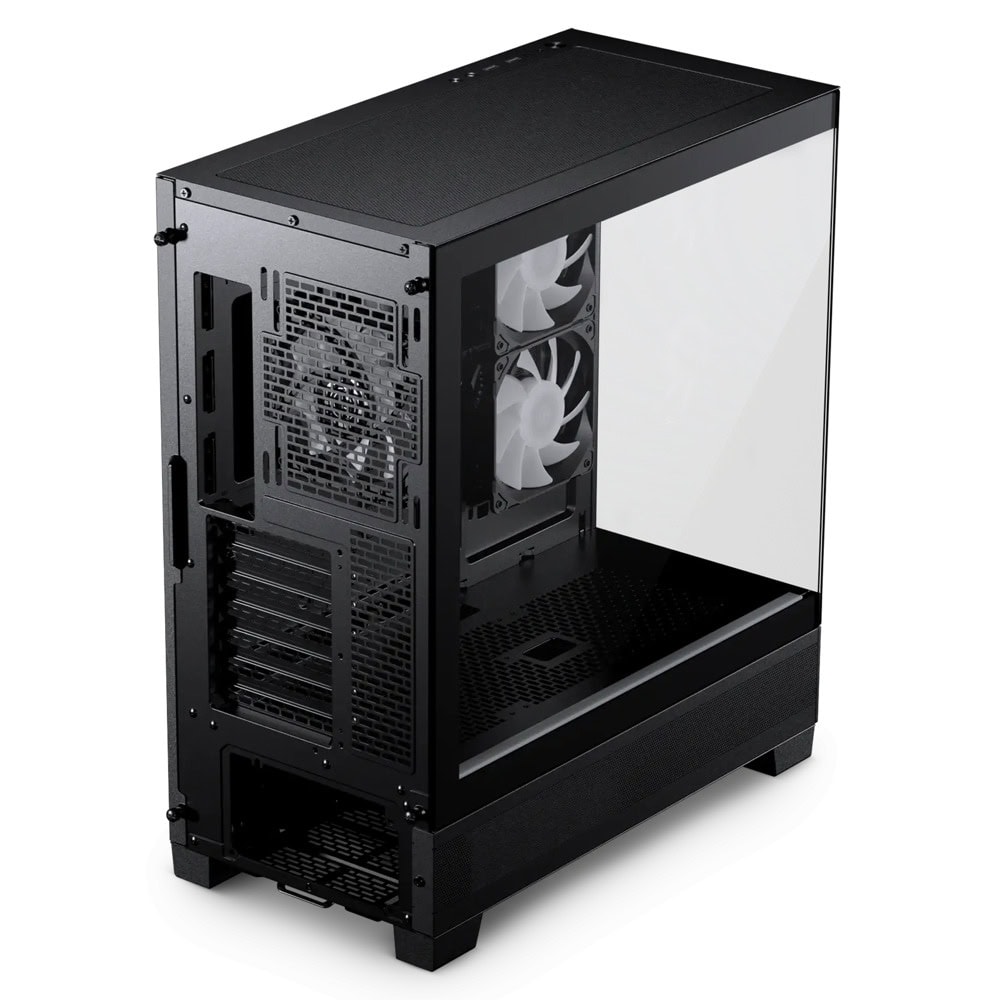

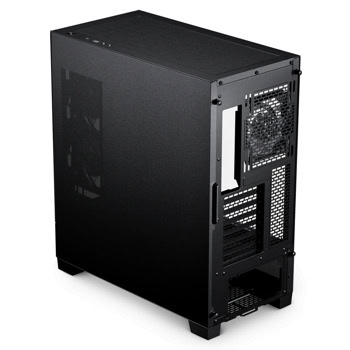

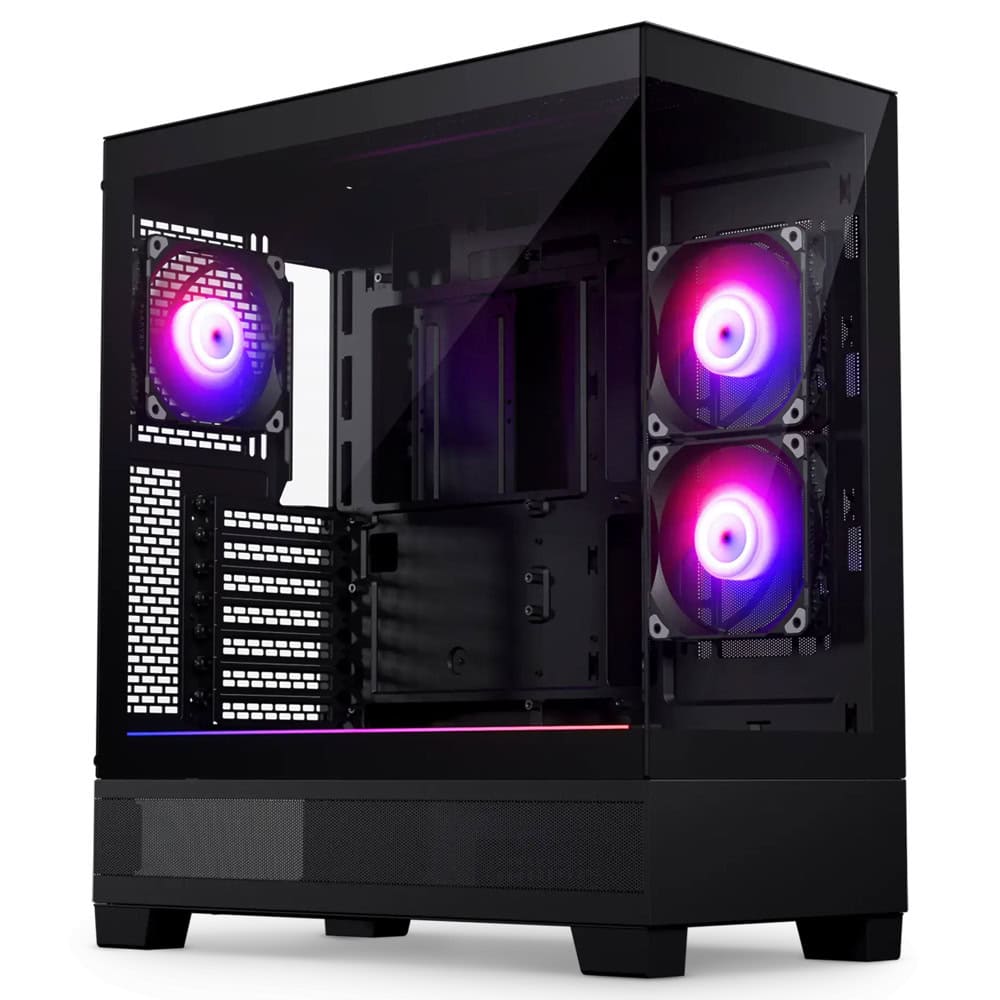

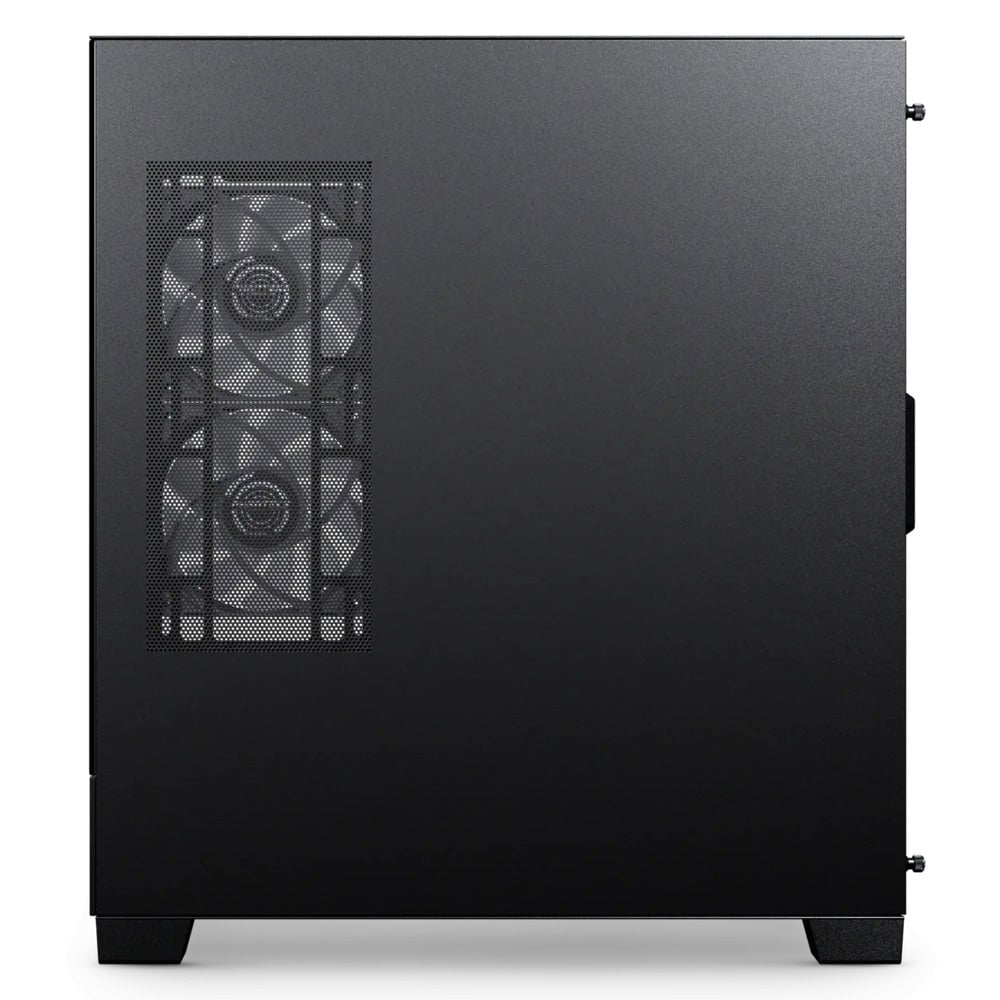

Phanteks XT View

With new hardware releases demanding more cooling capacity and internal space, the XT-series is designed to deliver just that. And it delivers extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 9x 120 mm fan locations, support for 140 mm fans, and dedicated radiator space in the top of the chassis.

The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the mid-plate that provide direct cooling.

Computing with a View

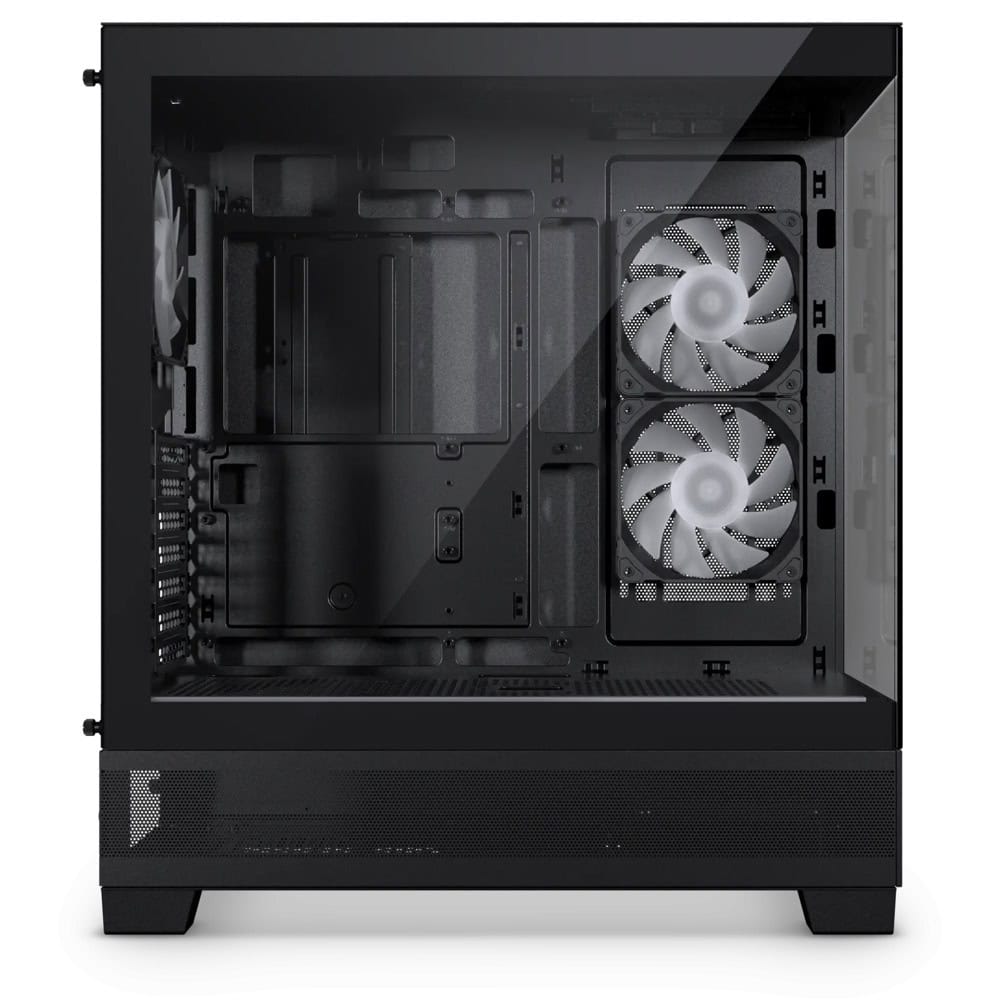

Near-seamless glass panels.

Plenty of space for the most powerful graphics cards.

Mesh all-around for high performance cooling.

Cool and Powerful

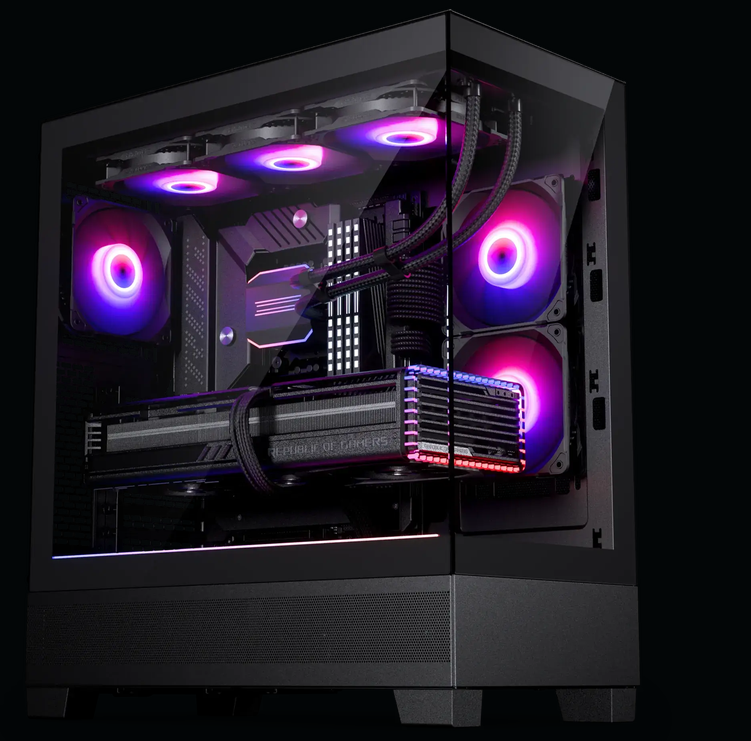

Dedicated top 360 radiator space in the top.

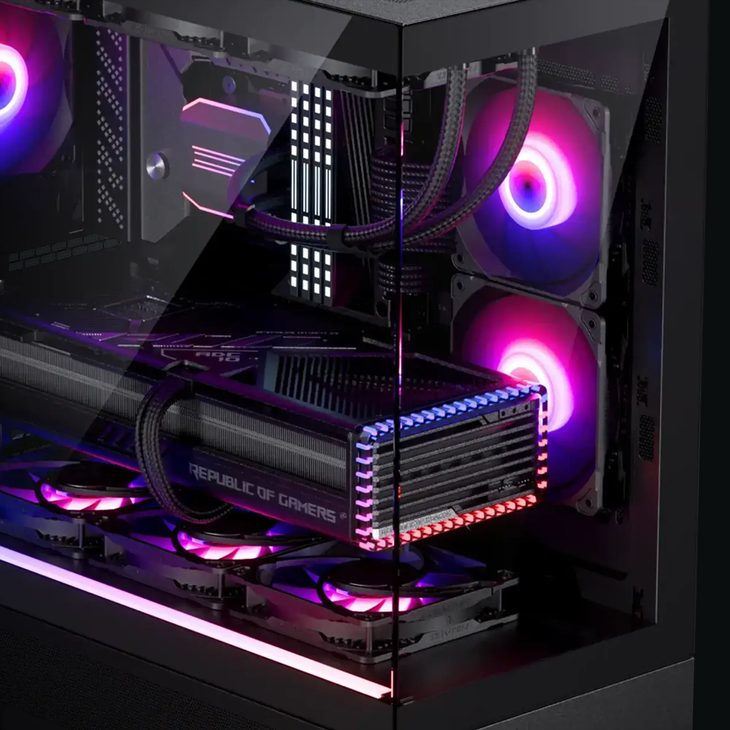

Triple 120mm positions on the midplate for direct GPU cooling.

Supports a total of 9x 120mm fan locations.

Build for the Future

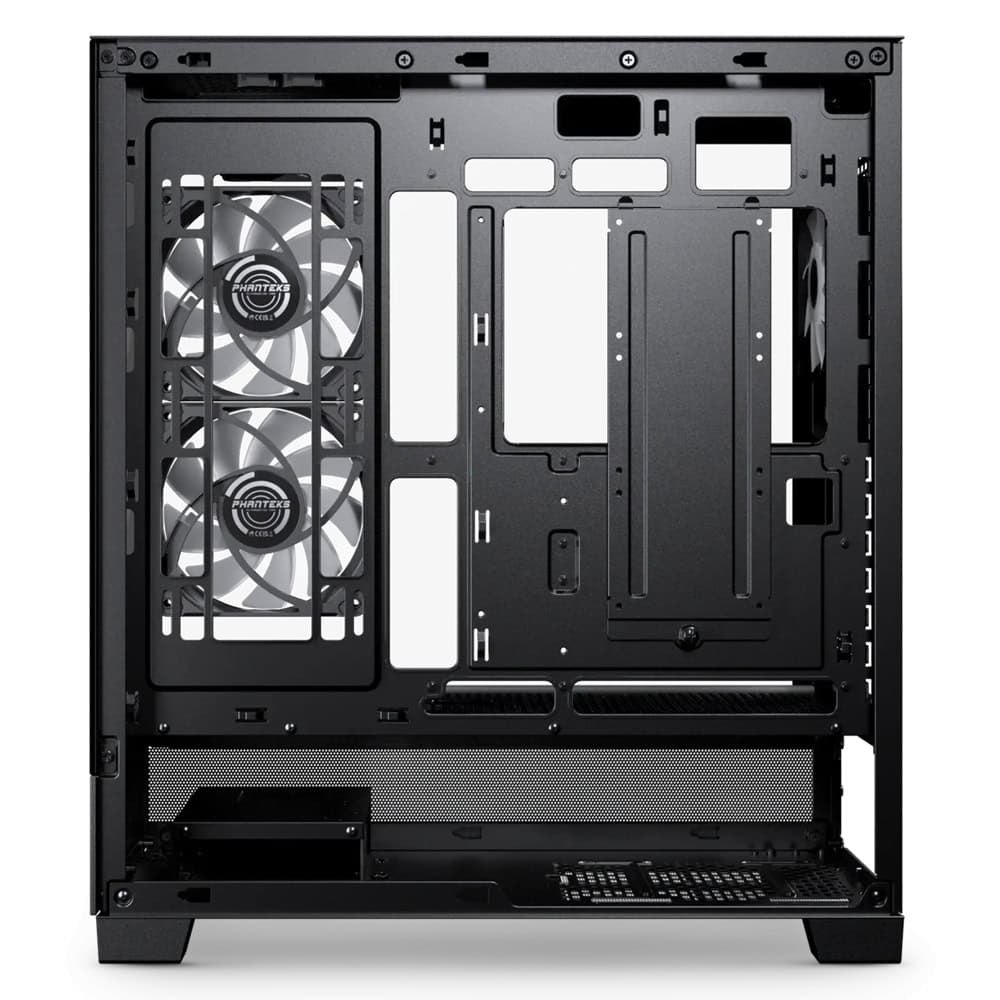

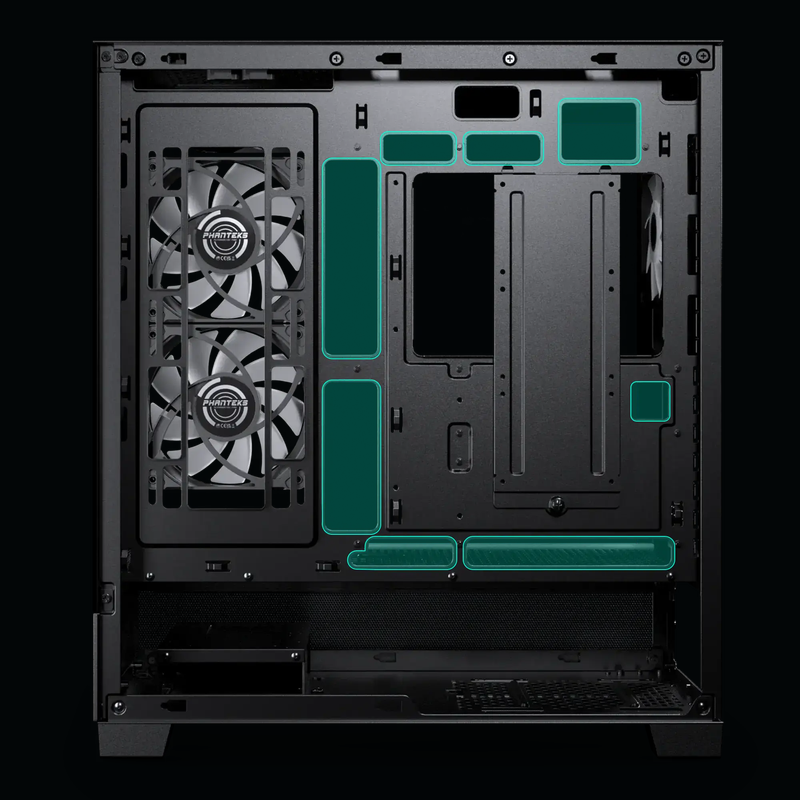

UNLOCK THE ZERO-CABLE SETUP
Mainboards with hidden connectors on the rear-side are fully supported by the XT Pro chassis.

Support for MSI Project Zero mainboards.

Support for ASUS BTF mainboards.

Support for Gigabyte Project Stealth mainboards.

Specifications

General

Case Dimensions (L × W × H): 440 × 230 × 500 mm (17.7 × 9.05 × 19.68 in)

Form Factor: Mid-Tower

Mainboard Support: E-ATX*; ATX; Micro-ATX; Mini-ITX

Up to 280 mm wide

Rear ATX Mainboard Support: MSI Project Zero; ASUS BTF; Gigabyte Project Stealth

Materials: Steel Chassis; Tempered Glass; ABS Plastic

Side Window: Yes

PCI Slots: 7

Vertical GPU Support: 3-Slot

Riser Cable: Sold separately

Internal 2.5" Bay: 5 + 1 × 3.5" HDD

Internal 3.5" Bay: 2 + 3 × 2.5" SSD

Front I/O: 1 × USB-C 3.2 Gen2; 1 × USB 3.0; Microphone / Headphone Combo; Power Button; Reset Button; D-RGB Mode Button; D-RGB Color Button

Fans

Total Fans: 120 mm: 9 ×; 140 mm: 3 ×

Top: 120 mm: 3 ×; 140 mm: 2 ×

Front: None

Side: 120 mm: 2 ×; 140 mm: None

Rear: 120 mm: 1 ×; 140 mm: 1 ×

Midplate: 120 mm: 3 ×; 140 mm: None

Radiators

Top: Max. 360 mm

Front: None

Side: Max. 240 mm*

Only with vertical GPU bracket

Rear: 120 mm

Midplate: None

Clearance

CPU Cooler Height: 184 mm (7.24 in)

GPU Length: 415 mm (16.33 in)

GPU Width: 184 mm (7.24 in)

Power Supply Length: 270 mm (10.62 in)

Top Radiator (L × W × H): 415 × 138 × 60 mm (16.33 × 5.43 × 2.36 in)

Front Radiator (L × W): None

Side Radiator (L × W): 305 × 120 × 62 mm (12.00 × 4.72 × 2.44 in)*

Only with vertical GPU bracket

Midplate Radiator (L × W): None
