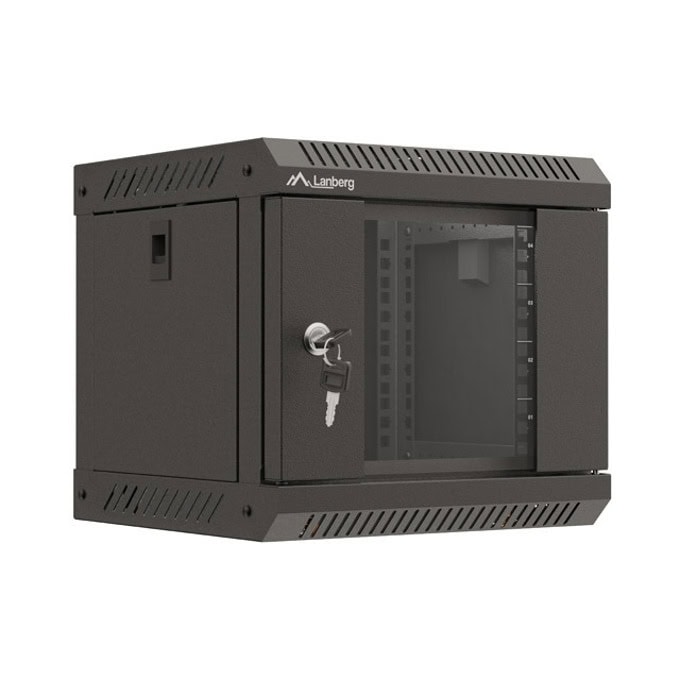

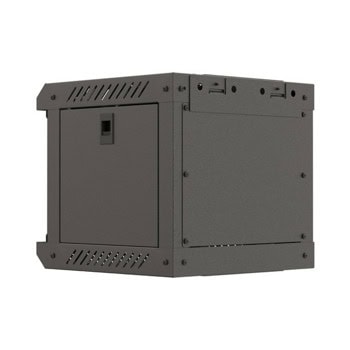

Комуникационен шкаф Lanberg WF11-3304-10B, 10", 4U, 28.1 x 30 x 30 cm, товароносимост до 30кг, черен

Robust design and increased stability:
An additional two vertical mounting rails at the rear of the cabinet increase the stability of the installed equipment, ensuring the safety and aesthetics of the installation. Thanks to this, the cabinet allows you to store a variety of equipment, such as CCTV surveillance systems, alarm systems or server network components. Lanberg WF11 RACK cabinets are made of high-quality rolled steel, offering solid construction and reliability.


Specifications

Type of cabinet
Wall mount

Size
10"

ICT height
4 U

Assembly type
Self-assembly

Working depth
231 mm

Front door type
Temper glass

Door type
Single-leaf

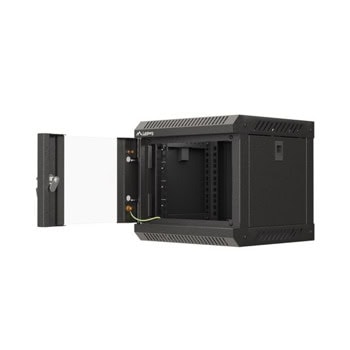

Maximum front door opening angle
215 °

Maximum static load
30 kg

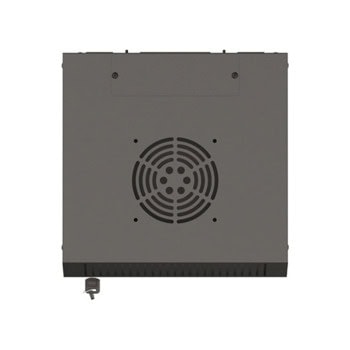

Slot amount for fans
1

Number of vertical rails
4

Thermostat
No

LCD panel
No

Colour
Black

RAL color
RAL9004

Weatherproof rating
IP20

Front door thickness
1.2 mm

Rear door thickness
1 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.5 mm

Frame thickness
1 mm

Other elements sheet thickness
1.2 mm

Depth
300 mm

Width
300 mm

Height
281 mm

Weight
6.8 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, IEC297-2:1982

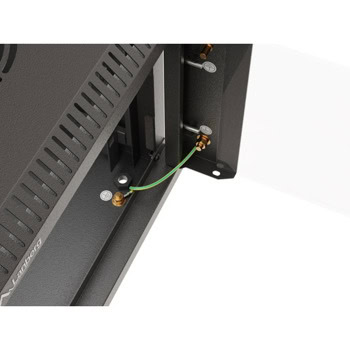

Grounding Details
Bottom panel, Front door
