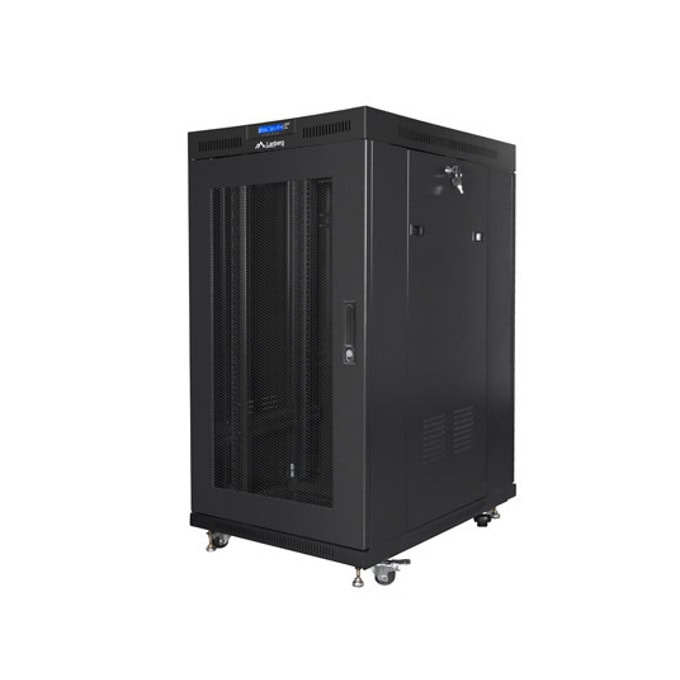

Комуникационен шкаф Lanberg FF01-8022-23BL, 19", 22U, 123.9 x 100 x 80 cm, товароносимост до 1200кг, черен

Efficient cooling:
The FF01 series of standalone server racks from Lanberg is the ideal solution for those looking for performance even in the most demanding temperature conditions. Our rack cabinets combine optimal performance with functionality, aesthetics and security.

Thanks to the ventilation hole at the top of the design, each of our cabinets provides excellent airflow, which translates into effective cooling. This element, combined with built-in fans, guarantees temperature control inside the cabinet, which is key to maintaining optimal operating conditions for your equipment.

The design of our FF01 server cabinets has been thoughtfully considered to ensure the highest cooling efficiency. This translates into long-lasting and trouble-free operation of your equipment, regardless of its requirements.


Specifications

Type of cabinet
Free standing

Size
19"

ICT height
22 U

Assembly type
Self-assembly

Working depth
860 mm

Front door type
Perforation

Rear door type
Perforation

Door type
Single-leaf

Maximum front door opening angle
215 °

Maximum static load
1200 kg

Slot amount for fans
6

Number of vertical rails
4

Thermostat
Yes

LCD panel
Yes

Colour
Black

RAL color
RAL9004

Weatherproof rating
IP20

Front door thickness
1.2 mm

Rear door thickness
1.2 mm

Upper & lower panel thickness
1.5 mm

Side panel thickness
1.2 mm

Mounting rails thickness
2 mm

Frame thickness
1.5 mm

Other elements sheet thickness
1.2 mm

Depth
1000 mm

Width
800 mm

Height
1239 mm

Height without casters
1132 mm

Weight
104 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

Grounding Details
Back door, Frame, Front door
