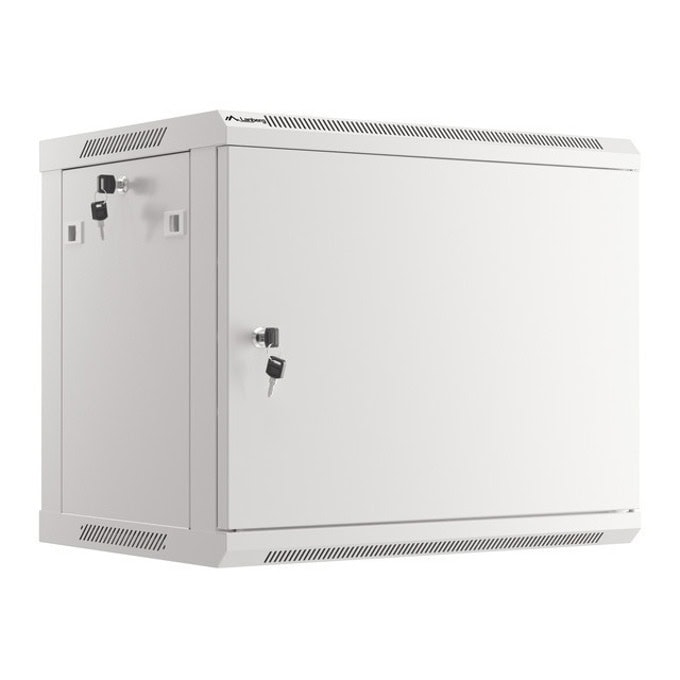

Комуникационен шкаф Lanberg WF01-6409-00S, 19", 9U, 51.2 x 45 x 60 cm, товароносимост до 60кг, сив

Efficient cooling:
The WF01 series of Lanberg server cabinets is also dedicated to those who are looking for solutions for use in demanding temperature conditions. Our cabinets allow you to achieve optimum performance without sacrificing functionality, aesthetics and security.

With two vents in the ceiling panel, we provide excellent airflow and effective cooling. We offer users even greater control over the temperature inside the cabinet, which is key to maintaining optimal operating conditions for equipment.


Specifications

Type of cabinet
Wall mount

Size
19"

ICT height
9 U

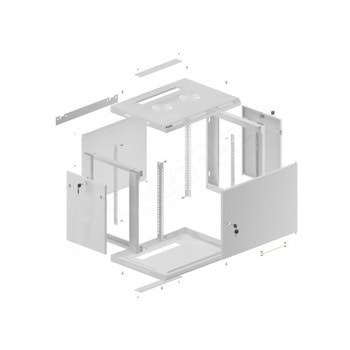

Assembly type
Self-assembly

Working depth
379.5 mm

Front door type
Metal

Door type
Single-leaf

Maximum static load
60 kg

Slot amount for fans
2

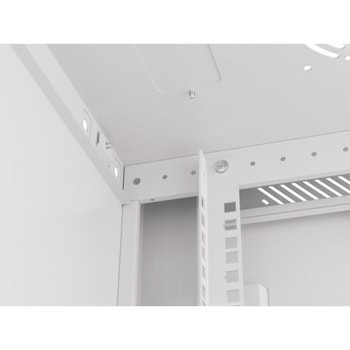

Number of vertical rails
4

Thermostat
No

LCD panel
No

Colour
Gray

RAL color
RAL7035

Weatherproof rating
IP20

Front door thickness
1 mm

Upper & lower panel thickness
1 mm

Side panel thickness
1 mm

Mounting rails thickness
1.5 mm

Frame thickness
1.2 mm

Other elements sheet thickness
1.2 mm

Depth
450 mm

Width
600 mm

Height
512.35 mm

Weight
19.72 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

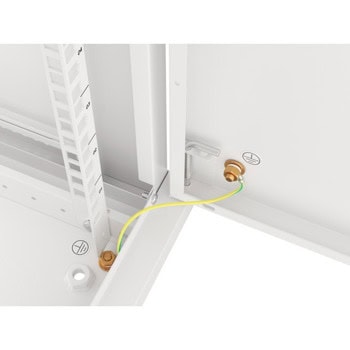

Grounding Details
Bottom panel, Front door
