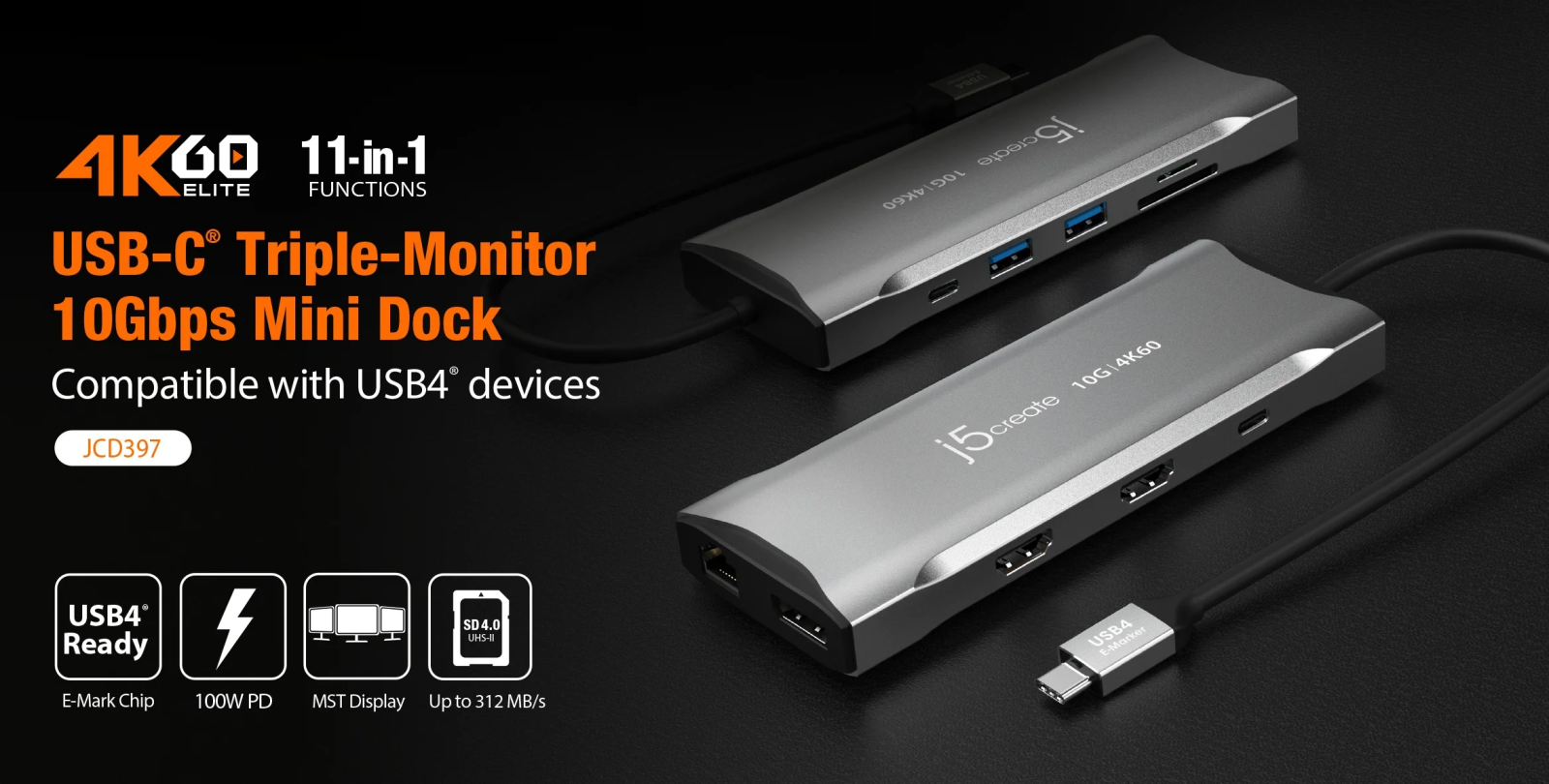

j5create JCD397
Equipped with an advanced USB-C E-Mark chip, this multi-monitor mini dock is compatible with USB4 hosts and devices, featuring everything you need, from triple video outputs to 10Gbps USB ports, as well as 100W Power Delivery pass-through charging.

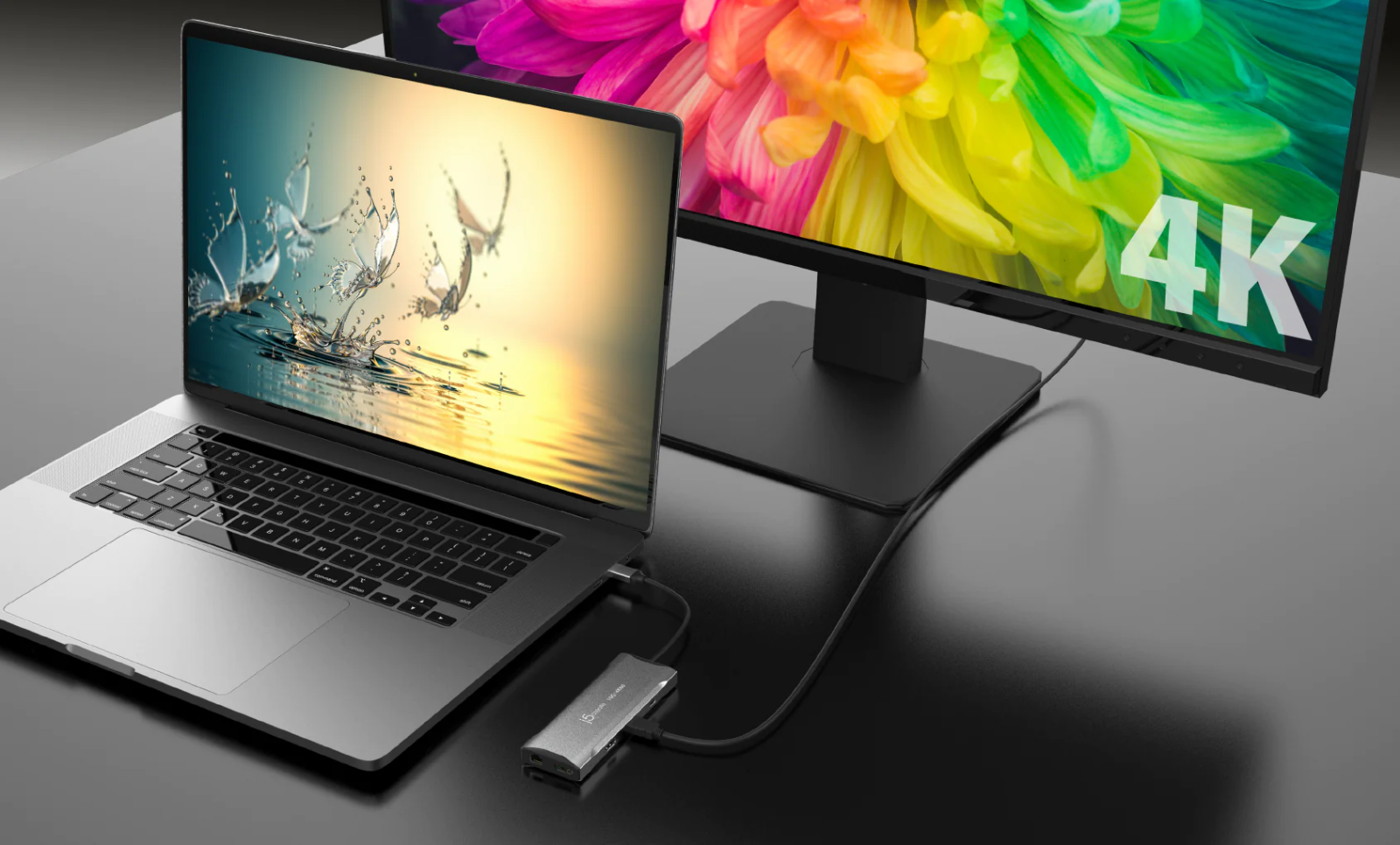

This USB-C mini dock supports DisplayPort 1.4 and Multi-Stream Transport (MST), giving you the ability to create a dual or triple 4K workstation with two HDMI and a DisplayPort output. It provides three USB SuperSpeed 10 Gbps ports (1 USB-C and 2 USB Type-A) for peripheral connectivity or downstream charging, an SD & microSD 4.0 memory card reader/writer to manage your media files, and a Gigabit Ethernet port to access a wired network. It also supports Power Delivery 3.0, providing up to 100W pass-through charging to power the connected peripherals and charge your host laptop with a USB-C power adapter.
.png)

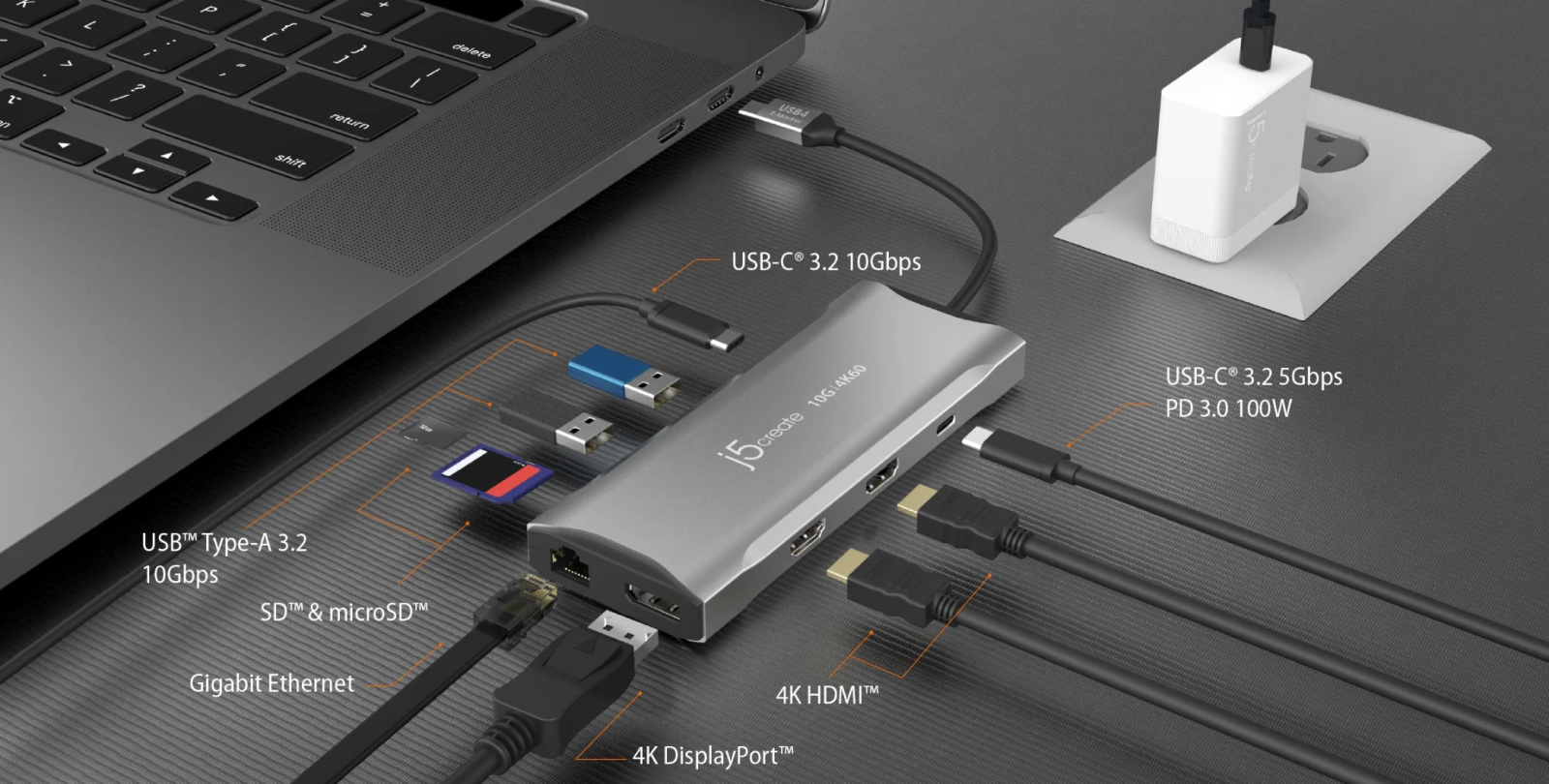

11-in-1 Functions
All the connections you need for maximum productivity
4K HDMI Output Mirror or extend your screen and directly output resolutions up to 4K UHD @ 60 Hz |  |

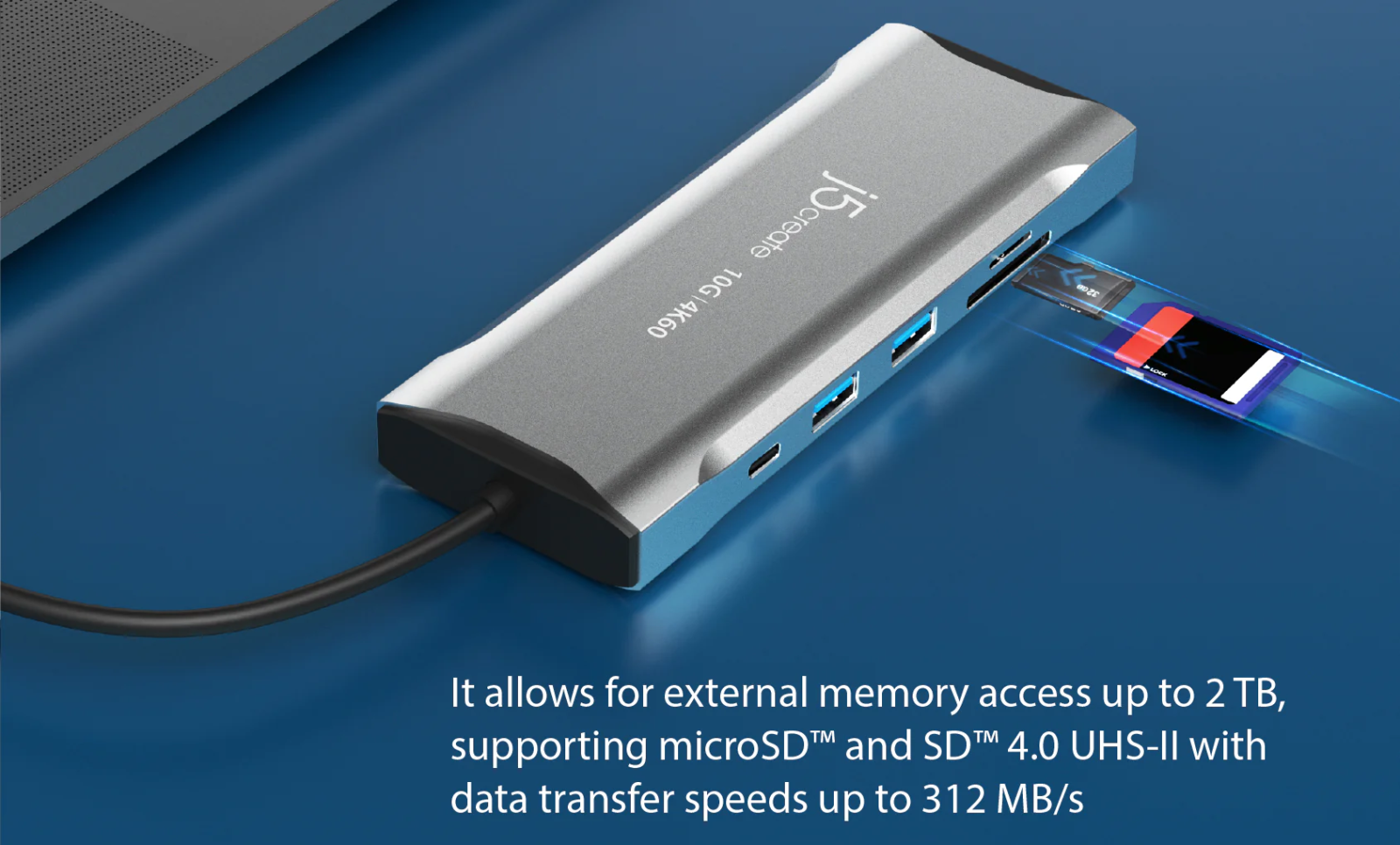

 | SD & microSD 4.0 Memory Card Reader/Writer |

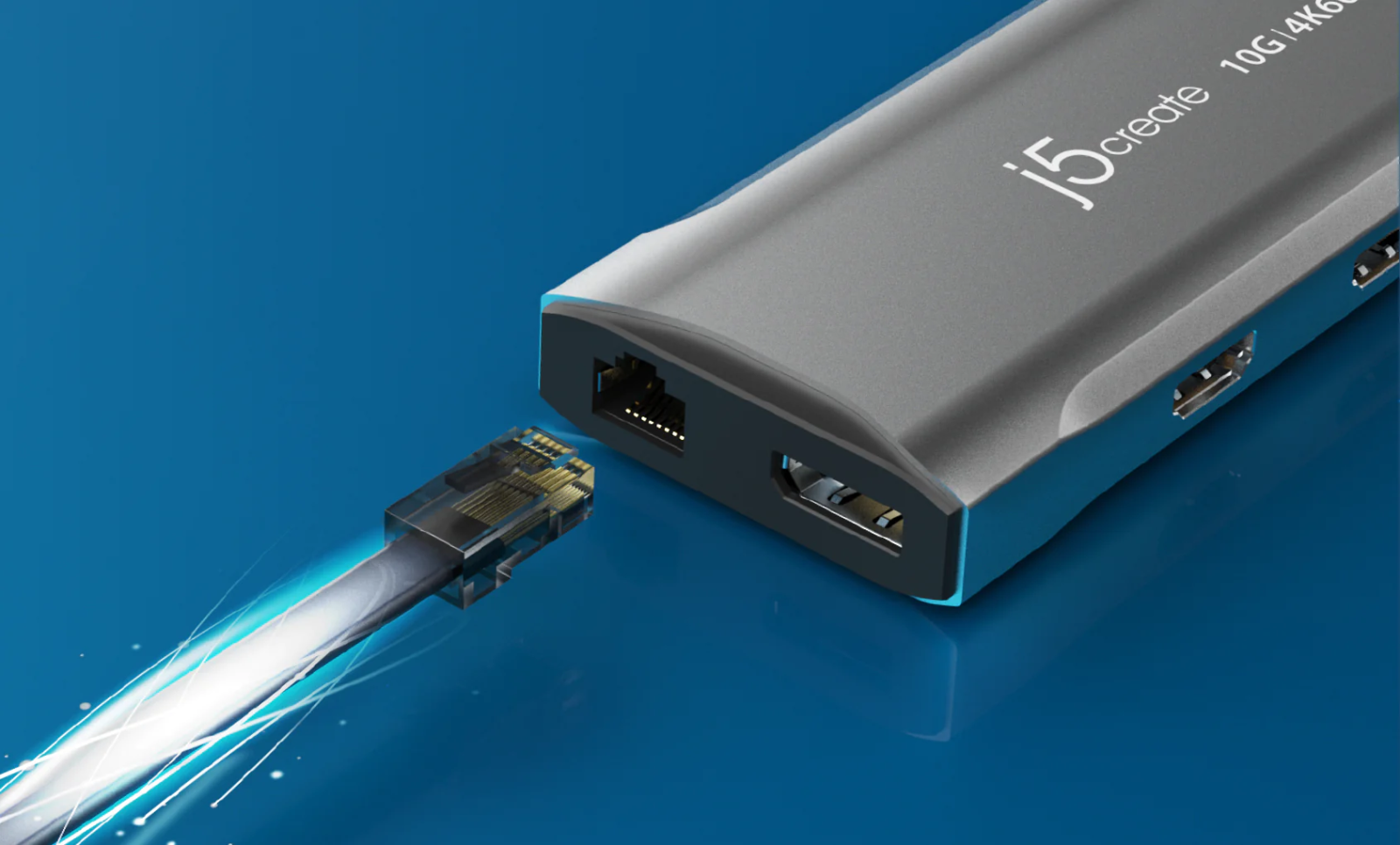

| High-Speed Ethernet Port |  |
Tech specs:
| Hardware | |
| Host Connector | 1 - USB-C Male |
| Video Output | 2 - HDMI Female 1 - DisplayPort Female |
| Power Source | Bus-powered or self-powered |
| Network Interface | RJ45 (Gigabit Ethernet) |
| Audio Supported | Yes |
| Ports |
|
| Performance | |
| Maximum Display Resolution | 3840 x 2160 |
| Maximum Display Refresh Rate | Windows (MST) 3840 x 2160 @ 60 Hz 2560 x 1440 @ 120 Hz 1920 x 1080 @ 144 Hz |
| Maximum Data Transfer Rate | 10Gbps |
| Displays Supported | 3 |
| Compatible Networks | 10/100/1000 Mbps |
| Audio Channel | 2.1 via HDMI |
| Power | |
| Power Delivery | Up to 100W via USB-C |
| Power Consumption | ≤ 650 mA |
| Input Current | Up to 5A |
| Input Voltage | Up to 20V |
| Output Current | Up to 4.25A |
| Output Voltage | Up to 20V |
| Physical Specifications | |
| Color | Space Grey |
| Enclosure Type | Aluminum |
| Cable Length | 20 cm |
| Product Height | 148 mm |
| Product Width | 55 mm |
| Product Depth | 17 mm |
| Product Weight | 123.5g |
Виж още Докинг станции j5create
Виж всички Докинг станции в категорията
| USB Type-А: | Да |
|---|---|
| USB Type-C: | Да |
| USB 2.0: | Не |
| Lightning: | Не |
| USB 3.X: | Да |
| Thunderbolt: | Не |
| DisplayPort: | Да |
| Mini DisplayPort: | Не |
| HDMI: | Да |
| DVI: | Не |
| VGA (D-Sub): | Не |
| RJ45: | Да |
| Аудио изход: | Не |
| Четец на карти: | Да |
| Тип: | Laptop |
|---|---|
| Съвместимост: | Универсална |
| От какъв интерфейс: | USB C |
