j5create JCD543
.png)

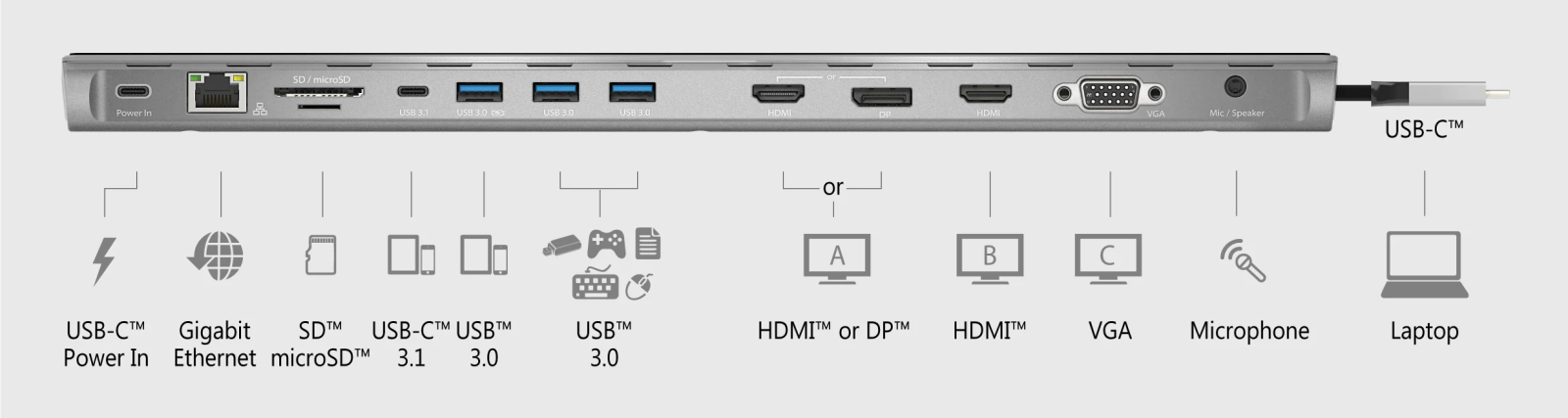

13 ports in one sleek design for all your needs
.png)

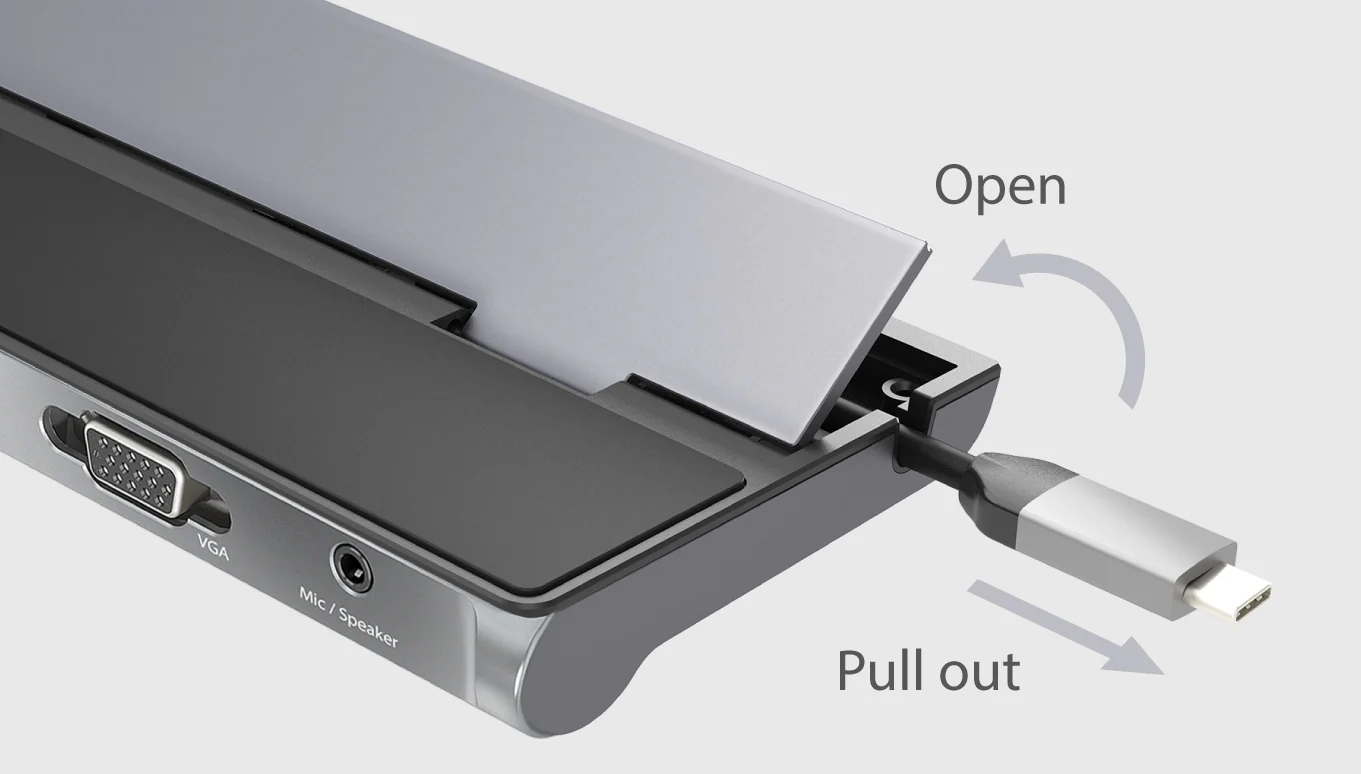

Double Sided Cable Storage Compartment
Place the cable anyway you like
.png)

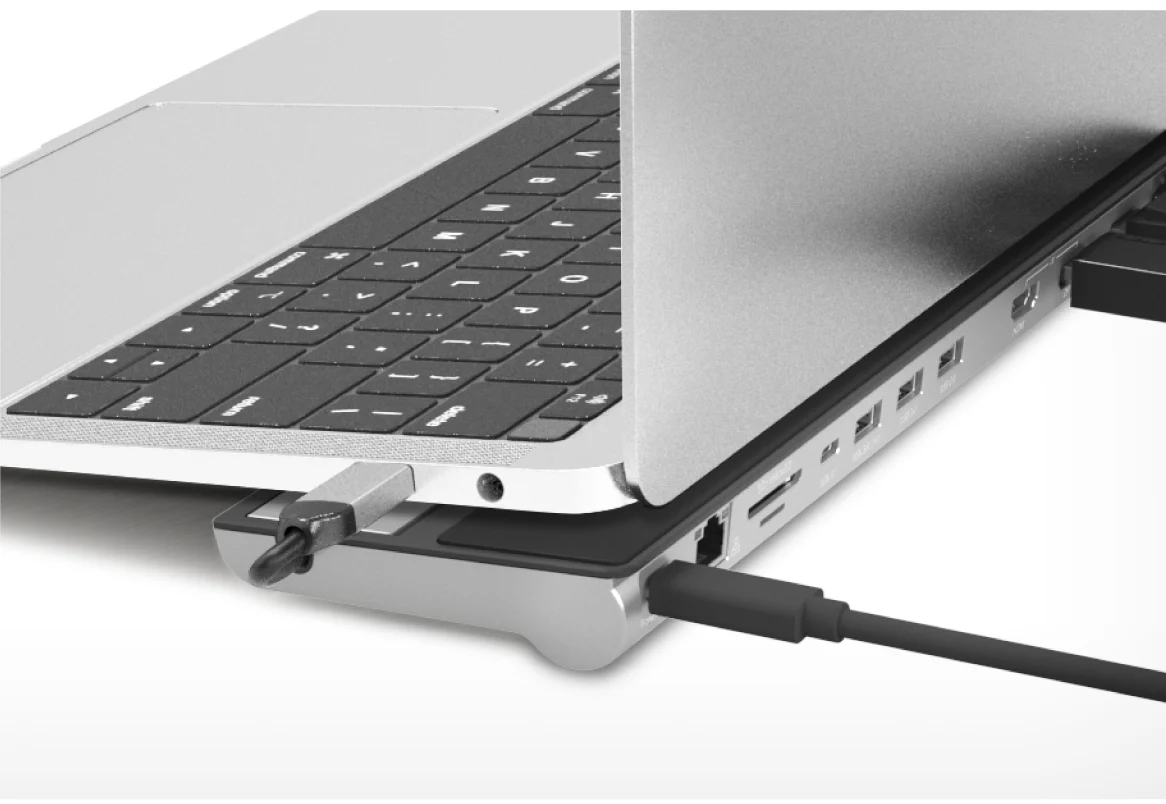

.png) | Cutting-Edge Design The advanced heat-eliminating design makes the JCD543 the perfect solution for expanding any laptop into a full-sized work-station without the worry of overheating. |

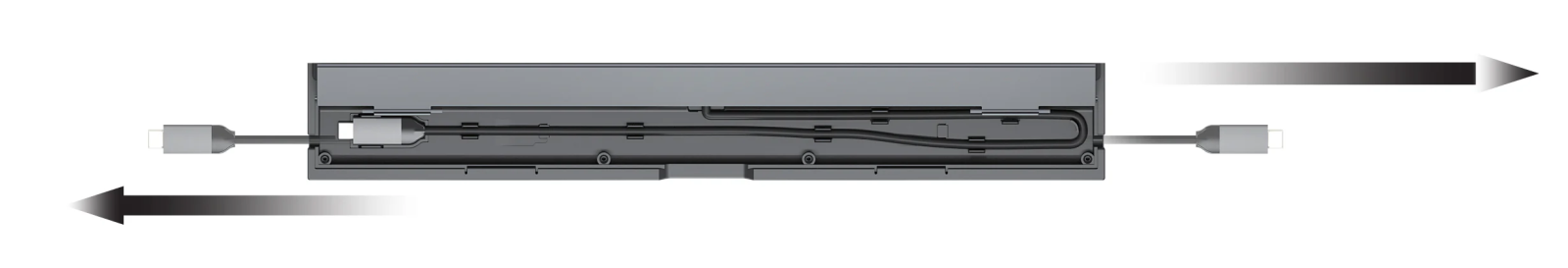

Cable Storage with Dual Openings | .png) |
Specifications
Hardware
audio supported
Yes
host connector
USB-C™ Male
network interface
RJ45 (Gigabit Ethernet)
ports
2 - USB™ 3.0 Type-A
1 - USB™ 3.0 Type-A fast charge
1 - USB-C™ 3.1 Gen 1
1 - USB-C™ Power Delivery 3.0
2 - 4K HDMI™
1 - DisplayPort™
1 - VGA
1 - SD™ & microSD™ memory card reader/writer
1 - RJ45 Gigabit Ethernet
1 - 3.5 mm combo audio jack
power source
Bus-powered or Self-powered
video output
2 - HDMI™ Female
1 - DisplayPort™ Female
1 - VGA Female
Performance
audio channel
2.1 via HDMI™/DisplayPort™/3.5 mm Aux
compatible networks
10/100/1000 Mbps
displays supported
3 (HDMI™, VGA and DisplayPort™ or HDMI™)
max data transfer rate
5 Gbps
max display refresh rate
HDMI™/DisplayPort™ 4K: 30 Hz
HDMI™/DisplayPort™ 1080p: 60 Hz
VGA: 60 Hz
max display resolution
HDMI™/DisplayPort™: 3840 x 2160
VGA: 1920 x 1080
Power
input current
5A
input voltage
20V
output current
5A
output voltage
20V
power consumption
≤ 900 mA

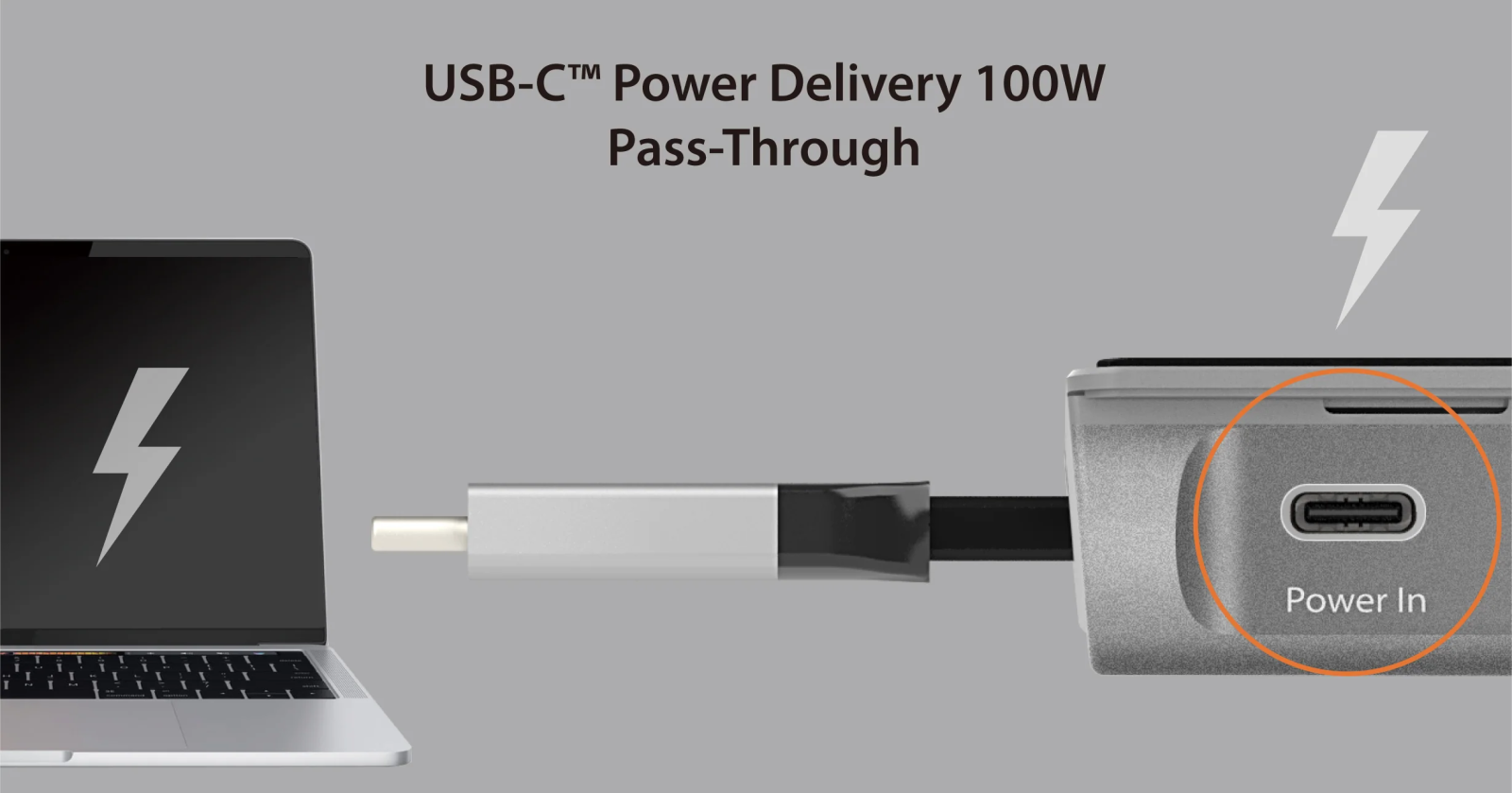

power delivery
Up to 100W via USB-C™
Physical Specifications
cable length
1.48 ft (45 cm)
enclosure type
Aluminum
operating humidity
< 85% non-condensing
operating temperature
32 to 118°F (0 to 48°C)
product depth
13.78 in. (350 mm)
product height
0.92 in. (23.37 mm)
product weight
10.58 oz (300g)
product width
3.25 in. (82.5 mm)
storage humidity
< 85% non-condensing
storage temperature
14 to 149°F (-10 to 65°C)
Виж още Докинг станции j5create
Виж всички Докинг станции в категорията
| USB Type-А: | Да |
|---|---|
| USB Type-C: | Да |
| Lightning: | Не |
| USB 2.0: | Не |
| USB 3.X: | Да |
| USB 4.X: | Не |
| Thunderbolt: | Не |
| DisplayPort: | Да |
| Mini DisplayPort: | Не |
| HDMI: | Да |
| DVI: | Не |
| VGA (D-Sub): | Да |
| RJ45: | Да |
| Аудио изход: | Да |
| Четец на карти: | Да |
| Тип: | Laptop |
|---|---|
| Съвместимост: | Универсална |
| От какъв интерфейс: | USB C |
