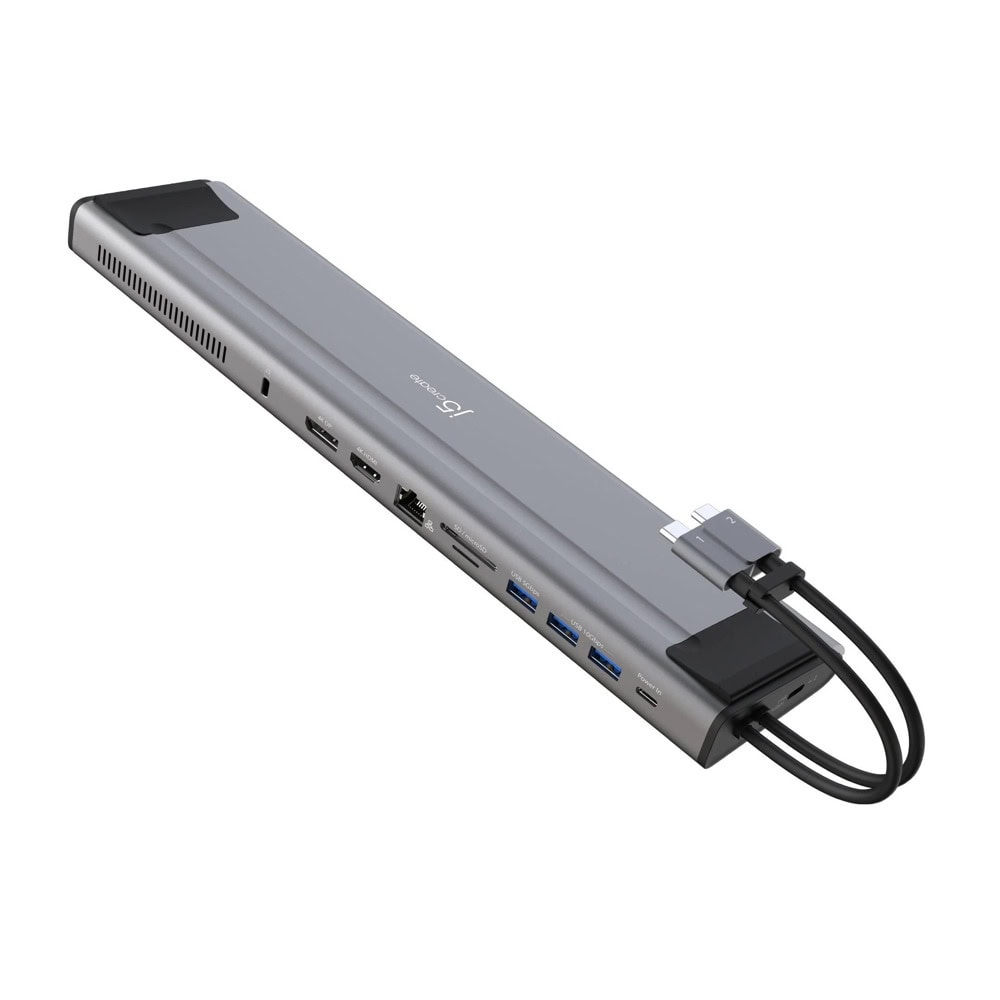

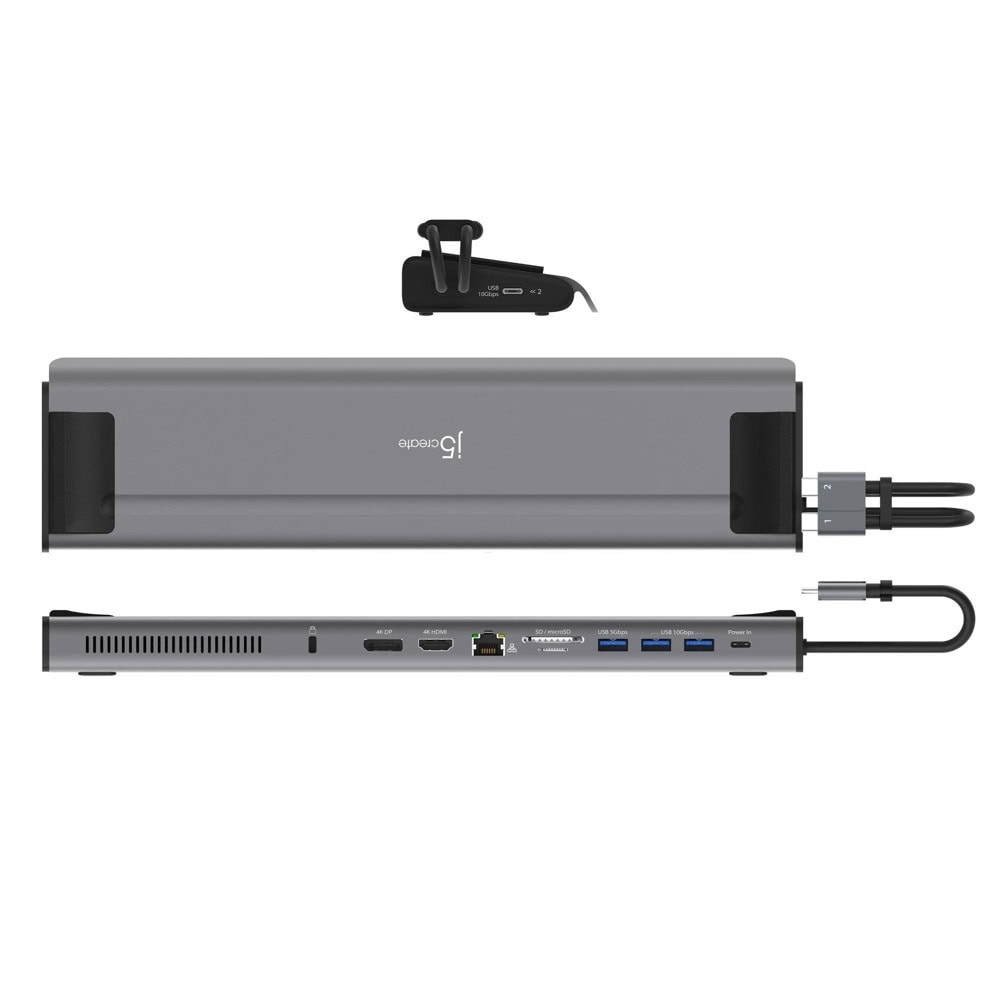

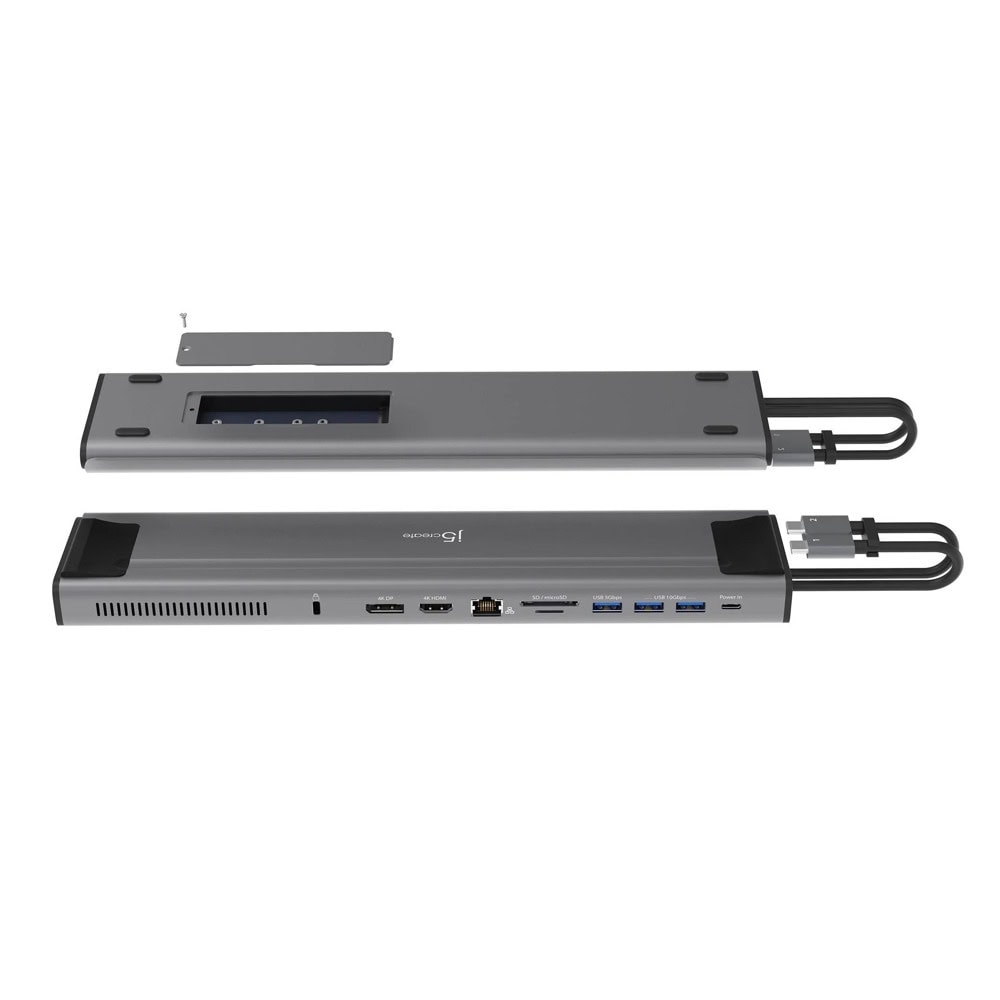

Докинг станция j5create JCD552, от USB-C към 1x USB-C, 3x USB-A, 1x DisplayPort, 1x HDMI, 1x RJ45, 1x SD четец, 1x MicroSD четец, 1x M.2 NVMe, сива

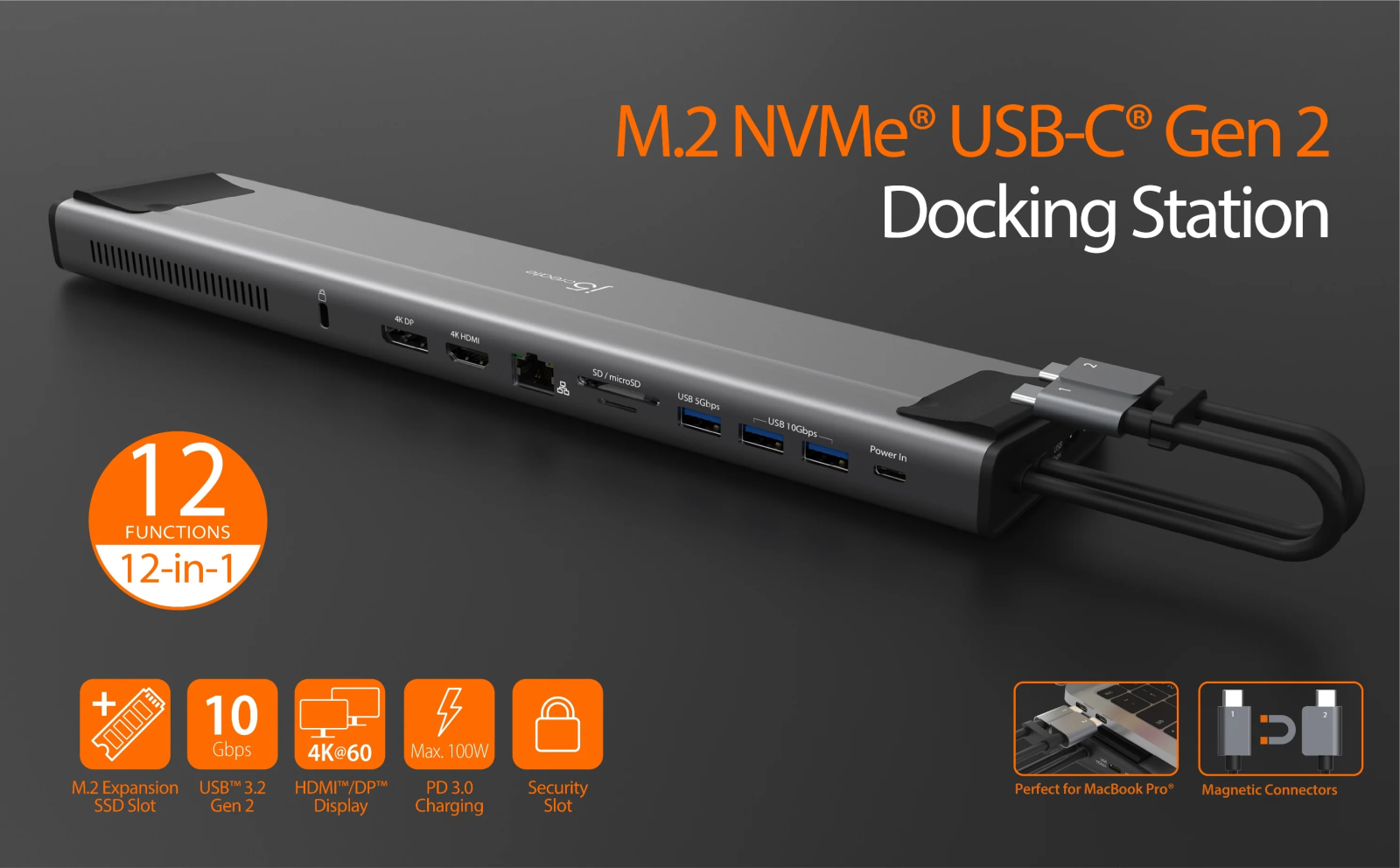

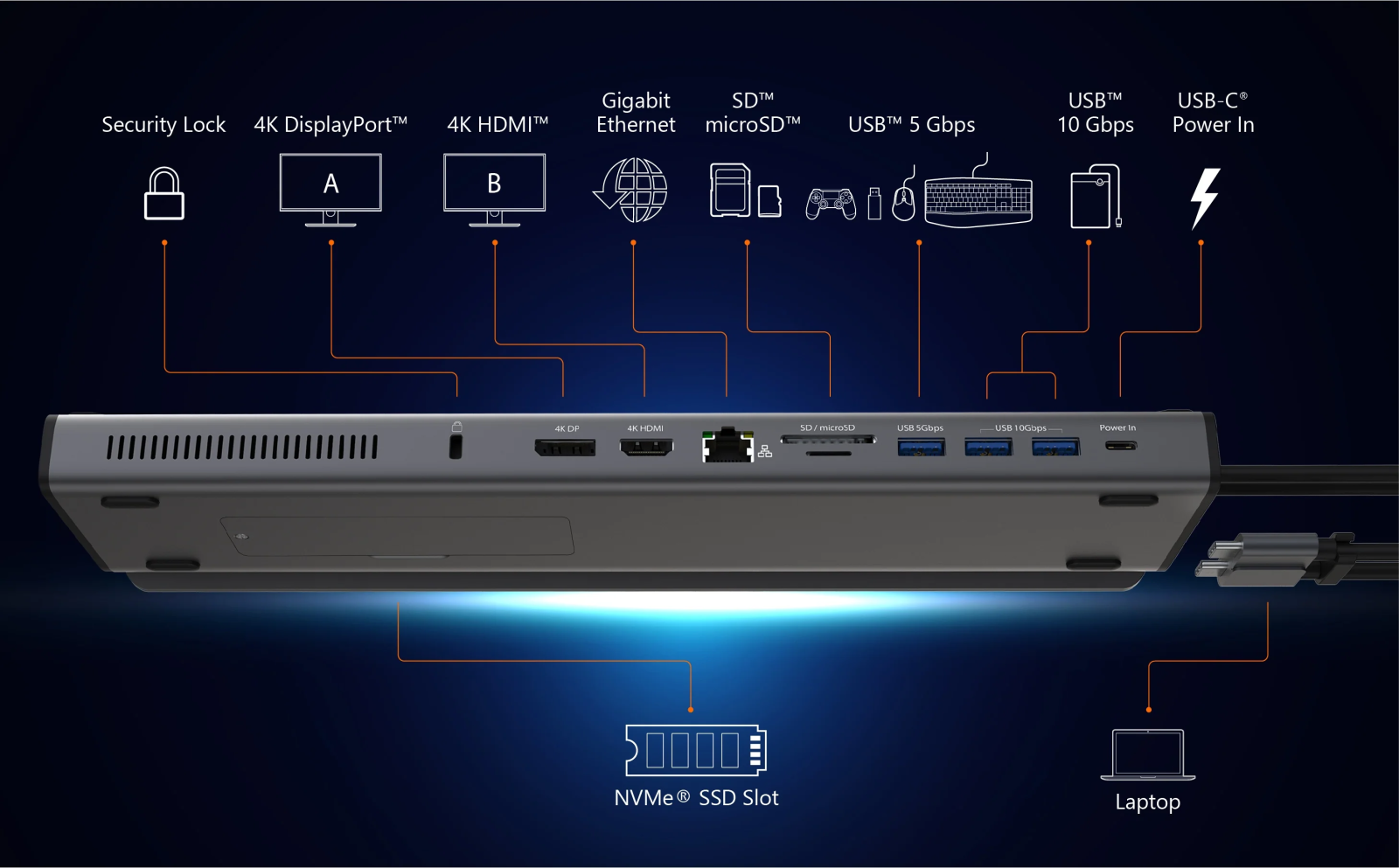

Multiple Connectivity Options for Greater Efficiency

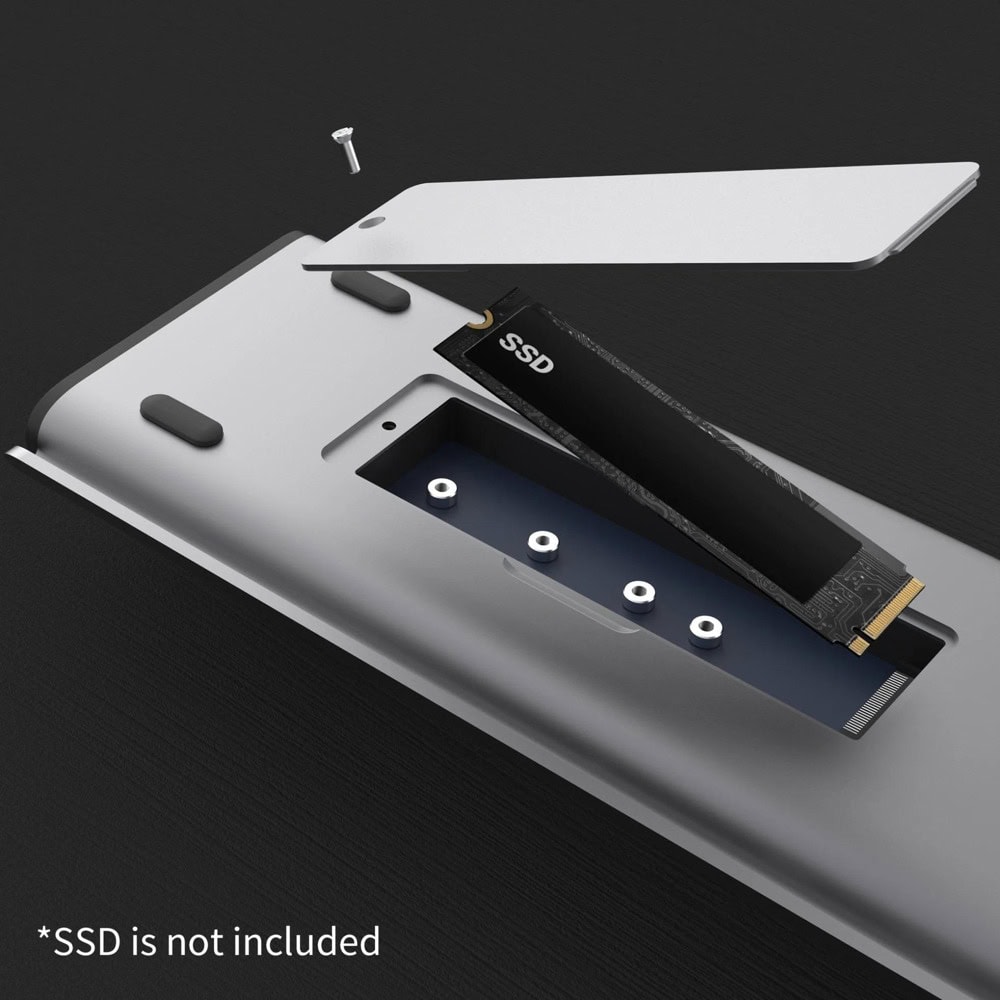

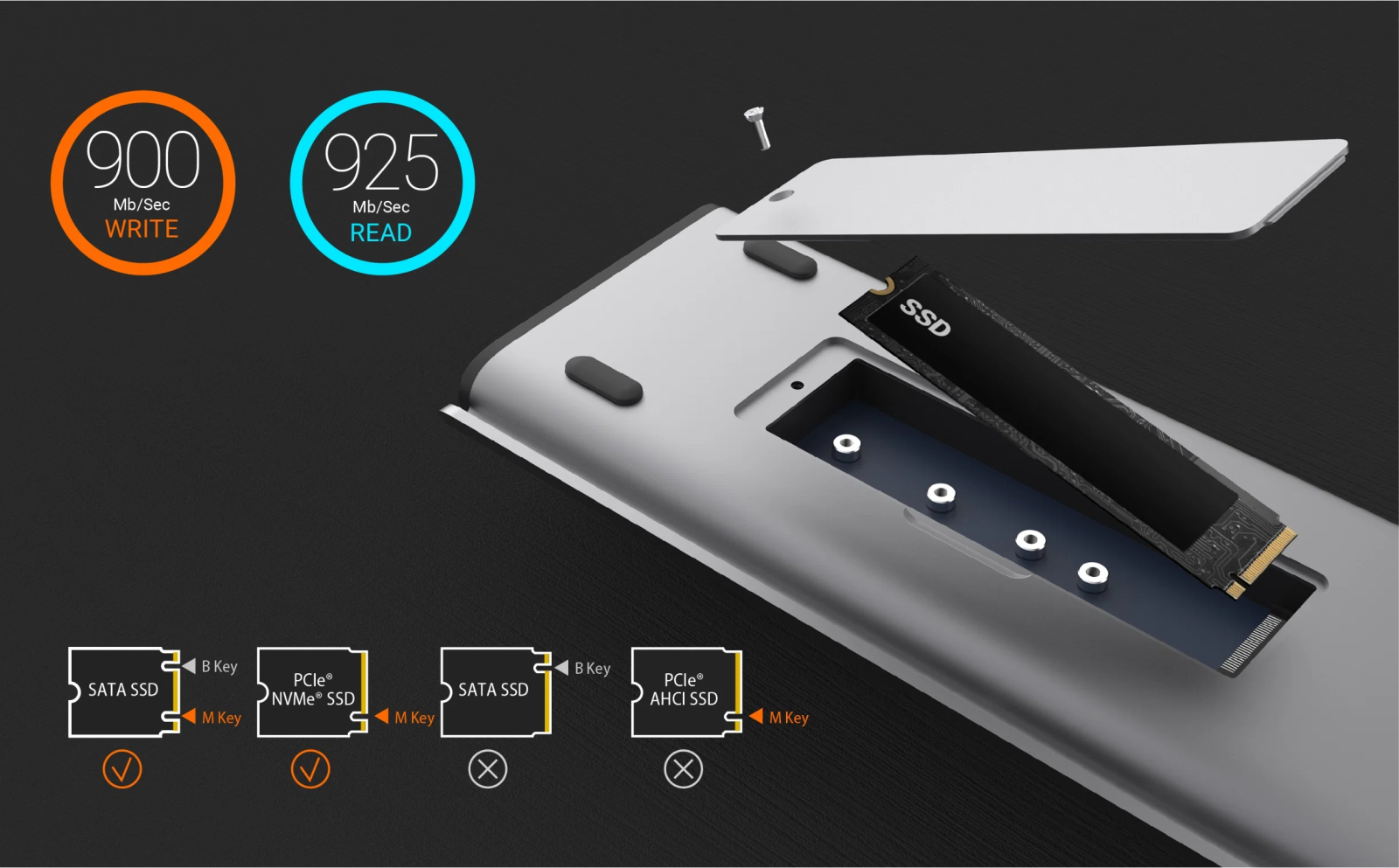

Enhanced Data Storage

Built-in M.2 expansion SSD slot supports 2230, 2242, 2260, and 2280 M.2 NVMe SSD with ultra-fast read and write speeds

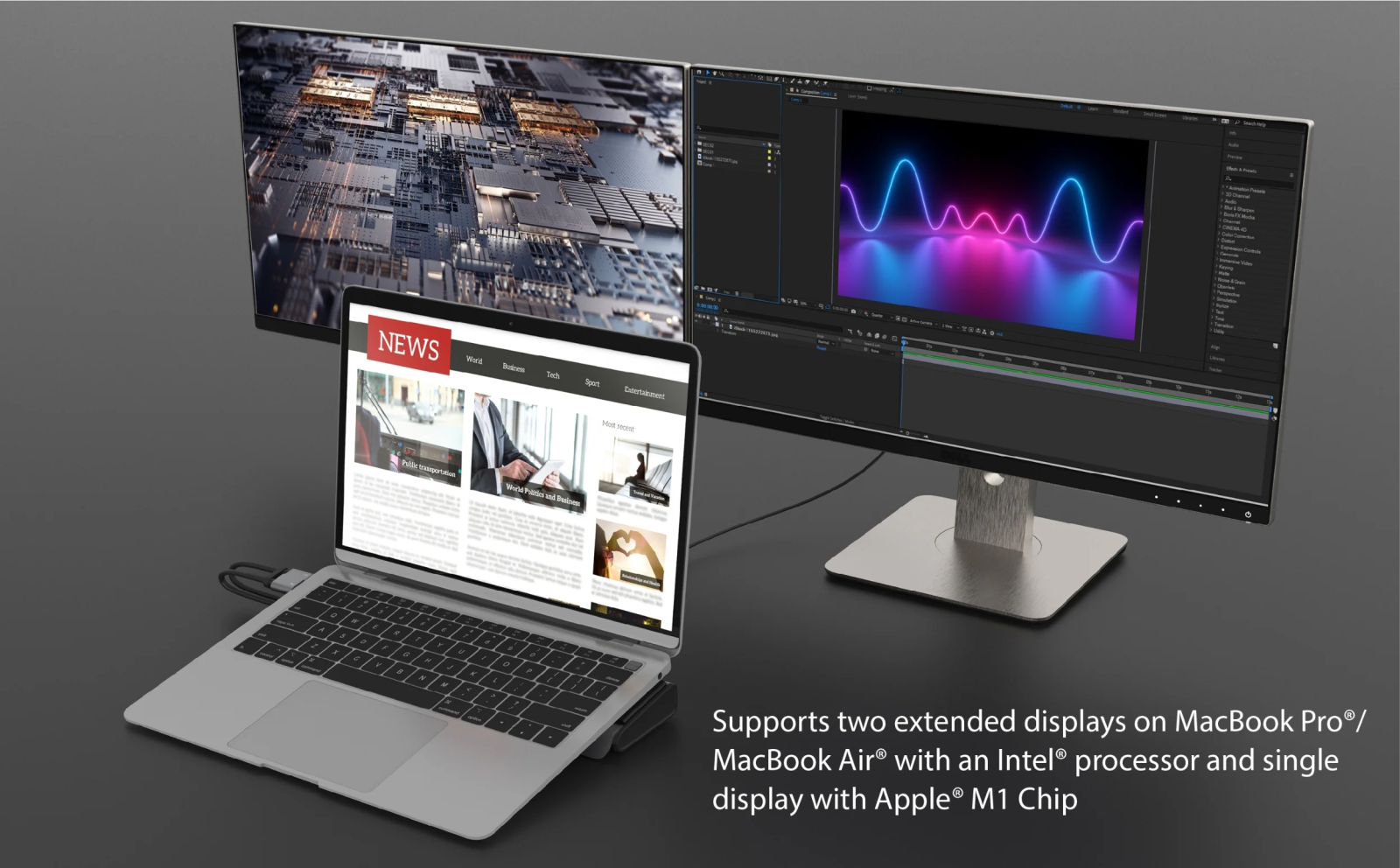

Dual 4K Monitor Setup

Supports up to dual 4K @ 60 Hz monitors, allowing resource-demanding applications to run on independent displays without affecting system performance
*Dual displays via two USB-C ports supporting DP Alt Mode or a single 4K HDMI display with one USB-C port supporting DP Alt Mode

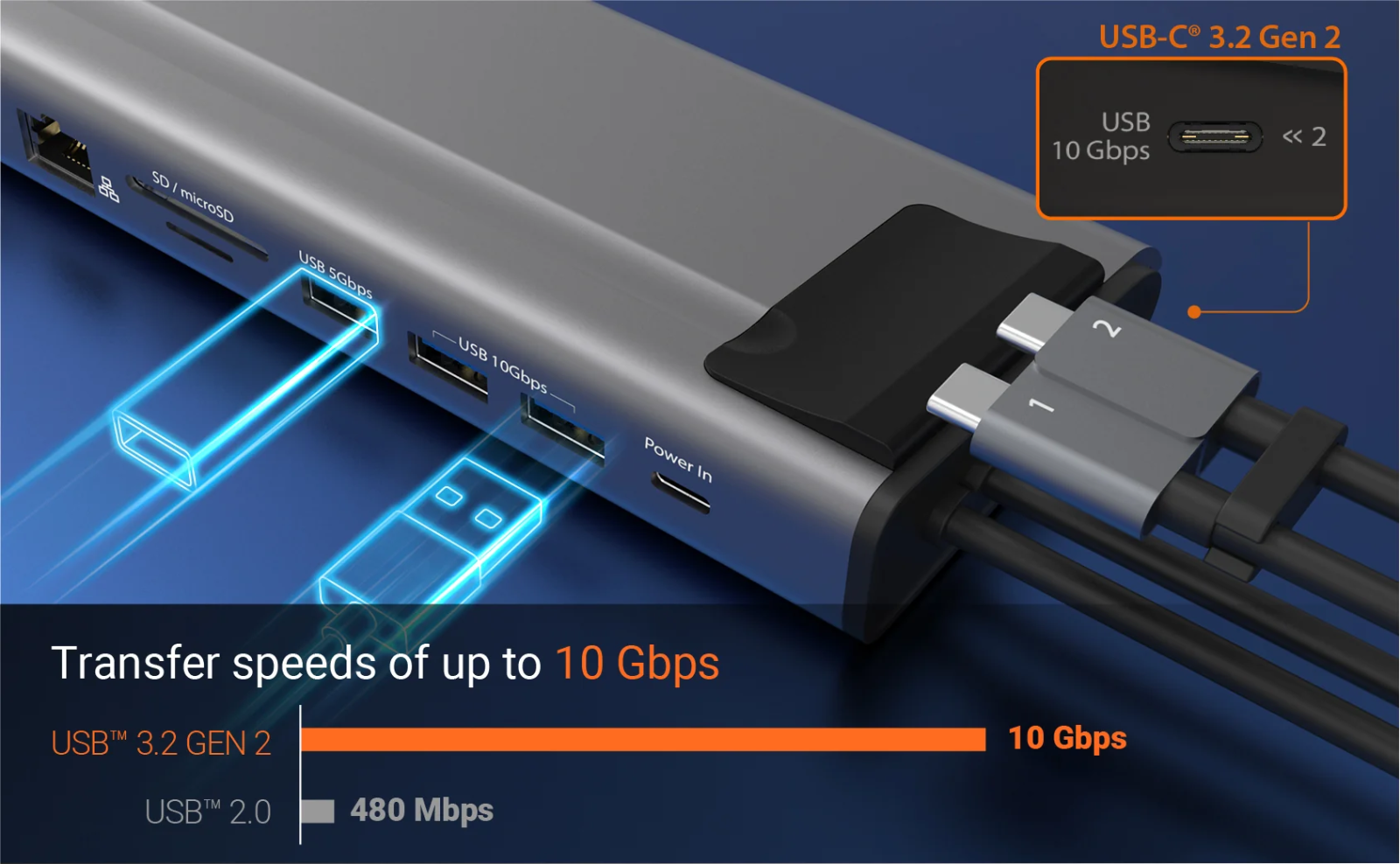

High-Speed Performance

Connect your latest and legacy devices with three SuperSpeed USB 10 Gbps ports (1 USB-C and 2 USB Type-A) and a SuperSpeed USB 5 Gbps port

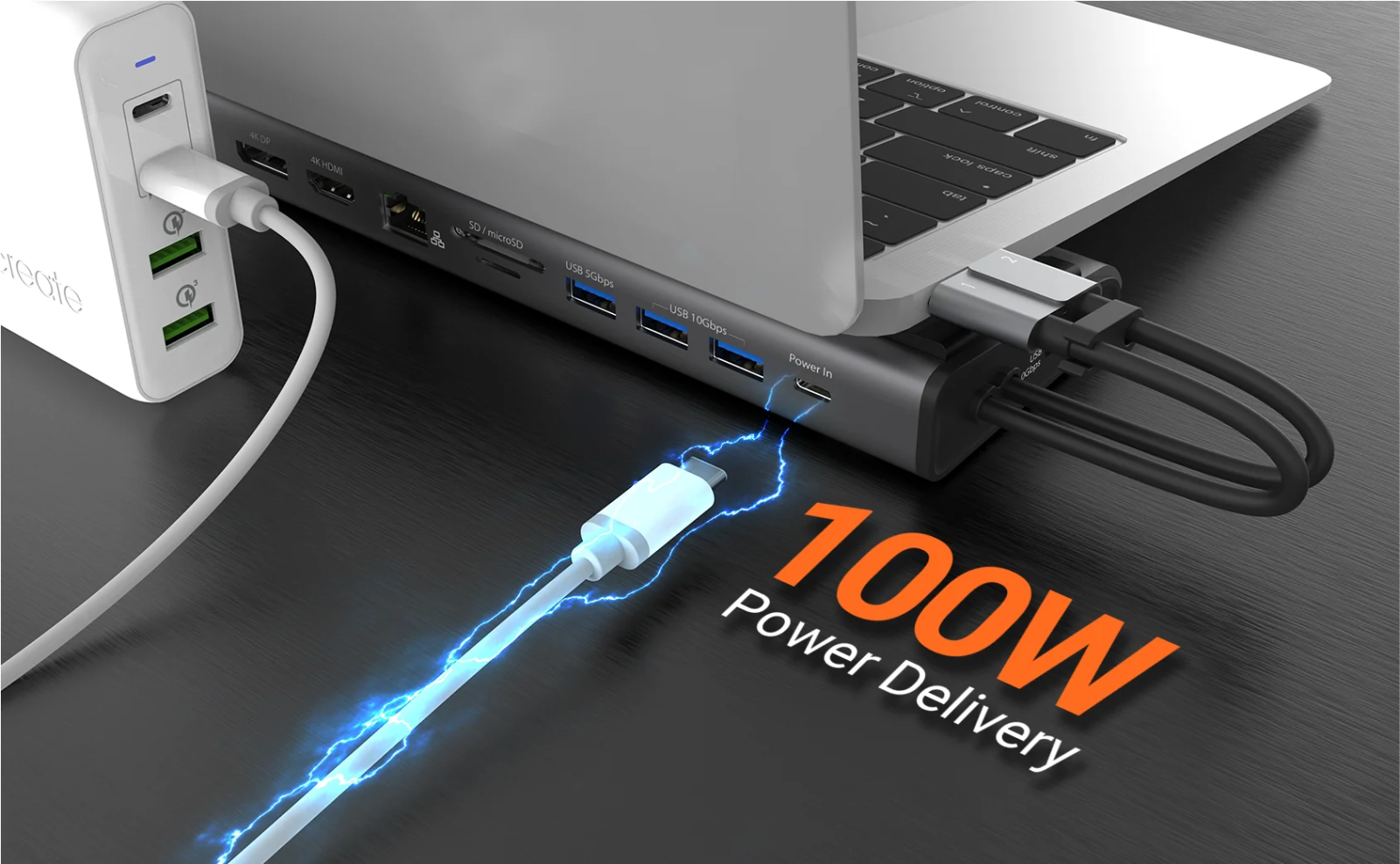

100W Power Delivery Pass-Through

Use with a USB-C power adapter for the added ability to charge your laptop and power connected peripherals

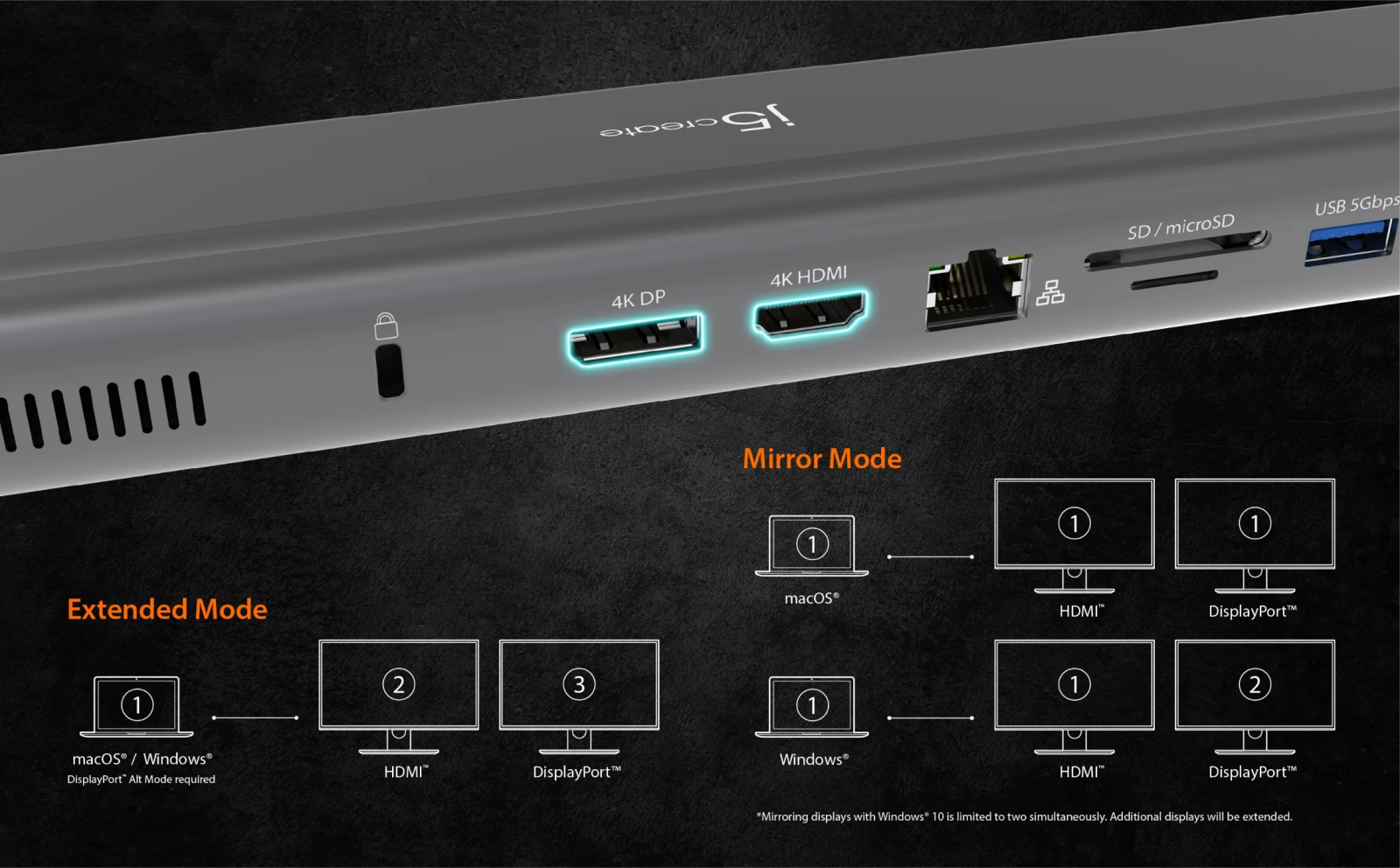

Flexible Display Connections

DisplayPort alternate mode allows you to connect two 4K 60 Hz displays via HDMI and DisplayPort or add a single 4K HDMI display when the docking station is connected to only one USB-C host

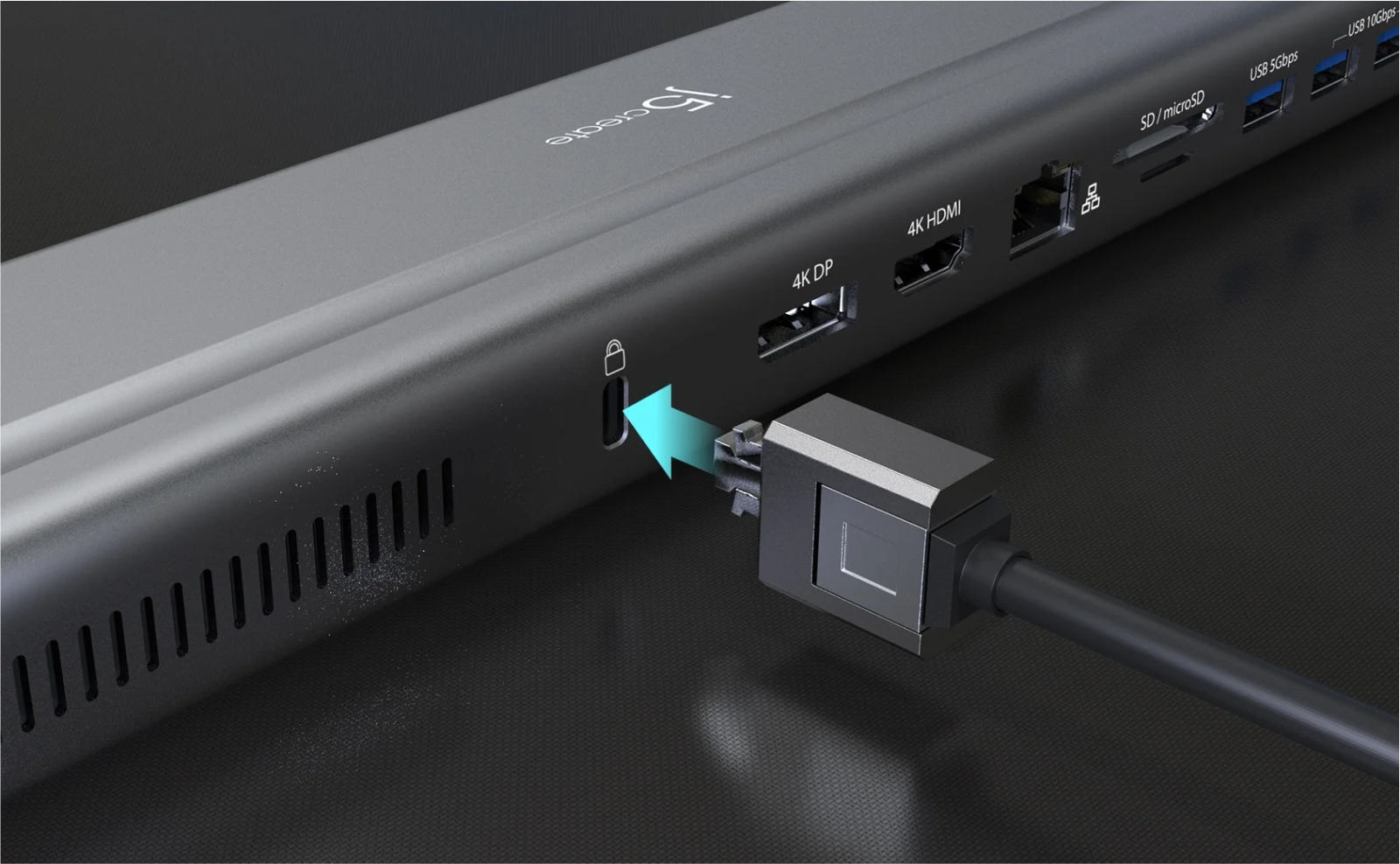

Anti-Theft Protection

Security slot to prevent equipment theft in a wide range of business or institutional environments.

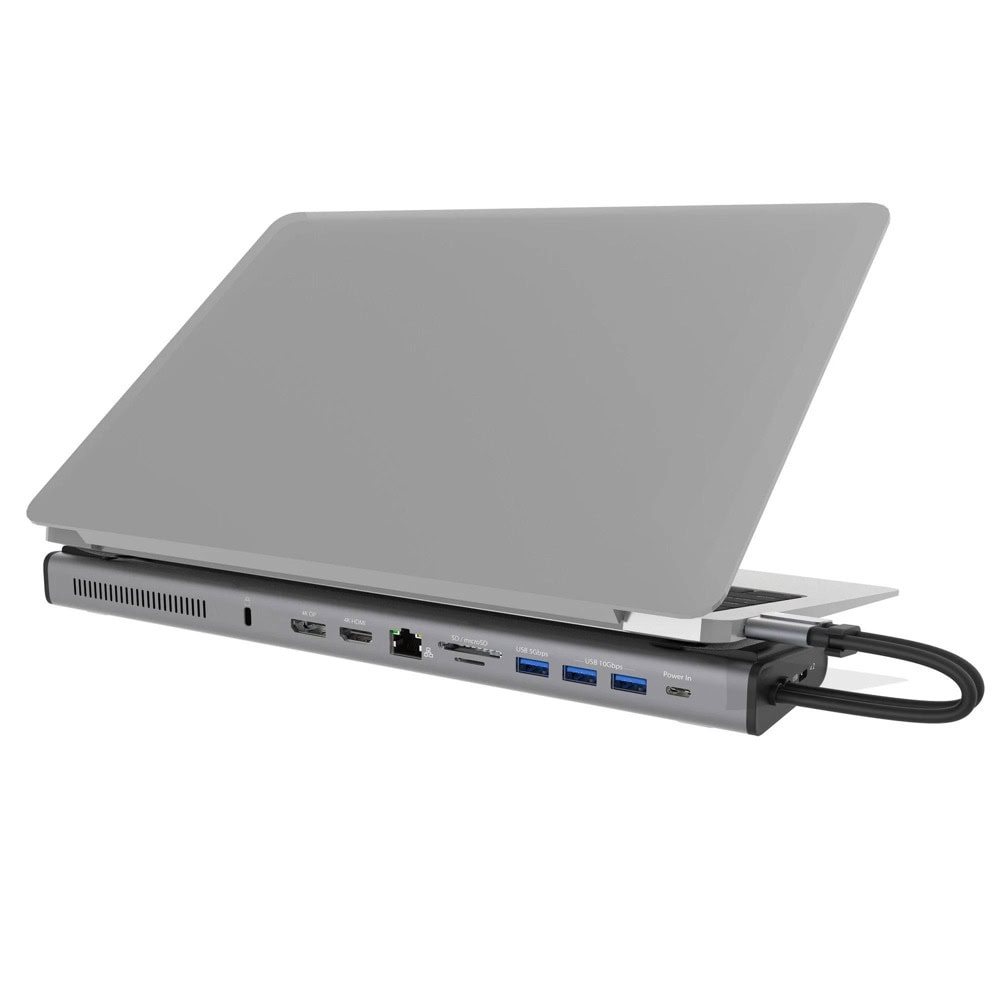

Ideal Accessory for MacBook Pro/Macbook Air

Great for working with graphics-intensive images and video editing

Specifications

Hardware

Audio supported
Yes

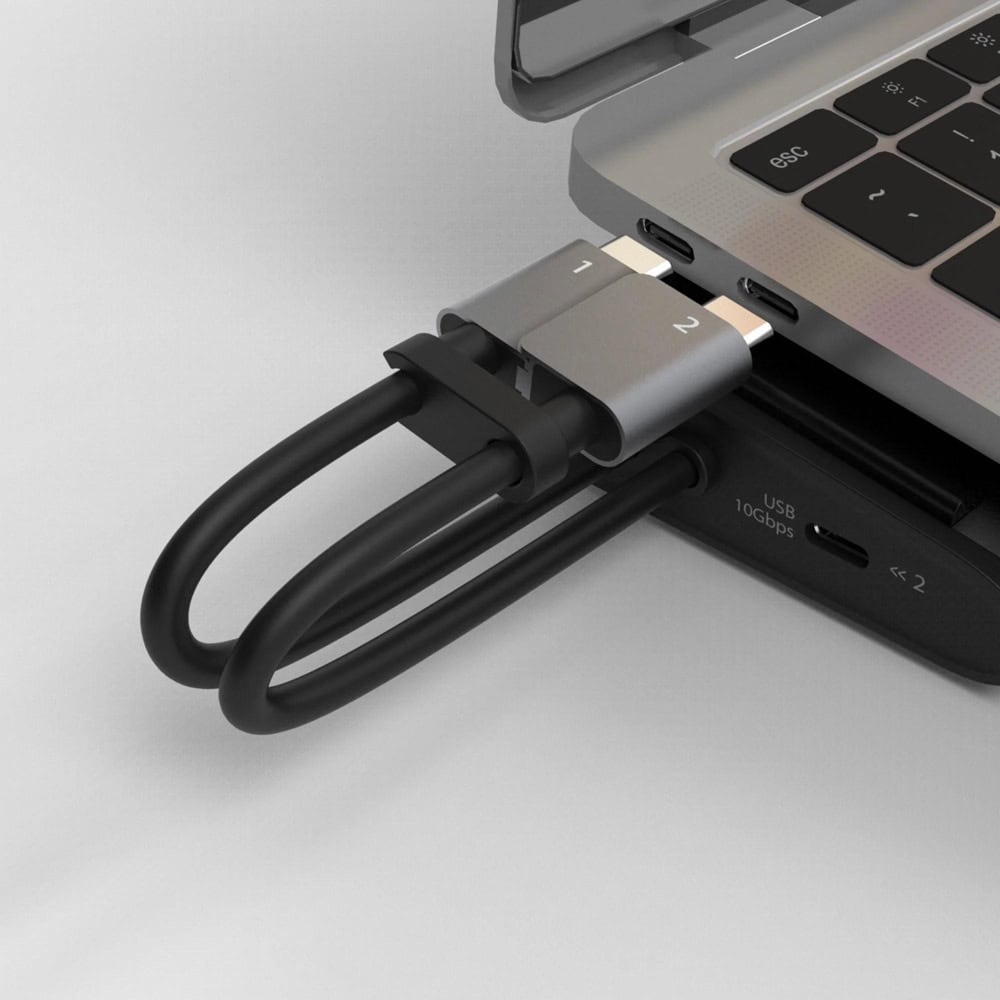

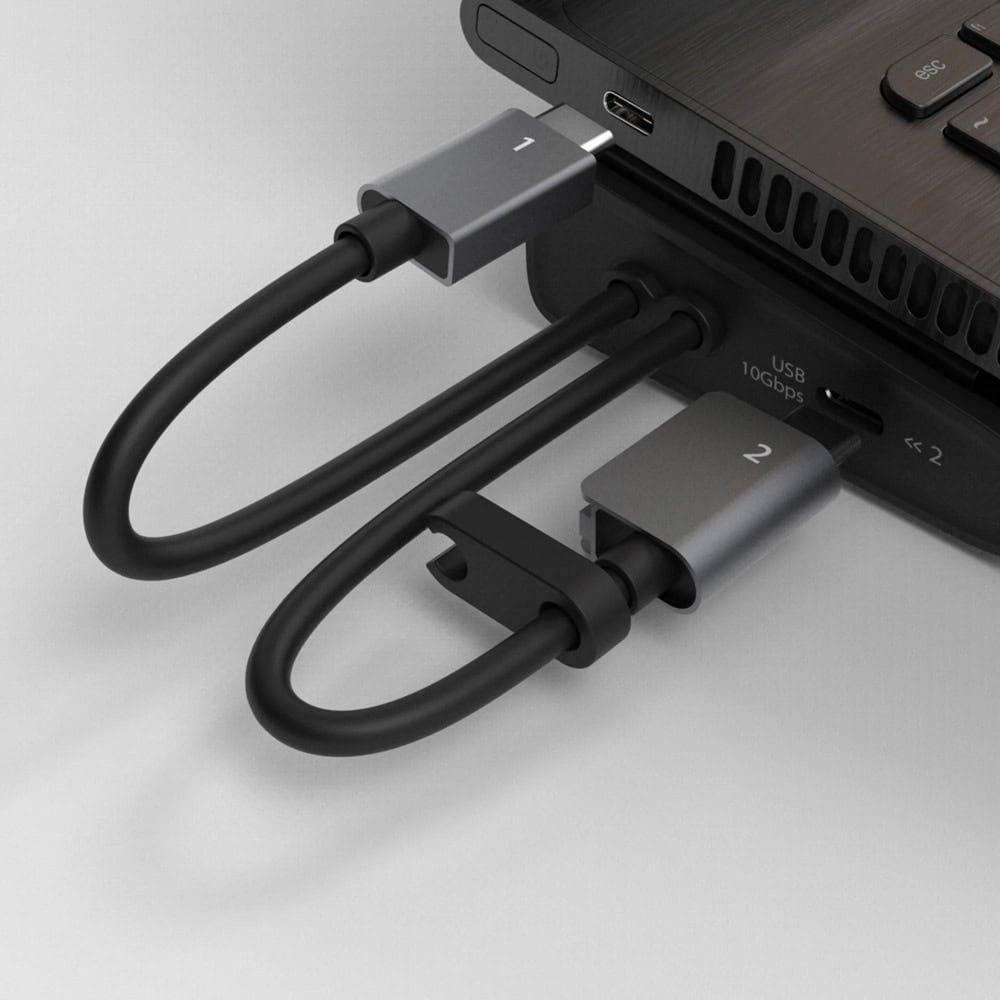

Host connector
2 - USB-C Male


Network interface
RJ45 (Gigabit Ethernet)


Ports

1 - M.2 NVMe/SATA slot (2230,2242,2260,2280)
1 - USB-C 3.2 Gen 2
1 - USB-C Power Delivery 3.0
2 - USB Type-A 3.2 Gen 2
1 - USB Type-A 3.2 Gen 1
1 - 4K HDMI
1 - 4K DisplayPort
1 - SD & microSD 3.0 memory card reader/writer
1 - RJ45 Gigabit Ethernet
1 - Security Lock Slot

Power source
Bus-powered


Video output

1 - HDMI Female
1 - DisplayPort Female

Performance

Audio channel
2.1 via HDMI/DisplayPort


Compatible networks
10/100/1000 Mbps


Displays supported
2

Max data transfer rate
10 Gbps

M.2 slot - Write: 900 MB/s, Read: 925 MB/s


Max display refresh rate
60 Hz


Max display resolution
3840 x 2160


Power

Input current
5A

Input voltage
20V

Output current
5A

Output voltage
20V

Power consumption
≤ 600 mA

Power delivery
Up to 100W via USB-C

Physical Specifications

Cable length
0.6 in. (15 cm)

Enclosure type
Aluminum

Operating humidity
< 85% non-condensing

Operating temperature
32 to 118°F (0 to 48°C)

Product depth
12.5 in. (318 mm)

Product height
1.02 in. (26 mm)

Product weight
0.83 lbs. (378g)

Product width
3.14 in. (80 mm)

Storage humidity
< 85% non-condensing

Storage temperature
14 to 149°F (-10 to 65°C)
