Simultaneous DisplayPort, HDMI and VGA Output
Supports Mirror and Extended modes on both Mac & Windows. The easiest way to add a second or third display.
.png)

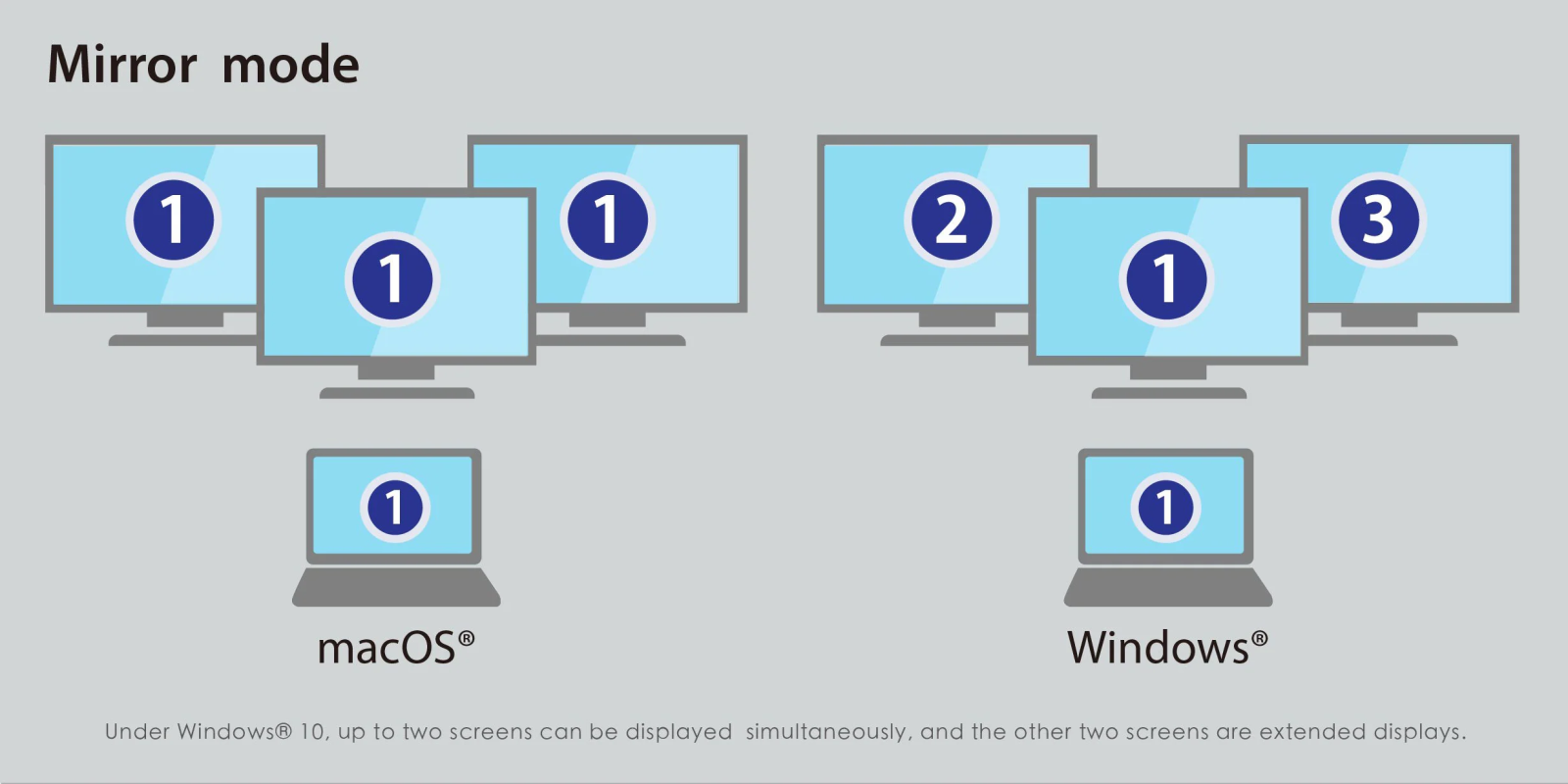

Maximum Resolutions Supported in Mirror Mode

1080p resolution is supported in a triple display configuration when VGA output is connected from macOS devices while 4K resolution is supported in a dual display configuration when VGA output is not connected from macOS devices

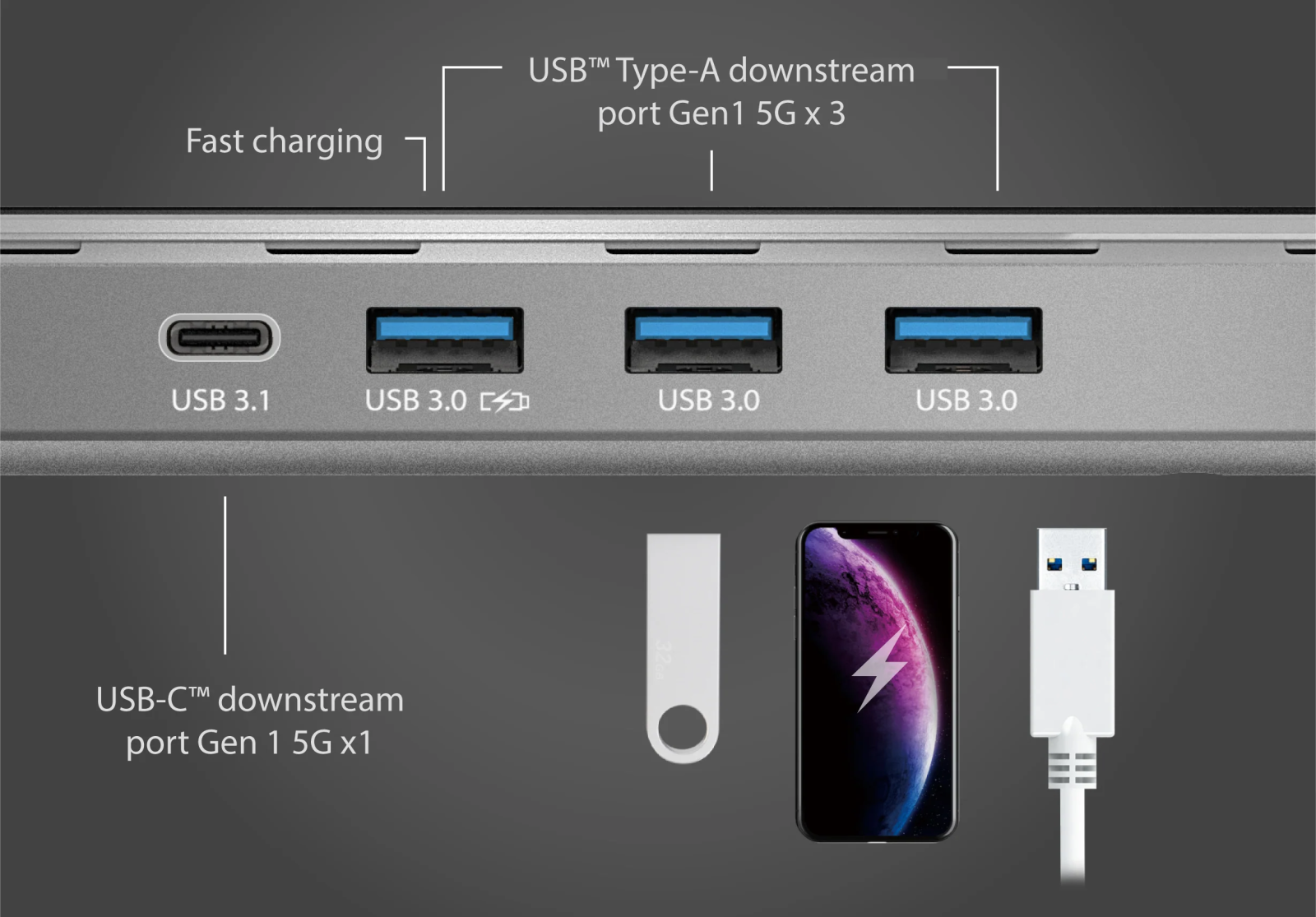

SuperSpeed USB 3.0 Ports

13 ports in one sleek design for all your needs

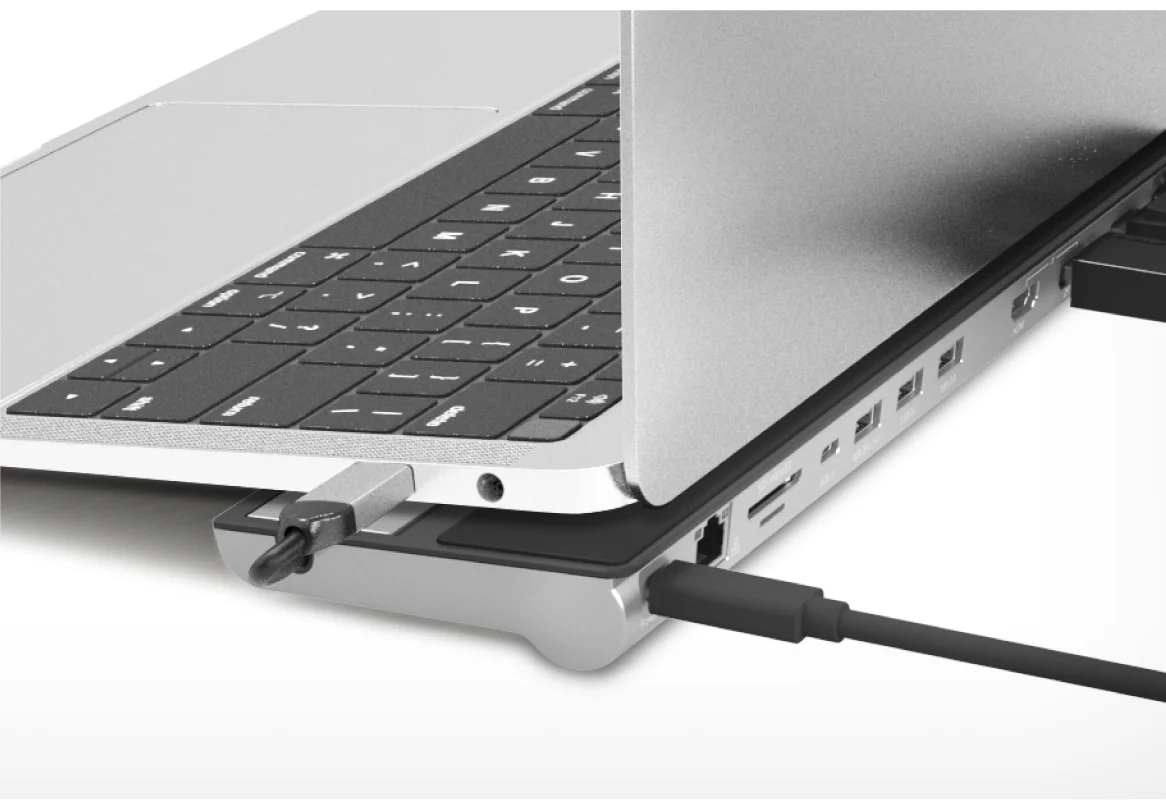

Cutting-Edge Design
The advanced heat-eliminating design makes the JCD543 the perfect solution for expanding any laptop into a full-sized work-station without the worry of overheating.

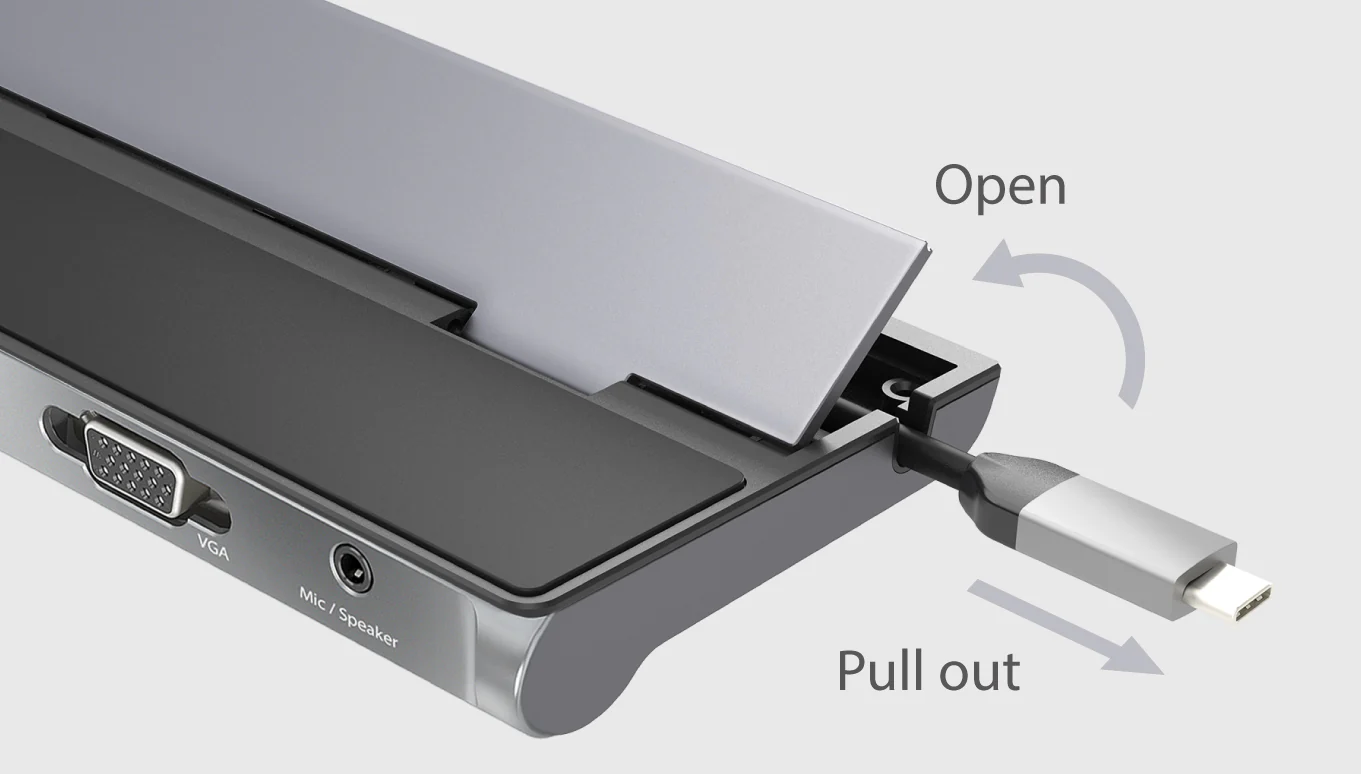

Cable Storage with Dual Openings

Specifications
Hardware
audio supported
Yes
host connector
USB-C™ Male
network interface
RJ45 (Gigabit Ethernet)

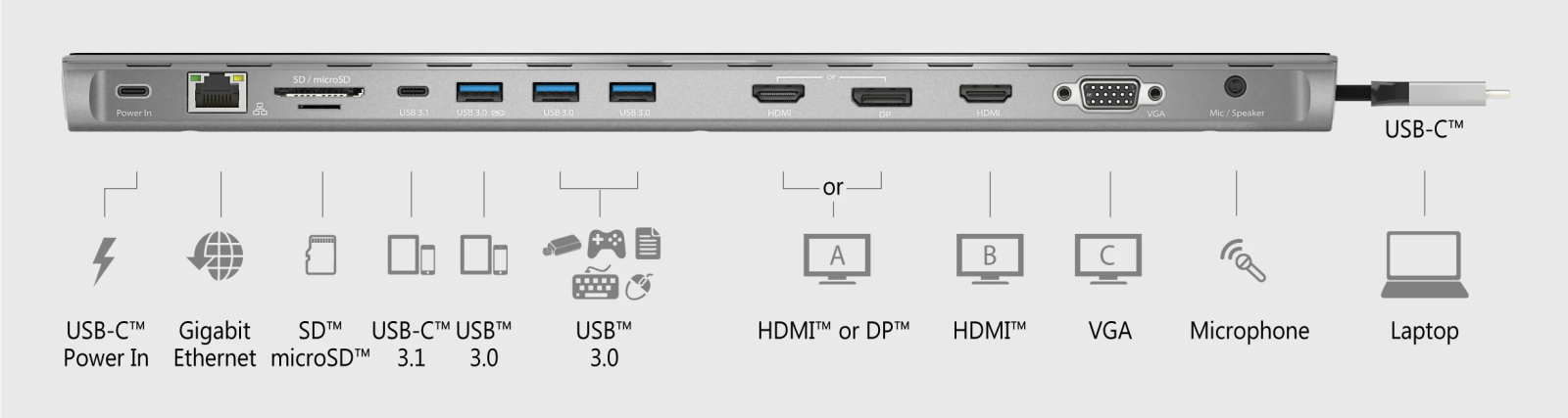

ports
2 - USB™ 3.0 Type-A
1 - USB™ 3.0 Type-A fast charge
1 - USB-C™ 3.1 Gen 1
1 - USB-C™ Power Delivery 3.0
2 - 4K HDMI™
1 - DisplayPort™
1 - VGA
1 - SD™ & microSD™ memory card reader/writer
1 - RJ45 Gigabit Ethernet
1 - 3.5 mm combo audio jack
power source
Bus-powered or Self-powered
usb pass-through
Yes
video output
2 - HDMI™ Female
1 - DisplayPort™ Female
1 - VGA Female
Performance
audio channel
2.1 via HDMI™/DisplayPort™/3.5 mm Aux
compatible networks
10/100/1000 Mbps
displays supported
3 (HDMI™, VGA and DisplayPort™ or HDMI™)
max data transfer rate
5 Gbps
max display refresh rate
HDMI™/DisplayPort™ 4K: 30 Hz
HDMI™/DisplayPort™ 1080p: 60 Hz
VGA: 60 Hz
max display resolution
HDMI™/DisplayPort™: 3840 x 2160
VGA: 1920 x 1080
Power
input current
0.8A
input voltage
110 - 220V
output current
USB-C™ – 4.75A
USB™ Type-A – 2.4A
output voltage
Up to 20V
power consumption
≤ 900 mA

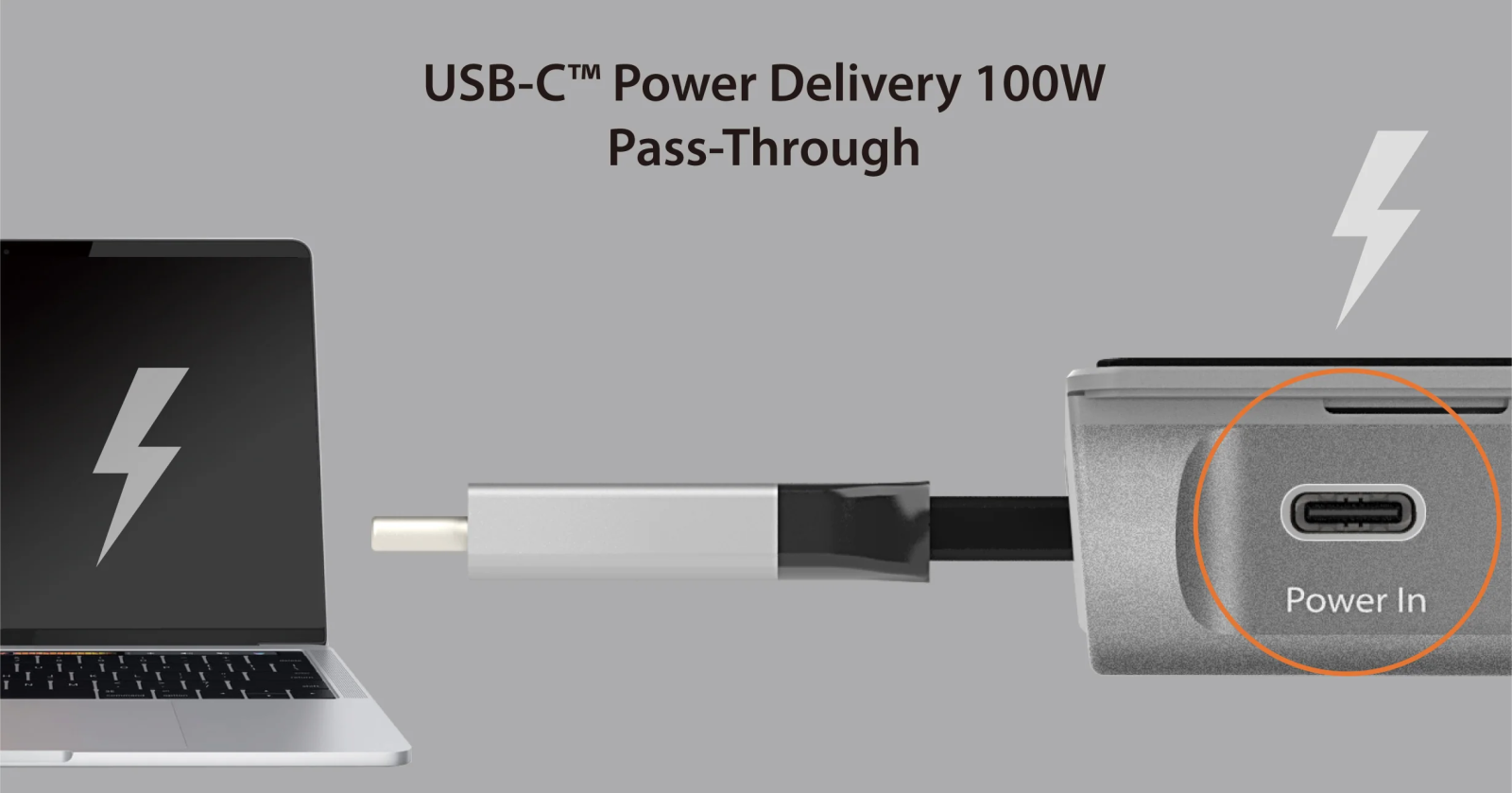

power delivery
Up to 100W via USB-C
Physical Specifications
cable length
1.48 ft (45 cm)
enclosure type
Aluminum
operating humidity
< 85% non-condensing
operating temperature
32 to 118°F (0 to 48°C)
storage humidity
< 85% non-condensing
storage temperature
14 to 149°F (-10 to 65°C)
