Докинг станция j5create JCD401, от USB-C към 1x USB-C (PD), 1x USB-C, 1x USB-A, 1x HDMI (4K@60Hz), 1x DisplayPort, сива

j5create JCD401

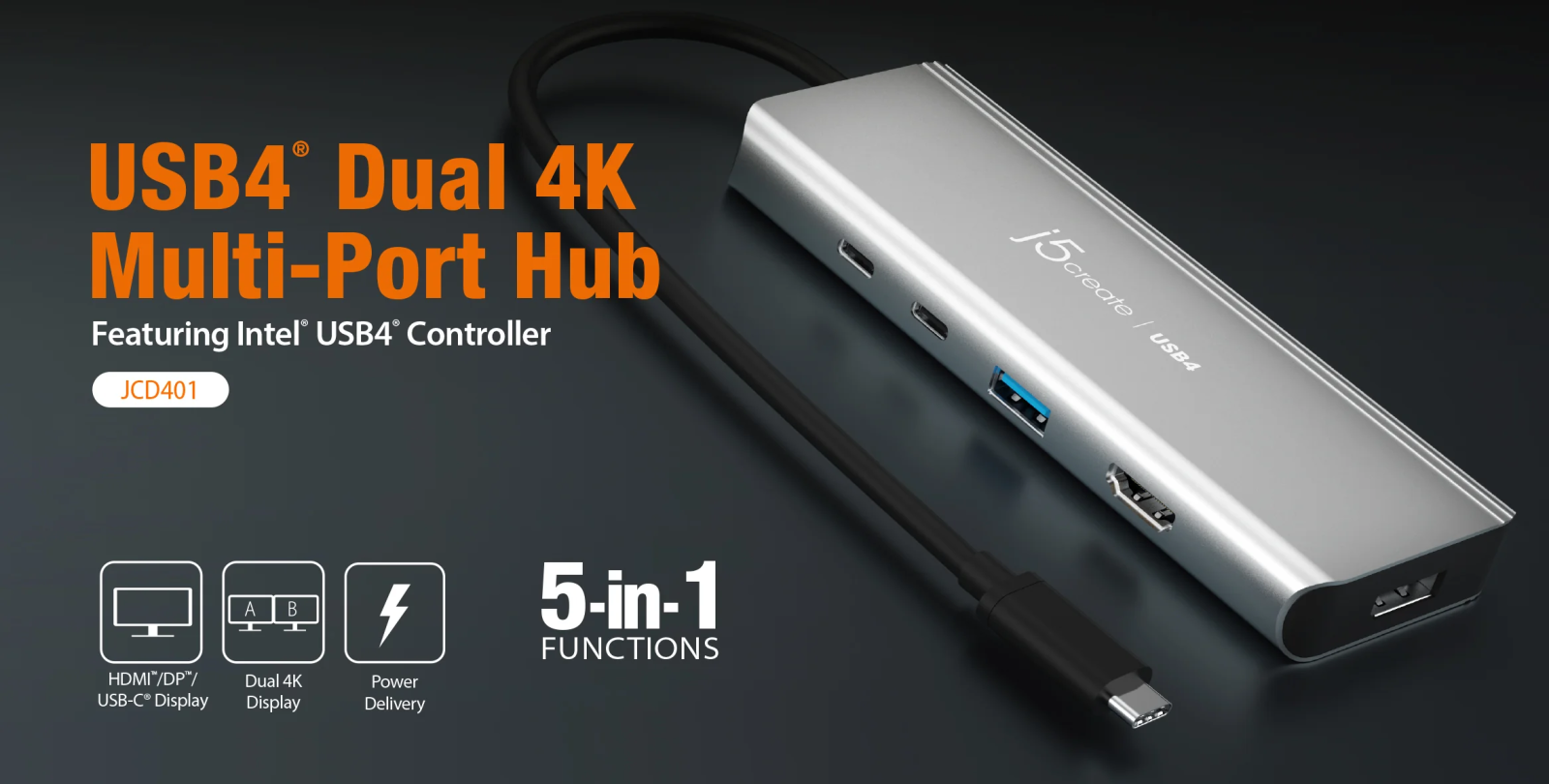

This high-performance USB4® multi-port hub is the first USB-C hub to incorporate the latest USB4 controller from Intel, offering compatibility with Thunderbolt and older USB specifications.

With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort, HDMI, or USB-C and access data faster without affecting system performance. Additionally, it has two USB SuperSpeed+ 10Gbps ports (1 USB-C and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.

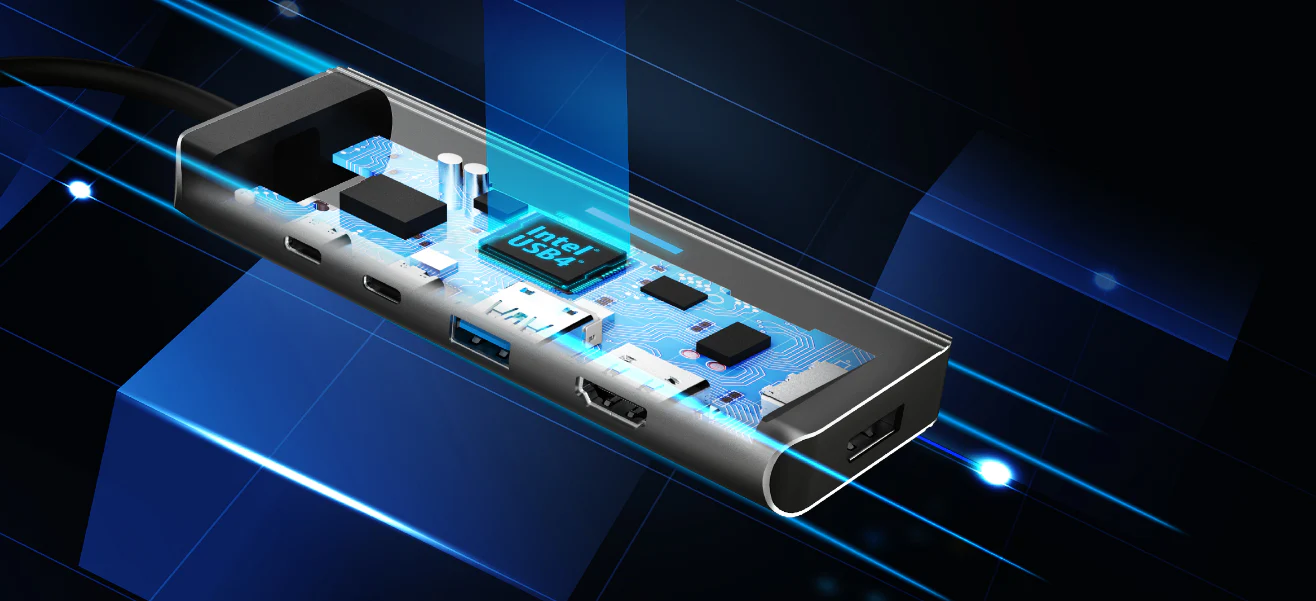

Featuring Intel USB4 Controller

Enhances Dynamic Bandwidth Sharing For Better Video And Optimized Data Transmission







5-in-1 Functions

Multiple connectivity options for greater efficiency

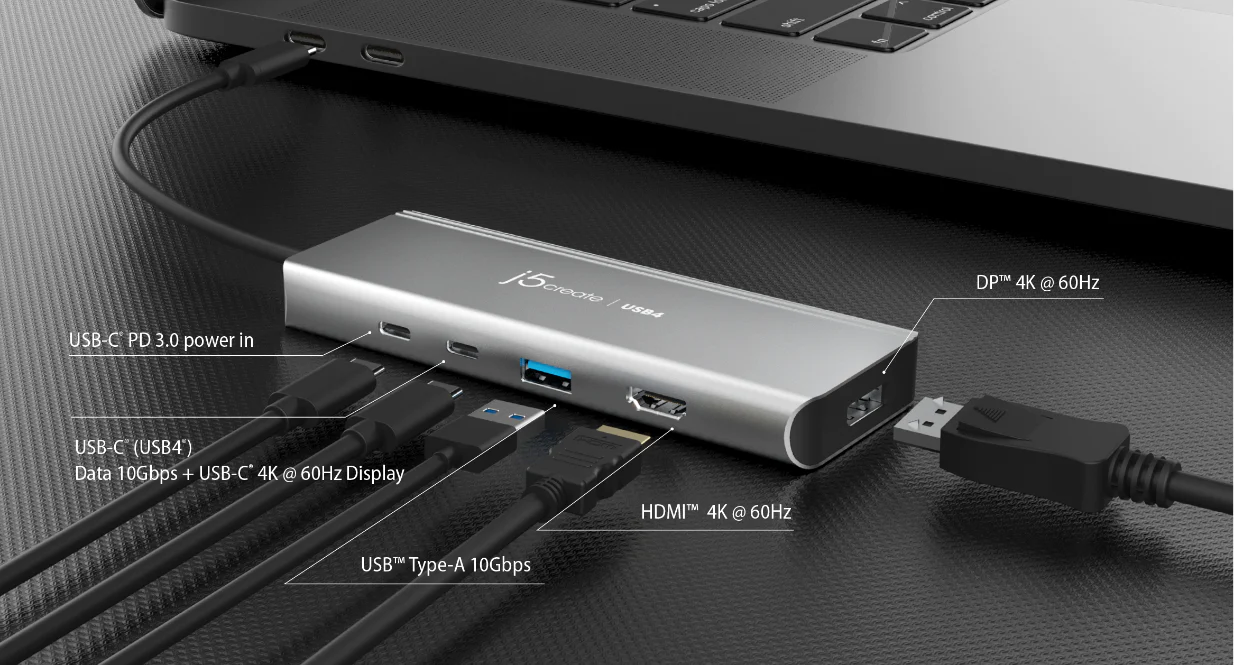

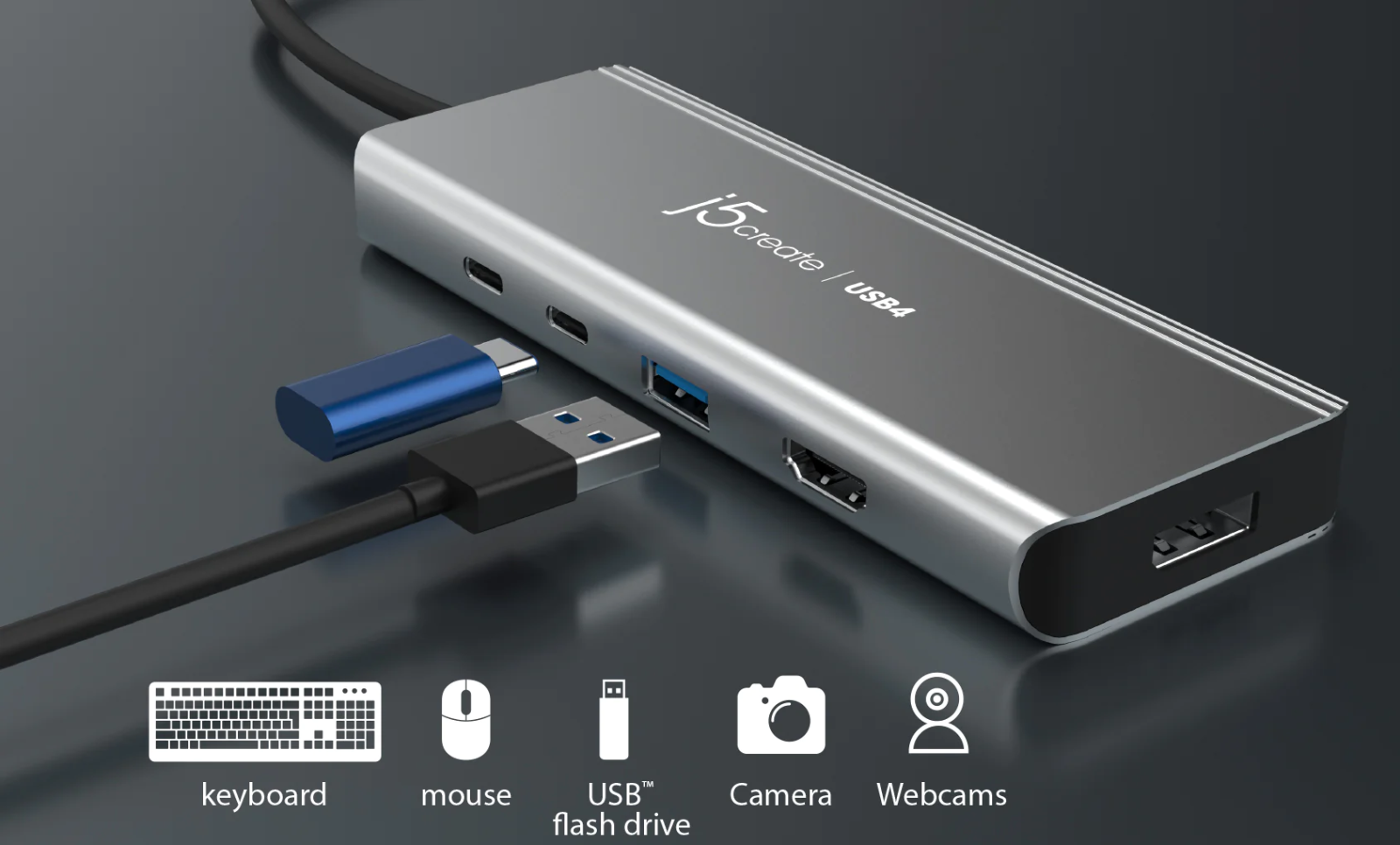

Efficient USB Ports Connect your latest and legacy devices with two USB SuperSpeed+ 10Gbps ports (1 USB-C and 1 Type-A) for charging or connecting peripherals





Tech specs:

Hardware
Host Connector	1 - USB4 Male
Video Output	1 - HDMI Female 1 - DisplayPort Female 1 - USB-C with DisplayPort alt mode
Power Source	Bus-powered or self-powered
Network Interface	No
Audio Supported	No
Ports	1 - USB-C 3.2 Gen 2 (10Gbps) with DP 1.2 Support 1 - USB Type-A 3.2 Gen 2 (10Gbps) 1 - USB-C Power Delivery 3.0 1 - 4K HDMI 1 - DisplayPort 1.2
Performance
Maximum Display Resolution	3840 x 2160
Maximum Display Refresh Rate	60 Hz
Maximum Data Transfer Rate	10Gbps
Displays Supported	2
Compatible Networks	N/A
Audio Channel	N/A
Power
Power Delivery	Up to 85W via USB-C
Power Consumption	≤ 900 mA
Input Current	Up to 3A
Input Voltage	Up to 20V
Output Current	Up to 4.25A
Output Voltage	Up to 20V
Physical Specifications
Color	Space Grey
Enclosure Type	Aluminum
Cable Length	200 mm
Product Height	135 mm
Product Width	51 mm
Product Depth	15 mm
Product Weight	109g
