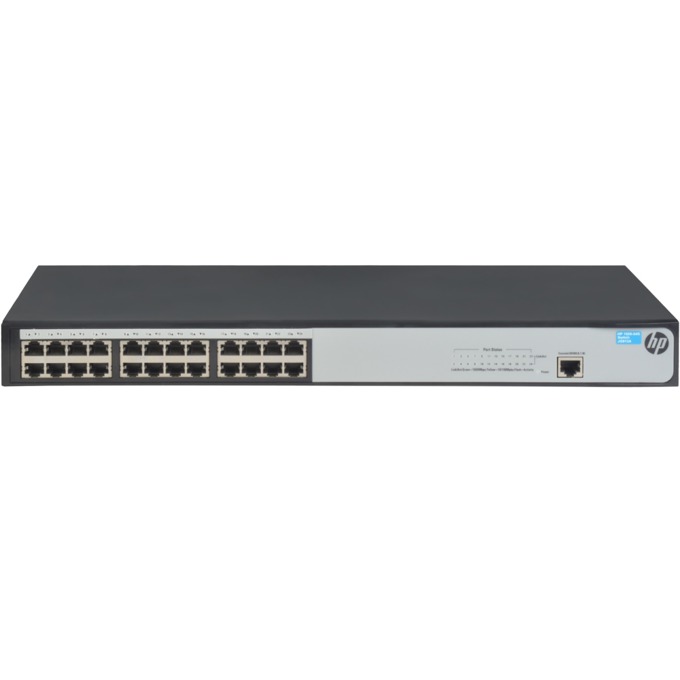

Суич HPE OfficeConnect 1620 24G, 1000 Mbps, 24-ports, 1x RJ-45

HPE OfficeConnect 1620 24G
JG913A

Сигурност: IEEE 802.3X Flow Control

Други: 1 RJ-45 console port to access limited CLI port

Захранване: AC voltage: 100-240 VAC; Maximum power rating: 15 W
MAC адреси: 8192 MAC addres table size

Управление: Simple Web management; Secure Web GUI; SNMPv1, v2c, and v3; Port mirroring; Default DHCP Client mode; Network Time Protocol (NTP); Manual network time configuration; Dual flash images

Памет (Flash, RAM): Flash Memory: 32MB, RAM: 128 MB
VLAN (брой, стандарти): Supports IEEE 802.1Q with 4,096 simultaneous VLAN IDs
Размери, mm: 440 x 173 x 43.9 mm, 1U height

Суич, тип: Fixed Port
Общ брой портове: 24
Основни портове, тип: 24x10/100/1000Base-T

Fans: Fanless design
Routing Layer 2 only

Капацитет за маршрутизиране/превключване, Gbps 48 Gbps
Пропускателна способност, Mpps 35.7 Mpps

QoS: IEEE 802.1p prioritization with DSCP, Broadcast control (Allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic), Rate limiting (Sets per-port ingress enforced maximums and per-port, per-queue minimums)

L2 мрежови стандарти: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3x
