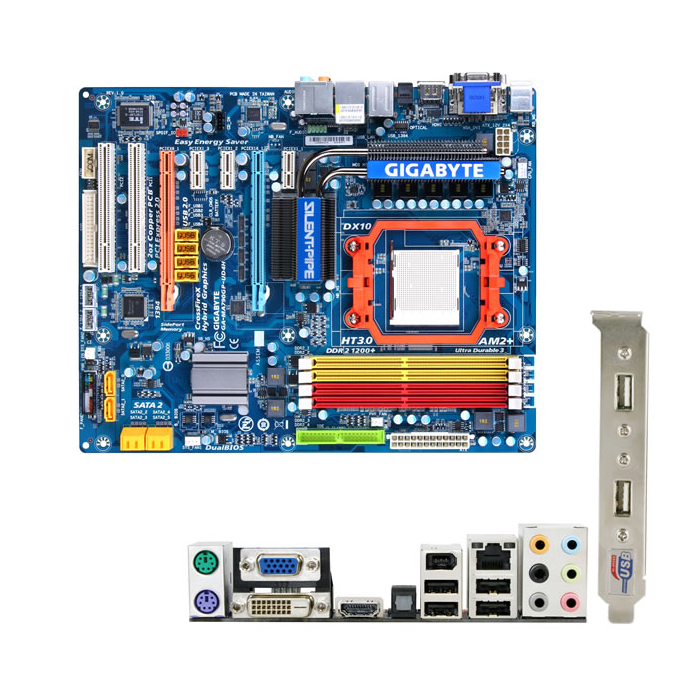

Дънна платка Gigabyte MA790GP-UD4H, AMD 790GX, AM2+/AM3, DDR1066, VGA (HDMI & DVI)+2xPCI-E (CF), SB7.1 Dolby, Lan1000, SATA RAID 0,1, 5, 10, 3x1394, ATX

GA-MA790GP-UD4H (rev._VIDEO CARD_ 23 1.0)
AMD 790GX + SB750 Chipset

1. Ultra Durable 3 Technology with copper cooled quality for lower working temperature
2. Revolution energy saving design with Easy Energy Saver technology
3. Supports AMD Phenom/ Athlon series processors
4. Dual Channel DDR2 1200+ for remarkable system performance
5. Built-in 128MB DDR3 1333MHz SidePort Memory
6. Integrated ATI Radeon HD3300 graphics (DirectX10)
7. 2 PCI-E 2.0 x16 interface with ATI CrossFireX/ Hybrid CrossFireX support for ultimate graphics performance
8. Blu-ray playback supported by high quality 106dB SNR ALC889A HD audio
9. Supports Dolby Home Theater audio to enjoy a rich surround sound experience
10. Integrated HDMI/ DVI interface for Full HD 1080 Blu-ray playback with HDCP
11. Patented DualBIOS with dual hardware BIOS protection
12. 100% 50,000 hours lifespan of Japanese solid capacitors design

* DDR2 1200+ is supported with combination of AM2+ processors and qualified memory modules, please refer ""Memory Support List"" for detail memory support information.

CPU

1. Support for Socket AM3 / AM2+ / AM2 processors: AMD Phenom™ FX processor/ AMD Phenom™ X4 processor/ AMD Phenom™ X3 processor/ AMD Athlon™ X2 processor/ AMD Athlon™ processor/ AMD Sempron™ X2 processor/ AMD Sempron™ processor

Hyper Transport Bus

1. 5200/2000 MT/s

Chipset

1. North Bridge: AMD 790GX
2. South Bridge: AMD SB750

Memory

1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR2 1200 (Note 2)/1066/800 MHz memory modules

Integrated Memory

1. 128MB DDR3 SidePort memory

Audio

1. Realtek ALC889A codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) (Note 3)
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
(The PCIEX16_1 and PCIEX8_1 slots support ATI Hybrid CrossFireX technology and ATI CrossFireX technology, and conform to PCI Express 2.0 standard.)
3. 3 x PCI Express x1 slots
4. 2 x PCI slots

Storage Interface South Bridge:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
3. Support for SATA RAID 0, RAID 1, RAID5, RAID 10 and JBOD

iTE IT8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394
T.I. TSB43AB23 chip

1. Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

USB

Integrated in the South Bridge

1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 2 x system fan header
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In/Out header
13. 2 x IEEE 1394a header
14. 4 x USB 2.0/1.1 headers
15. 1 x serial port header
16. 1 x chassis intrusion header
17. 1 x power LED header

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port (Note 4)
5. 1 x HDMI port
6. 1 x optical S/PDIF Out connector
7. 1 x IEEE 1394a port
8. 4 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8718 chip

H/W Monitoring System voltage detection

1. CPU/System temperature detection
2. CPU/System fan speed detection
3. CPU overheating warning
4. CPU/System fan fail warning
5. CPU/System fan speed control (Note 5)

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Virtual Dual BIOS
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Easy Energy Saver (Note 7)

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft® Windows Vista/ XP

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm

Note
(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether 1200 MHz memory speed is supported depends on the CPU being used.
(Note 3) When two graphics cards are installed, the PCIEX16_1 slot will operate at uup to x8 mode.
(Note 4) The DVI-D port does not support D-Sub connection by adapter.
(Note 5) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 6) Available functions in EasyTune may differ by motherboard model.
(Note 7) Due to the hardware limitation, you must install an AMD AM2+ Phenom series CPU to enable support for Easy Energy Saver.

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
