Gigabyte H410M S2H
Икона в кампания
Gigabyte H410M S2HGigabyte H410M S2HGigabyte H410M S2HGigabyte H410M S2H

Дънна платка Gigabyte H410M S2H, H410, LGA1200, DDR4, PCI-E 3.0, (D-Sub&DVI-D&HDMI), 4x SATA 6Gb/s, 1x M.2, USB 3.2 Gen 1, Micro ATX

id 187653 Код: MBIGIGABYTEH410MS2H
  • Модел: H410M S2H
  • Марка: Gigabyte
  • Код на продукта: H410M S2H
  • Поддържана памет: DDR4
  • RAID: Не
  • Безжични мрежи: Не
  • Bluetooth: Не
  • Видео слот: PCI-E
  • Multi-Graphics технология: Няма
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

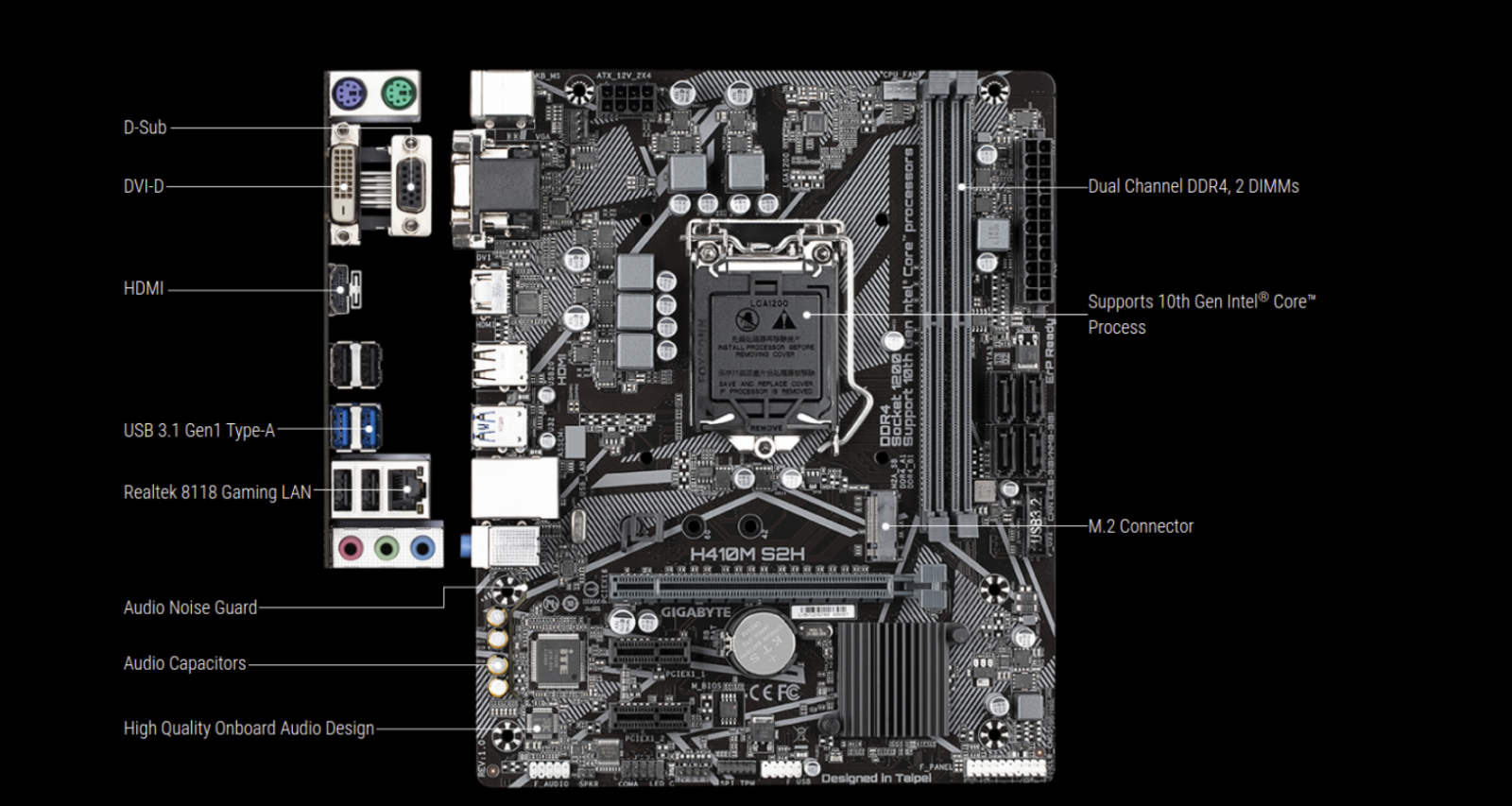

    Intel® H410 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x2 M.2, HDMI / DVI-D/ D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5

    • Supports 10th Gen Intel® Core™ Processors

    • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

    • 8-Channel HD Audio with High Quality Audio Capacitors

    • Ultra-Fast M.2 with PCIe Gen3 X2 & SATA Interface

    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

    • HDMI /DVI-D/D-Sub Ports for Multiple Display

    • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

    • GIGABYTE APP Center, Simple and Easy Use

    • Anti-Sulfur Resistors Design















    Specification

    CPU
    Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    L3 cache varies with CPU

    Chipset
    Intel® H410 Express Chipset

    Memory
    Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules

    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    Support for up to dual-display at the same time
    Maximum shared memory of 512 MB

    Audio
    Realtek® ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

    LAN
    Realtek® GbE LAN chip (1000/100 Mbit)

    Expansion Slots
    1 x PCI Express x16 slot, running at x16
    2 x PCI Express x1 slot
    (The PCI Express slots conform to PCI Express 3.0 standard.)
    Supports up to ASPM L1.2 power management protocols.

    Storage Interface
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
    4 x SATA 6Gb/s connectors
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
    USB

    Chipset:
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

    Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    4 x SATA 6Gb/s connectors
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x serial port header
    1 x Clear CMOS jumper

    Back Panel Connectors
    1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x D-Sub port
    1 x DVI-D port
    1 x HDMI port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks

    I/O Controller
    iTE® I/O Controller Chip
    H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install

    Bundled Software
    Norton® Internet Security (OEM version)
    Realtek® 8118 Gaming LAN Bandwidth Control Utility

    Operating System
    Support for Windows 10 64-bit

    Form Factor
    Micro ATX Form Factor; 22.6cm x 18.5cm





    Виж още Дънни платки за Intel процесори Gigabyte
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1200
    Чипсет:  H410
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  2
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Не
    Безжични мрежи:  Не
    Bluetooth:  Не
    Видео слот:  PCI-E
    Multi-Graphics технология:  Няма
    Видео изход:  HDMI DVI VGA (D-Sub)
    Форм фактор:  Micro ATX
