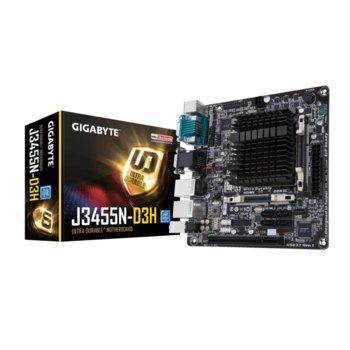

Дънна платка Gigabyte GA-J3455N-D3H, вграден четириядрен Intel Celeron J3455 1.5/2.3GHz, PCI-E (HDMI,VGA), 4x SATA 6Gb/s, 2x USB 3.1 Gen1, Mini-ITX

Gigabyte GA-J3455N-D3H


Built-in Intel® Celeron™ J3455 (up to 2.3 GHz) quad-core processor
GIGABYTE Ultra Durable™ Technology
Dual channel DDR3L SO-DIMM slot support
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
Dual GbE LAN with high ESD Protection
Extra two SATA 6Gb/s interfaces for more system storage connectivity
High Quality Audio Capacitors
PCI interface for wide-range expansion card selections


GIGABYTE J3455N-D3H
The GIGABYTE J3455 Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ J3455 quad-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J3455N-D3H is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA ports, two extra SATA 6Gb/s connectors.

CPU

Built in with an Intel® Quad-Core Celeron® J3455 SoC (2.3 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
2 MB Cache

Memory

2 x DDR3L SO-DIMM sockets supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR3L 1866/1600/1333 MHz memory modules
Support for non-ECC memory modules

(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated in the SoC:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 3840x2160@30 Hz

Audio

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN

2 x Realtek® GbE LAN chips (10/100/1000 Mbit)

Expansion Slots

1 x PCI slot

Storage Interface

Integrated in the SoC:

2 x SATA 6Gb/s connectors (SATA3 0, SATA3 1)

ASMedia® ASM1061 chip:

2 x SATA 6Gb/s connectors (SATA3 2, SATA3 3)

USB

Integrated in the SoC:

4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

SOC + GENESYS LOGIC USB 2.0 Hub:

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x parallel port header
1 x Clear CMOS jumper
1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard port
1 x PS/2 mouse port
2 x serial ports
1 x D-Sub port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
2 x RJ-45 ports
3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for Xpress Install
Support for @BIOS
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Bundle Software

Norton® Internet Security (OEM version)

Operating System

Support for Windows 10 64-bit

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
