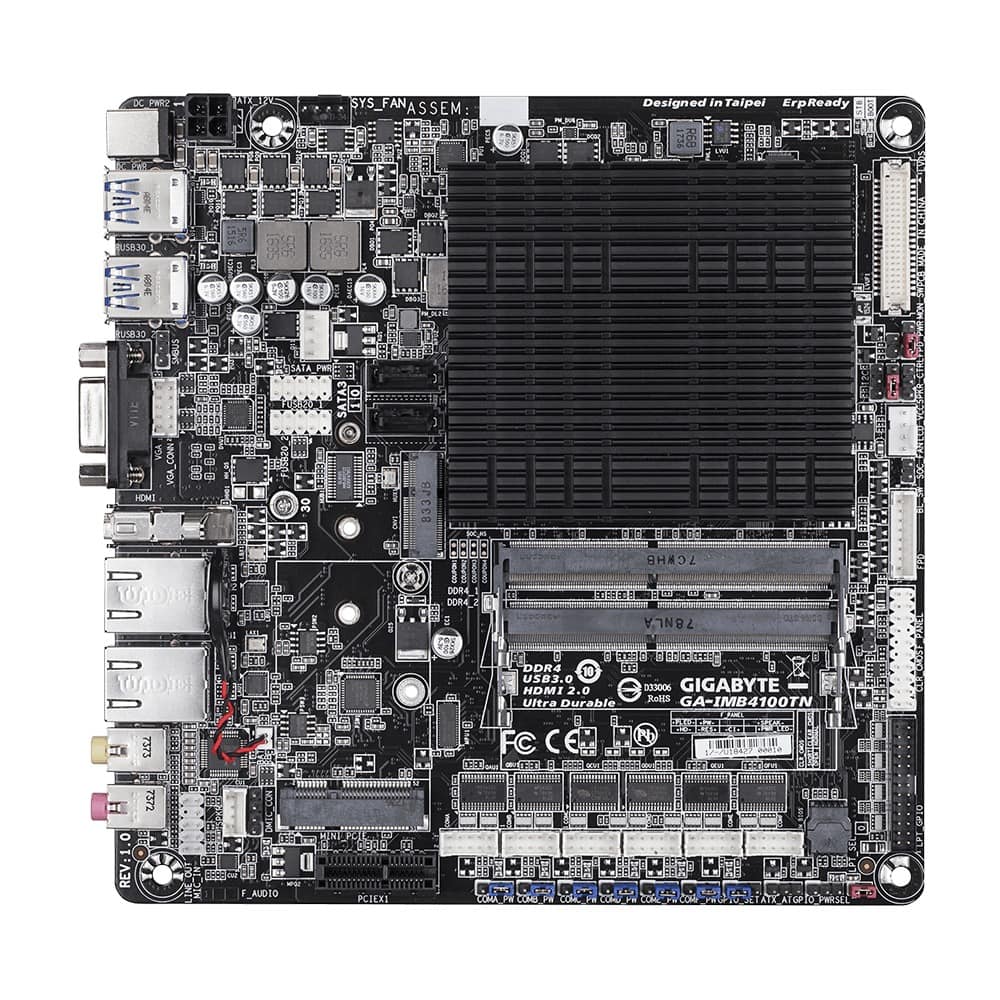

Дънна платка Gigabyte GA-IMB4100TN, вграден четириядрен Intel® Celeron N4100 2.4GHz, PCI-Е, (HDMI&VGA&LVDS), DDR4, LAN, 4x USB 3.1 Gen 1, Mini ITX

• Built-in Intel® Celeron™ N4100 (up to 2.4 GHz) quad-core processor

• GIGABYTE Ultra Durable™ Technology

• Dual channel DDR4 SO-DIMM slot support

• All Solid Capacitors with Humidity Protection New Glass Fabric PCB design

• Dual GbE LAN with WOL/PXE support and high ESD Protection

• 2 x RS232/422/485, 4 x RS232, Digital I/O 8-in/8-out

• M.2 Socket 3 Key-M for PCIe NVMe or SATA Storage Support

• Mini-PCIe Slot for Full/ Half-Height WIFI Card Support

• LVDS Header for System Integrated Flat Panel Display Support

• Rear Panel HDMI 2.0 & D-sub connectors for Multi-Display Connection

• Amplified Speaker Header Able to Drive Up to 2W System Integrated Speaker

• Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design

• Compatible with GIGABYTE Thin mini ITX Chassis

Specification

CPU
Built in with an Intel® Quad-Core Celeron® N4100 SoC (2.4 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
2 MB Cache

Memory
2 x DDR4 SO-DIMM socket supporting up to 16 GB of system memory
Dual channel memory architecture
Support for DDR4 2133MHz memory module
(Please refer "Memory Support List" for more information.)

Onboard Graphics
Integrated in the SoC:
1 x D-Sub port, supporting a maximum resolution of 1920 x 1200@60 Hz
1 x LVDS connector supporting a maximum resolution of 1920 x 1200@60Hz
1 x HDMI 2.0 port, supporting a maximum resolution of 3840 x 2160@60 Hz
Maximum shared memory of 512 MB

Audio
Realtek® ALC887codec
High Definition Audio
2/4/5-channel

LAN
2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x1 slot
(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
1 x M.2 Socket 1 connector for an Intel® wireless module (CNVI)
1 x full size Mini PCIe connector (MINI_PCIE)
(The Mini PCIe connector conforms to PCI Express 2.0 standard.)

Storage Interface
Integrated in the SoC:
2 x SATA 6Gb/s connectors
1 x M.2 connector (Socket 3, M key, type 2242/2260/80 SATA and PCIe x1 SSD support)
* The M.2 connector operates at up to x1 mode.

USB
Integrated in the SoC:
4 x USB 3.1 Gen 1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers

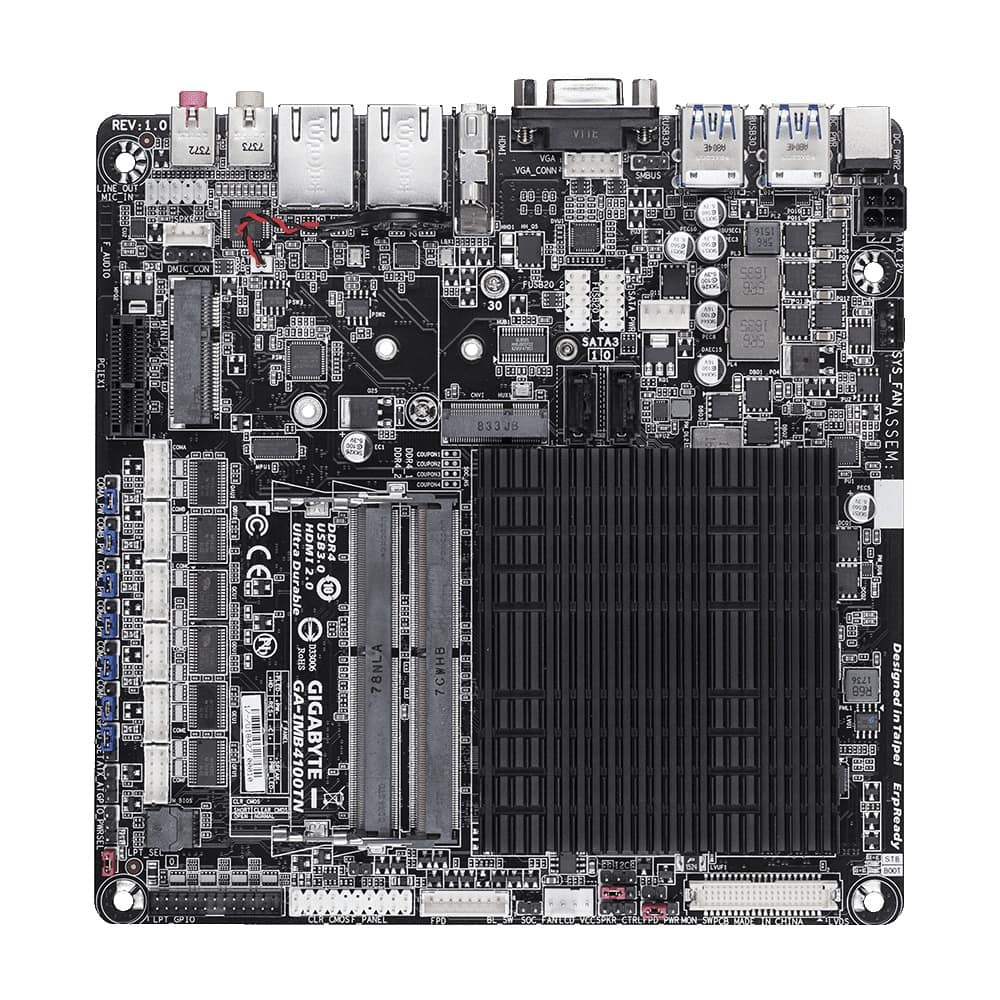

Internal I/O Connectors
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
2 x SATA 6Gb/s connectors
1 x M.2 Socket 3 connector
1 x SATA power connector
1 x front panel header
1 x front panel audio header
1 x battery cable header
2 x USB 2.0/1.1 headers
6 x serial port headers
6 x serial port power select jumpers
1 x D-Sub header
1 x LVDS header
1 x LVDS drive voltage jumper (LCD_VCC)
1 x flat panel display header (FPD)
1 x flat panel display power select jumper (FPD_PWR)
1 x flat panel display switch header (MON_SW)
1 x backlight switch header (BL_SW)
1 x digital microphone header (DMIC_CON)
1 x speaker header (SPKR)
1 x buzzer header (SPEAKER)
1 x chassis intrusion jumper
1 x LPT/GPIO header (LPT_GPIO)
1 x LPT configuration jumper (LPT_SEL)
1 x GPIO power selection jumper (GPIO_PWRSEL)
1 x GPIO status configuration jumper (GPIO_SET)
1 x BIOS Select jumper (BIOS_SET)
1 x Clear CMOS jumper
1 x I2C
1 x SMBUS

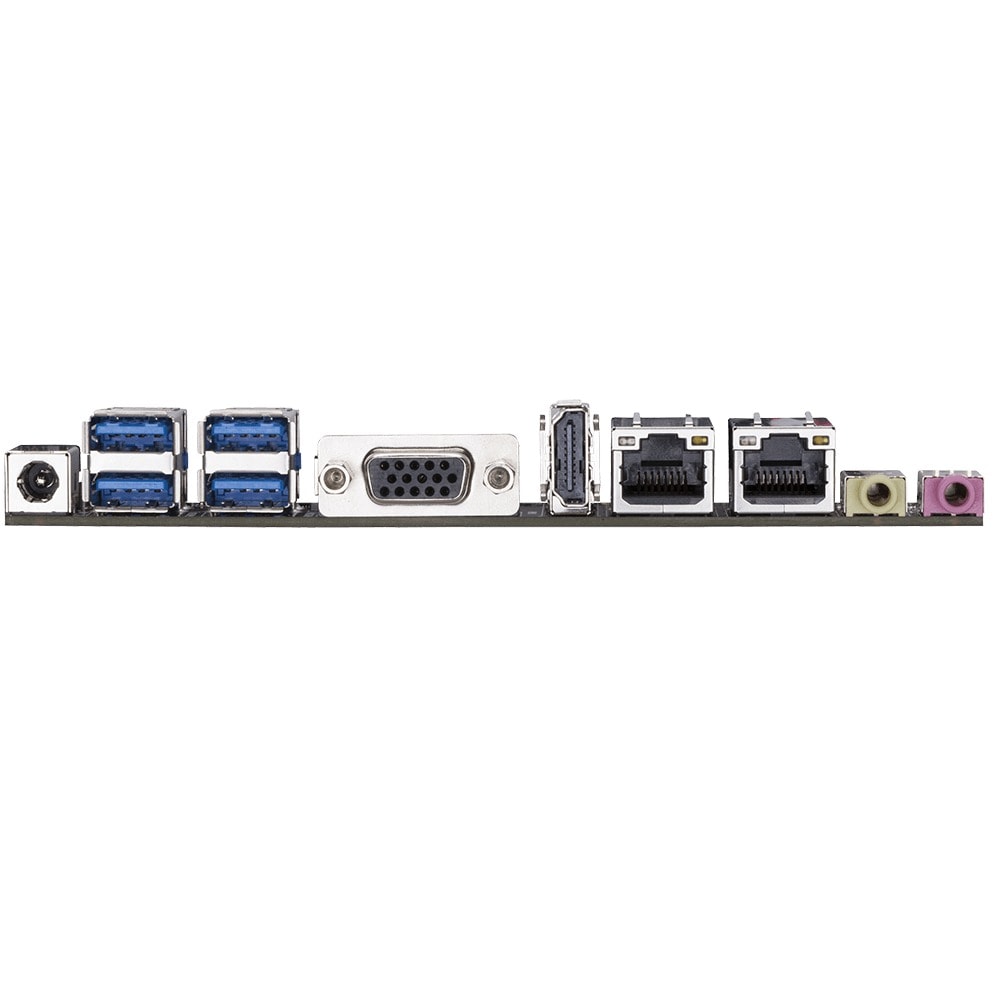

Back Panel Connectors
1 x DC-In power connector
1 x HDMI2.0 port
1 x D-Sub port
4 x USB 3.1 Gen 1 ports
2 x RJ-45 ports
2 x audio jacks (Line In, Mic In)

I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
BIOS
1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
Support for Xpress Install
Support for @BIOS
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications
Bundled Software
Norton® Internet Security (OEM version)

Operating System
Support for Windows 10 64-bit

Form Factor
Thin Mini-ITX Form Factor; 17.0cm x 17.0cm
