Дънна платка Gigabyte B760M GAMING X AX (rev 1.4), B760, LGA1700, DDR4, PCI-E 4.0 (DP&HDMI), 2x M.2, 4x SATA 6Gb/s, 3x USB 3.2 Gen 1 Type-A, 2.5GbE LAN, Wi-Fi 6E, Bluetooth 5.3, Micro ATX

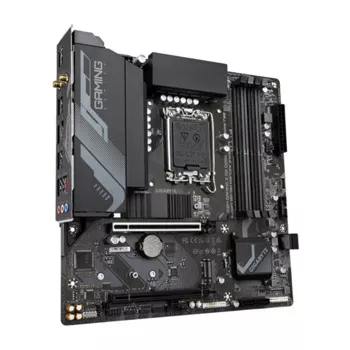

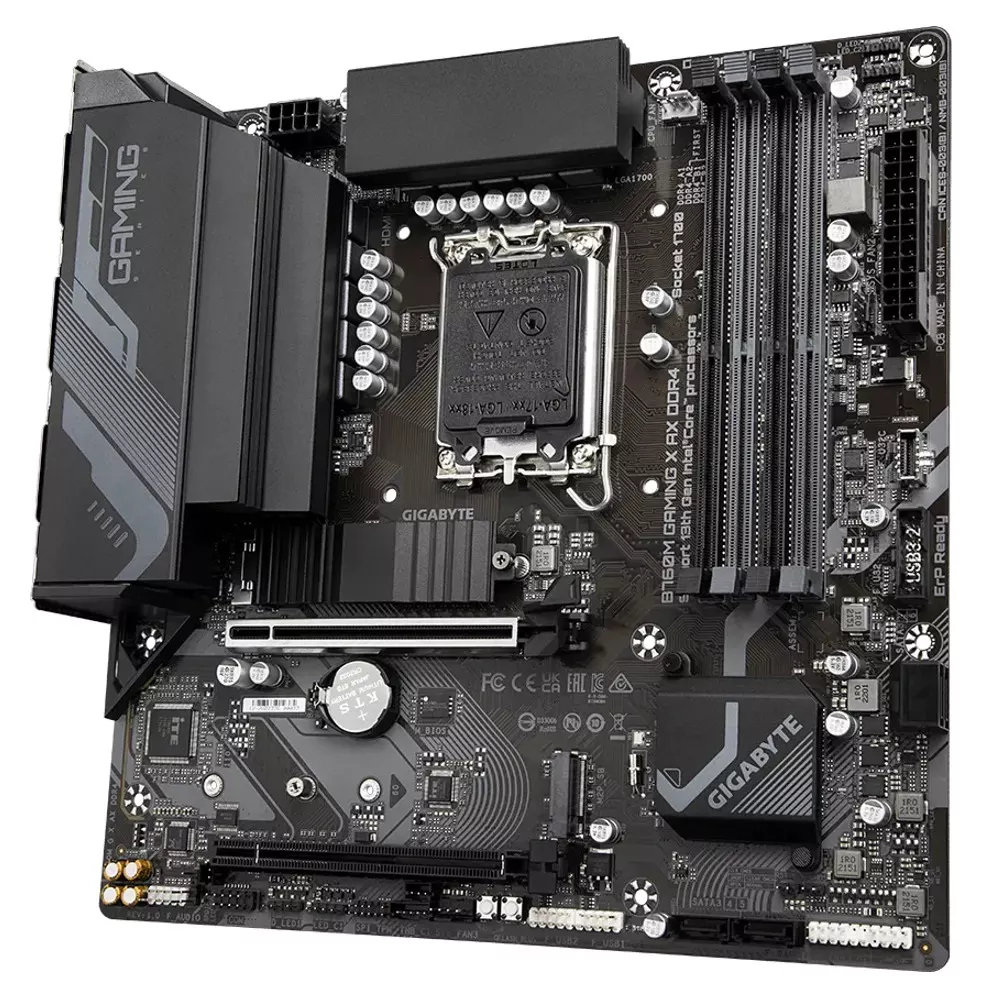

Gigabyte B760M GAMING X AX





• Supports Intel Core 14th/ 13th /12th processors

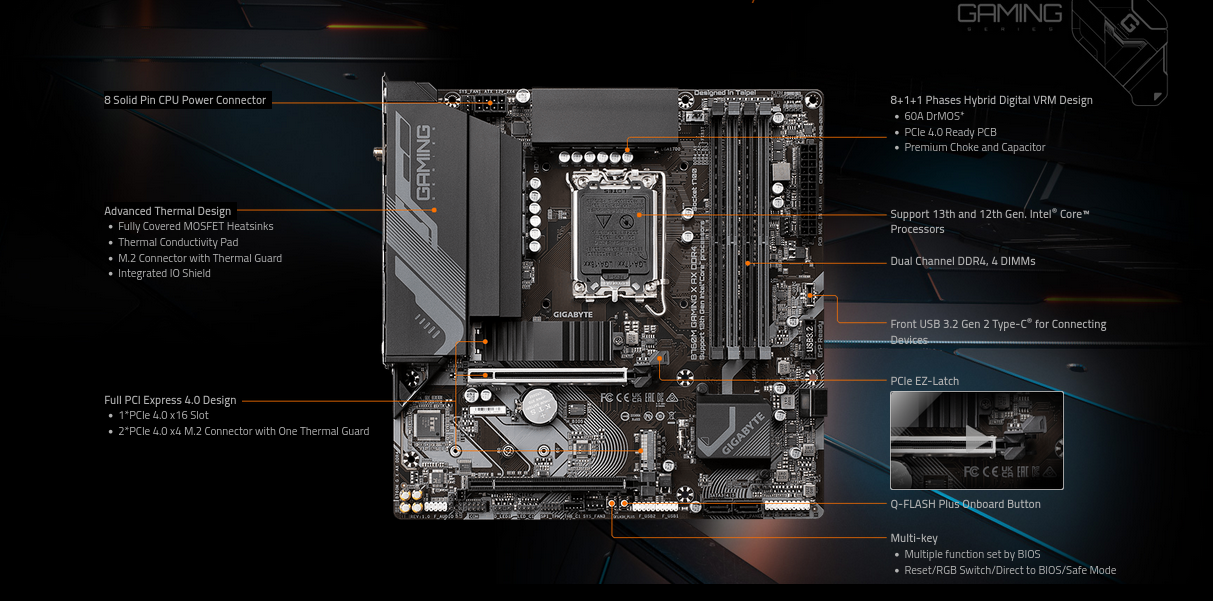

• Unparalleled Performance：Hybrid 8+1+1 Phases Digital VRM Solution
• Dual Channel DDR4：4*DIMMs XMP Memory Module Support
• Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors

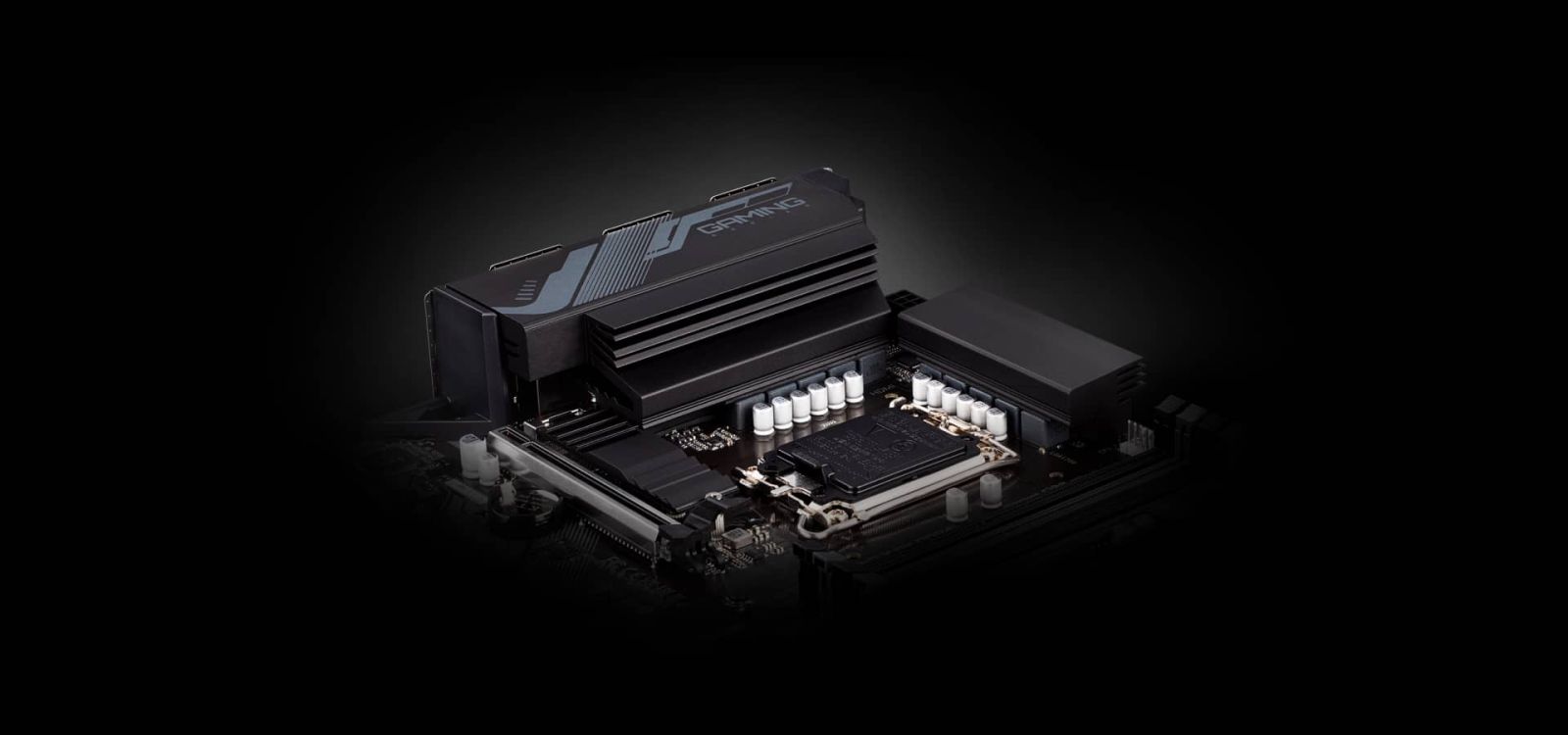

• Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：Front USB-C 10Gb/s, DP, HDMI
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card













UNPARALLELED PERFORMANCE

With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.







Tech specs:

CPU
   LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
   L3 cache varies with CPU



Chipset

   Intel B760 Express Chipset



Memory

   Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
   4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules



Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:

   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3
   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.



Audio

   Realtek Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   Support for S/PDIF Out



LAN

   Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)



Wireless Communication module

Intel Wi-Fi 6E AX211

   WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   BLUETOOTH 5.3
   Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate



Expansion Slots
CPU:

   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

   1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)



Storage Interface

CPU:

   1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

   1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
   4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices



USB
Chipset:

   1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
   5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
   1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

   8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)



Internal I/O Connectors

   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   3 x system fan headers
   2 x addressable LED strip headers
   2 x RGB LED strip headers
   2 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x S/PDIF Out header
   1 x USB Type-C® header, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   2 x Thunderbolt add-in card connectors
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
   1 x serial port header
   1 x reset button
   1 x Q-Flash Plus button
   1 x reset jumper
   1 x Clear CMOS jumper



Back Panel Connectors

   3 x USB 3.2 Gen 1 ports
   5 x USB 2.0/1.1 ports
   2 x SMA antenna connectors (2T2R)
   1 x HDMI 2.0 port
   1 x DisplayPort
   1 x RJ-45 port
   3 x audio jacks



I/O Controller

   iTE I/O Controller Chip



BIOS

   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Operating System

   Support for Windows 11 64-bit
   Support for Windows 10 64-bit



Form Factor

   Micro ATX Form Factor; 24.4cm x 24.4cm
