Gigabyte B365 HD3
Икона в кампания
Gigabyte B365 HD3Gigabyte B365 HD3Gigabyte B365 HD3empty image 3

Дънна платка Gigabyte B365 HD3, B365, LGA1151, DDR4, PCI-E (HDMI&D-Sub&DVI-D)(CF), 6x SATA 6Gb/S, 2x M.2 Socket, 6 x USB 3.1 Gen 1, ATX

id 172959 Код: MBIGIGABYTEB365HD3
  • Модел: B365 HD3
  • Марка: Gigabyte
  • Код на продукта: B365 HD3
  • Поддържана памет: DDR4
  • RAID: Да
  • Безжични мрежи: Не
  • Bluetooth: Не
  • Видео слот: PCI-E
  • Multi-Graphics технология: CrossFire
  • Гаранция: 36 месеца
  • Наличност: Стар продукт
    ОписаниеХарактеристикиРевюта / Въпроси

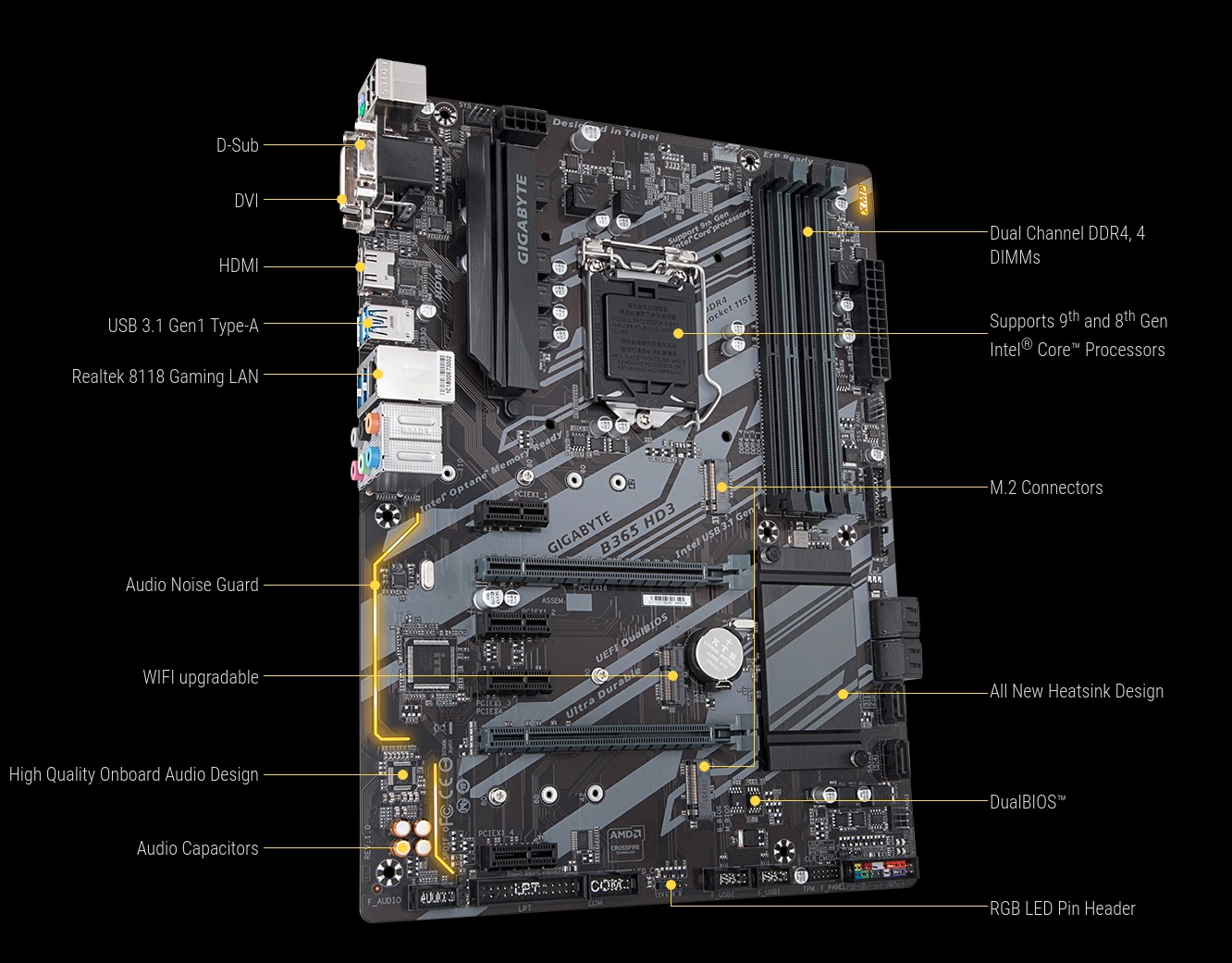

    Intel B365 Ultra Durable motherboard with Dual M.2, GIGABYTE 8118 Gaming LAN with 25KV protection, 7 colors RGB LED strips support, WIFI upgradable slot, Anti-Sulfur Resistor Design, Smart Fan 5, CEC 2019 ready



    • Supports 9th and 8th Gen Intel® Core™ Processors

    • Dual Channel Non-ECC Unbuffered DDR4

    • New Hybrid Digital PWM Design

    • M.2 Socket 1 slot for WIFI upgradable

    • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

    • Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 & SATA interface

    • Supports RGB LED strips in 7 colors

    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

    • CEC 2019 Ready, Save the Power as Easy as One Click

    • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

    • Anti-Sulfur Resistors Design

    • Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

    • Intel® Optane™ Memory Ready

    • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support















    CPU
    Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)

    Chipset
    Intel® B365 Express Chipset

    Memory
    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    Dual channel memory architecture
    Support for DDR4 2666/2400/2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
    (Please refer "Memory Support List" for more information.)

    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
    Support for up to 3 displays at the same time
    Maximum shared memory of 1 GB
    Actual support may vary by CPU

    Audio
    Realtek® ALC892 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out

    LAN
    Realtek® GbE LAN chip (10/100/1000 Mbit)

    Expansion Slots
    1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    4 x PCI Express x1 slots
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

    Multi-Graphics Technology
    Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

    Storage Interface
    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P)
    6 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Intel® Optane™ Memory

    USB
    Chipset:
    6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

    Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    1 x RGB LED strip header
    6 x SATA 6Gb/s connectors
    2 x M.2 Socket 3 connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.1 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Thunderbolt™ add-in card connector
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    1 x parallel port header
    1 x serial port header
    1 x Clear CMOS jumper

    Back Panel Connectors
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x DVI-D port
    1 x HDMI port
    4 x USB 3.1 Gen 1 ports
    2 x USB 2.0/1.1 ports
    1 x RJ-45 port
    6 x audio jacks

    I/O Controller
    iTE® I/O Controller Chip
    H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

    BIOS
    2 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    Support for DualBIOS™
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features
    Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    AutoGreen
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge
    Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart HUD
    Smart Survey
    System Information Viewer
    USB Blocker
    Support for Q-Flash
    Support for Xpress Install
    Bundled Software
    Norton® Internet Security (OEM version)
    Realtek 8118 Gaming LAN bandwidth Control Utility

    Operating System
    Support for Windows 10 64-bit

    Form Factor
    ATX Form Factor; 30.5cm x 22.5cm







    Виж още Дънни платки за Intel процесори Gigabyte
    Виж всички Дънни платки за Intel процесори в категорията
    Технически характеристики
    Процесор сокет:  LGA 1151
    Чипсет:  B365
    Поддържана памет:  DDR4
    Брой слотове за RAM памет:  4
    Storage интерфейси:  SATA 6Gbit/s, M.2
    RAID:  Да
    Безжични мрежи:  Не
    Bluetooth:  Не
    Видео слот:  PCI-E
    Multi-Graphics технология:  CrossFire
    Видео изход:  HDMI DVI VGA (D-Sub)
    Форм фактор:  ATX
