Torrent Compact

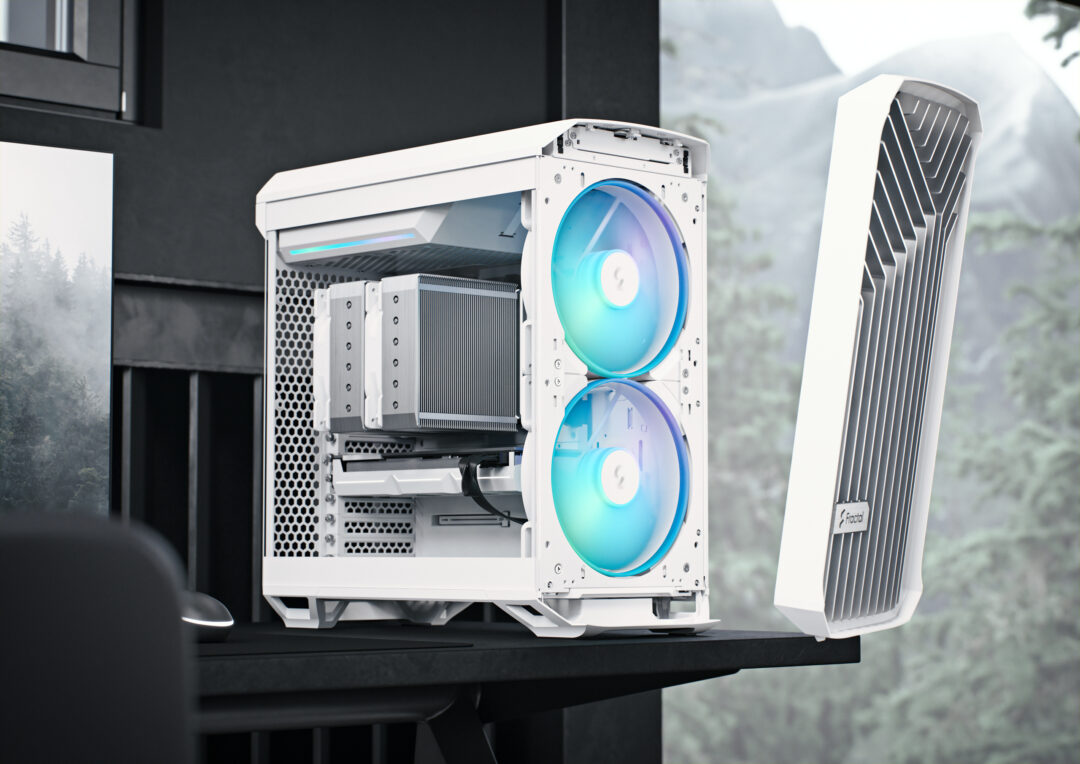

The Torrent Compact is built to air cool your compact build as efficiently as possible through an open front grille and two of our 180 x 38 mm Dynamic PWM fans (Prisma for RGB version), making it a perfect fit for air cooling aficionados looking for a compact case.

Open grille and 180 mm front fans optimized for maximum air intake
Fractal Design Dynamic PWM / Prisma ARGB PWM 180 x 38 mm fans leverage power, size, and thickness for massive air-moving capacity
Expansive base intakes and extra-large bottom fan support offers exceptional GPU cooling potential (with bottom PCI slot free)

Specifications

3.5"/2.5" drive mounts

1 (included)
Dedicated 2.5" drive mounts

3 (included)
Expansion slots

7
Front interface

1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio
Total fan mounts

2x 180 mm, 4x 140 mm, or 6x 120 mm (with included brackets)
Front fan

2x 180, 2x 140 mm, or 3x 120 mm (with included brackets) (2x Dynamic GP-18 included in standard versions, 2x Prisma AL-18 included in RGB version)
Dust filters

Front, Bottom
Fixed cable straps

Yes
Cable routing grommets

Yes
Tool-less push-to-lock

Side panels
Captive thumbscrews

HDD and SSD brackets
Left side panel

Steel or Tempered glass (RGB version: Tempered glass only)

Compatibility

Motherboard compatibility

E-ATX (up to 274 mm) / ATX / mATX / Mini-ITX / SSI-CEB
Power supply type

ATX
PSU max length

210 mm
GPU max length

330 mm with front fan mounted
CPU cooler max height

174 mm
Rear fan

1x 120 mm (not included)
Bottom fan

2x 180 mm (if mATX motherboard), 2x 140 mm, or 3x 120 mm
Front radiator

Up to 360x120/280x140 mm (360 mm front radiators (push / push-pull) supported up to a max length of 403 mm)
Rear radiator

120x120 mm
Bottom radiator

Up to 240x120/280x140 mm
Cable routing space

20 mm
