Кутия Fractal Design Meshify 2 Nano Black TG, mITX/mDTX, 1x USB 3.1 Gen 2 Type-C, прозорец, черна, без захранване

Fractal Design Meshify 2 Nano Black TG

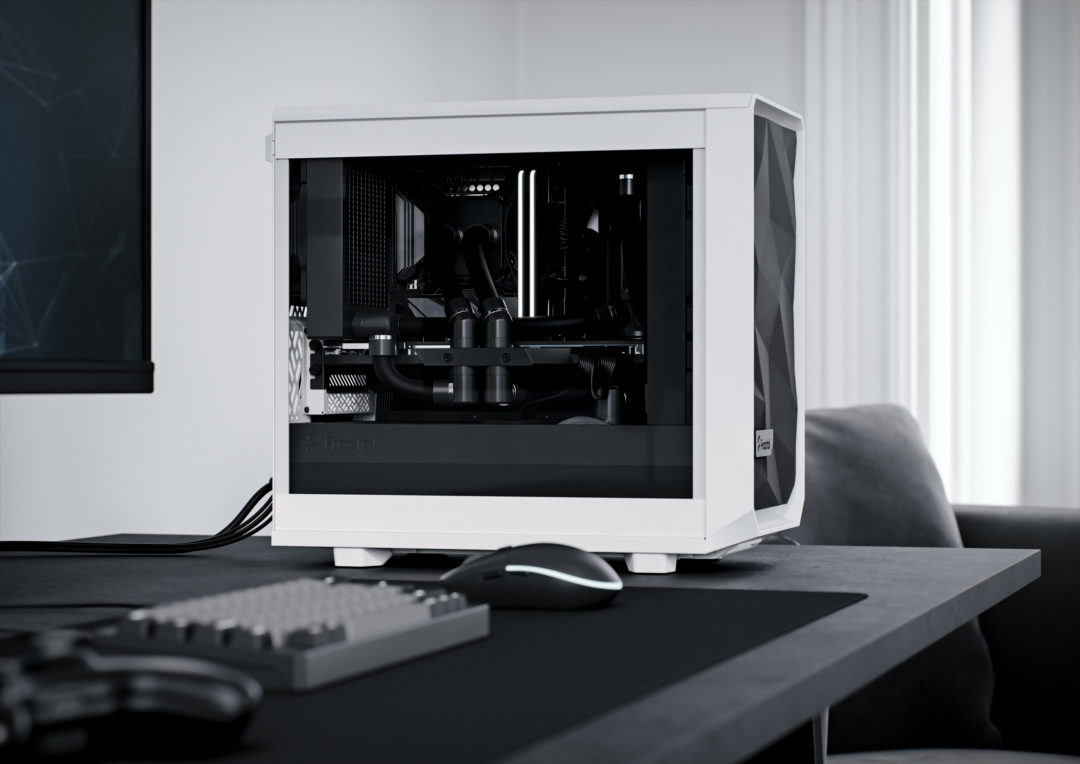

The Meshify 2 Nano offers ITX form-factor enthusiasts plenty of scope for creative builds, with excellent compatibility for its size. The flexible design and angular asymmetry are complemented by a flush TG panel to showcase your finished build.

All access

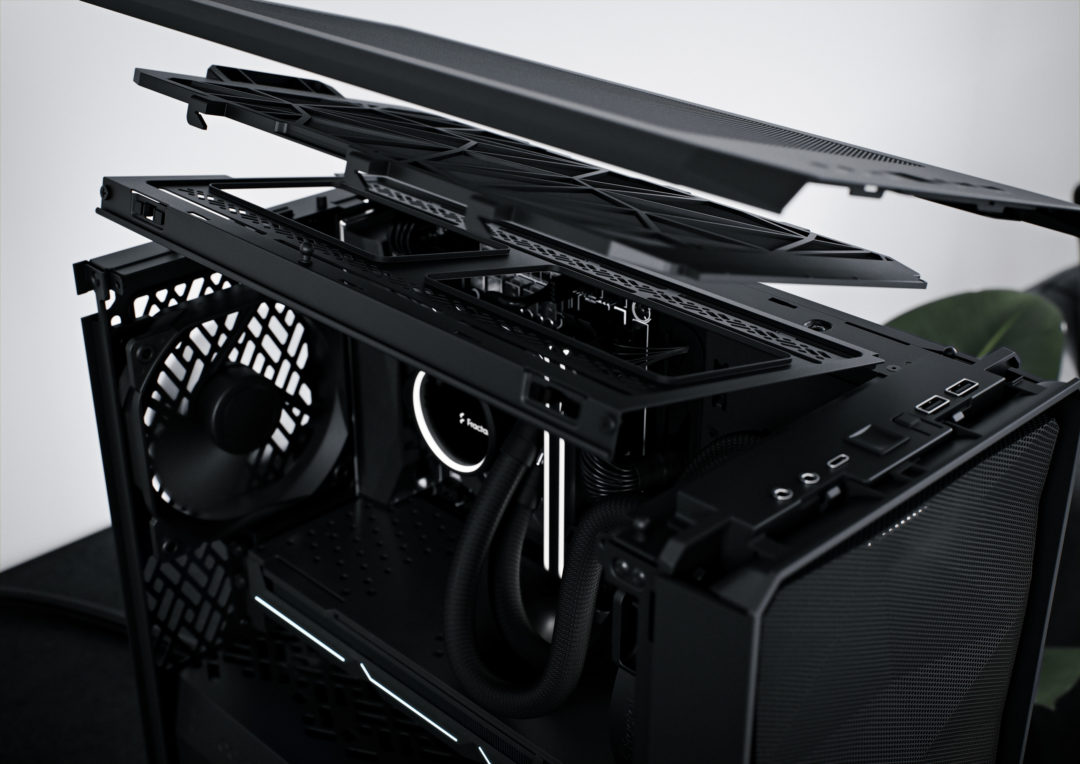

Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing

Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

Front filter with double layered detachable nylon for increased airflow

Specifications:

• 3.5"/2.5" drive mounts

  1 (included)

• Dedicated 2.5" drive mounts

  3 (2 included)

• Expansion slots

  2

• Front interface

  1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button

• Total fan mounts

  6x 120 mm or 3x 140 mm (Top 140 mm fans needs to be max 15 mm thick)

• Front fan

  2x 120/140 mm (1x Dynamic X2 GP-14 included)

• Top fan

  2x 120 or 1x 140 slim fan (max 15 mm thick)

• Rear fan

  1x 120 mm (1x Dynamic X2 GP-12 included)

• Bottom fan

  1x 120 mm (requires removal of HDD tray)

• Dust filters

  Top, front and bottom

• Cable routing space

  15-25 mm

• Cable routing grommets

  Yes

• Fixed cable straps

  Yes

• Tool-less push-to-lock

  Top, front and side panels

• Captive thumbscrews

  SSD and PSU brackets

• Left side panel

  Tempered glass

• Right side panel

  Steel

Compatibility

• Motherboard compatibility

  Mini ITX / Mini-DTX

• Power supply type

  ATX

• Front radiator

  120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 recommended in “push” configuration for easier fit)

• Top radiator

  N/A

• Rear radiator

  120 mm

• Bottom radiator

  N/A

• PSU max length

  165 mm recommended (200 mm without HDD-tray and modular air duct)

• GPU max length

  331 mm 306 mm with front fan

• GPU max thickness

  57 mm / 2.8 slot

• CPU cooler max height

  167 mm

Dimensions

• Case dimensions (LxWxH)

  396 x 205 x 361 mm

• Case dimensions w/o feet/protrusions/screws

  384 x 205 x 345 mm

• Net weight

  5.9kg (TG)

• Package dimensions (LxWxH)

  412 x 277 x 462 mm

• Gross weight

  7.1kg (TG)
