Кутия Fractal Design Meshify 2 Mini White TG, mATX/DTX/Mini-DTX/Mini ITX, 1x USB 3.1 Gen 2 Type-C, прозорец, бяла, без захранване

Fractal Design Meshify 2 Mini White TG

The Meshify 2 Mini offers an excellent combination of airflow and flexibility, in a form-factor optimized for mATX. The bold yet refined exterior design, with its asymmetric angular mesh front, is complemented by a flush TG panel and a fully removable top.

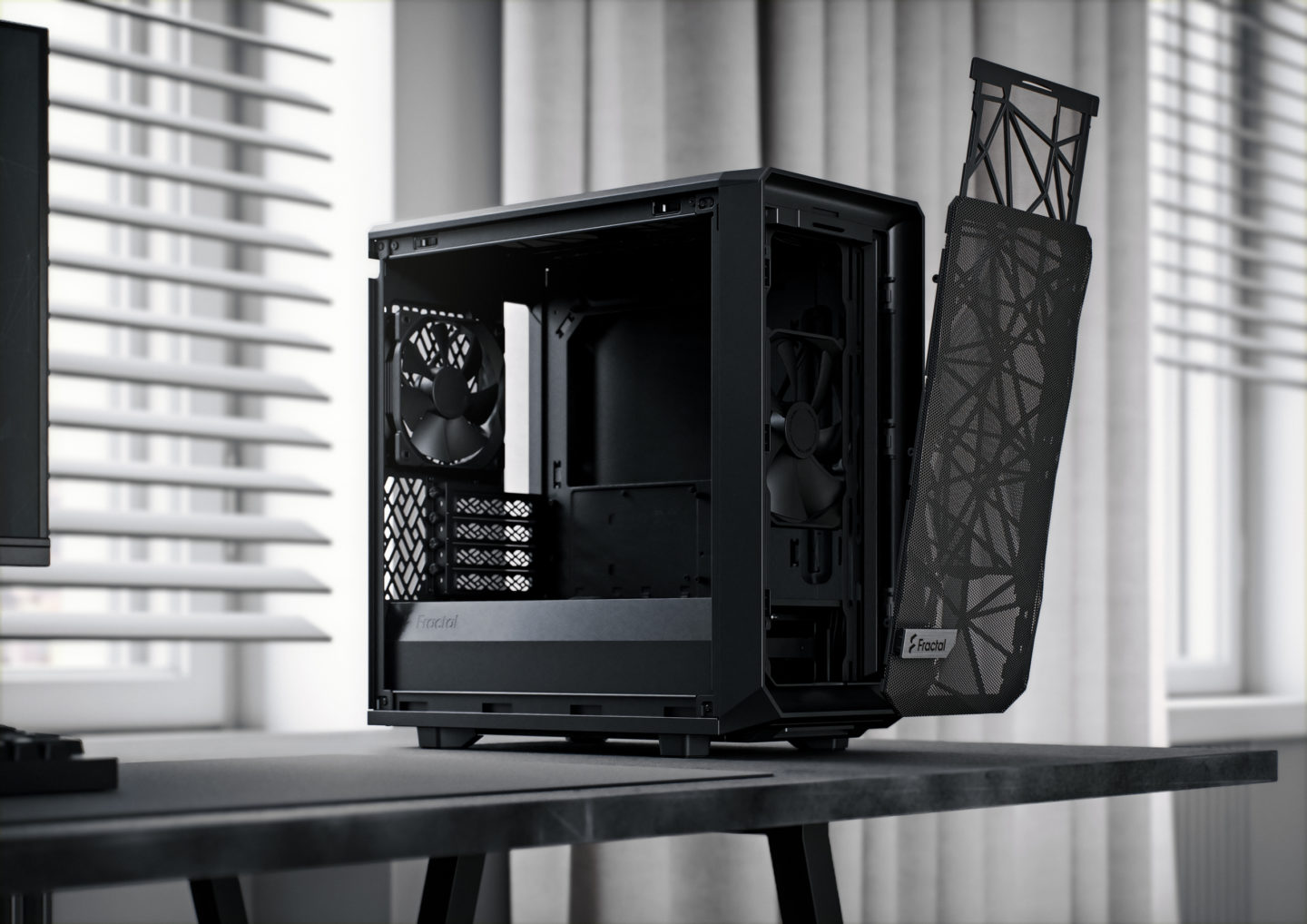

Detachable front filter

Front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts

Double layered front filter with detachable nylon for increased airflow

Specifications:

• 3.5"/2.5" drive mounts

  2 (included)

• Dedicated 2.5" drive mounts

  4 (2 included)* max 8 mm drive height for mounts behind motherboard plate

• Expansion slots

  4

• Front interface

  1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button

• Total fan mounts

  7x 120 mm or 4x 140 mm

• Front fan

  3x 120/ 2x 140 mm (1x Dynamic X2 GP-14 included)

• Top fan

  2x 120/140 mm

• Rear fan

  1x 120 mm (1x Dynamic X2 GP-12 included)

• Bottom fan

  1x 120 mm (requires removal of HDD cage)

• Dust filters

  Top, front and bottom

• Cable routing space

  15-25 mm

• Cable routing grommets

  Yes

• Fixed cable straps

  Yes

• Tool-less push-to-lock

  Top, front and side panels

• Captive thumbscrews

  HDD, SSD and, PSU brackets

• Left side panel

  Tempered glass

• Right side panel

  Steel

Compatibility

• Motherboard compatibility

  mATX / DTX / Mini-DTX / Mini ITX

• Power supply type

  ATX

• Front radiator

  Up to 240/280 mm

• Top radiator

  Up to 240 mm

• Rear radiator

  120 mm

• Bottom radiator

  120 mm (without HDD Cage)

• PSU max length

  165 mm recommended with HDD cage (200 mm without HDD cage)

• GPU max length

  331 mm, 306 mm with front fan

• CPU cooler max height

  167 mm

Dimensions

• Case dimensions (LxWxH)

  396 x 205 x 406 mm

• Case dimensions w/o feet/protrusions/screws

  384 x 205 x 390 mm

• Net weight

  6,62 kg

• Package dimensions (LxWxH)

  457 x 277 x 462 mm

• Gross weight

  7,68 kg
