Дънна платка Elitegroup HDC-I, AMD FCH A50, AMD E-350 Dual-Core 1.6GHz, DDR3, VGA+PCI-E (HDMI), SB7.1, WiFi 802.11n, Lan1000, bluetooth, 4xSATA 6Gb/s, 2xUSB3.0, Mini-ITX

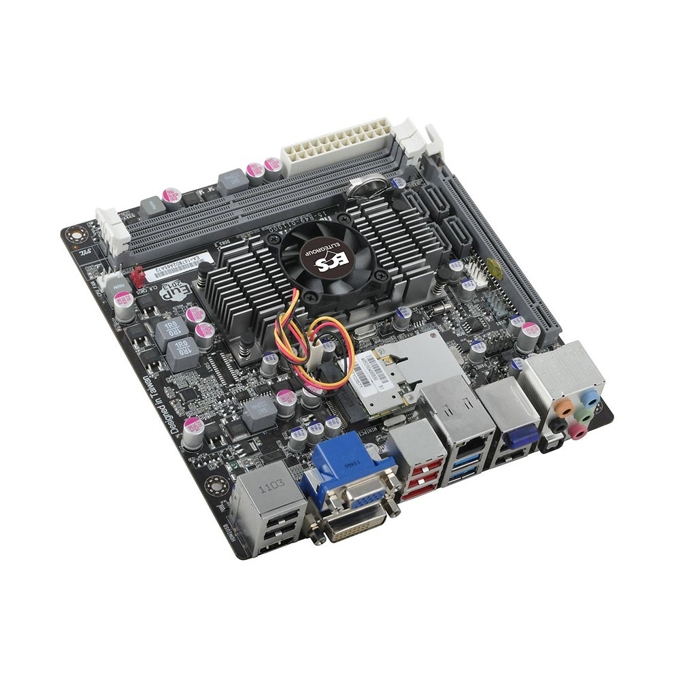

Elitegroup HDC-I

CPU
AMD Dual-Core Processor E-350

CHIPSET
AMD A50M FCH

GRAPHICS
On APU(ATI™ Radeon HD6310 graphics )
Integrated DirectX 11 graphics processor
Support UVD 3

MEMORY
2 x 240-pin DDR3 DIMM socket support up to 8 GB
Support DDR3 1066/800 SDRAM
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.
For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT
1 x PCI Express x16 slot (@ x 4 bandwidth)
1 x Mini PCI Express x1 slot

STORAGE
Support by A50M
• 4 x Serial ATA 6.0Gb/s devices
• 1 x eSATA 6Gb/s port

AUDIO
VIA® VT1708B 8-channel High Definition audio CODEC

LAN
Atheros AR8151 GIGA LAN
Wireless card IEEE 802.11b/g/n (Optional)


REAR PANEL I/O
1 x RJ45 LAN connector
1 x Audio port (Line-in,4x Line-out, SPDIF out)
1 x D-sub(VGA)
1 x DVI Port
6 x USB 2.0 ports
2 x USB 3.0 ports compatible to both USB 3.0/2.0 devices (blue)
1 x Bluetooth
1 x HDMI Port
1 x eSATA 6Gb/s port

INTERNAL I/O CONNECTORS & HEADERS
1 x 4-pin CPU_FAN connector
1 x 3-pin SYS_FAN connector
1 x Clear CMOS header
1 x Case open header
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x F_Audio header
1 x F_Panel header

SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM

FORM FACTOR
Mini ITX 170x170mm
