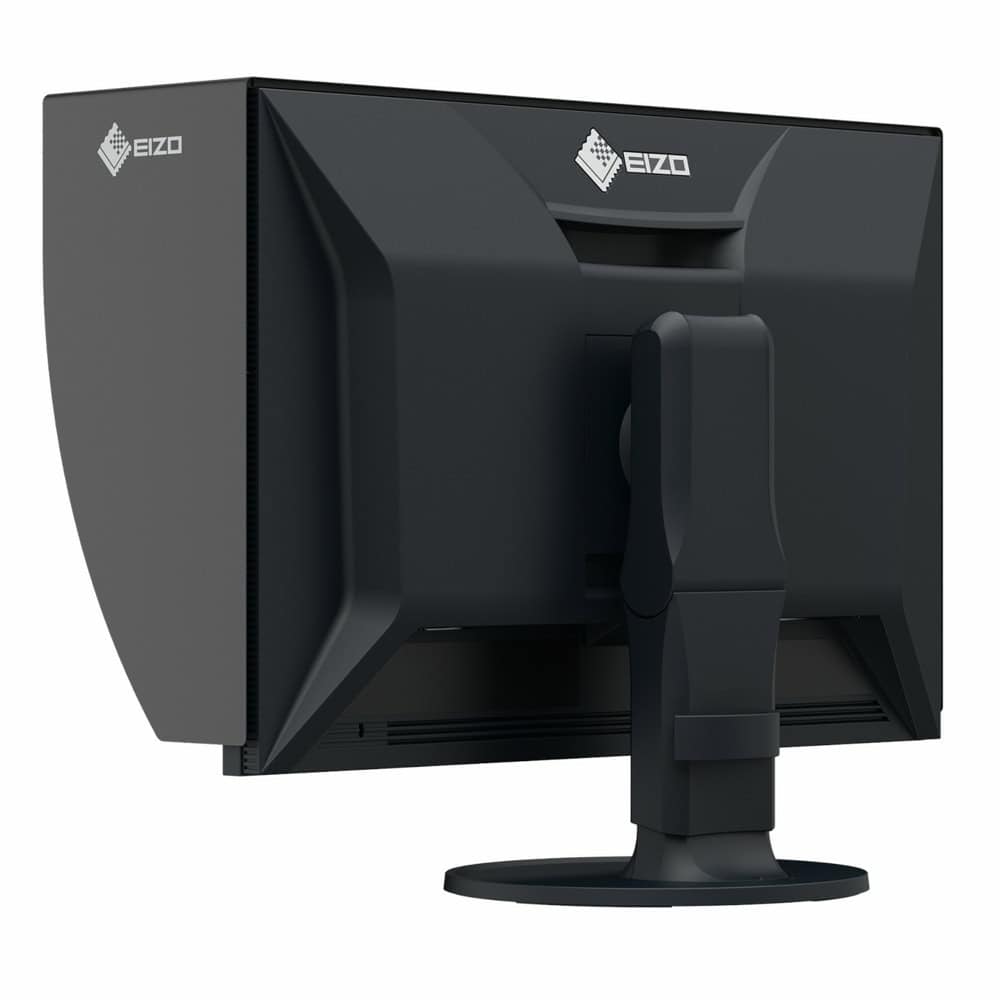

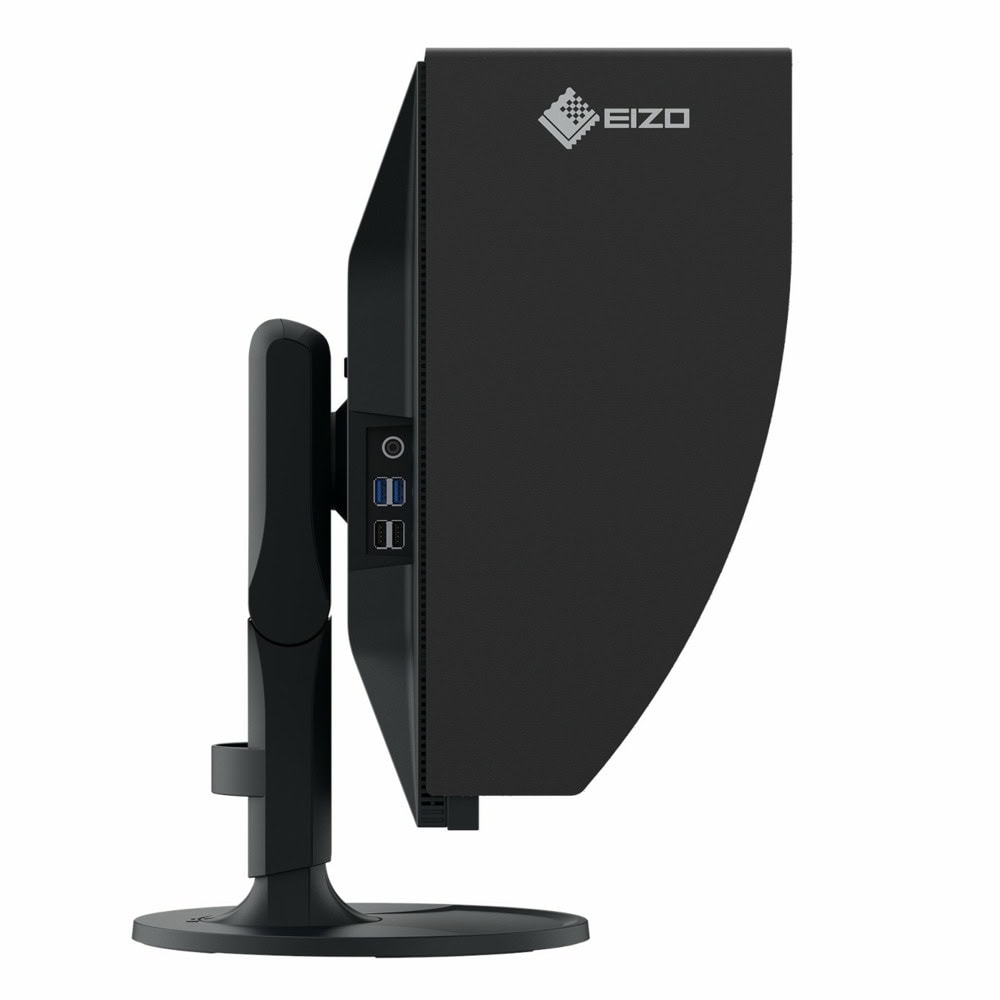

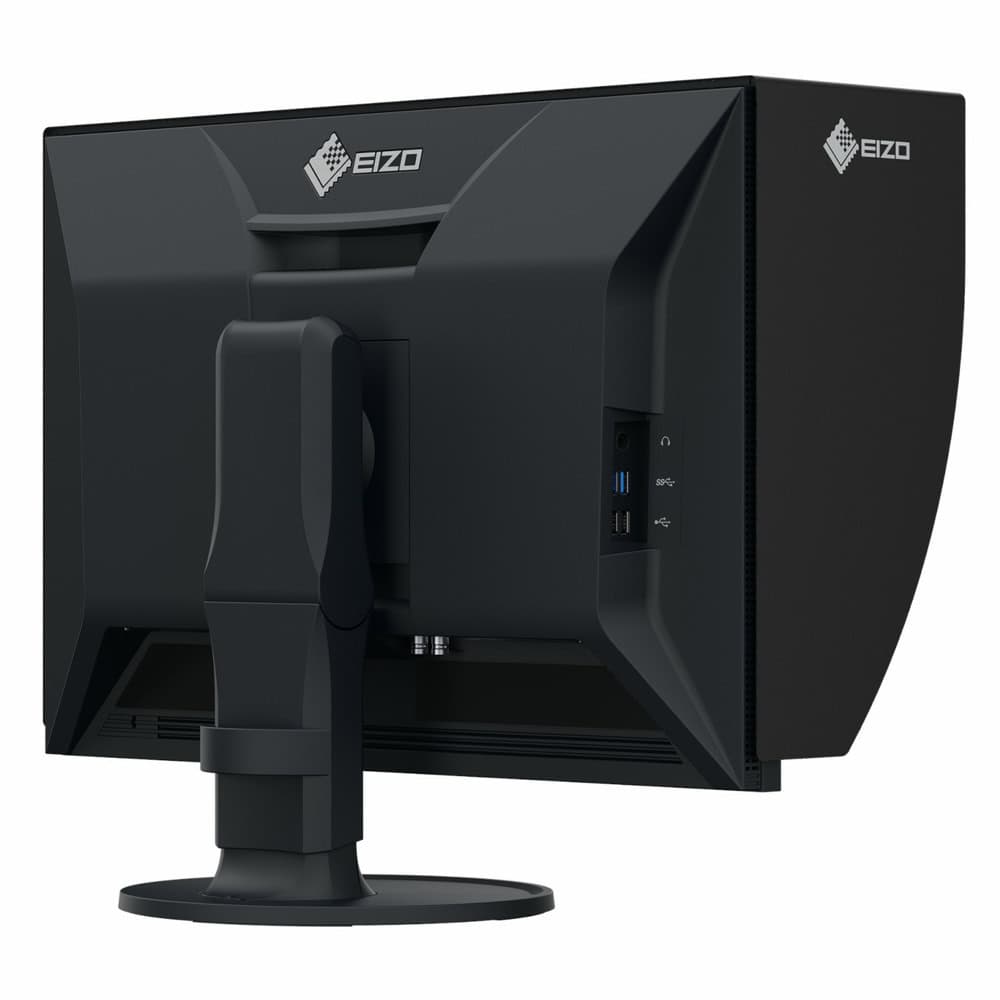

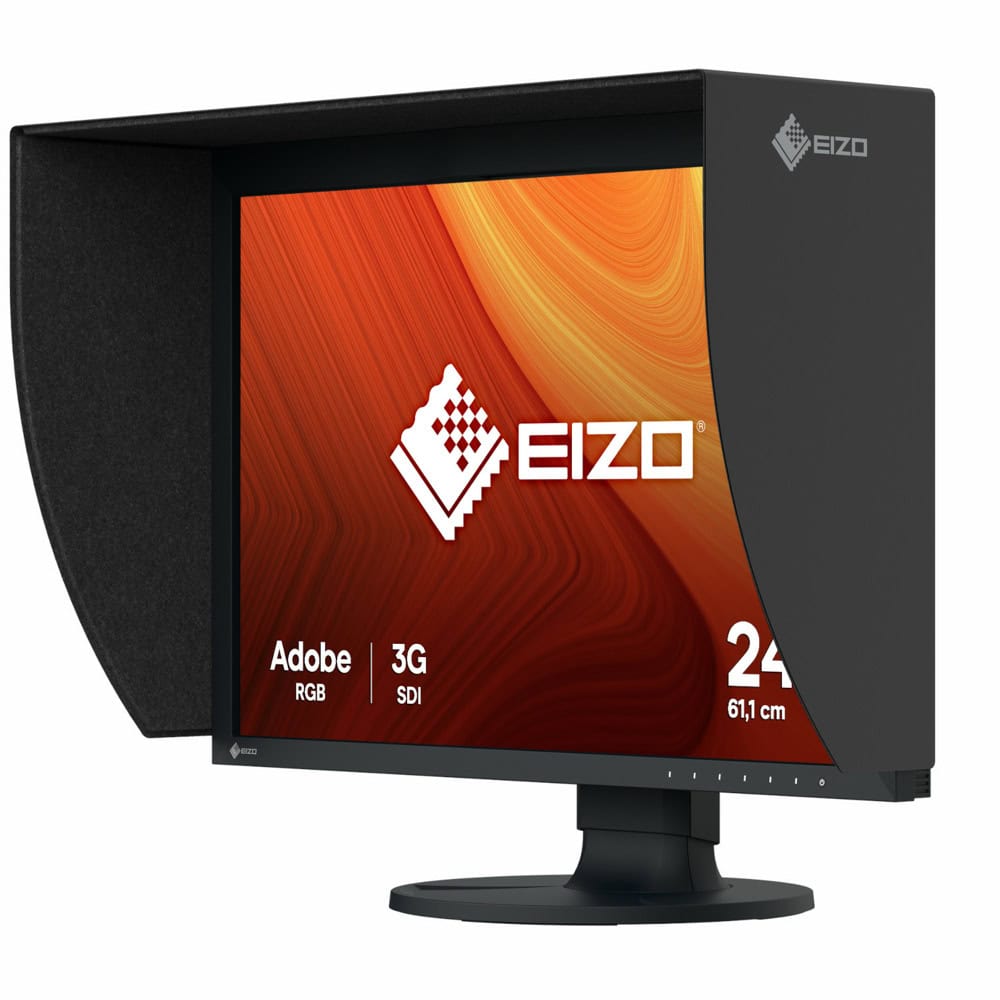

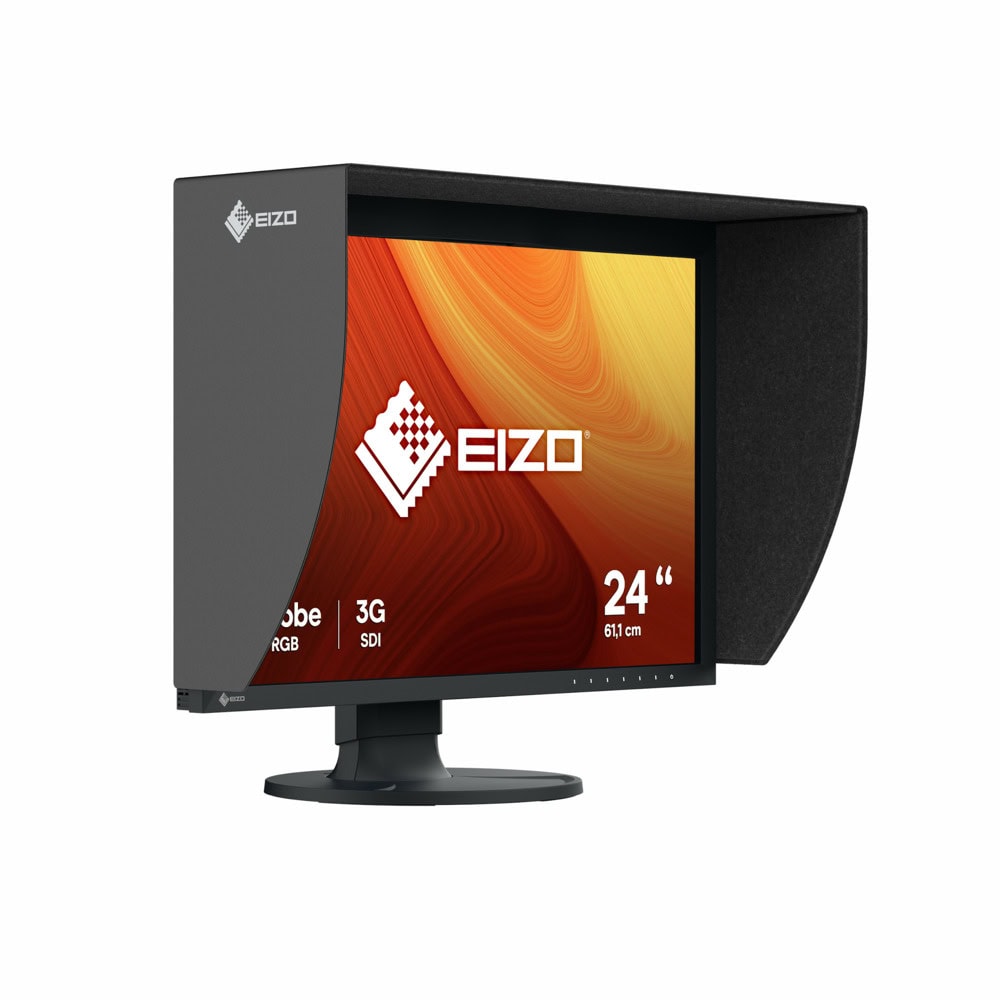

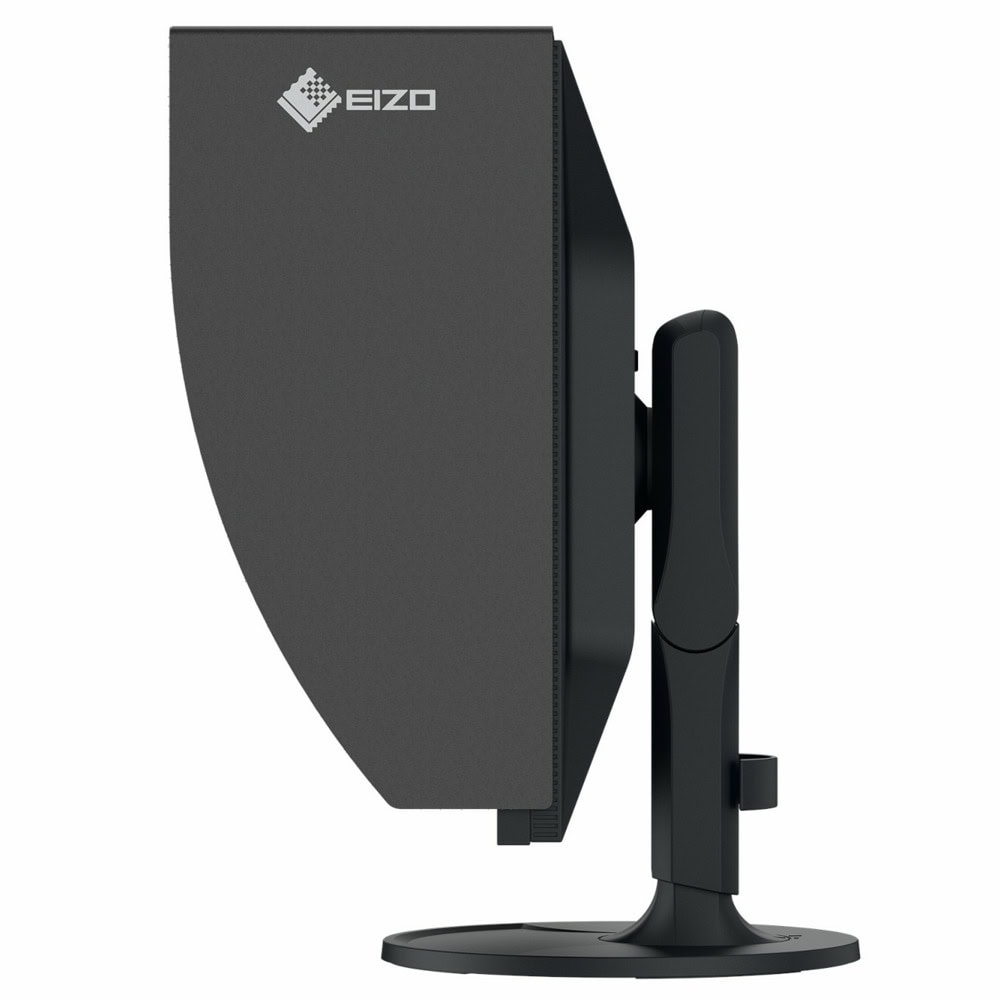

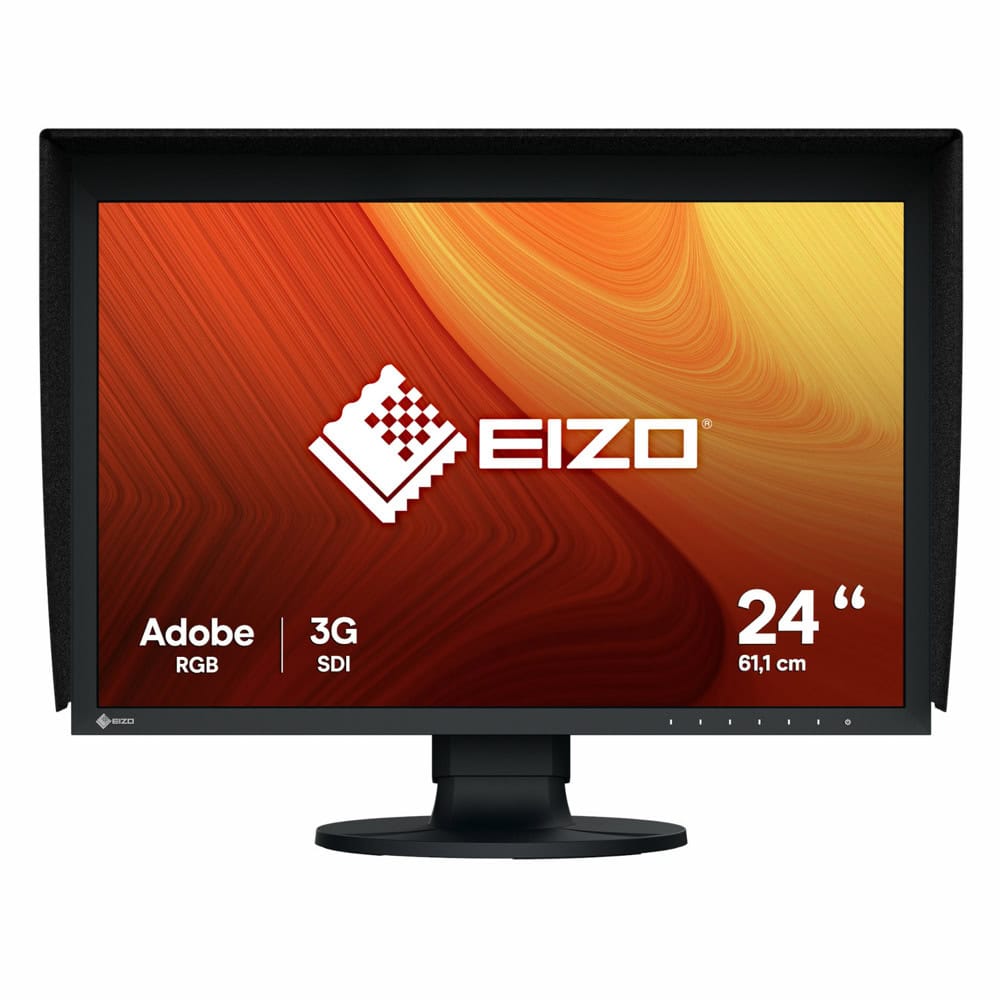

Name: Монитор EIZO CG2400SV, 24.1 (61.21 см) IPS панел, WUXGA, 11ms, 1800:1, 400 cd/m2, DisplayPort, HDMI, USB
Brand: Eizo
SKU: MNLCEIZOCG2400SV
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

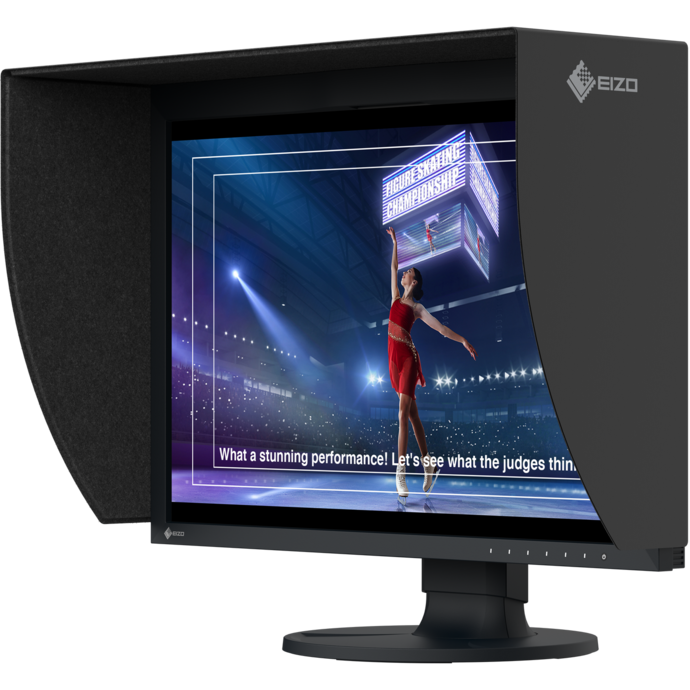

24" graphics monitor

CG2400SV ColorEdge

Ideal for editing suites, studios, and mobile productions with 3G-SDI and HDR support.

61,1 cm (24,1")
1920 x 1200
IPS (Wide Gamut)

Precise colorsFinest nuances

The CG2400SV with Wide Gamut IPS panel, 10-bit color depth and 16-bit 3D Look-Up-Table (LUT) offers perfect precision, smooth color transitions and nuances. The Wide Gamut IPS panel covers 98% of the DCI-P3 color space and supports the BT.2020 standard.

Outstandingly sharp image quality

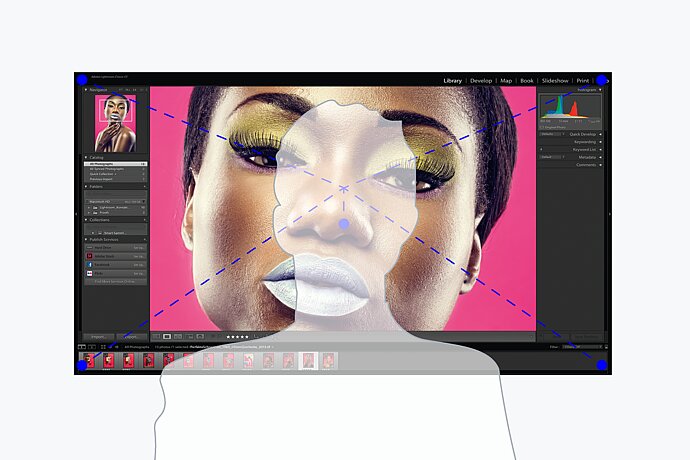

The monitor has an impressive top resolution (1920 x 1200), a very good contrast ratio of 1800:1 and a brightness of 400 cd/m2. For example, you can edit graphics and images down to the pixel. As an added benefit, text contours are clear and precise. The LCD panel with the IPS (Wide Gamut) panel allows for a viewing angle of 178 degrees. Ensuring that hue and contrast remain stable for the viewer.

Wide gamut color space

To be able to use the entire colour spectrum of modern cameras, you need a monitor with the largest possible colour space. Only then is it possible to visually assess and edit the saturated hues contained in the file. That is why the IPS panel of the ColorEdge CG2400SV covers, for example, the wide AdobeRGB photo gamut as well as the CMYK print gamut ISO-Coated V2 to more than 99 %. This means that the full colour spectrum of modern cameras is represented unaltered and without gaps. And a precise simulation of the print result in the softproof view is also guaranteed.

The CG2400SV covers 98 % of the DCI-P3 color space used in the film industry and also supports the Rec. 2020 standard.

16-bit LUT and 10-bit mode

The 3D LUT (look-up-table) on the CG2400SV employs internal calculations with 16 bits for an extremely high colour depth and outputs the signals with up to 10 bits. This provides billions of hues for calculating the precise monitor display, effectively preventing display errors caused by the monitor such as banding or clipping, which can result in tonal breaks in gradients or unnecessary colours in greyscale. Even fine nuances and structures in dark or highly saturated areas of the image can be displayed in a differentiated and detailed manner.

Category	Specification
General
Case Color	Black
Areas of Application	Photography, Video & Graphics; Video Editing, Post Production, Colour Grading
System Requirements	None; compatible with macOS and Windows
Display
Screen Size	24.1 inches (61.1 cm)
Aspect Ratio	16:10
Viewable Image Size	518.4 × 324 mm
Native Resolution	1920 × 1200
Pixel Pitch	0.27 × 0.27 mm
Pixel Density	94 ppi
Supported Resolutions	1920×1200 (60/50Hz), 1080p/i (60/50/30/25/24Hz), 720p (60/50Hz), 576p/i (50Hz), 480p/i (60Hz)
Panel Technology	IPS (Wide Gamut)
Viewing Angle (H/V)	178° / 178°
Color & Image Quality
Displayed Colors	1.07 billion (SDI 24-bit, HDMI/DP 10-bit)
LUT	16-bit (278 trillion color tones)
Color Gamut (Typical)	AdobeRGB >97%, DCI-P3 99%, Rec.709 100%, EBU 100%, SMPTE-C 100%, sRGB 100%
Color Space Presets	DCI-P3, BT.2020, BT.709, sRGB
YUV Transfer Matrix	BT.2020, BT.709, BT.601, Auto
HDR Support	PQ, HLG
EOTF Presets	HLG, PQ, EBU (2.35), sRGB, Gamma 1.6–2.7
Brightness (Typical / Recommended)	400 cd/m² / 120 cd/m²
Contrast Ratio	1800:1
Color Temperature Presets	DCI, D65, D50, Native, User, 4000–10000K
Response Time (GtG)	11 ms
Backlight	Wide Gamut LED
Features & Calibration
Hardware Calibration	Yes
Integrated Calibration Sensor	Yes
Scheduled Self-Calibration	Yes
Preset Modes	BT.2020, BT.709, HLG BT.2100, PQ BT.2100, DCI-P3, PQ DCI-P3, sRGB, Sync Signal
Drift Corrections	Temperature & Brightness
Uniformity Control	Digital Uniformity Equalizer (DUE)
Flicker-Free	Yes
True Black	Yes
3D LUT Film Emulation	Yes (10-bit log)
Pixel Inspection	Yes
Safe Area Marker	Yes
Color Space Emulation	RGB & CMYK
HDCP Decoder	Yes
Gamut / Luminance Warnings	Yes
Automatic Input Detection	Yes
OSD & Controls
OSD Languages	DE, EN, FR, ES, IT, SE
Adjustment Options	Extensive color, gamma, signal, marker, scaling, matrix, power and system controls
Button Guide	Yes
Connectivity
Video Inputs	BNC (3G/HD-SDI), DisplayPort (HDCP 2.3), HDMI (FRL Deep Color, HDCP 2.3)
Video Outputs	BNC (3G/HD-SDI loop-through, active)
USB Standard	USB 5Gbps (USB 3)
USB Upstream	2 × USB Type-B
USB Downstream	4 × USB Type-A (2 × USB 3, 2 × USB 2)
Audio Input	SDI, DisplayPort, HDMI
Audio Output	3.5 mm stereo jack
Electrical Data
Frequency	SDI/DP: 26–76 kHz / 23–61 Hz; HDMI: 15–76 kHz / 23–61 Hz
Typical Power Consumption	18 W
Maximum Power Consumption	64 W
Standby Power Consumption	0.5 W
Power Off Consumption	0 W
Power Supply	AC 100–240 V, 50/60 Hz

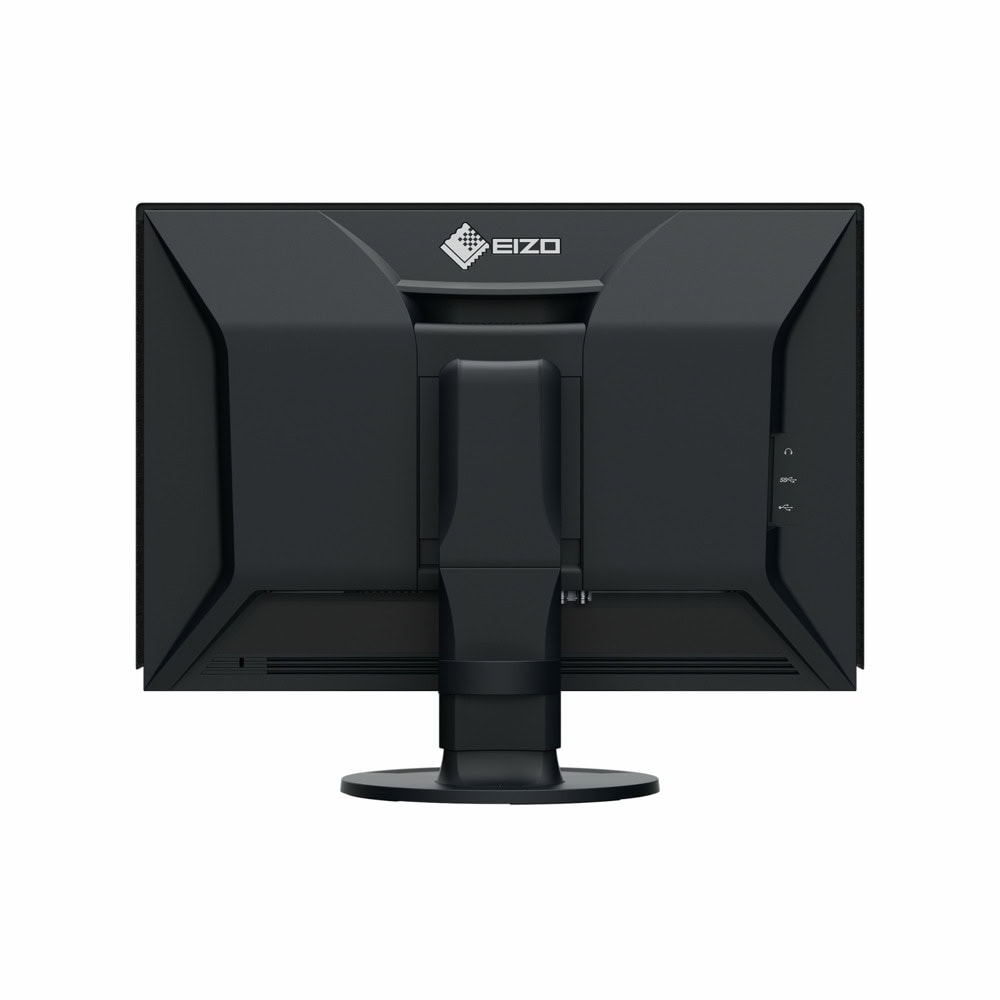

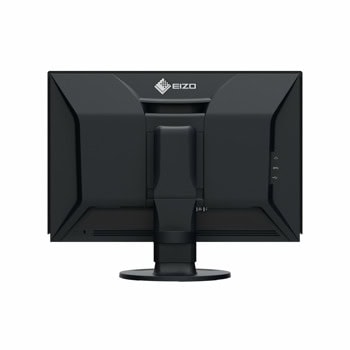

Dimensions & Ergonomics
Dimensions (with Stand)	554.4 × 408.1–563.1 × 245 mm
Weight (with Stand)	8.5 kg
Dimensions (without Stand)	554.4 × 374.1 × 70.2 mm
Weight (without Stand)	5.5 kg
Stand Rotation	344°
Tilt	5° forward / 35° backward
Pivot	Portrait/Landscape (clockwise)
Height Adjustment	155 mm
VESA Mount	100 × 100 mm

Виж още Монитори Eizo
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
DVI:	Не
Mini DisplayPort:	Не
Thunderbolt:	Не
USB Type-C:	Не
USB Type-А:	Да
VGA (D-Sub):	Не

Гама:	Професионален
Екран размер:	24.1" (61.21 cm)
Разделителна способност (max):	1920 x 1200
Аспект изображение:	16:10
Тип матрица:	IPS
Честота на опресняване:	60 Hz
Време за реакция:	11 ms
Яркост:	400 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Wide
Извит:	Не
Преносим:	Не
