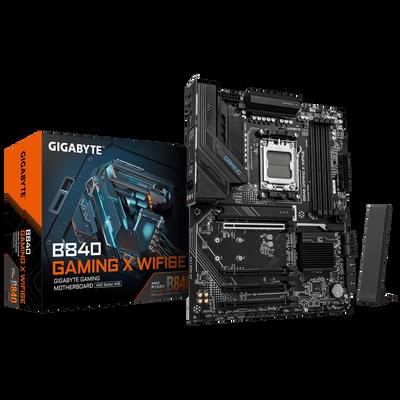

Name: Дънна платка GIGABYTE motherboard B840 Gaming X WFI6E - ATX - Socket AM5 - AMD B840
Availability: OutOfStock

Описание

Общи Характеристики
Packaged Quantity	1
Процесор
Installed Qty	0
Max Supported Qty	1
Дънна платка
Form Factor	ATX
Compatible Processors	Ryzen
Chipset Type	AMD B840
Supported RAM Technology	DDR5 SDRAM
Supported RAM Integrity Check	Non-ECC
Supported RAM Speed	7200 MT/s (O.C.), 4800 MT/s, 7000 MT/s (O.C.), 6400 MT/s (O.C.), 6800 MT/s (O.C.), 5200 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6600 MT/s (O.C.), 7600 MT/s (O.C.), 6666 MT/s (O.C.)
Processor Socket	Socket AM5
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)	Unbuffered
RAM Slots	4 DIMM slots
Интерфейси
Internal Interfaces	1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features	AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size	256 GB
Видео изход
Type	Graphics adapter (CPU required)
Аудио изход
Type	Sound card
Compliant Standards	High Definition Audio
Audio	High Definition Audio (8-channel)
Работа в мрежа
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller	Realtek RTL8852CE
Network	2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Слотове за разширение
Expansion Slots	1 x CPU, 2 x PCIe 3.0 x16 (x1 mode), 3 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 4.0 x16
Интерфейси
Storage Interfaces	PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage	Serial ATA-600 (RAID), M.2 socket
USB / FireWire	USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
Storage Ports	4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)	1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)	1 x USB-C 3.2 Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Размери и Тегло
Width	30,5 cm
Depth	24,4 cm
