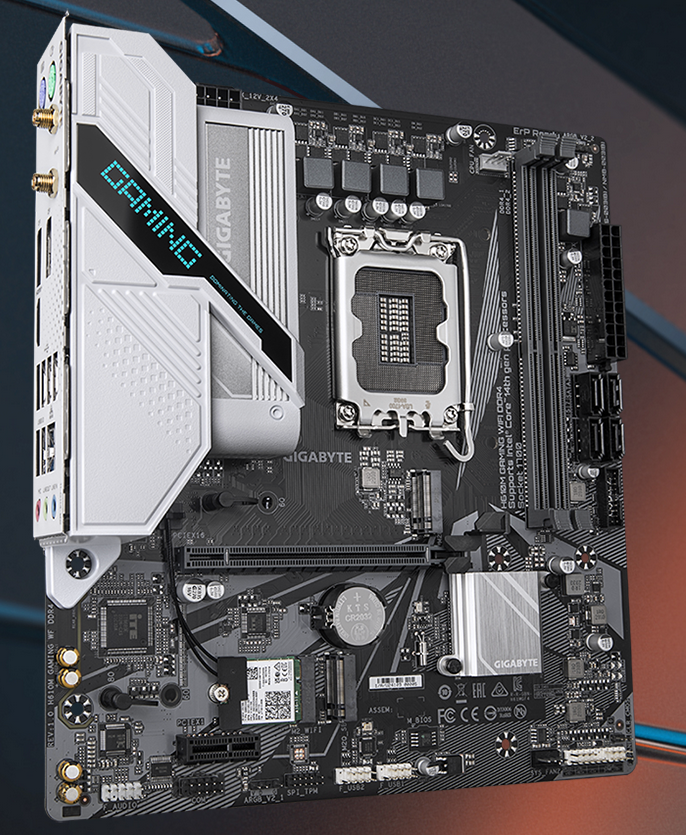

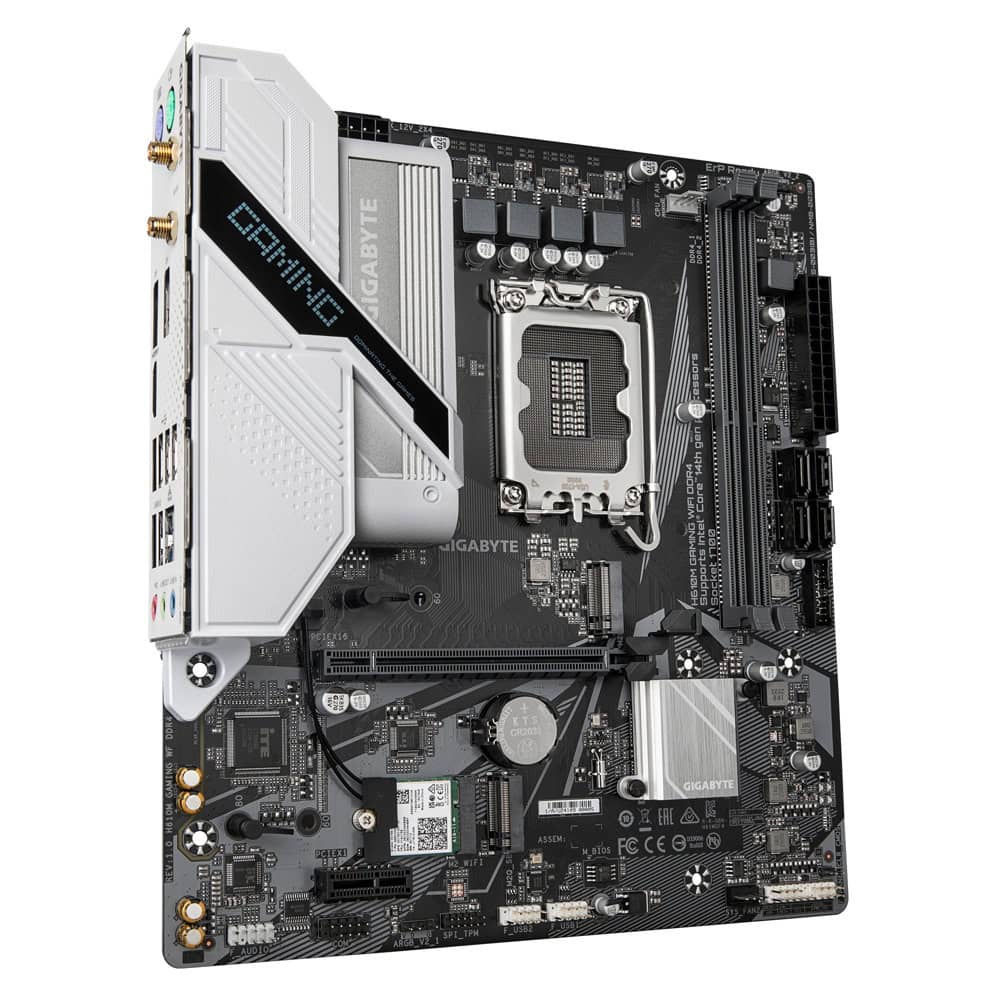

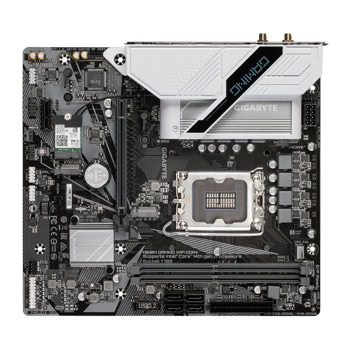

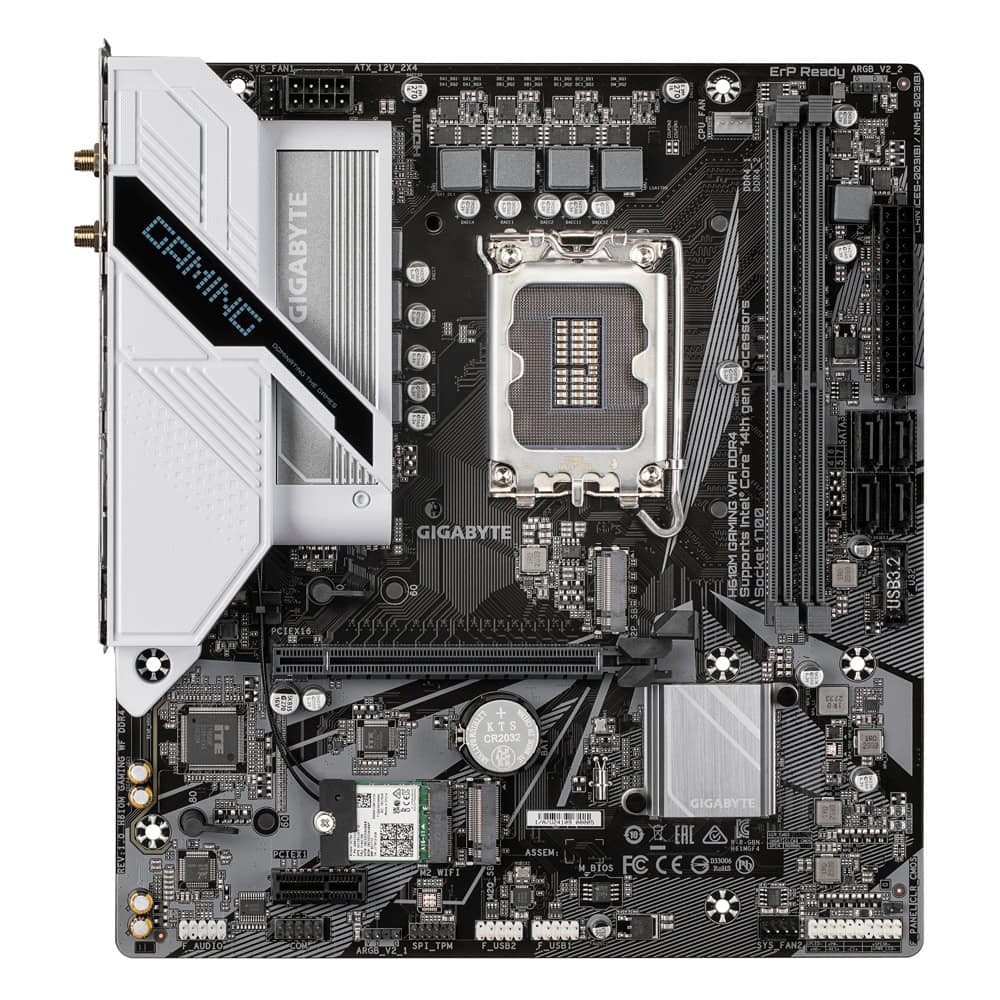

Дънна платка Gigabyte H610M GAMING WIFI, H610M, LGA1700, DDR4, PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 1, Micro ATX

H610M GAMING WIFI DDR4

• Supports Intel® Core™ 14th/ 13th /12th processors
• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
• 6+1+1 Hybrid Digital VRM Design
• EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks：Wi-Fi 802.11ac & GbE LAN
• NVMe PCIe 3.0 x4 M.2
• High Quality Audio Capacitors and Audio Noise Guard
• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STO

• CPU

  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,
  Pentium® Gold and Celeron® Processors
  (Go to GIGABYTE's website for the latest CPU support list.)
  L3 cache varies with CPU



• Chipset

  Intel® H610 Express Chipset



• Memory

  Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)
  of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in
  non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data
  rate (speed), and number of DRAM modules, please refer to "Memory Support
  List" on GIGABYTE's website for more information.)



• Onboard Graphics

  Integrated Graphics Processor-Intel® HD Graphics support:
  - 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


  * Support for DisplayPort 1.2 version and HDCP 2.3


  - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz


  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support for native HDMI 2.1 TMDS compatible ports.


  (Graphics specifications may vary depending on CPU support.)
  Support for up to triple-display at the same time



• Audio

  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel


  * You can change the functionality of an audio jack using the audio software. To configure


  7.1-channel audio, access the audio software for audio settings.



• LAN

  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)



• Wireless Communication module

  Intel® Wireless- AC 9560 (PCB rev. 1.0)
  - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
  - BLUETOOTH 5.1
  - Support 11ac 160MHz wireless standard
  (Actual data rate may vary depending on environment and equipment.)



• Expansion Slots

  CPU:
  - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
  Chipset:
  - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1



• Storage Interface

  Chipset:
  - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
  support) (M2P_SB)
  - 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support)
  (M2Q_SB)
  - 4 x SATA 6Gb/s connectors



• USB

  Chipset:
  - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through
  the internal USB header)
  - 2 x USB 2.0/1.1 ports available through the internal USB header
  Chipset+2 USB 2.0 Hubs:
  - 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through
  the internal USB header)



• Internal I/O Connectors

  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  2 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  2 x addressable RGB Gen2 LED strip headers
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI
  2.0/GC-TPM2.0 SPI V2 module only)
  1 x serial port header
  1 x Clear CMOS jumper

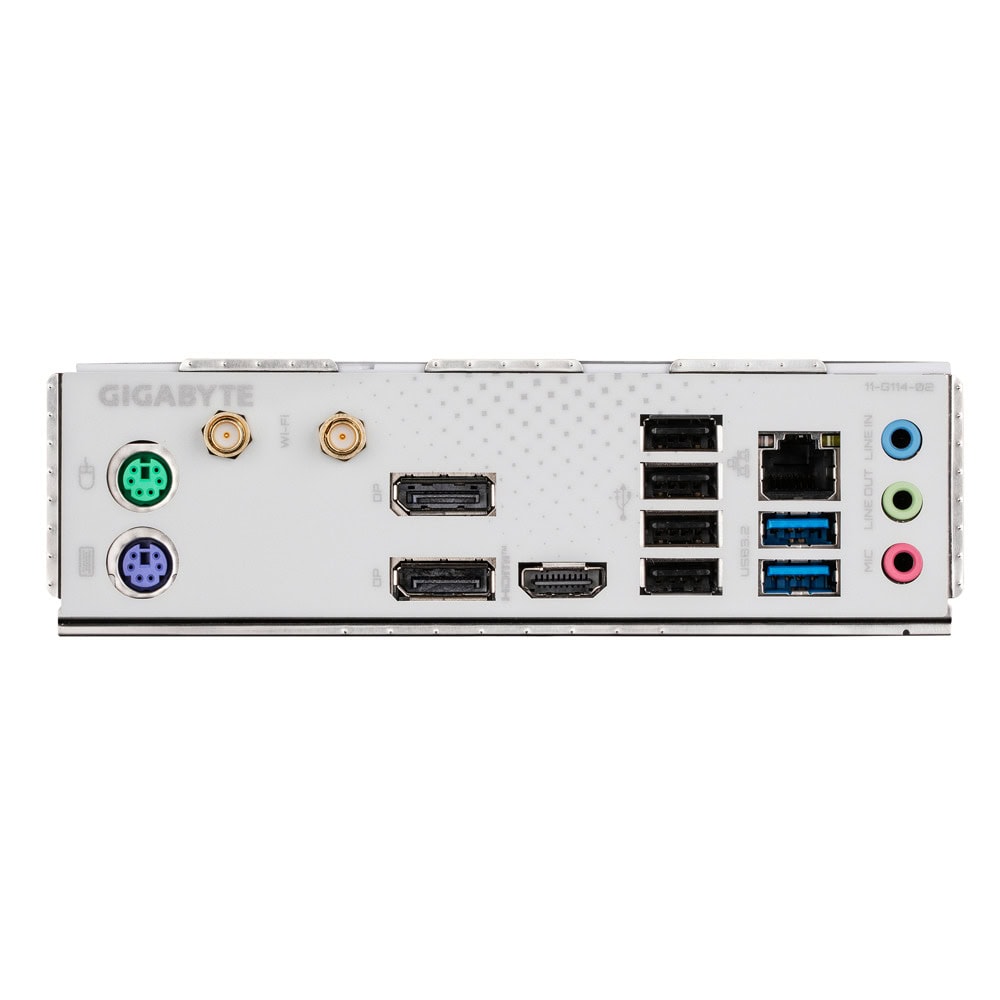

• Back Panel Connectors

  1 x PS/2 keyboard port
  1 x PS/2 mouse port
  2 x SMA antenna connectors (2T2R)
  2 x DisplayPorts
  1 x HDMI port
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks



• I/O Controller

  iTE® I/O Controller Chip



• H/W Monitoring

  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control


• BIOS

  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



• Operating System

  Support for Windows 11 64-bit
  Support for Windows 10 64-bit

• Form Factor

  Micro ATX Form Factor; 24.4cm x 22.0cm
