Дънна платка ASRock B760M-ITX/D4 WiFi, B760, LGA1700, DDR4, PCIe 4.0 (DP&HDMI), 4x SATA 6Gb/s, 1x M.2, 2x USB 3.2 Gen1 Type-A, USB 3.2 Gen2x2 Type-C, mini ITX

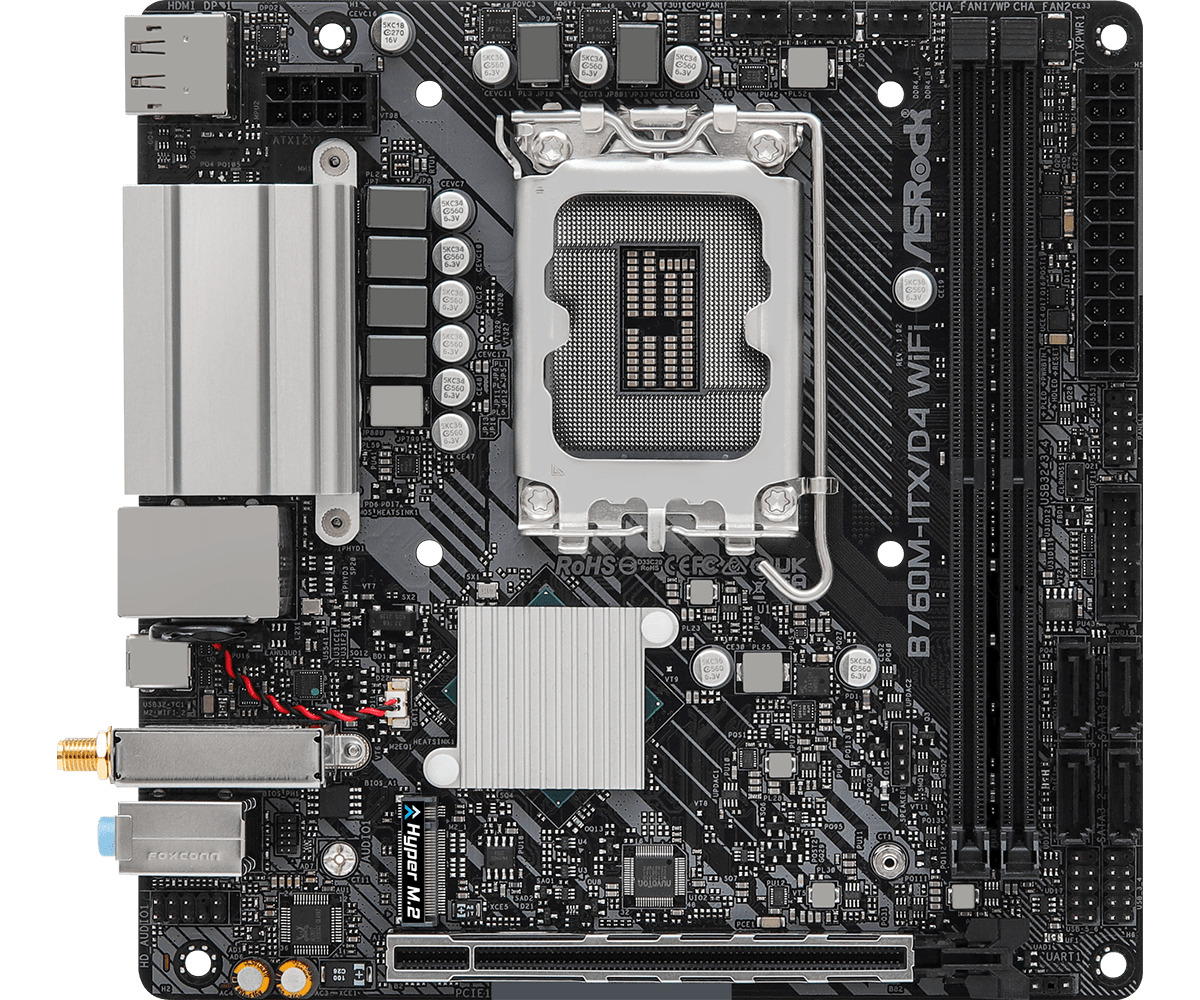

ASRock B760M-ITX/D4 WiFi





The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.

●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

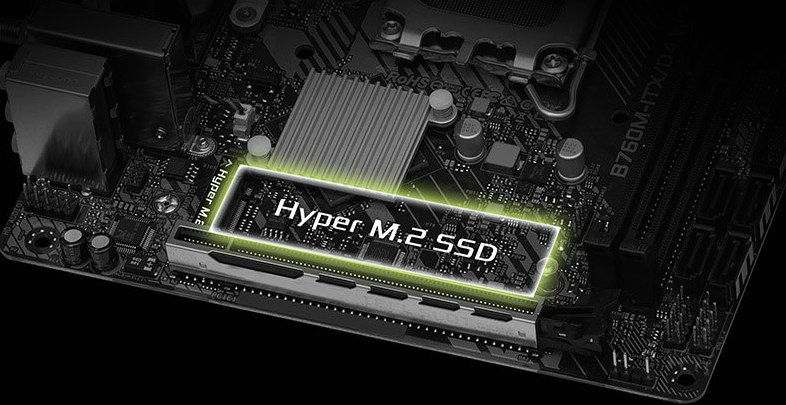

High Speed M.2 Solution(PCIe Gen4 x4) Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Specification



• Unique Feature

  Rock-Solid Durability
  - 5+1+1 Power Phase, 50A Dr.MOS for VCore+GT
  Ultrafast Gaming
  - 802.11ax Wi-Fi 6E Module
  EZ Update
  - ASRock Auto Driver Installer



• CPU

  - Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  - Supports Intel Hybrid Technology
  - Supports Intel Turbo Boost Max 3.0 Technology
  - Supports Intel Thermal Velocity Boost (TVB)
  - Supports Intel Adaptive Boost Technology (ABT)



• Chipset

  - Intel B760



• Memory

  - Dual Channel DDR4 Memory Technology
  - 2 x DDR4 DIMM Slots
  - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
  - Supports ECC UDIMM memory modules (operate in non-ECC mode)
  - Max. capacity of system memory: 64GB
  - Supports Intel® Extreme Memory Profile (XMP) 2.0


  *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
  1DPC 2R Up to 4266+ MHz (OC), 3200 MHz Natively.



• BIOS

  - 128Mb AMI UEFI Legal BIOS with GUI support



• Graphics

  - Intel® Xe Graphics Architecture (Gen 12)
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz


  *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.



• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio



• LAN

  - Gigabit LAN 10/100/1000 Mb/s
  - Realtek RTL8111H



• Wireless LAN

  - 802.11ax Wi-Fi 6E Module
  - Supports IEEE 802.11a/b/g/n/ac/ax
  - Supports Dual-Band 2x2 with extended 6GHz band support*
  - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  - Supports Bluetooth + High speed class II
  - Supports MU-MIMO


  *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
  A 6GHz compatible router is required for 6E functionality.



• Slots

  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*


  Chipset:
  - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)


  *Supports NVMe SSD as boot disks



• Storage

  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*


  Chipset:
  - 4 x SATA3 6.0 Gb/s Connectors


  *Supports Intel® Volume Management Device (VMD)
  Supports NVMe SSD as boot disks



• RAID

  - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



• USB

  - 1 x USB 3.2 Gen2x2 Type-C (Rear)
  - 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)
  * All USB ports support ESD Protection



• Connector

  - 1 x CPU Fan Connector (4-pin)*
  - 1 x Chassis Fan Connector (4-pin)*
  - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)


  *CPU_FAN1 and CHA_FAN2 support the fan power up to 1A (12W).

  **CHA_FAN1/WP support the fan power up to 2A (24W).
  CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.



• Rear Panel I/O

  - 2 x Antenna Ports
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
  - 2 x USB 3.2 Gen1 Ports
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - HD Audio Jacks: Line in / Front Speaker / Microphone



UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
