Дънна платка ASRock A620AM PRO-A WIFI, A620A, AM5, DDR5, PCI-E 4.0 (HDMI), 2x SATA 6Gb/s, 2x M.2 slots, 1x USB 3.2 Gen1 Type-C, Wi-Fi 6E, 2.5GbE LAN, Micro ATX

A620AM Pro-A WiFi

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+2+1 Phase Power Design, Dr.MOS
• 4 x DDR5 DIMMs
  Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x4
• Graphics Output Options: 1 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 2 Hyper M.2 (PCIe Gen4x4)
  1 Ultra M.2 (PCIe Gen3x4)
  2 SATA3
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  5 USB 3.2 Gen1 (3 Rear, 2 Front)
  8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11axe Wi-Fi 6E + Bluetooth
• Supports BIOS Flashback

Unique Feature

Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 6+2+1 Power Phase, Dr.MOS
Ultrafast Connectivity
- 2.5G LAN, 802.11axe Wi-Fi 6E Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer

Specification:

  CPU
   - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

   The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

   Chipset
   - AMD A620A

   Memory
   - Dual Channel DDR5 Memory Technology
   - 4 x DDR5 DIMM Slots
   - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
   - Max. capacity of system memory: 256GB
   - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

   BIOS
   - 256Mb AMI UEFI Legal BIOS with GUI support

   Graphics
   Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
   - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

   Audio
   - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

   LAN
   - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
   - Dragon RTL8125BG
   - Supports Dragon 2.5G LAN Software
   - Smart Auto Adjust Bandwidth Control
   - Visual User Friendly UI
   - Visual Network Usage Statistics
   - Optimized Default Setting for Game, Browser, and Streaming Modes
   - User Customized Priority Control

   Wireless LAN
   - 802.11axe Wi-Fi 6E Module
   - Supports IEEE 802.11a/b/g/n/ac/ax/axe
   - Supports Dual-Band 2x2 with extended 6GHz band support*
   - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
   - Supports Bluetooth 5.2
   - Supports MU-MIMO

   *The Wi-Fi 6E module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
   A 6GHz compatible router is required for 6E functionality.
   Slots
   CPU:
   - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

   Chipset:
   - 1 x PCIe 3.0 x4 Slot (PCIE2), supports x2 mode*
   - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

   - 15μ Gold Contact in VGA PCIe Slot (PCIE1)

   *PCIE1 will run at Gen4x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
   Supports NVMe SSD as boot disks

   Storage
   CPU:
   - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
   - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

   Chipset:
   - 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
   - 2 x SATA3 6.0 Gb/s Connectors

   *M2_1 is the first priority for M.2 installation.
   M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
   Supports NVMe SSD as boot disks

   RAID
   - Supports RAID 0 and RAID 1 for SATA storage devices
   - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

   *Requires additional M.2 NVMe expansion cards to support RAID 10

   USB
   CPU:
   - 1 x USB 3.2 Gen1 Type-C (Rear)
   - 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2))

   Chipset:
   - 1 x USB 3.2 Gen1 Type-C (Front)
   - 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
   - 8 x USB 2.0 (4 Rear, 4 Front)

   *All USB ports support ESD Protection

   Connector
   - 1 x SPI TPM Header
   - 1 x Power LED and Speaker Header
   - 1 x RGB LED Header*
   - 3 x Addressable LED Headers**
   - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
   - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
   - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
   - 1 x 24 pin ATX Power Connector
   - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
   - 1 x Front Panel Audio Connector
   - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
   - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
   - 1 x Front Panel Type C USB 3.2 Gen1 Header

   *Supports in total up to 12V/3A, 36W LED Strip

   **Support in total up to 5V/3A, 15W LED Strip

   ***CPU_FAN1 supports the fan power up to 1A (12W).
   CPU_FAN2 and CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
   CPU_FAN2 and CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

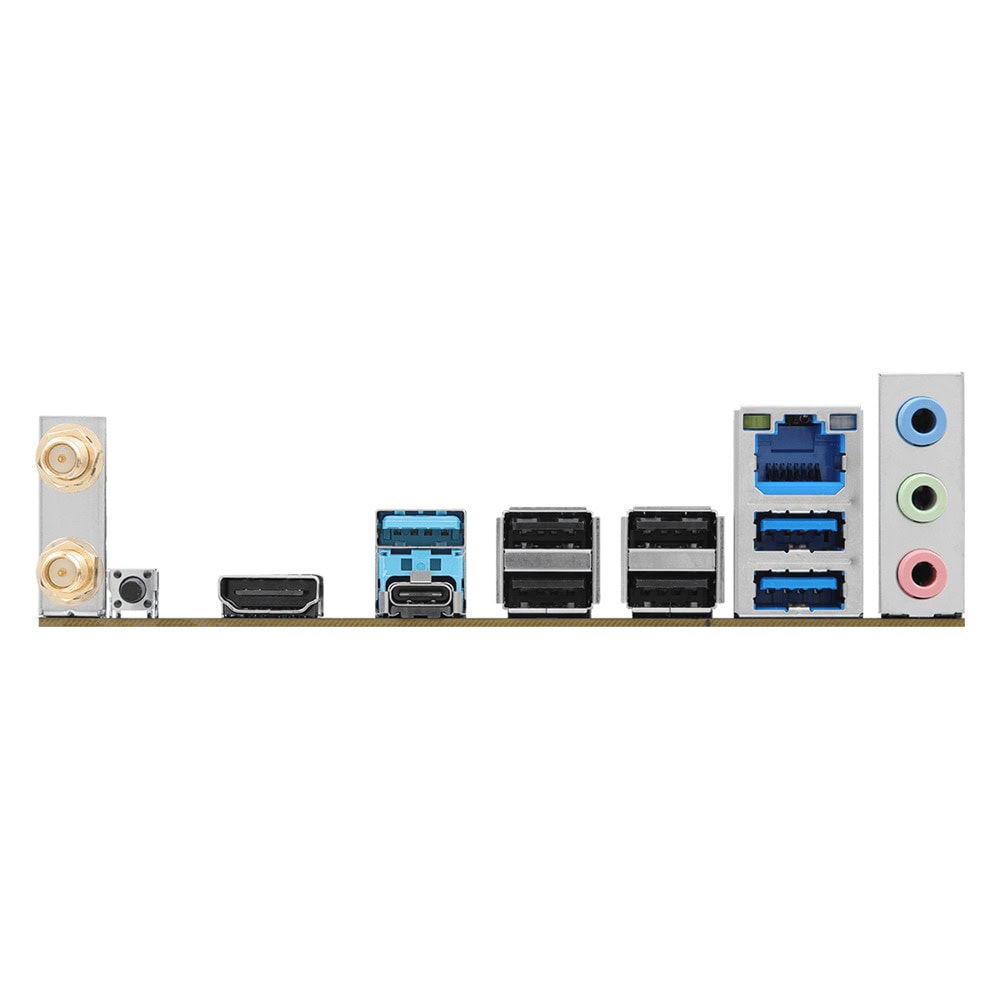

   Rear Panel I/O
   - 2 x Antenna Ports
   - 1 x HDMI Port
   - 3 x USB 3.2 Gen1 Type-A Ports
   - 1 x USB 3.2 Gen1 Type-C Port
   - 4 x USB 2.0 Ports
   - 1 x RJ-45 LAN Port
   - 1 x BIOS Flashback Button
   - HD Audio Jacks: Line in / Front Speaker / Microphone

   Form Factor
   - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
   OS
   - Microsoft Windows® 10 64-bit / 11 64-bit

   Certifications
   - FCC, CE
   - ErP/EuP ready (ErP/EuP ready power supply is required)
