Дънна платка Asrock B850M-X R2.0, B850M, AM5, DDR5, PCI-E 5.0(HDMI&USB), 4 x SATA 6Gb/s, Micro ATX

ASROCK B850M-X R2.0

   CPU
   - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

   Chipset
   - AMD B850

   Memory
   - Dual Channel DDR5 Memory Technology
   - 2 x DDR5 DIMM Slots
   - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*
   - Max. capacity of system memory: 128GB*
   - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

   BIOS
   - 256Mb AMI UEFI Legal BIOS with GUI support
   Graphics
   Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
   - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
   - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

   Audio
   - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
   - Nahimic Audio

   LAN
   - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
   - Dragon RTL8125BG
   - Supports Dragon 2.5G LAN Software
   - Smart Auto Adjust Bandwidth Control
   - Visual User Friendly UI
   - Visual Network Usage Statistics
   - Optimized Default Setting for Game, Browser, and Streaming Modes
   - User Customized Priority Control

   Slots
   CPU:
   - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
   Chipset:
   - 1 x PCIe 4.0 x1 Slot (PCIE2)*
   - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
   - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

   Storage
   CPU:
   - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
   - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

   Chipset:
   - 4 x SATA3 6.0 Gb/s Connectors
   M2_1 is the first priority for M.2 installation.
   M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
   M2_2 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
   RAID
   - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
   - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

   *Requires additional M.2 NVMe expansion cards to support RAID 10
   USB
   CPU:
   - 3 x USB 3.2 Gen1 Type-A (Rear)
   - 1 x USB 2.0 (Rear (USB_2))

   Chipset:
   - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
   - 2 x USB 3.2 Gen1 Type-A (Front)
   - 5 x USB 2.0 (1 Rear (USB_1), 4 Front)

   Connector
   - 1 x Thermistor Cable Header
   - 1 x SPI TPM Header
   - 1 x Power LED and Speaker Header
   - 1 x RGB LED Header*
   - 3 x Addressable LED Headers**
   - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
   - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
   - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
   - 1 x 24 pin ATX Power Connector
   - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
   - 1 x Front Panel Audio Connector
   - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
   - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
   - 1 x Front Panel Type C USB 3.2 Gen1 Header

   ***CPU_FAN1 supports the fan power up to 1A (12W).
   CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
   CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

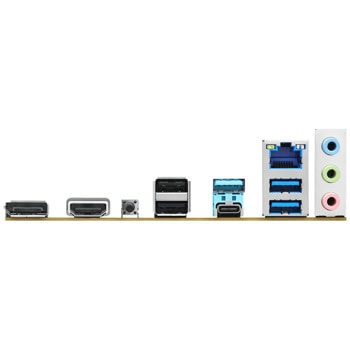

   Rear Panel I/O
   - 2 x Antenna Mounting Points
   - 1 x HDMI Port
   - 1 x DisplayPort 1.4
   - 1 x USB 3.2 Gen1 Type-C Port
   - 3 x USB 3.2 Gen1 Type-A Ports
   - 2 x USB 2.0 Ports
   - 1 x RJ-45 LAN Port
   - 1 x BIOS Flashback Button
   - HD Audio Jacks: Line in / Front Speaker / Microphone


   Software
   - ASRock Motherboard Utility (A-Tuning)
   - ASRock Dragon 2.5G LAN Software
   - ASRock Polychrome SYNC*
   UEFI
   - ASRock EZ Mode
   - ASRock Full HD UEFI
   - ASRock Auto Driver Installer
   - ASRock Instant Flash

   Form Factor
   - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
