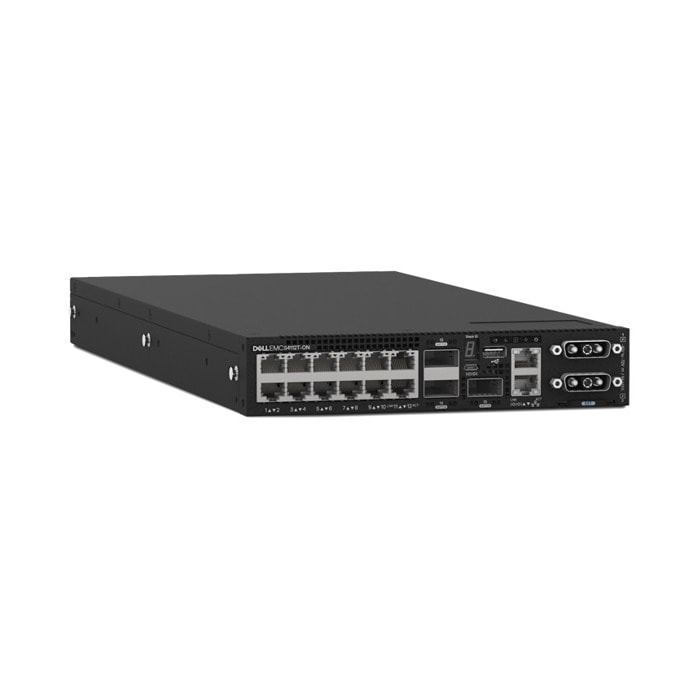

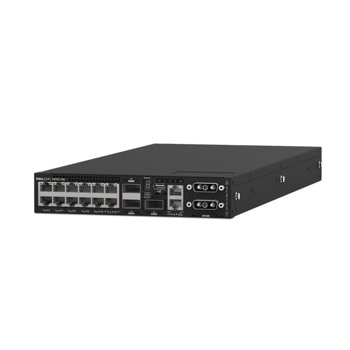

Dell EMC Switch S4112T
210-AOYW
Суич: Fixed Port
Общ брой портове: 15
Основни портове: 12x 10GBaseT
Uplink портове: 3x100GbE QSFP28
Управление: SNMPv1/2, SSHv2, FTP, TFTP, SCP, Syslog, Port Mirroring, RADIUS, 802.1X, Support Assist (Phone Home), Netconf APIs, XML Schema, CLI Commit (Scratchpad), sFlow
Fans: 3x Fixed Fans
Захранване: 2x AC Fixed PSU, I/O Panel to PSU Airflow
Routing: Full L2/L3 switching and routing
Памет (Flash, RAM): Packet buffer memory: 12MB, CPU memory: 4GB
Капацитет за маршрутизиране/превключване, Gbps: 840 Gbps
Пропускателна способност, Mpps: 625 Mpps
MAC адреси: 272K (in Scaled L2 mode)
VLAN (брой, стандарти) Layer 2 VLANs: 4K, Layer 3 VLANs: 500; Standards: 802.1Q VLAN Tagging, 802.3ac Frame Extensions for VLAN Tagging
QoS: Access Control Lists, Prefix List, Route-Map, Rate Shaping (Egress), Rate Policing (Ingress), Scheduling Algorithms, Weighted Random Early Detect
L2 мрежови стандарти: 802.1ab, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3ae, 802.1d, 802.1p, 802.1q, 802.1x
IPv6 functionality: IPv6 features including OSPF, BGP and PBR; IPv6 hosts: 64K; IPv6 routes: 130K (in Scaled L3 routes mode); CMPv6; IPv6 Addressing; Transmission of IPv6 Packets over Ethernet Networks; IPv6 Router Alert Option
Сигурност: RADIUS, SSHv2, Security Architecture for IPSec, IPSec Authentication Header, ESP
Размери (Ш, Д, В), mm 209 x 450 x 41.25 mm
Опция за монтаж: Rackmount
Виж още Суич Dell
Виж всички Суич в категорията
210-AOYW
Суич: Fixed Port
Общ брой портове: 15
Основни портове: 12x 10GBaseT
Uplink портове: 3x100GbE QSFP28
Управление: SNMPv1/2, SSHv2, FTP, TFTP, SCP, Syslog, Port Mirroring, RADIUS, 802.1X, Support Assist (Phone Home), Netconf APIs, XML Schema, CLI Commit (Scratchpad), sFlow
Fans: 3x Fixed Fans
Захранване: 2x AC Fixed PSU, I/O Panel to PSU Airflow
Routing: Full L2/L3 switching and routing
Памет (Flash, RAM): Packet buffer memory: 12MB, CPU memory: 4GB
Капацитет за маршрутизиране/превключване, Gbps: 840 Gbps
Пропускателна способност, Mpps: 625 Mpps
MAC адреси: 272K (in Scaled L2 mode)
VLAN (брой, стандарти) Layer 2 VLANs: 4K, Layer 3 VLANs: 500; Standards: 802.1Q VLAN Tagging, 802.3ac Frame Extensions for VLAN Tagging
QoS: Access Control Lists, Prefix List, Route-Map, Rate Shaping (Egress), Rate Policing (Ingress), Scheduling Algorithms, Weighted Random Early Detect
L2 мрежови стандарти: 802.1ab, 802.1s, 802.1w, 802.3ab, 802.3ad, 802.3ae, 802.1d, 802.1p, 802.1q, 802.1x
IPv6 functionality: IPv6 features including OSPF, BGP and PBR; IPv6 hosts: 64K; IPv6 routes: 130K (in Scaled L3 routes mode); CMPv6; IPv6 Addressing; Transmission of IPv6 Packets over Ethernet Networks; IPv6 Router Alert Option
Сигурност: RADIUS, SSHv2, Security Architecture for IPSec, IPSec Authentication Header, ESP
Размери (Ш, Д, В), mm 209 x 450 x 41.25 mm
Опция за монтаж: Rackmount
Виж още Суич Dell
Виж всички Суич в категорията
Документация
Datasheet- Dell_Networking_S4100-series.pdf
- Декларация за съответствие_Dell EMC Networking S4112T-ON.pdf
- OS10 Enterprise Edition User Guide Release 10.4.0E(R1)
- CE Declaration of Conformity
- VxRail Fabric Automation SmartFabric Services User Guide
- Product Brochure
- OpenSwitch OPX Installation Guide with Enhancement Package Release 3.1.0
- OS10 Enterprise Edition User Guide Release 10.4.2.0
- OS10 Enterprise Edition User Guide Release 10.4.0E(R1)
- CE Declaration of Conformity
- VxRail Fabric Automation SmartFabric Services User Guide
- Product Brochure
- OpenSwitch OPX Installation Guide with Enhancement Package Release 3.1.0
- OS10 Enterprise Edition User Guide Release 10.4.2.0
Технически характеристики
| Брой портове: | 12 |
|---|---|
| Максимална скорост: | 10 Gbit/s |
| Стандарт: | 802.3ac |
| Управляем: | Не е указано |
