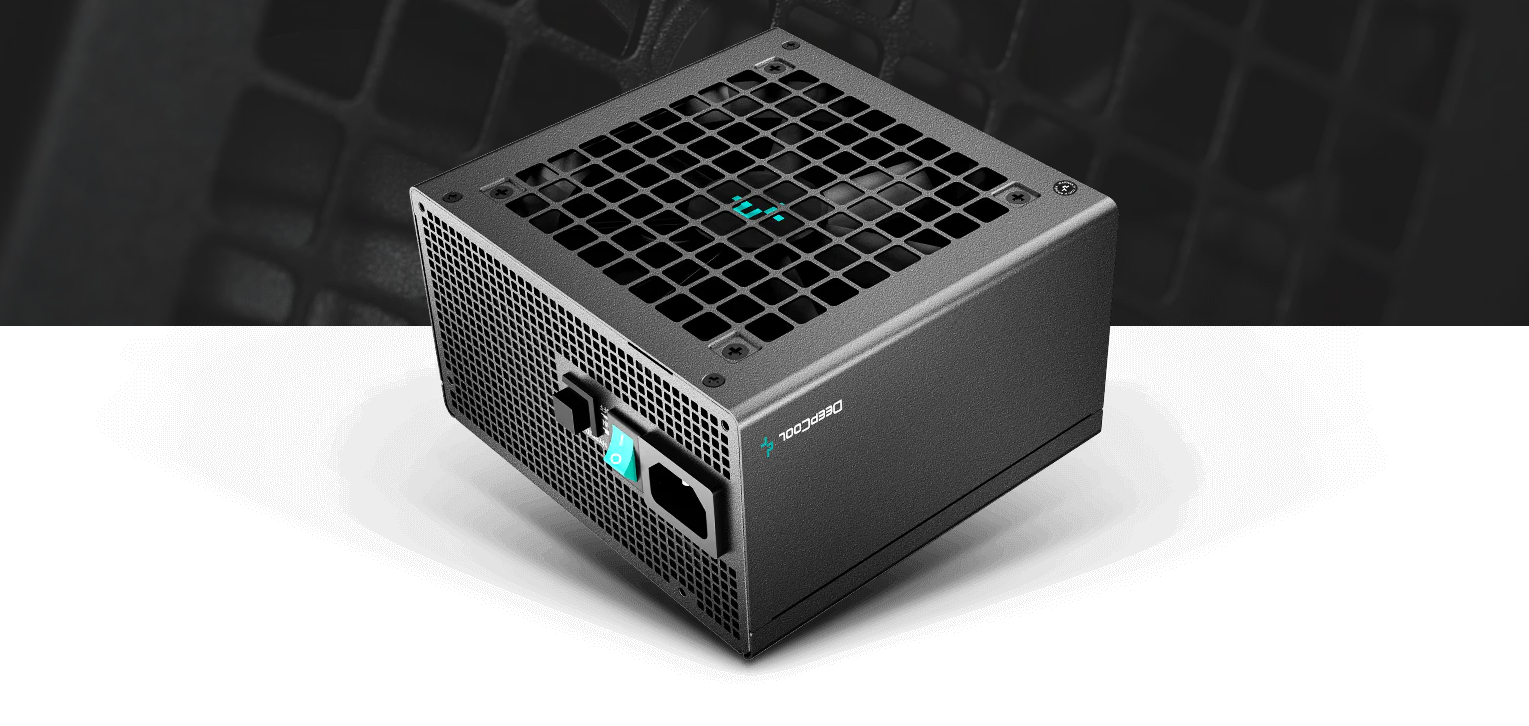

DeepCool PQ750M
Introducing a new generation of power reliability, the DeepCool PQ-M Series 80 PLUS Gold Modular Power Supply delivers high efficiency and stability for performance PC systems needing ultra-quiet operation with silent fan modes.
A New Generation
In our dedication to the mission of self-improvement and higher quality standards, the PQ-M Series PSU is a commitment from DeepCool to provide a trustworthy and reliable power supply. With a strong and dependable foundation, DeepCool is helping build better systems today that meet the expectations of tomorrow.
Best of the Best

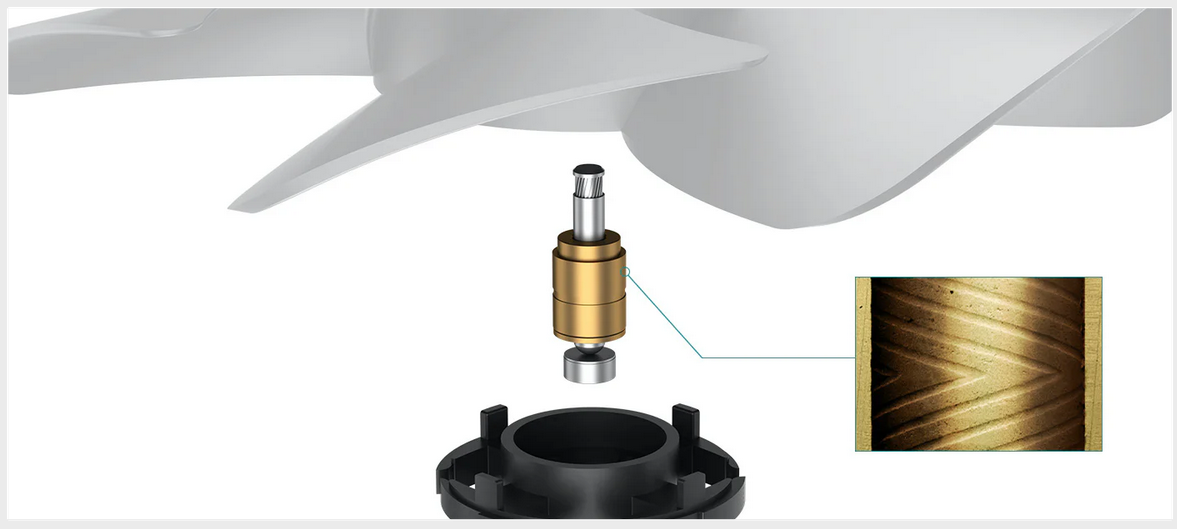

Fluid Dynamic Bearing (FDB) fans are considered the best-in-class for operating noise and life expectancy compared to other fan bearing types. The hydrodynamic and fluid-based properties greatly reduce friction and vibration that enables better reliability and quiet operation.
Technical Specs:
| Type | ATX12V V2.4 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| 80PLUS Certifications | GOLD |
| Fan Size | 120mm |
| Fan Bearing | FDB |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-500ms |
| Hold Up Time | ≥16ms (90% load) |

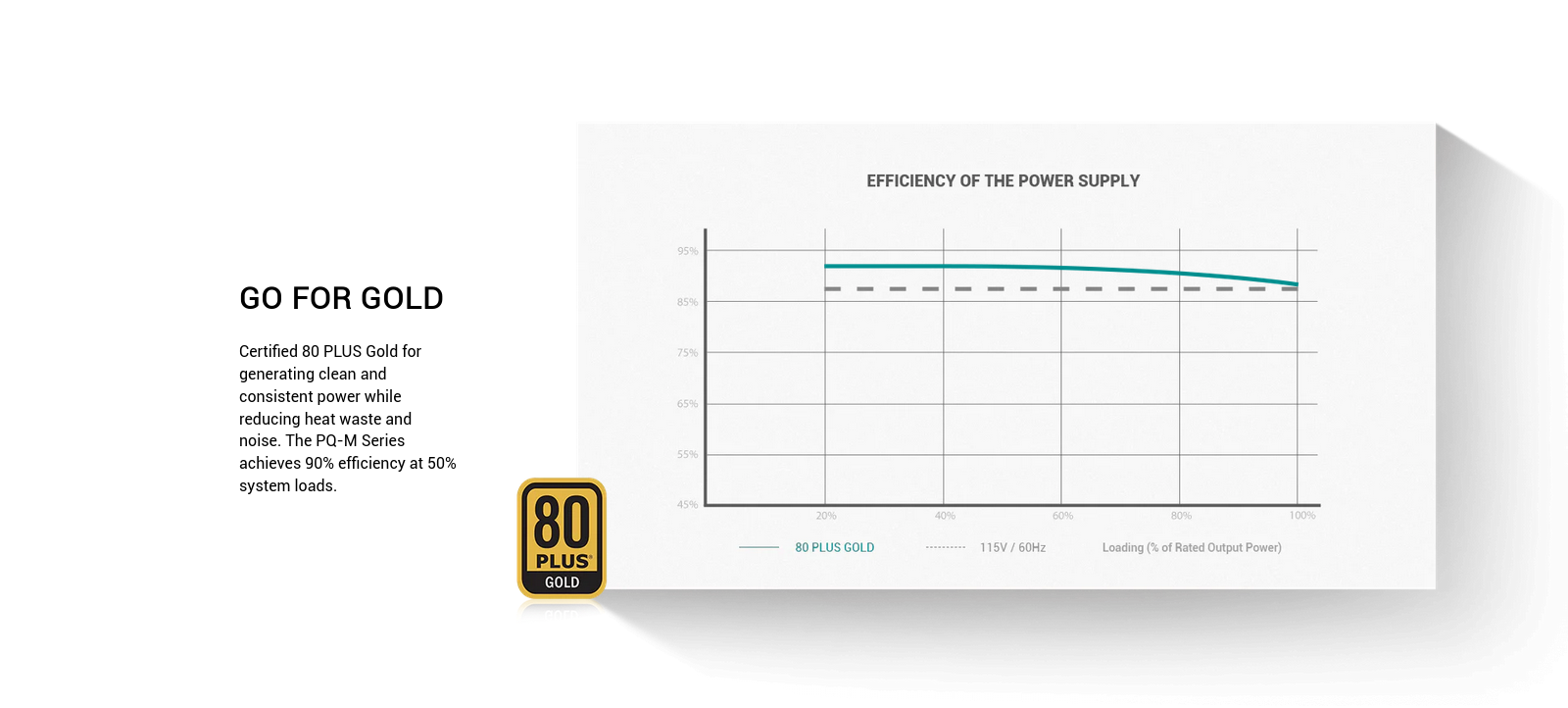

| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| Regulatory | CCC/CE/FCC/TUV-SUD/cTUVus/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA |
| Erp Regulation | ErP 2013 |
| MTBF | 100,000 Hours |
