Охлаждане за процесор DeepCool AN400 BK, съвместимост със сокети Intel LGA1851/1700/1200/1151/1150/1155 & AMD AM5/AM4

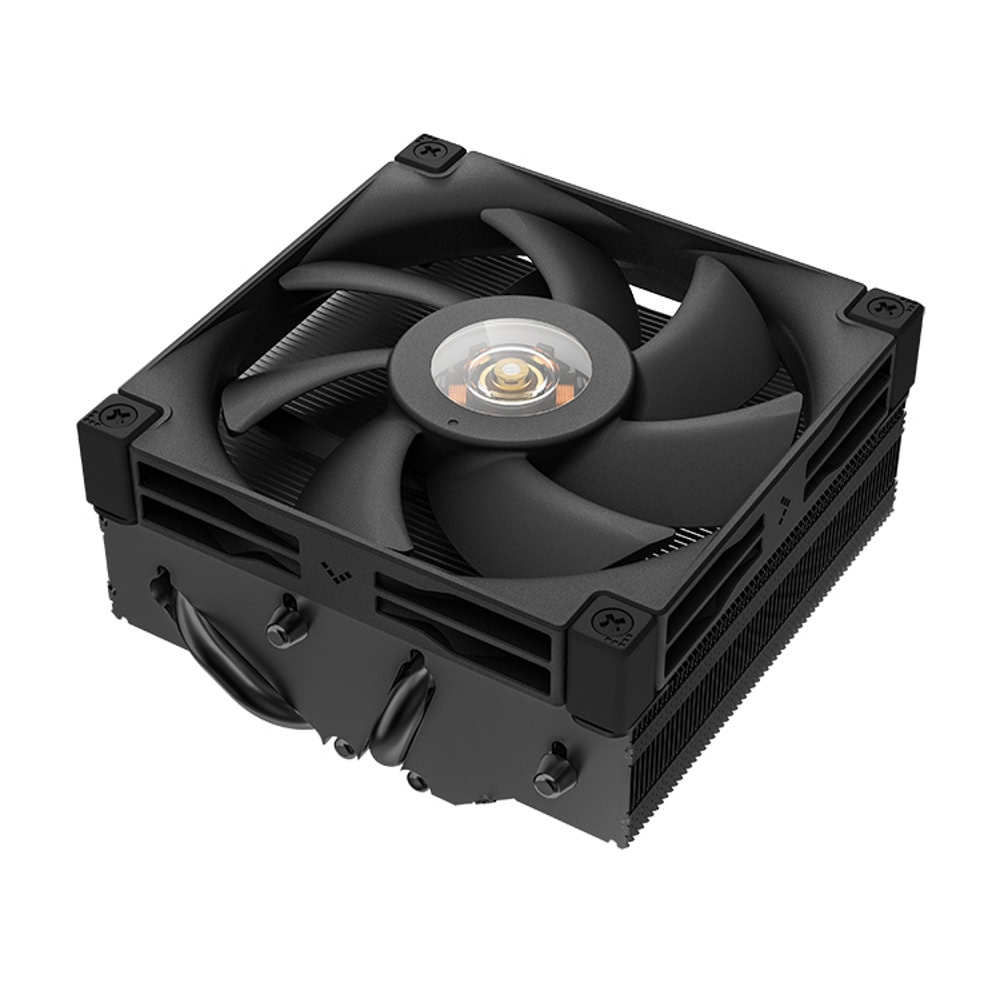

DeepCool AN400 BK

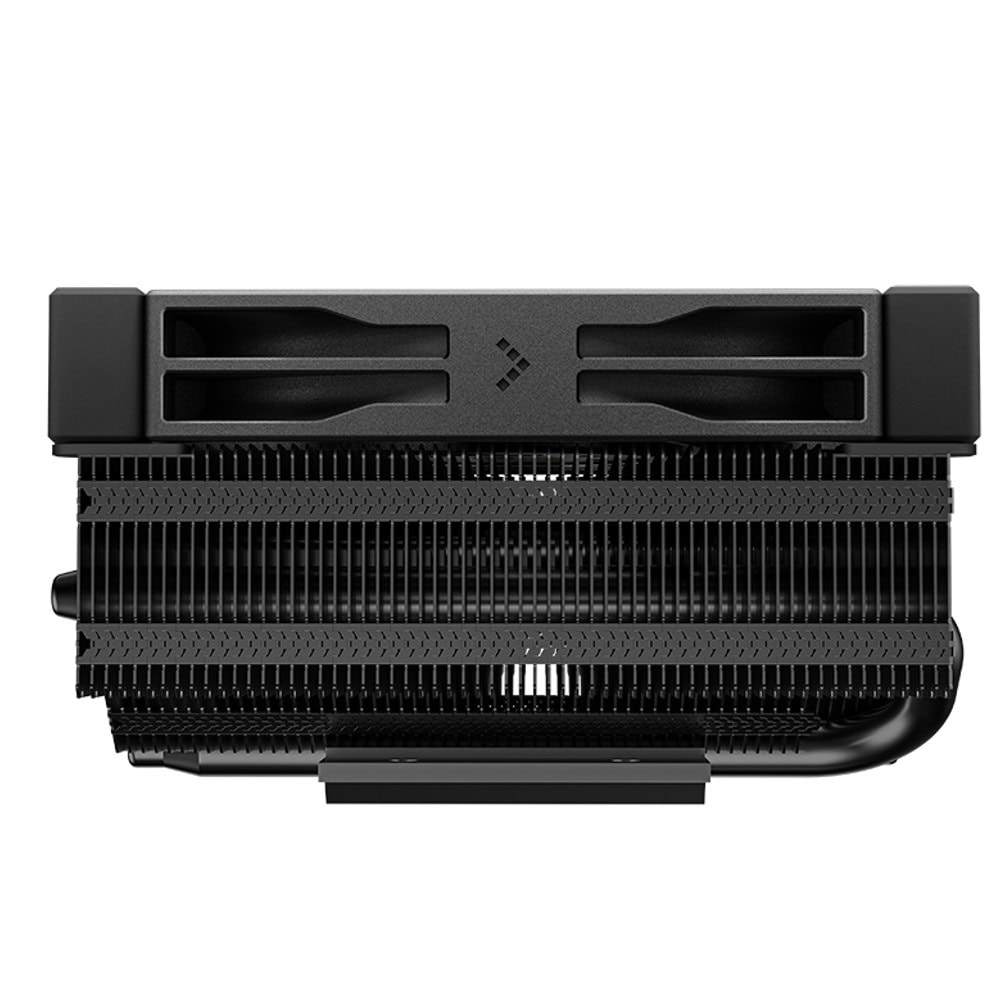

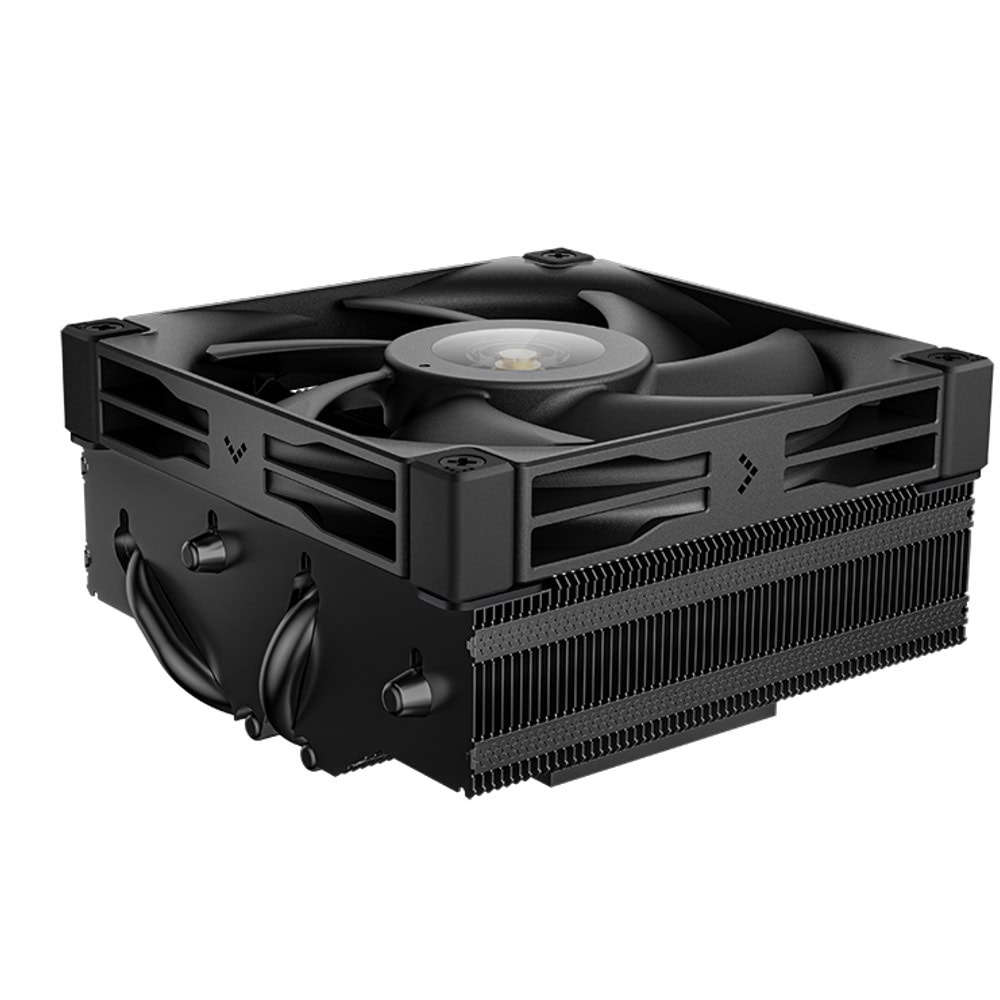

The AN400 BK is a 4-heatpipe low-profile air cooler that provides 150W of TDP in a compact heatsink. With unobstructed clearance for RAM modules, and a top-down air flow, the AN400 BK is a great option for everything down to small ITX builds.

AN400 BK

Top Flow Low Profile Cooler

Compact And Feature Rich

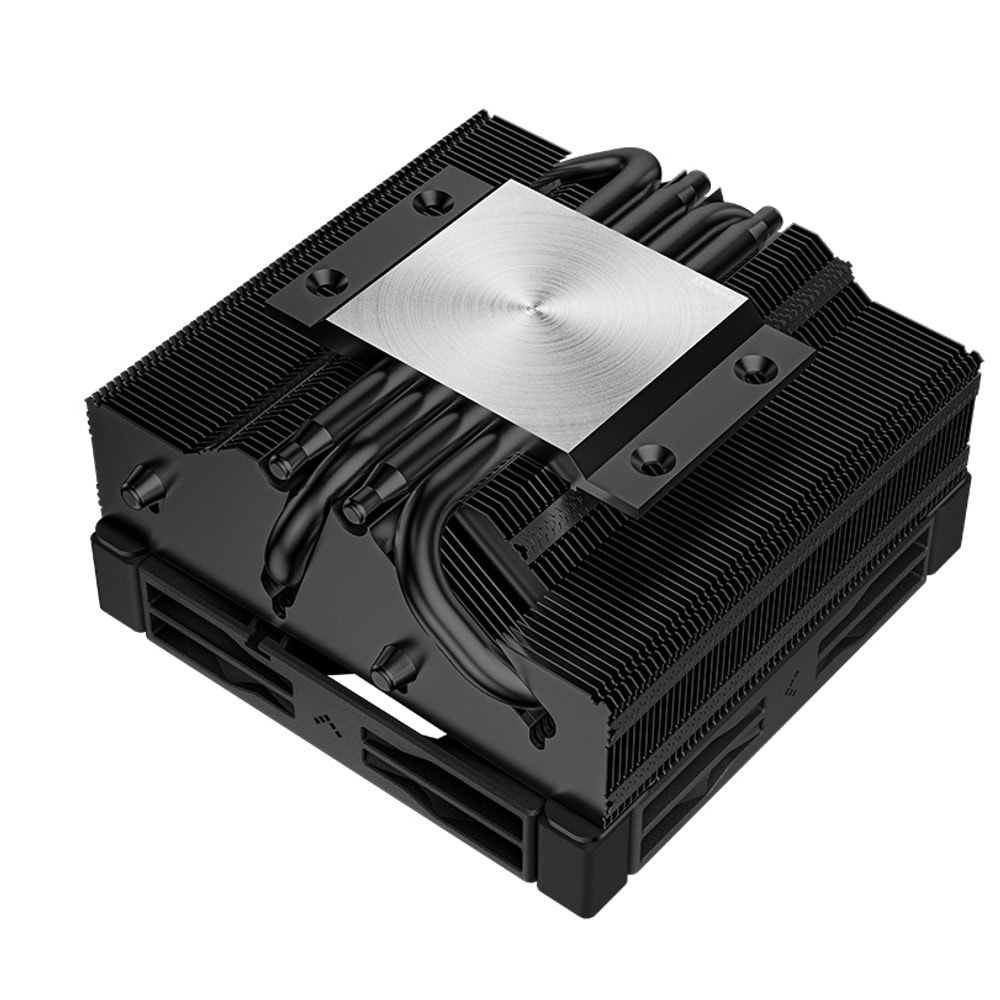

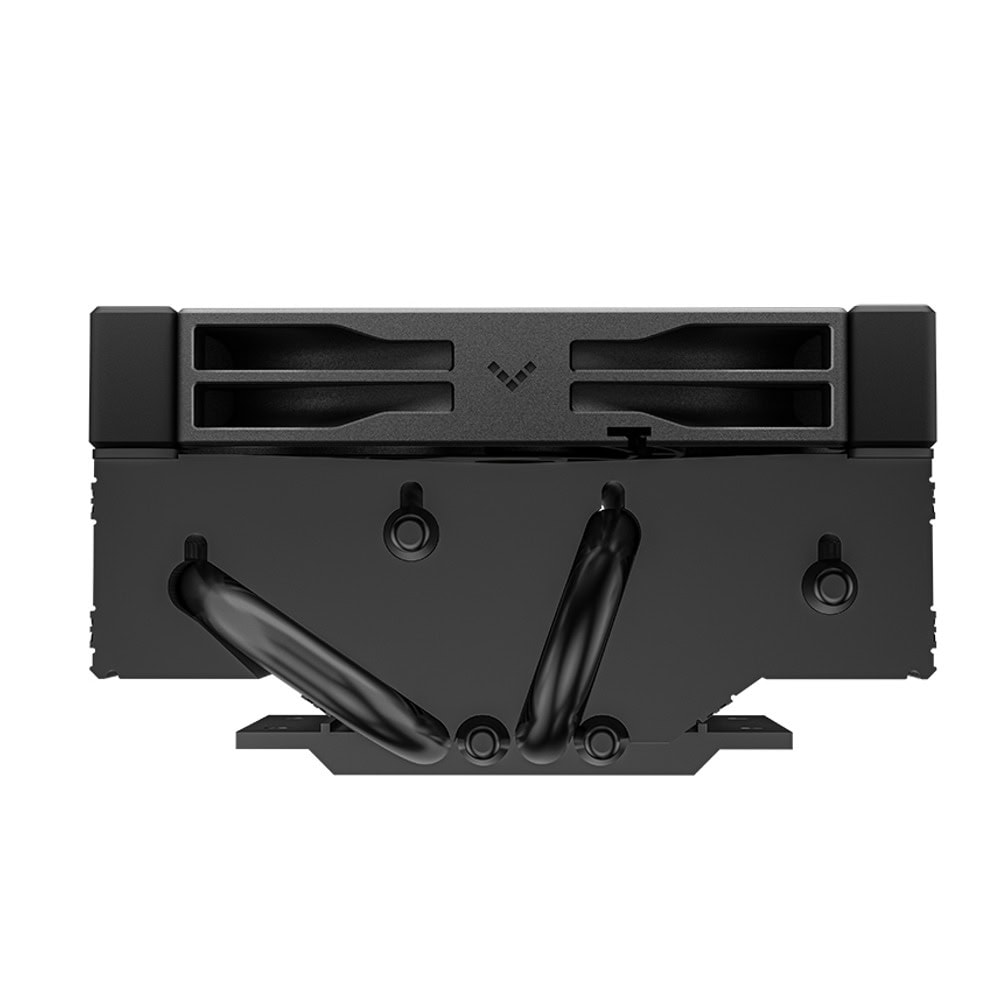

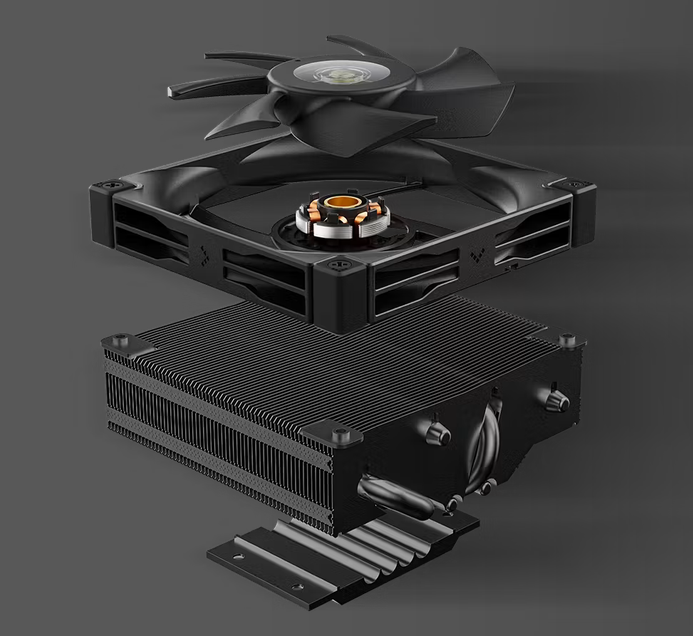

With 62 black-coated aluminum fins, 4 optimized heatpipes, and a raised copper coldplate, the AN400 BK packs a lot of cooling potential in a small 53-mm-tall CPU cooler.

Small But Capable

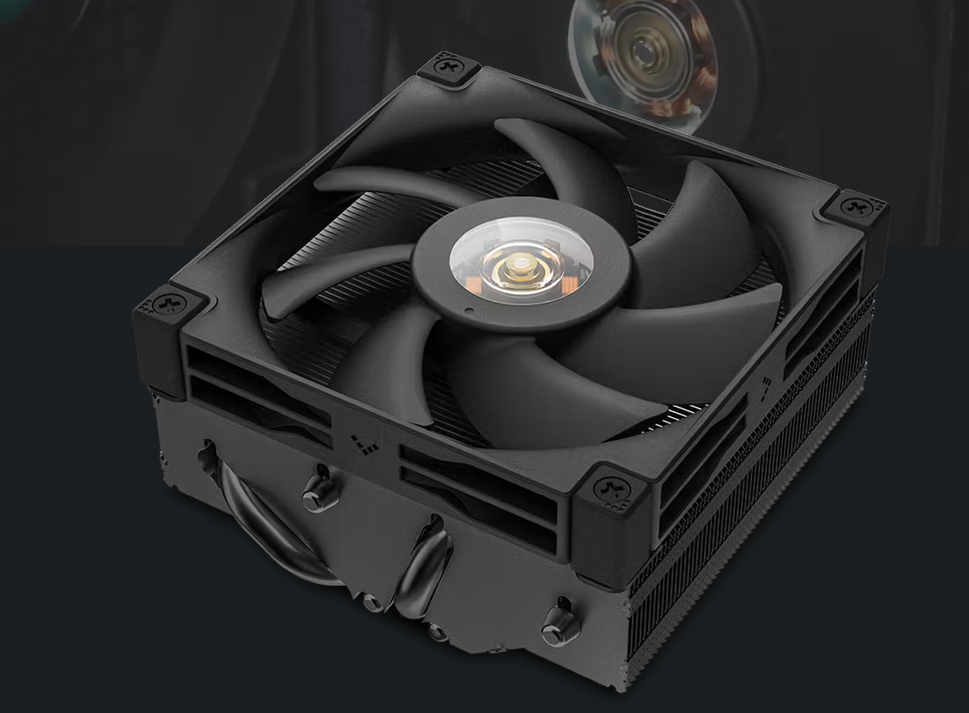

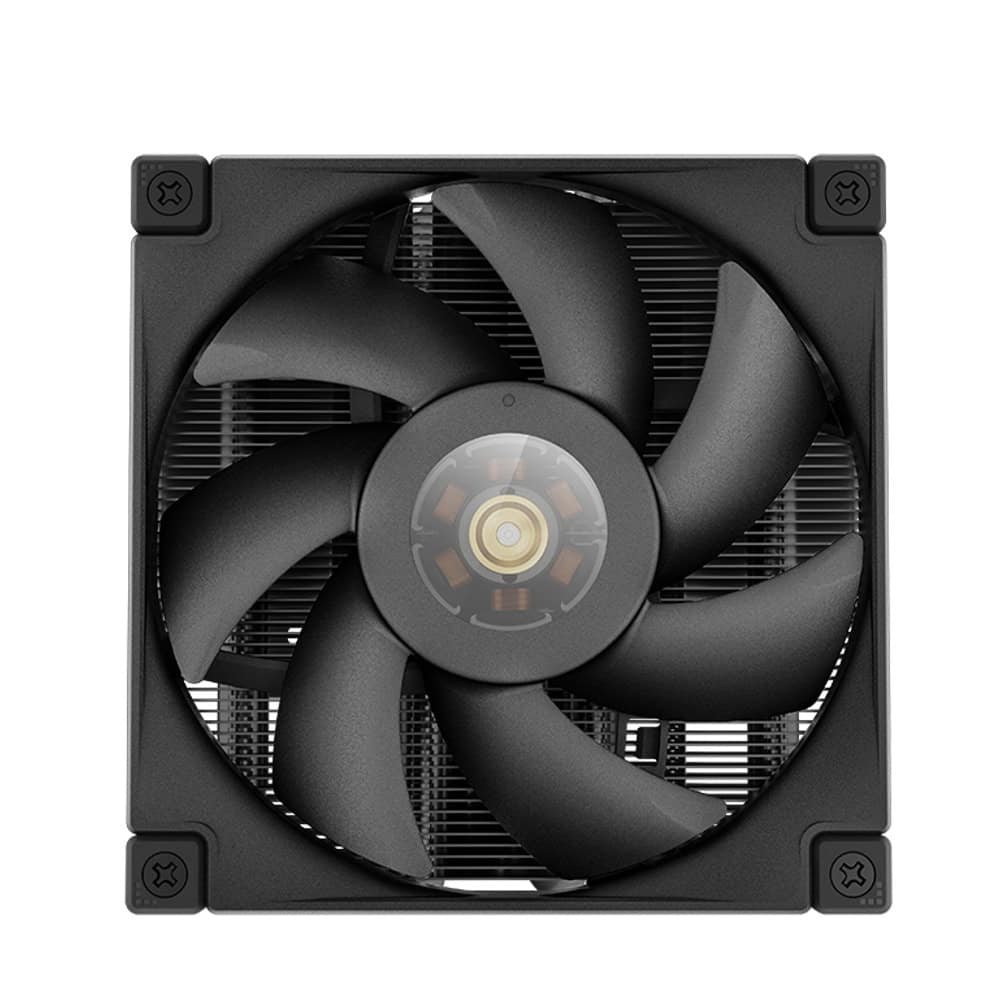

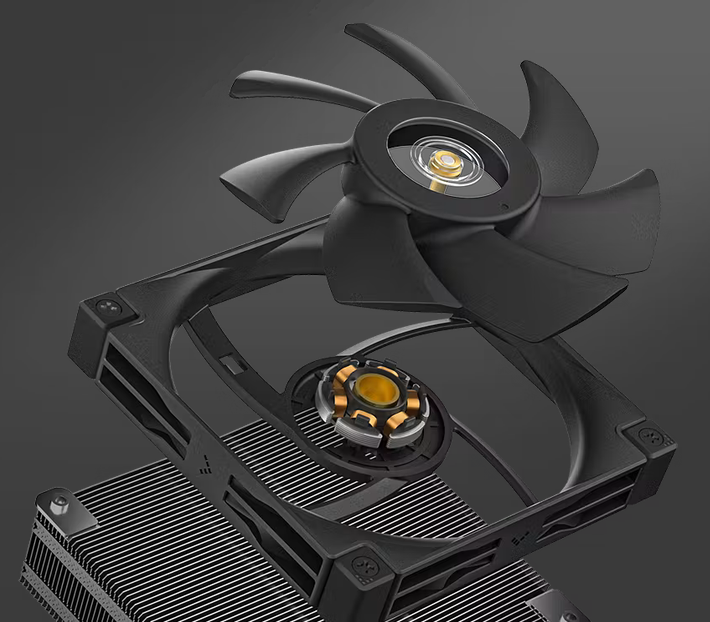

Equipped with a slim 92mm PWM-enabled FDB fan and a visible 3-phase 6-slot 4-pole motor, the AN400 BK can spin up to a staggering 2950 RPM while staying below 23.2 dB(A).

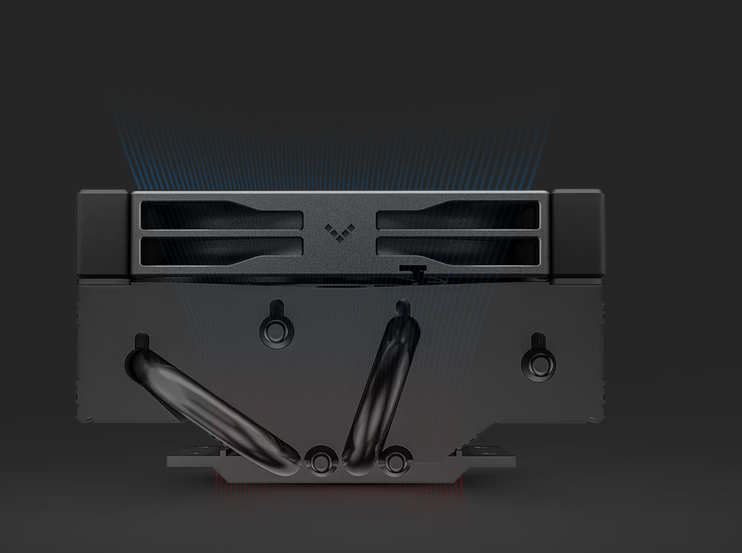

Passive Airflow

The top-down design has the added benefit of providing passive airflow to the surrounding VRMs around the CPU.

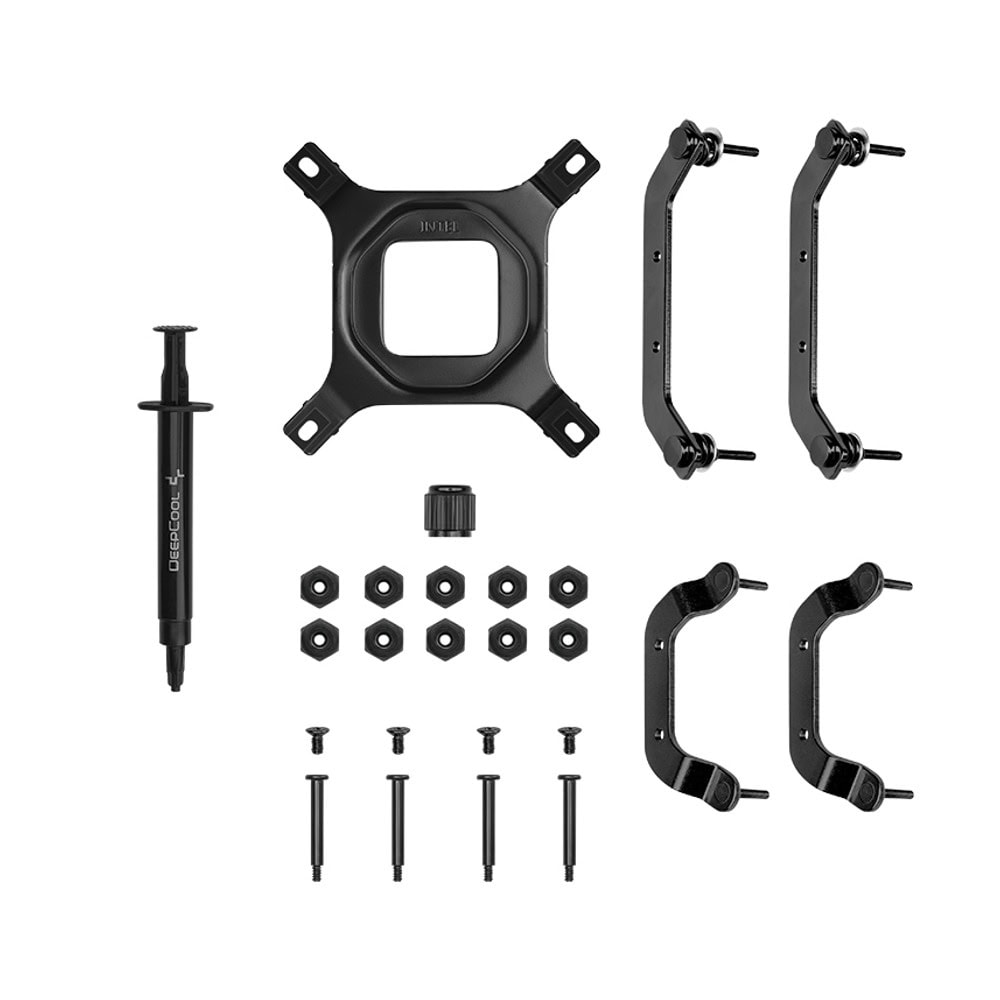

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Product Dimensions

92×92×52.5 mm(L×W×H)

Heatsink Dimensions

94×57×38 mm(L×W×H)

Net Weight

431.4 g

Heatpipe

Ø6 mm×4 pcs

Fan Dimensions

92×92×15 mm(L×W×H)

Fan Speed

500~2950 RPM±10%

Fan Airflow

31.18 CFM

Fan Air Pressure

4.8 mmAq

Fan Noise

≤23.2 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.45 A

Fan Power Consumption

5.4 W

LED Type

White LED
