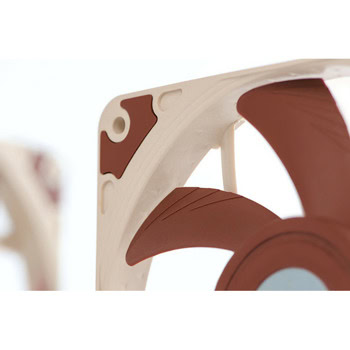

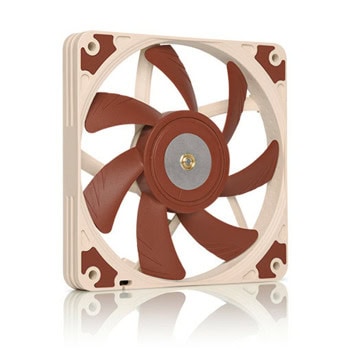

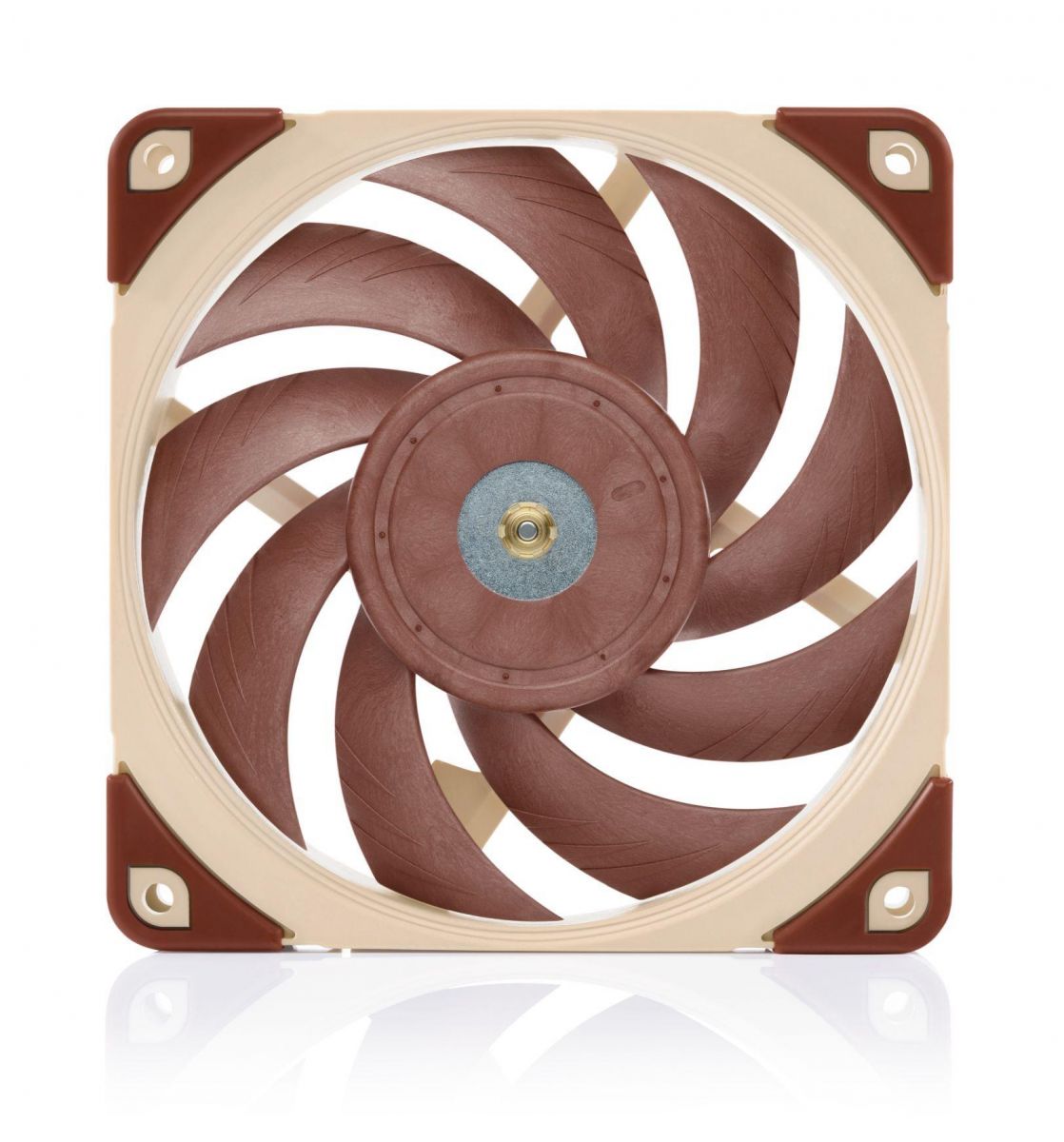

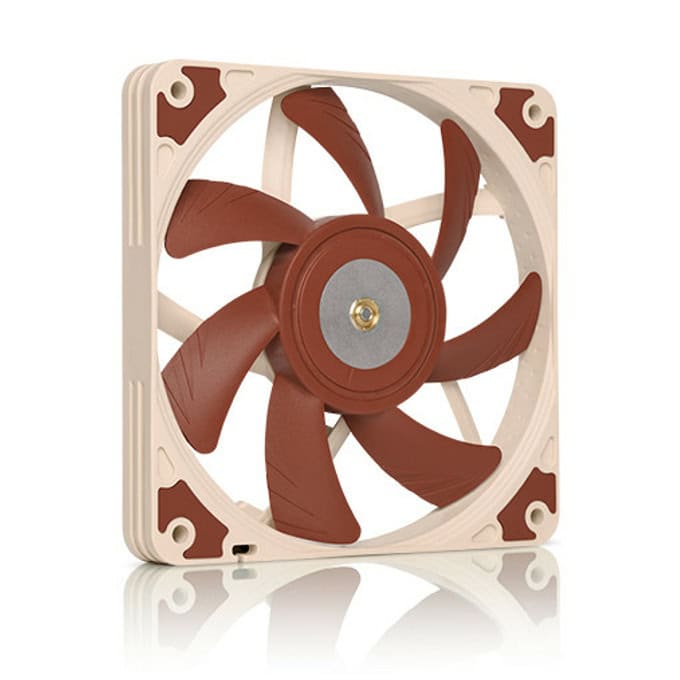

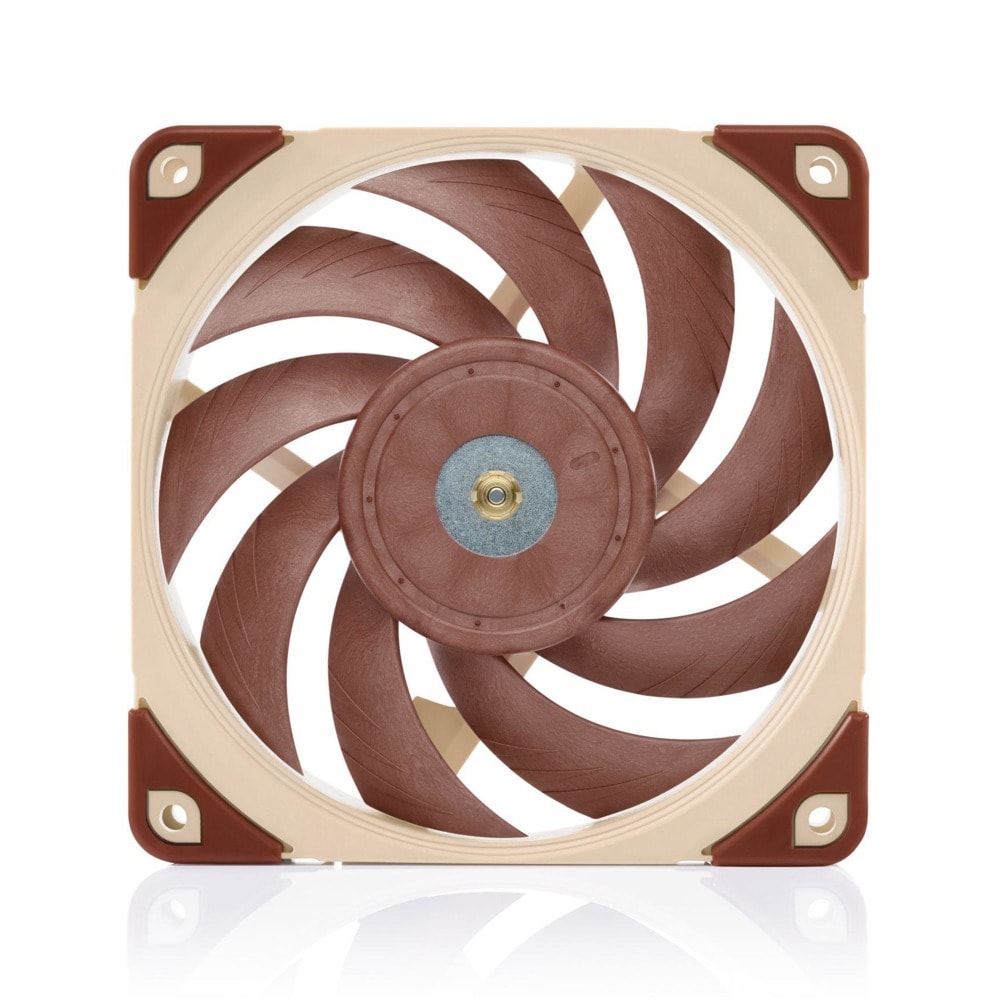

Noctua NF-A12x15 1850 rpm

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A12x15 is a highly optimised, premium quality quiet fan in size 120x15mm. Its 15mm slim design makes the NF-A12x15 ideal for space-restricted applications such as low-profile CPU coolers or HTPC cases. The PWM version sports Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed during PWM control from 1850 to 1400rpm. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

Specification

Size 120x120x15 mm
Mounting hole spacing 105x105 mm
Connector & pin-configuration 4-pin PWM
Cable length 20cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry A-Series with Flow Acceleration Channels
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 1850 RPM
Rotational speed with L.N.A. (+/- 10%) 1400 RPM
Min. rotational speed (PWM, +/-20%) 450 RPM
Airflow 94,2 m³/h
Airflow with L.N.A. 70,8 m³/h
Acoustical noise 23,9 dB(A)
Acoustical noise with L.N.A. 16,8 dB(A)
Static pressure 1,53 mm H₂O
Static pressure with L.N.A. 0,9 mm H₂O
Max. input power 1,56 W
Max. input current 0,13 A
Operating voltage 12 V
Voltage PWM signal 5 V
MTTF > 150.000 h
Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-pin y-cable
30cm extension cable
NA-AV3 anti-vibration mounts
Fan screws
