Arctic P12 Pro Reverse A-RGB

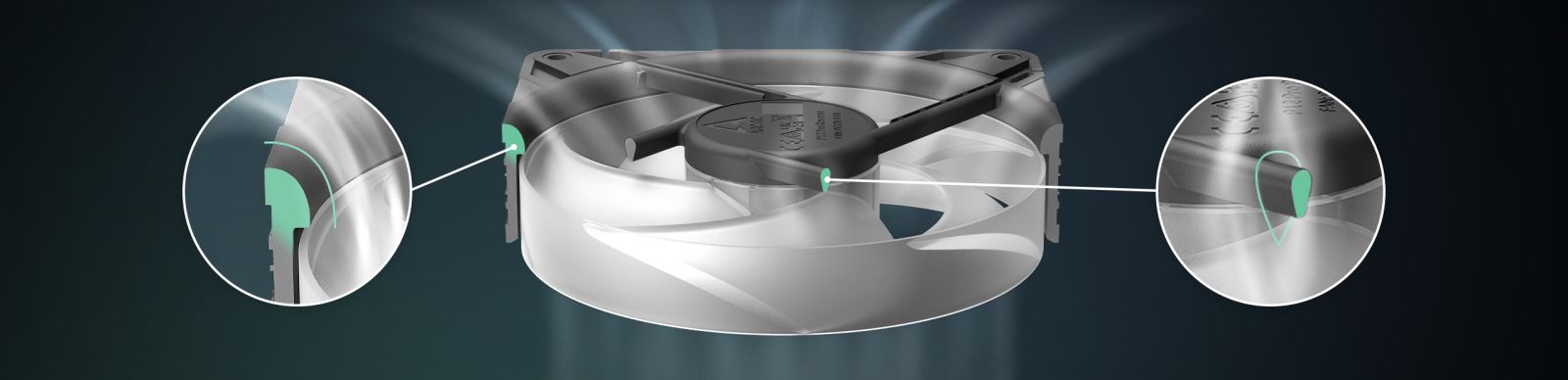

Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped spokes direct the airflow with reduced flow losses.
This reduces air resistance, minimising turbulence and aerodynamic noise.
 |  |  |

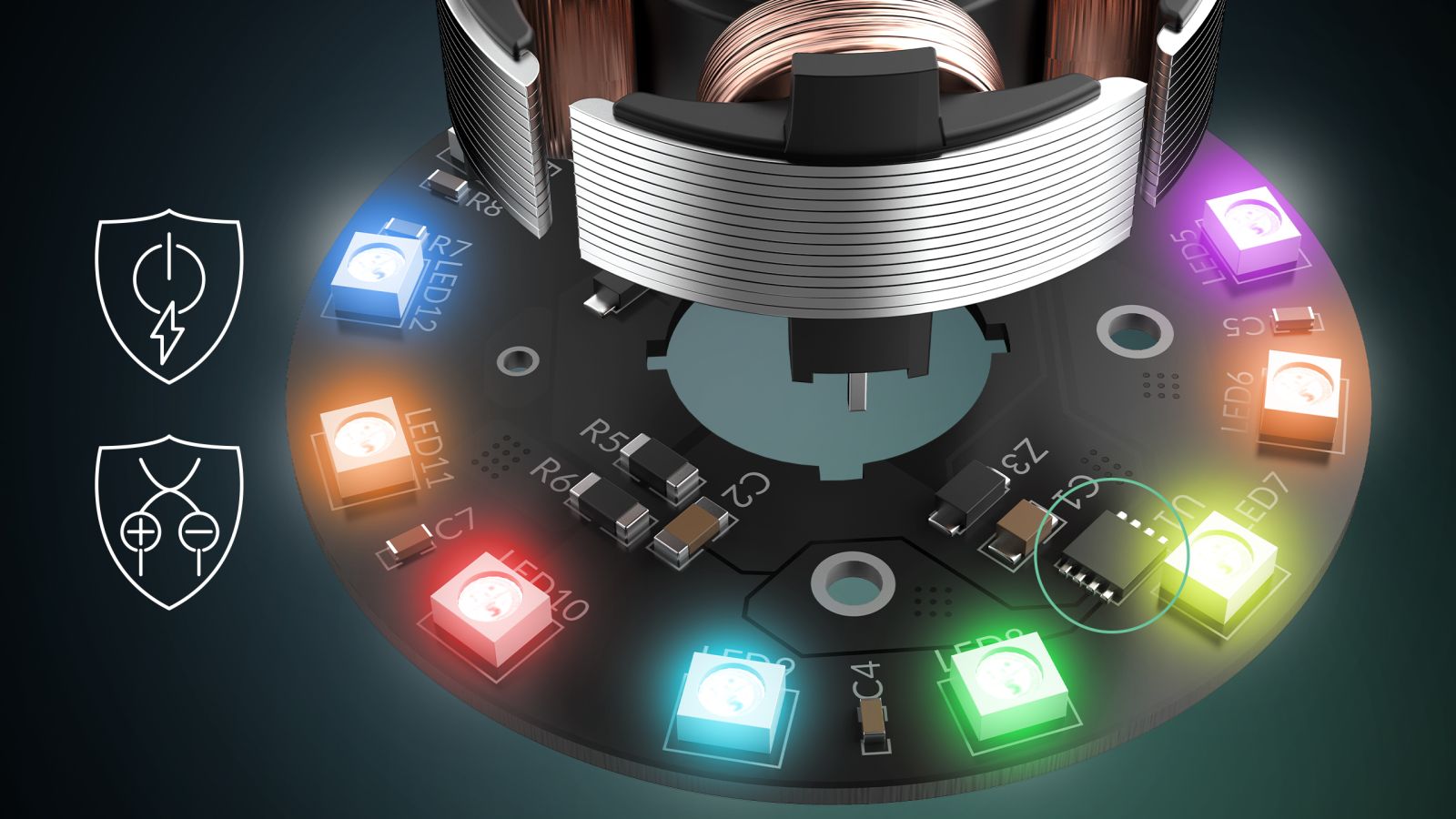

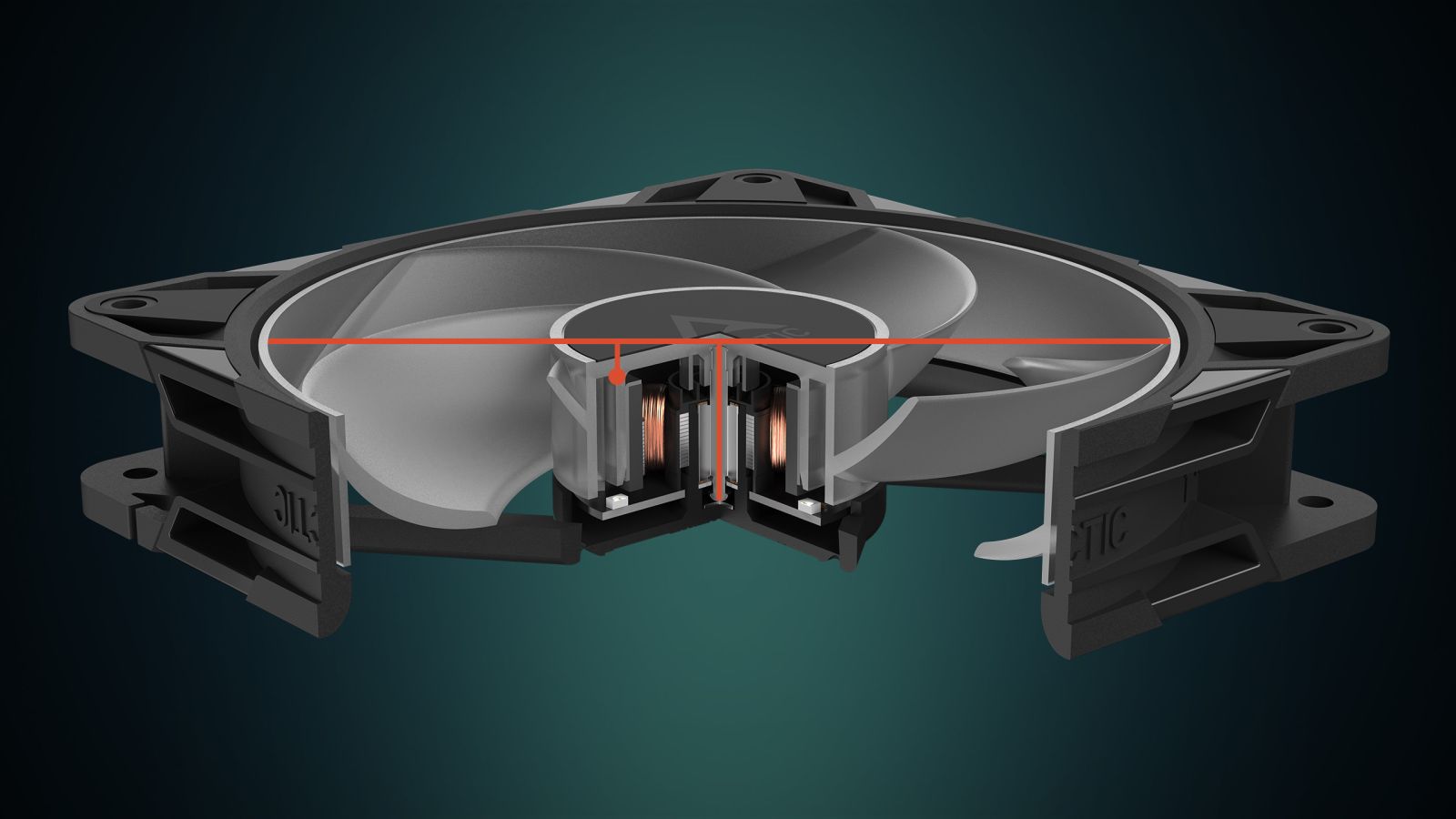

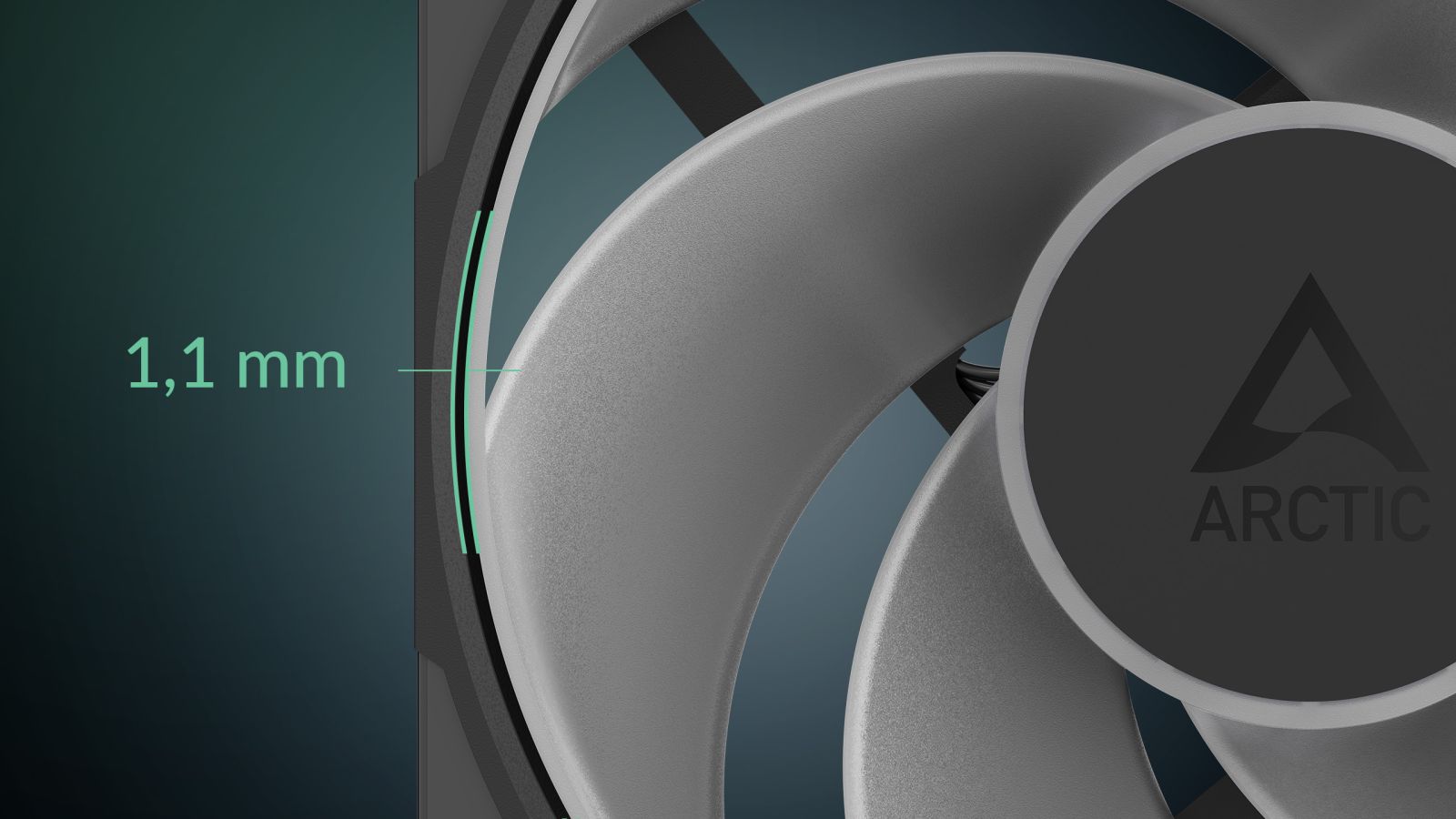

SOTA Microcontroller Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity. | More Power – Less Noise An automated measuring and balancing process ensures smooth performance by applying the balancing compound with pinpoint accuracy. | Minimum Gap Dimensions for Maximum Efficiency Enables higher static pressure and maximum airflow efficiency. |
 |  |

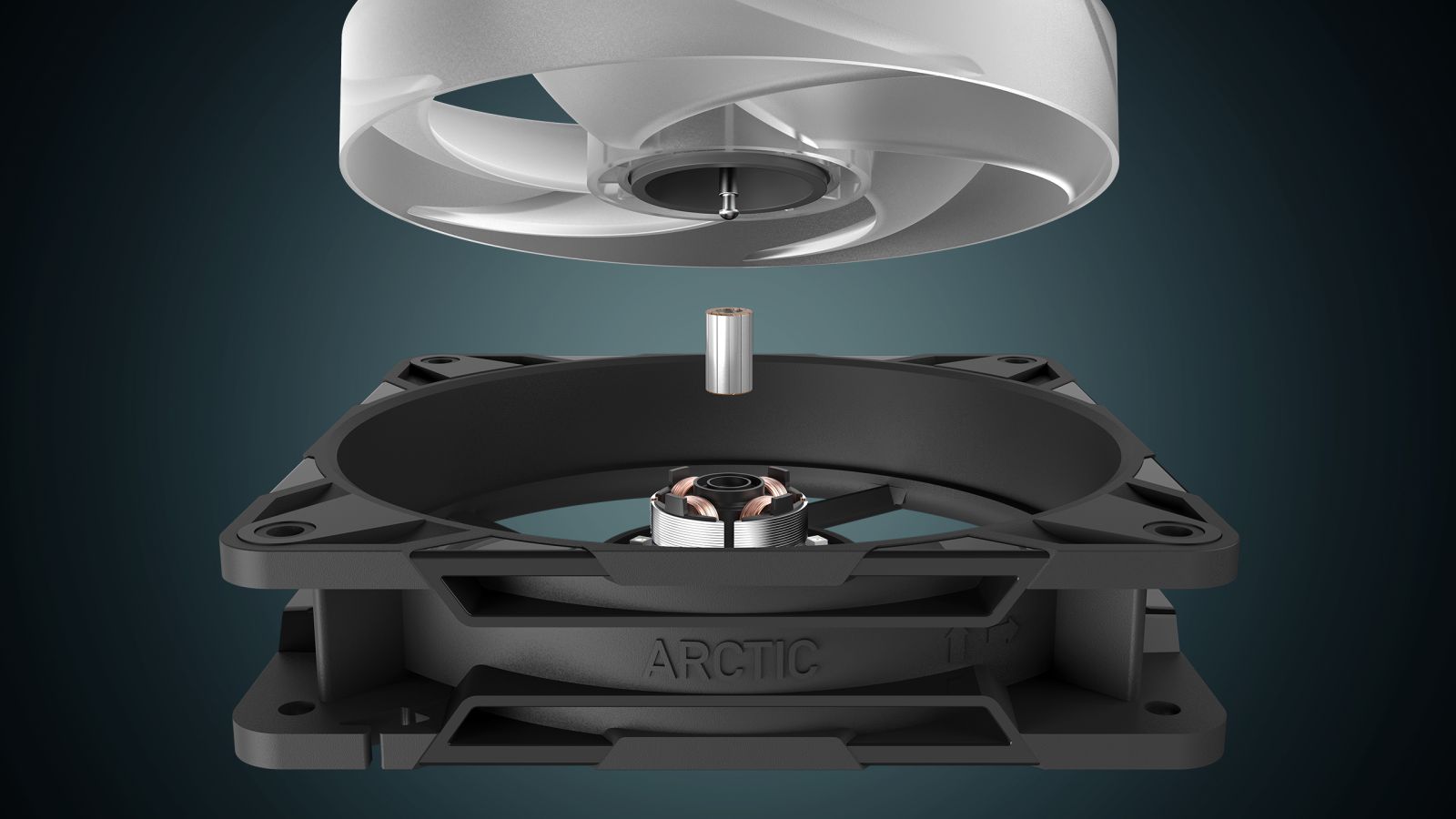

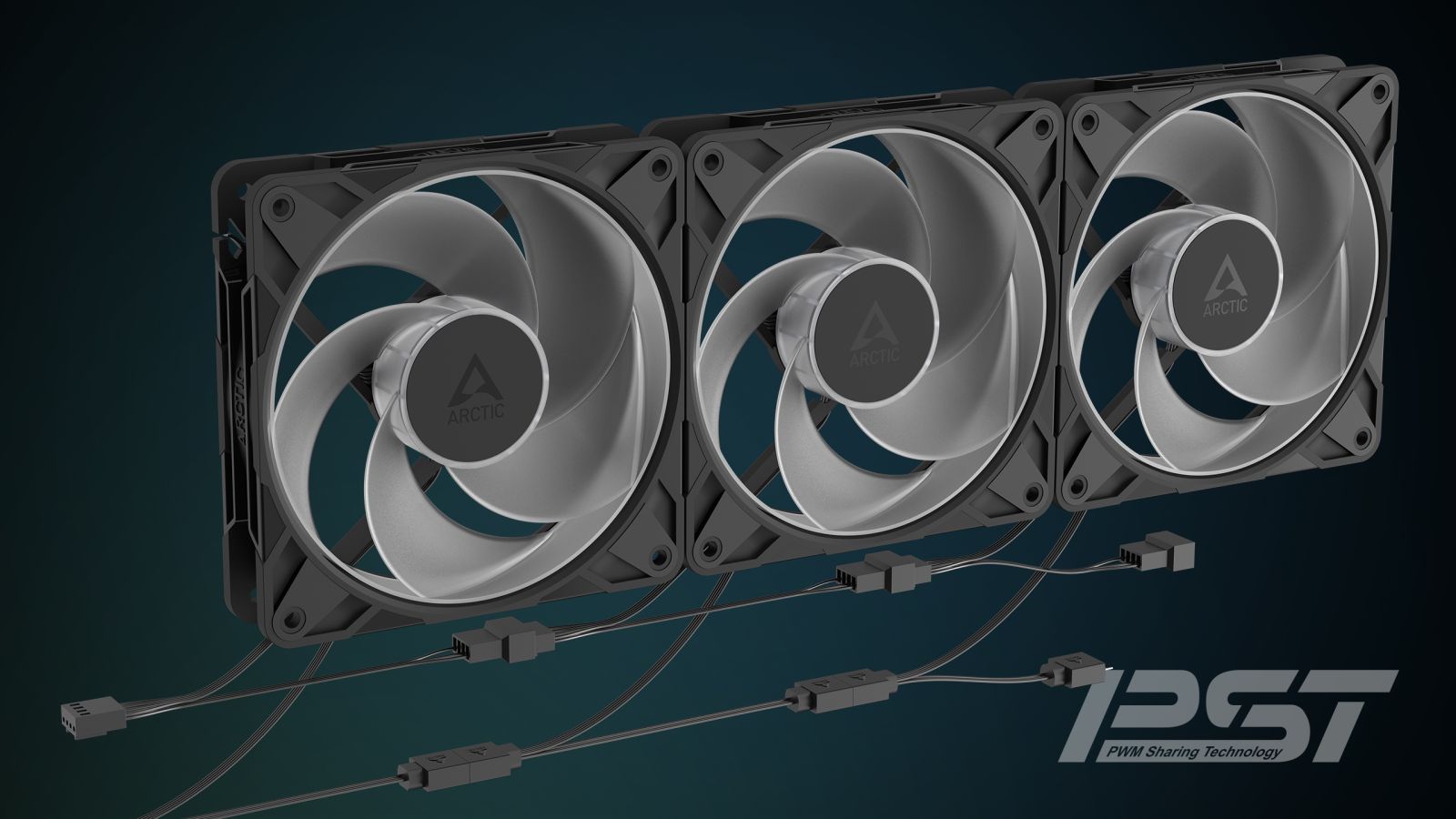

PST – Easy Cable Management and Synchronized PWM Control Thanks to the additional PWM connector, multiple fans can be daisy-chained and controlled simultaneously through a single header. | Optimized FDB Bearing-Shaft Design A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations. |
Specifications
General Specifications
Operating Ambient Temperature
0–40 °C
Dimensions
120 (L) x 120 (W) 27 (H) mm
Net Weight
172 g
Fan Specifications
Fan Speed
500 -3000 rpm PWM Controlled
0 rpm below 5% PWM
Airflow
73 cfm | 124 m³/h
Static Pressure
4.5 mmH2O
Fan Bearing
Fluid Dynamic Bearing
Typical Voltage
12 V DC
Start Up Voltage
3.5 V DC
Current
0.4 A
Cable Length
400 mm + 80 mm Daisy-Chain Cable
Connector
4-Pin Fan Plug + 4-Pin Socket

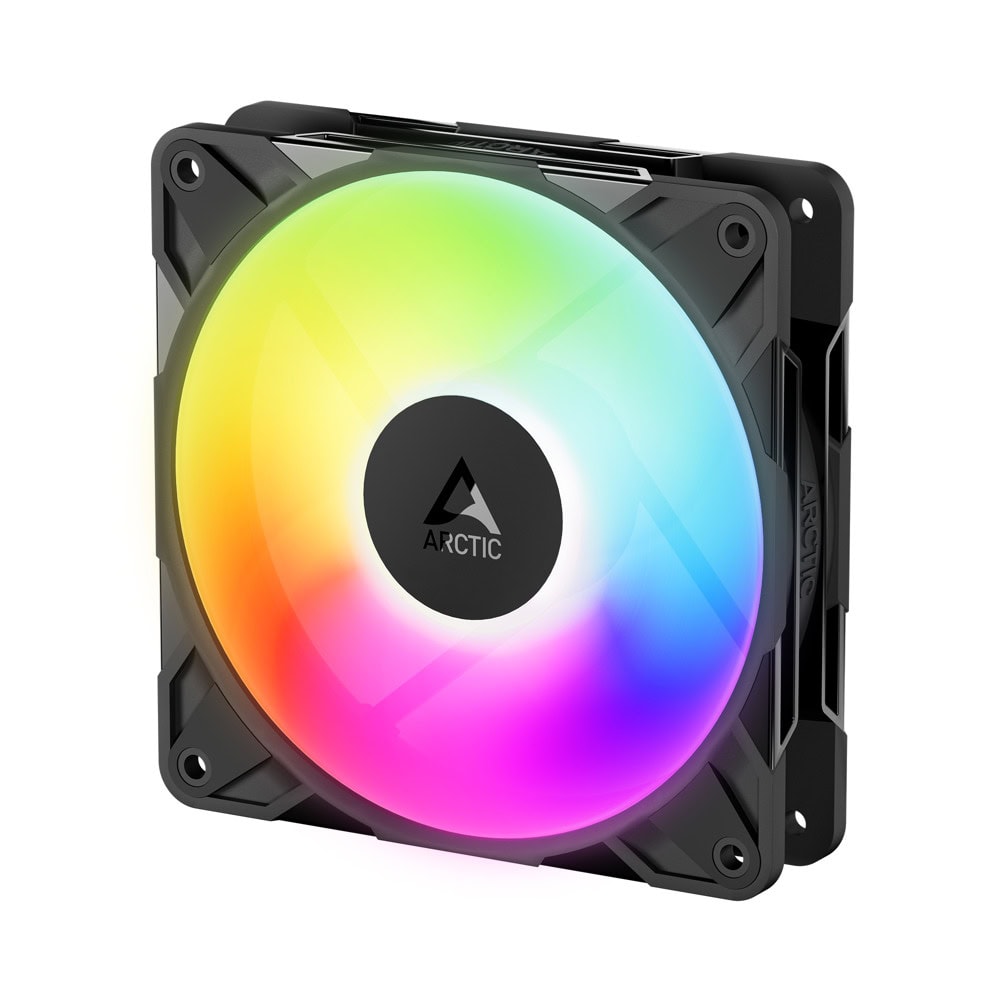

RGB Specifications
LEDs
12x A-RGB Gen2 LEDs
Current | Voltage
0.40 A | 5 V DC
Connector
3-Pin A-RGB Plug + 3-Pin Socket
