Name: Захранване DeepCool (PM750D), 750W, Active PFC, Gold 80+, 120mm вентилатор
Brand: DeepCool
SKU: PWRPCDEEPCOOLRPM750DFA0BUS
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

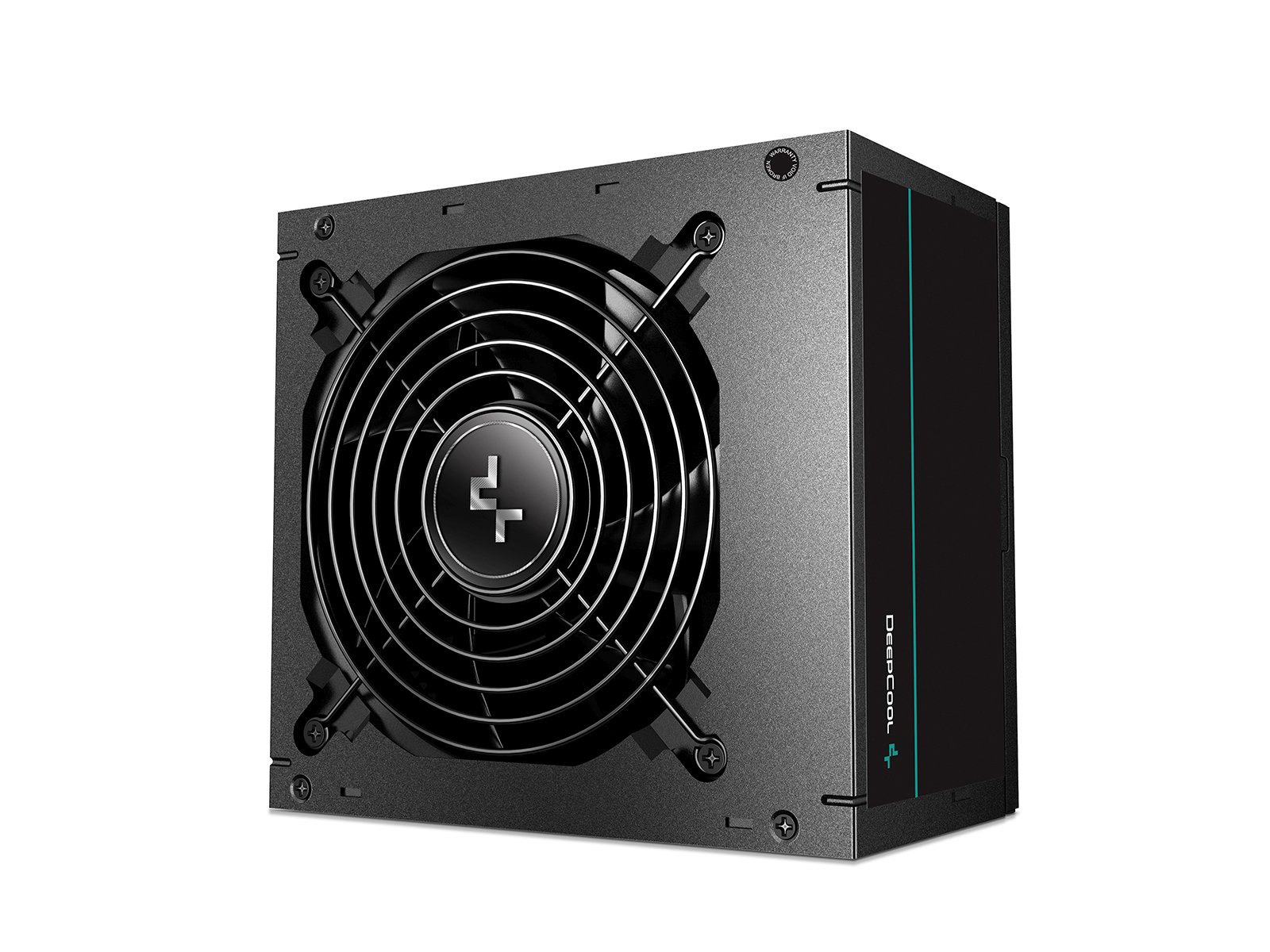

DeepCool PM750D

DeepCool PM750D Series non-modular power supplies are certified 80 PLUS Gold for efficient power delivery with great performance at a great value.

Захранване DeepCool (PM750D), 750W, Active PFC, Gold 80+, 120mm вентилатор - характеристика 3

Technical Specification

Type	ATX12V V2.4

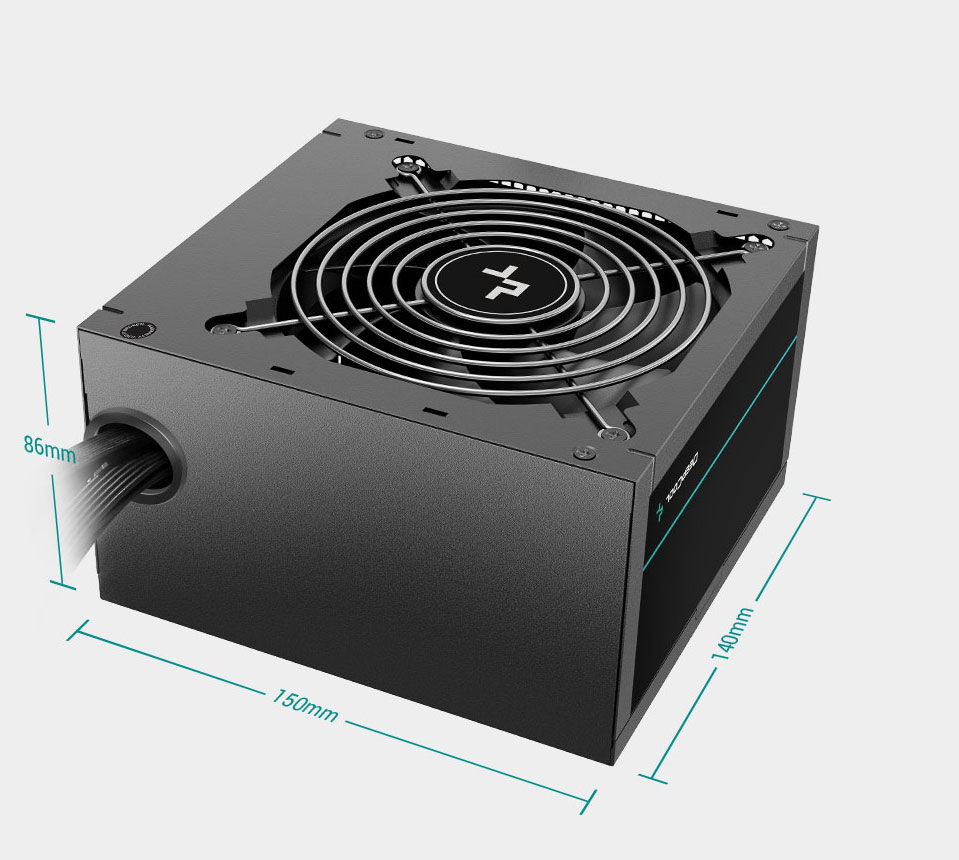

Product Dimensions	150×140×86mm (W x L x H)
80PLUS Certifications	GOLD
Fan Size	120mm
Fan Bearing	Hypro Bearing
Topology	Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors	Japanese Bulk Capacitor
Power Good Signal	100-150ms
Hold Up Time	≥16ms(75% Load)
Efficiency	≥90% Under Typical Load(50% Loading)
Protection	OPP/OVP/SCP/OTP/OCP
Operation Temperature	0-40°C
Regulatory	TUV/cTUVus/CCC/CE/FCC/UKCA/EAC/BIS
Erp Regulation	ErP(2014)
MTBF	100,000 Hours

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.

Виж още Захранвания Настолни компютри DeepCool
Виж всички Захранвания Настолни компютри в категорията

Документация

Декларация за съответствие_DeepCool PMxxxD Series.pdf

Технически характеристики

Изходна мощност:	750 W
Модулен блок:	Не
Форм фактор:	ATX

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Какво пазаруват другите
Най-продавани продукти
Промоционални продукти

80 PLUS GOLD CERTIFIED Guarantees a minimum efficiency of 90% or higher under typical loads for reliable power delivery with little waste.
	QUALITY TOPOLOGY For solid power performance and minimal signal noise, the PM-D series PSU features a full-bridge LLC topology with DC-DC conversion and Japanese bulk capacitors that delivers terrific reliability.
BUILT TO SPEC Made to meet modern power supply design standards for consistent voltage stability, each PM-D power supply is also compliant with Intel PSU guidelines that support instant-on power from sleep or standby modes.

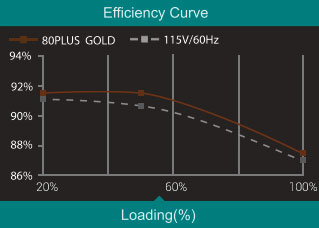

	80 PLUS® Gold 80 PLUS® Gold certified - Up to 87~90% efficient (20~100% Loading)

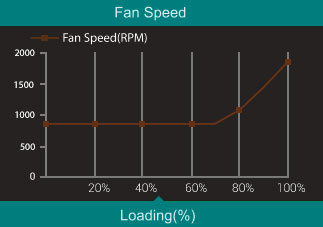

Silent and High Performance Fan 120mm silent fan has temperature control function to keep low noise
