Точка за достъп D-Link Nuclias Connect DAP-E3620, 3600Mbps, 2.4 GHz (688Mpbs)/5GHz (2882Mbps), 1x 10/100/1000/2500Mbps LAN PoE, 4x вътрешни антени

D-Link Nuclias Connect DAP-E3620

BE3600 Wi-Fi 7 Ceiling Mount Access Point

• Affordable Wi-Fi 7 upgrade for everyday business use
• BE3600 dual-band Wi-Fi for modern teams and offices
• Reliable performance in environments
• 2.5GbE uplink for faster end-to-end connectivity
• Simple PoE+ deployment with one-cable setup
• Enterprise-grade security with WPA3 support
• Easy traffic separation with VLAN-to-SSID mapping
• Built-in captive portal for guest access
• Flexible deployment modes for multiple scenarios
• Centralized management for easy operations

Faster Wi-Fi 7 for
Better Business Experiences

Dual-band Wi-Fi 7 (802.11be, BE3600 class) built for business environments — more speed, less latency, more devices.

• 5 GHz up to 2882 Mbps + 2.4 GHz up to 688 Mbps — combined throughput for demanding workloads, video collaboration, and dense device environments.
• Multi-Link Operation (MLO) uses both bands simultaneously, cutting latency and keeping connections stable when one band is congested.
• 4096-QAM enables faster data transmission for smoother streaming, gaming, and downloads.
• Designed for offices, hospitality, retail, and SMB deployments, it provides stable, scalable wireless performance for staff, guests, and connected devices—helping improve productivity, user experience, and operational efficiency.

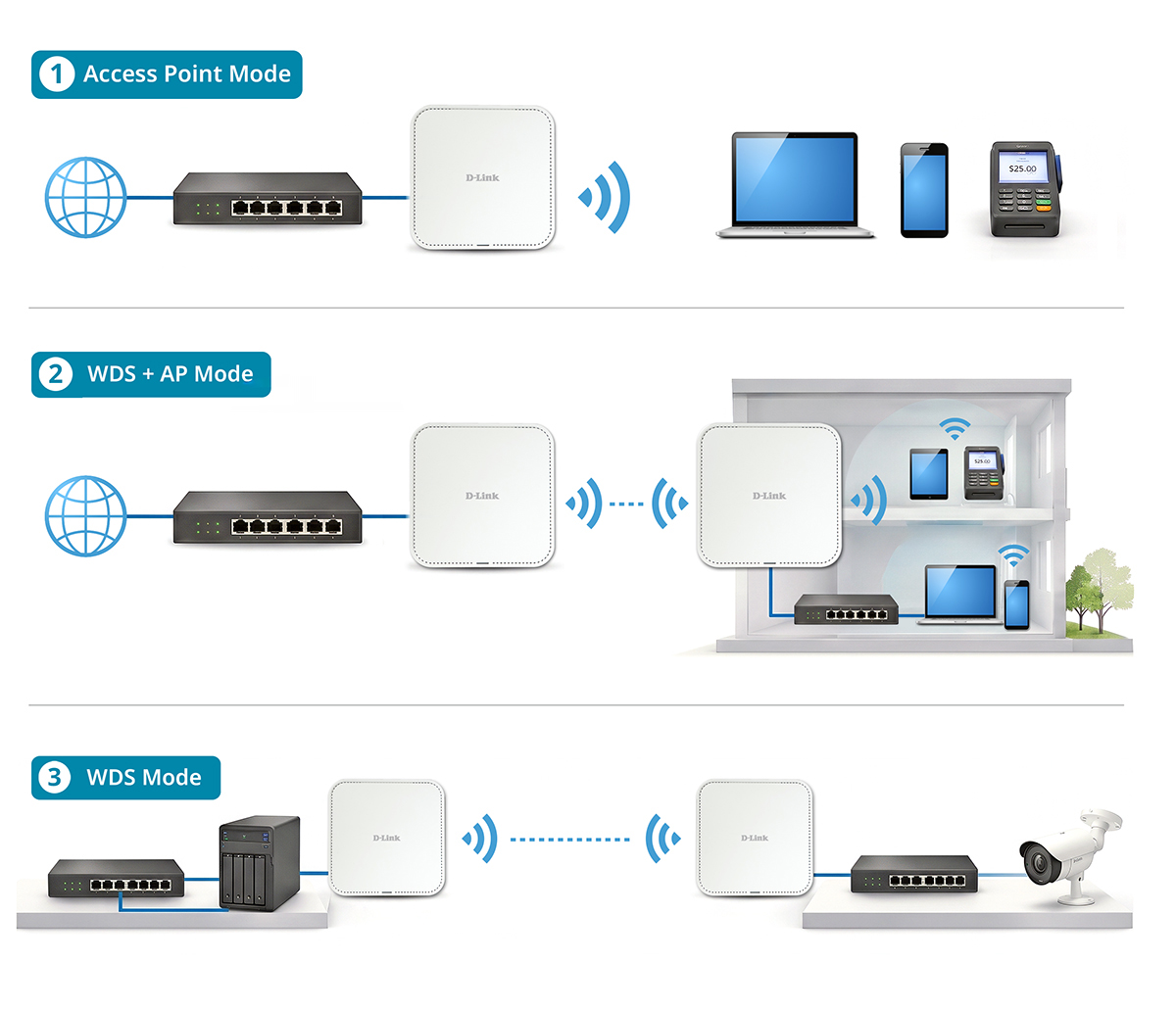

Flexible Deployment for Any Network Need

Deploy in the mode that fits your infrastructure. Switch between access point, wireless bridge, or hybrid coverage without additional hardware.

Access Point Mode
Standard Wi-Fi coverage for wired networks — offices, classrooms, and public hotspots.

WDS with Access Point Mode (Wireless bridging + local coverage)
Extends coverage wirelessly while broadcasting a local SSID — connects floors or buildings without new cabling.

WDS Mode (No AP Broadcasting)
Pure wireless backhaul between two wired networks — no local SSID. Ideal for linking switches, cameras, or servers across sites.

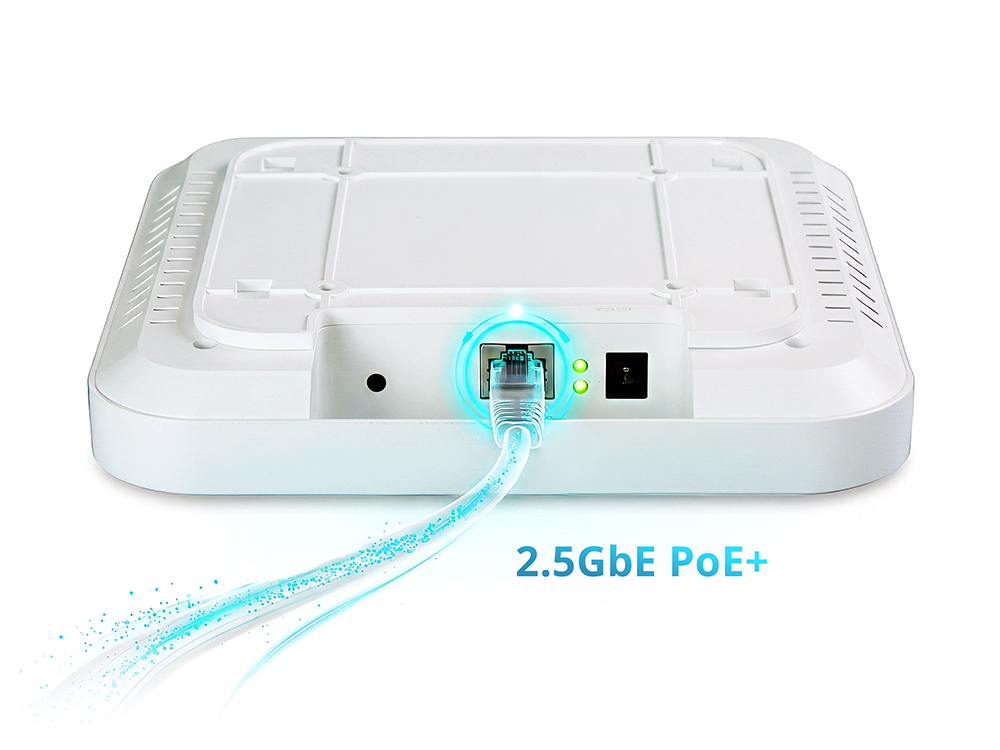

High-Speed 2.5GbE PoE+ Uplink — No Wired Bottleneck

• Full Wi-Fi 7 throughput — the 2.5GbE uplink matches wireless capacity so your wired network never limits wireless performance.

• Single cable for power and data — IEEE 802.3at PoE+ eliminates the need for a separate power adapter, simplifying installation anywhere a switch port can reach.

Category

Ceiling

Interfaces

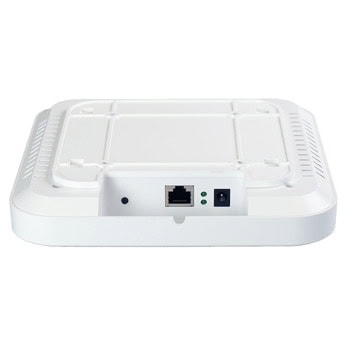

1 x 2.5-Gigabit Ethernet PoE LAN port

Antenna type

2 x 2.4 GHz internal antennas
2 x 5 GHz internal antennas

Antenna gain

2.4 GHz: 4 dBi
5 GHz: 4 dBi

Maximum Output Power

2.4 GHz: 25 dBm
5 GHz: 25 dBm

Data Signal Rate

2.4 GHz: Up to 688 Mbps
5 GHz: Up to 2882 Mbps

IEEE Standard

IEEE 802.11be/ax/ac/n/g/b/a
IEEE 802.3u/ab/bz
IEEE 802.3t PoE

Operating Frequency

2.4 - 2.483 GHz
5.15 - 5.35 GHz
5.47 - 5.85 GHz

Security Protocol

WPA/WPA2/WPA3™ Personal/Enterprise
WEP 64/128-bit
SSID broadcast disable
Enhanced Open
MAC address access control
Internal RADIUS server

Network Management

Web
Nuclias Unity
Nuclias hardware and software controller
SNMP

Power Supply

IEEE 802.3at PoE
12 V / 2.5 A (Optional power adapter)

Max. Power Consumption

14.17 W

Operating Temperature

0°C - 40°C (32°F - 104°F)

Storage Temperature

-20°C to 65°C (-4°F to 149°F)

Operating Humidity

10% to 90%

Storage Humidity

5% - 95%

Dimensions

186 x 186 x 37 mm
