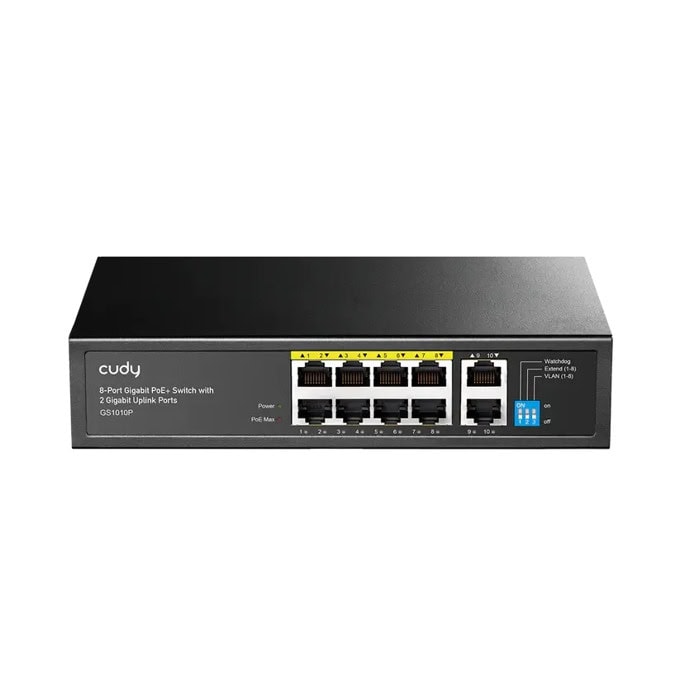

Cudy GS1010P 3.0
Cudy GS1010P 3.0empty image 1empty image 2empty image 3

Суич Cudy GS1010P 3.0, 1000Mbps, 10 порта, 8x 10/100/1000 Mbps PoE+, 2x Uplink

id 306792 Код: NTLHCUDYGS1010P30

49.90 €

Печат

Изпрати на приятел

ОписаниеХарактеристикиРевюта / ВъпросиДокументация

Cudy GS1010P 3.0

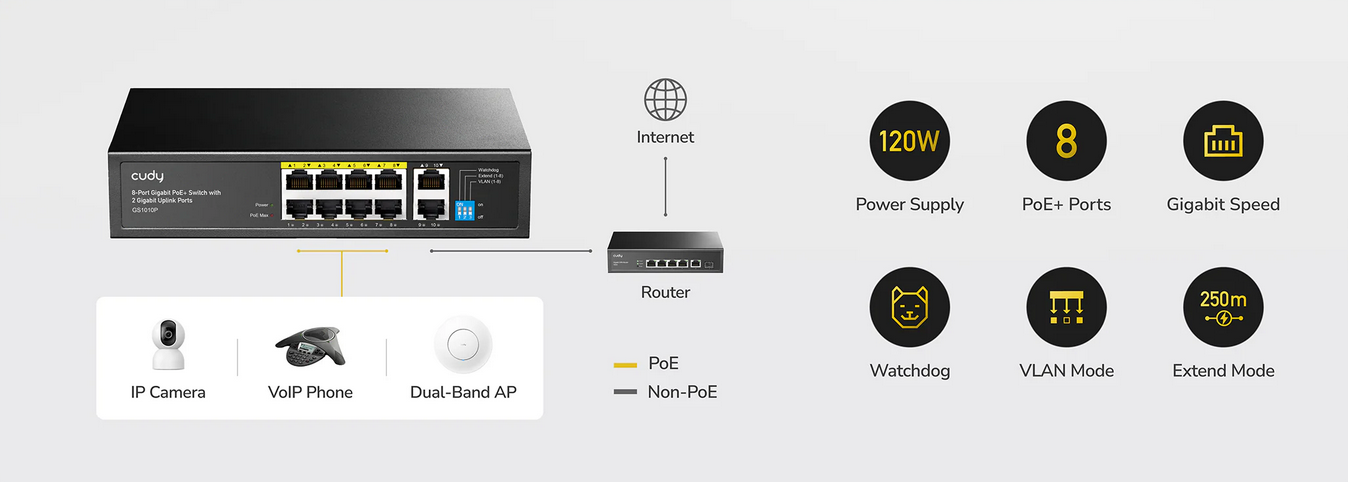

Reliable PoE for 24/7 Consistent Operation



IEEE 802.3at/af. Up to 30W Per Port.

Each PoE port delivers up to 30W of power, making it suitable for access points, IP cameras, digital signage, and most other PoE devices.

PoE Auto Recovery

Turn on the Watchdog function to monitor port activity. If a connected device freezes and stops transmitting data for 5 minutes, the Watchdog will automatically reboot the corresponding PoE port.



Built-In Modes for Practical Use Cases

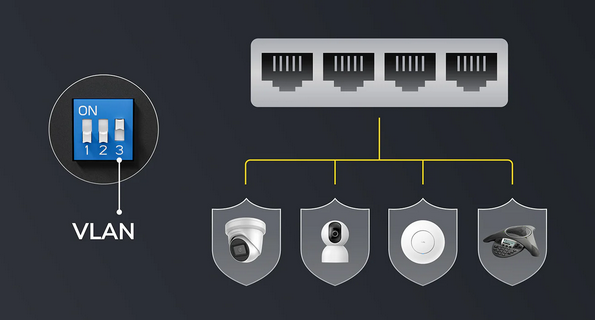

VLAN Isolates Downlink Ports for Improved Safety

Turn on the VLAN mode to prevent client-side hacking, preventing sensitive data from leaking. The downlink clients will only be able to communicate with the uplink devices.

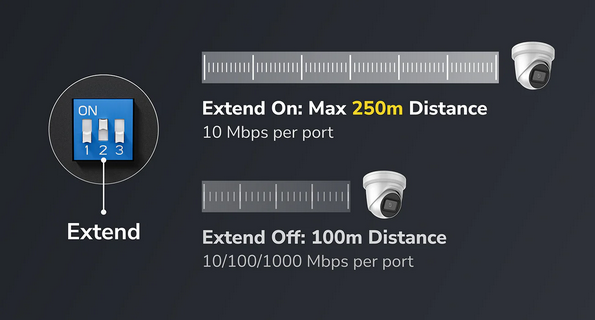

Extend for 250 m Transmission

For long-distance networking, enable the Extend mode to connect clients up to 250 meters away by limiting the port speed to 10 Mbps.







Specifications



InterfacesGigabit RJ45 Ports10
 Gigabit RJ45 PoE Ports#1~#8
 Max Power on a Single PoE Port30W
 PoE Port NotesThe PoE ports comply with IEEE 802.3at/af standards.
 PoE PriorityIntelligent Power Management:
Automatically disconnect the lastly powered device when power exceeds budget.
 Shielded RJ45 Port
 Extend Mode Ports#1~#8
 VLAN Mode Ports#1~#8
 LED
  • Power
  • Link/ACT of Each Ethernet Port
  • PoE Max Status
 Power InterfacesAC Inlet
 Physical Buttons
  • Extend On/Off
  • VLAN On/Off
  • PoE Watchdog On/Off
 Physical Buttons NoteThe PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
PerformanceMax Copper Speed and Distance
  • Cat. 3 or higher cable: 100 meters at 10 Mbps
  • Cat. 5 or higher cable: 100 meters at 100 Mbps
  • Cat. 5e or higher cable: 100 meters at Gigabit
  • Cat. 5e or higher cable: 250 meters at 10 Mbps
 Copper Speed and Distance Note250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
 MAC Address Table2048
 Max Switching Capacity20 Gbps
 Max Forwarding Rate14.88 Mpps
 Jumbo Frame9 KB
 Packet Buffer1 Mbit
PowerPower MethodsAC
 Power Input100-240V~ 50/60Hz
 Power Supply120W
 Max Power Excluding PoE10W
Switching802.3 Protocols
  • 802.3i 10BASE-T
  • 802.3u 100BASE-TX
  • 802.3ab 1000BASE-T
  • 802.3x Flow Control
  • 802.3af PoE
  • 802.3at PoE
 PoE ManagementIntelligent Power Management
ReliabilityGrounding MethodsThree-Prong Plug
 EMSIEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
 EnvironmentOperating Temperature: 0~40 ℃ (32~104 ℉)
Storage Temperature: -40~70℃ (-40~158 ℉)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 10~95% non-condensing
MechanicalDimension200×118×44 mm
7.87×4.65×1.73 inches
 Product Weight663.3 g (23.4 oz.)
 Casing MaterialMetal
 Installation
  • Desktop
  • Wall-mount




    Виж още Суич Cudy
    Виж всички продукти Суич в категорията
    Документация
    Технически характеристики
    Брой портове:  10
    Максимална скорост:  1 Gbit/s
    Стандарт:  IEEE 802.3 at
    Управляем:  Не е указано
