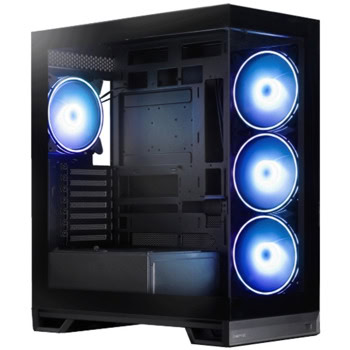

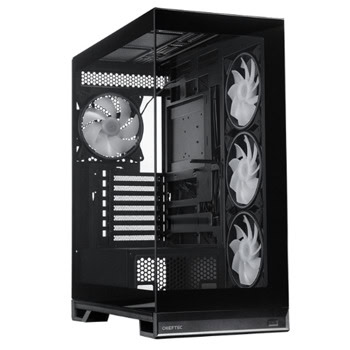

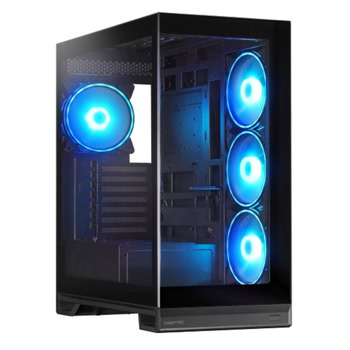

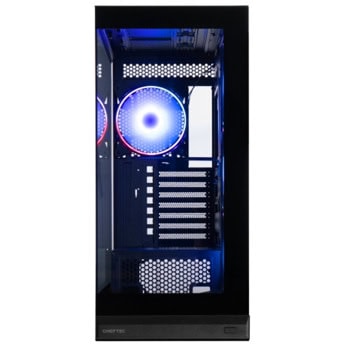

VISTA Max
- Panoramic ATX chassis with aesthetic and functional stand design
- Dual power buttons for flexible placement
- Easily removable dust filters at bottom

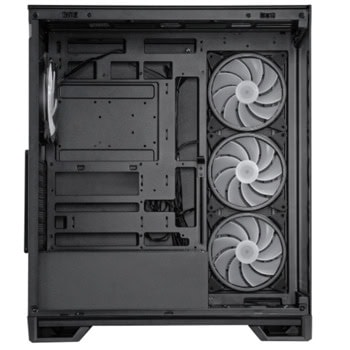

- 4 x pre-installed 140mm A-RGB fans

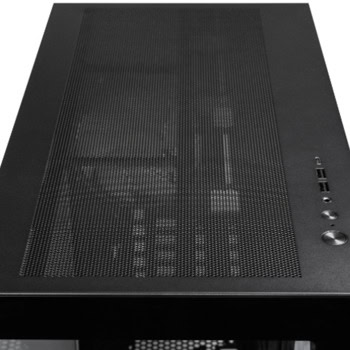

- Removable top panel for easy fan installation
- Compatible with back-connect motherboards
The GX-30B-OP is a panoramic ATX chassis featuring a seamlessly integrated, aesthetic, and functional stand design, with dual power buttons for versatile placement and an easily removable dust filter at the bottom for convenient maintenance.
This chassis offers flexible hardware compatibility, supporting ATX PSUs up to 180mm in depth, CPU coolers up to 178mm in height, and graphics cards up to 420mm in length. Four 140mm A-RGB fans come pre-installed at the front and rear to enhance airflow.
Additionally, it supports one 3.5” HDD and one 2.5” SSD, or two 2.5” SSDs.
With the HDD/GPU fan cage installed, it supports one 3.5" HDD and one 2.5" SSD for additional storage, while a 120mm fan can be installed to further enhance GPU airflow.
| Weight (without/with package) | 11kg / 12kg |
| Color | Black |
| Material | 0.7mm SPCC |
| Motherboard support | Mini ITX, mATX, ATX |
| Dimension (DxWxH) | 452mm x 239mm x 526mm |
| Drive bay internal | 2x 2.5” or 1 x 3.5” and 1 x 2.5” With HDD/GPU fan cage: 1x 2.5” and 1x 3.5” |
| Power supply | ATX PSU (optional, up to 180 mm length) |
| Front I/O | 1x USB3.2 Gen2 Type C, 2 x USB3.0, Audio-out (HD-Audio) |
| Scope of delivery | Screw set, removable bottom dust filter, user manual, HDD/GPU fan cage |
| Expansion slots | 7 |
| Cooling Compatibility | Side: 3x 120mm / 3x 140mm fan (pre-installed) / 240mm radiator / 280mm radiator / 360mm radiator Rear: 1x 120mm / 1x 140mm fan (pre-installed) Top: 3x 120mm / 3x 140mm fan / 240mm radiator / 280mm radiator / 360mm radiator PSU shroud: 2x 120mm fan HDD/GPU fan cage: 1x 120mm fan |
| CPU cooler height (max.) | 178mm |
| VGA card length (max.) | 420mm |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Компютърни кутии Chieftec
Виж всички Компютърни кутии в категорията
| Захранване: | Не |
|---|---|
| Прозорец: | Да |
| Цвят: | Черен |
| E-ATX: | Не |
| ATX: | Да |
| Micro-ATX: | Да |
| Mini-ITX: | Да |
