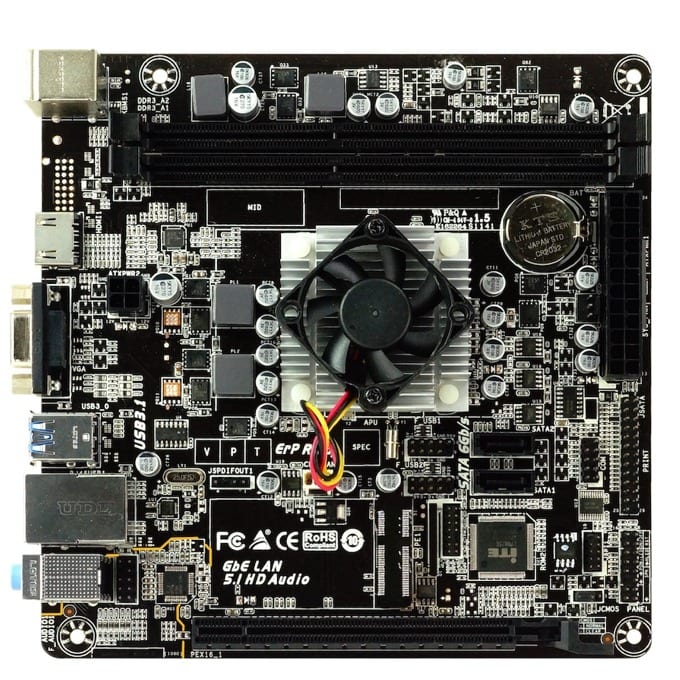

Name: Дънна платка Biostar BIO-MB-A68N-5600E, вграден четириядрен AMD PRO A4-3350B 2.0/2.4 GHz, PCI-E 2.0 (HDMI/VGA), DDR3, 2x SATA 6Gb/s, 2x USB 3.1 Gen 1, Mini-ITX
Brand: Biostar
SKU: MBCPUBIOSTARBIOMBA68N5600E
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

A68N-5600E

AMD PRO A4-3350B Processor
Supports 2 DIMM of DDR3 1600 & DDR3L 1333
Supports AMD Radeon™ R4 Graphics
Support HDMI display port
Supports USB 3.1 Gen1 Port
Supports TPM Header

Specifications:

Chipset

Carrizo-L

CPU

AMD PRO A4-3350B Processor
(Quad Core 2.0GHz up to 2.4GHz, 15W)

MEMORY

Max. Supports up to 16GB Memory
Each DIMM supports non-ECC 512MB/ 1/ 2/ 4/ 8 GB DDR3 & DDR3L module

# of DIMMs per channel	# of Ranks per DIMM	1.50V	1.35V
1 of 1	xR	DDR3-1600	DDR3-1333
1 of 2	xR-0	DDR3-1333	DDR3-1333
2 of 2	1R-1R	DDR3-1333	DDR3-1333
2 of 2	2R-xR	DDR3-1333	DDR3-1333

X=1or 2

INTEGRATED VIDEO

AMD Radeon™ R4 Graphics
Supports HDCP

STORAGE

2 x SATA III Connectors (6Gb/s) : Supports AHCI

LAN

Realtek RTL8111H - 10/100/1000Mb/s Controller

AUDIO CODEC

Realtek ALC887 5.1-Channel Audio
Support HD Audio
Support SPDIF_out

USB

2 x USB 3.1 Gen1 Port (2 on rear I/Os)
6 x USB 2.0 Port (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT

1 x PCI-E 2.0 x16 Slot (x4)

REAR I/O

1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.1 Gen1 Ports
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O

Supports Single Channel DDR3
2 x USB 2.0 Header (each header support 2 USB 2.0 ports)
2 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x S/PDIF-Out Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x TPM Header
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header
1 x COM Port Header
1 x Printer Port Header

DIMENSION

Mini ITX Form Factor Dimension: 17 cm x 17 cm ( W x L )

OS SUPPORT

Supports Windows 7 / 10
※Biostar reserves the right to add or remove support for any OS with or without notice.

ACCESSORIES

DDR3 & DDR3L DIMM Memory Slot
2 x SATA Cable
1 x I/O Shield
1 x Fully Setup Driver CD
1 x Quick Guide
