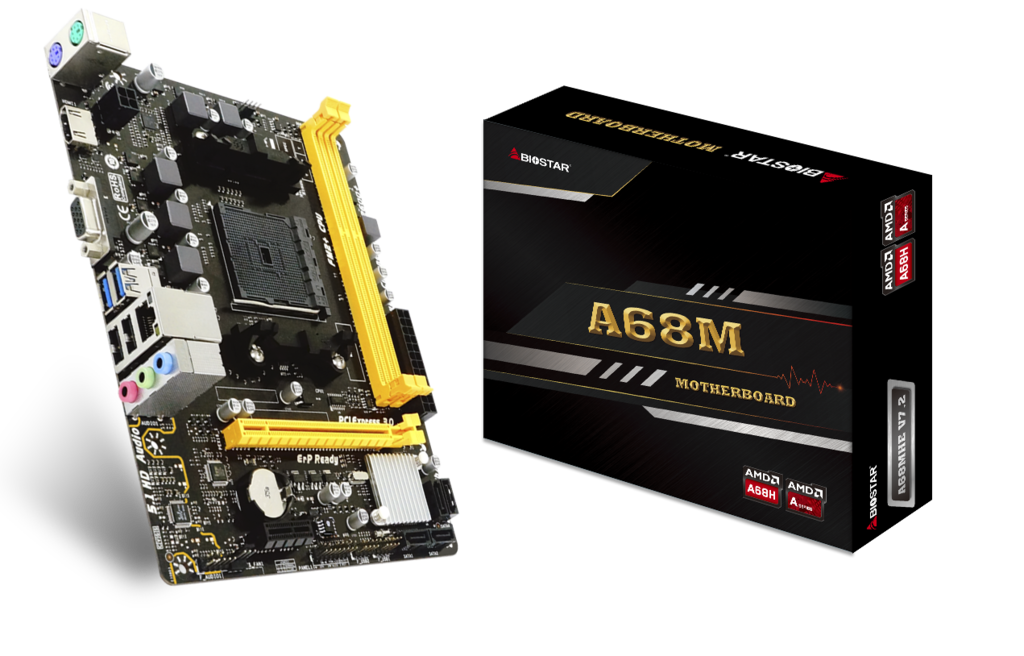

Дънна платка BIOSTAR A68MHE, A68H, FM2+, DDR3, 4 x SATA III, 2 x USB 3.2, 2 x USB 2.0, HDMI, VGA, Micro ATX

A68MHE Ver. V7.x

• Support AMD Socket FM2+ Athlon™/A- Series Processors
•  AMD AMD A68H Chipset
•  Support 2-DIMM DDR3-2600(OC) up to 32G maximum capacity
•  Support USB 3.2
•  Support HDMI
•  Support GbE LAN
• AMD Dual Graphics Technology

​

Specification

Chipset:
AMD A68H

CPU SUPPORT:
AMD FM2+ A-series APU
Maximum CPU TDP (Thermal Design Power) : 100Watt

MEMORY:
Support Dual Channel DDR3 800/ 1066/ 1333/ 1600/ 1866/ 2133/ 2400(OC)/ 2600(OC) MHz
2 x DDR3 DIMM Memory Slot
Max. Supports up to 32GB Memory

INTEGRATED VIDEO:
By CPU model
Supports DX12
Supports HDCP
AMD Dual Graphics Technology

STORAGE:
4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10

LAN:
Realtek RTL8111H - 10/100/1000Mb/s Controller

AUDIO CODEC:
Realtek ALC662 6-Channel HD Audio

USB:
2 x USB 3.2 Gen1 Port (5Gb/s) (2 on rear I/Os)
6 x USB 2.0 Port(2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT:
1 x PCI-E 3.0 x16 Slot
1 x PCI-E 2.0 x1 Slot

REAR I/O:
1 x PS/2 Mouse
1 x PS/2 Keyboard
2 x USB 3.2 Gen1 (5Gb/s) Port
2 x USB 2.0 Port
1 x HDMI Connector
1 x VGA Port
1 x LAN Port
3 x Audio Jacks

INTERNAL I/O:
2 x USB 2.0 Header(each header supports 2 USB 2.0 ports)
4 x SATA III Connector (6Gb/s)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
1 x System Fan Connector
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x Clear CMOS Header

H/W MONITORING:
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring

DIMENSION:
Micro ATX Form Factor Dimension: 21.5 cm x 17 cm ( W x L )

OS SUPPORT:
Supports Windows XP/ 7/ 8/ 8.1(64bit)/ 10(64bit)

BUNDLE SOFTWARE:
BullGuard

ACCESSORIES:
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
